Install Bay TE-SRBC 12V Power IP67/IP68 Universal Remote Mount Backup Camera

Install Bay TE-SRBC 12V Power IP67/IP68 Universal Remote Mount Backup Camera

Regular price $50.99 USD
Regular price Sale price $50.99 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

INSTALL BAY TE-SRBC

Univeral 12 Volts 170 Degree Angle IP67/IP68 Remote Mount Backup Rear View Camera

Key Features:

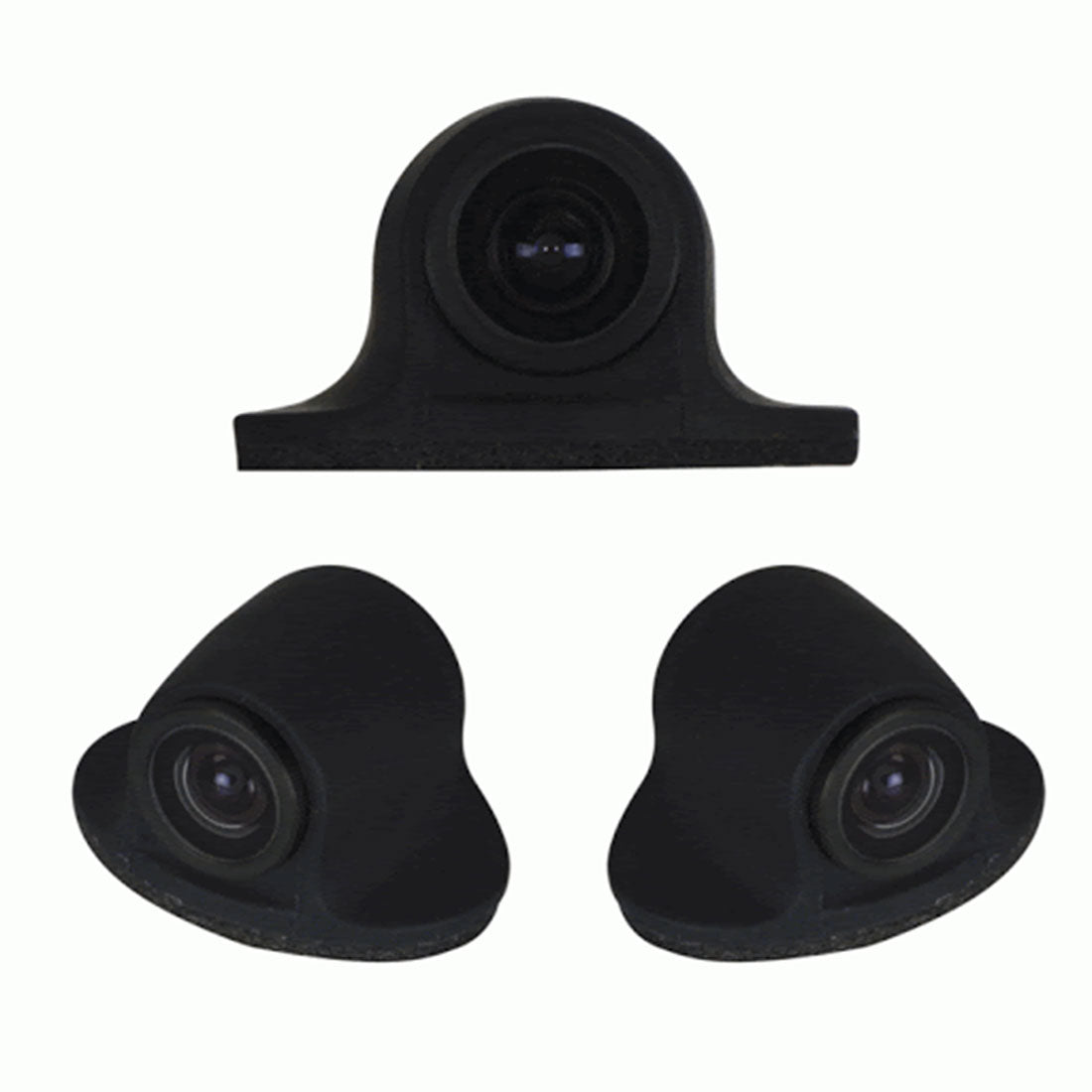

  • Small black rubber housing mountable camera
  • 170° Degree viewing angle
  • Can be mounted up, down or sideways
  • Selectable parking assist lines
  • Waterproof design
  • Includes video cable extension
  • Includes power cable extension
  • Effective Pixel: 510 x 492
  • Horizontal Sync Frequency: 15625 KHz
  • Vertical Sync Frequency: PAL 50Hz / NTSC 60Hz
  • Scanning System: 2:1 Interlace
  • Sync System: Internal
  • AGC: Auto
  • BLC: Auto
  • Resolution: 380 TV Lines
  • S/N Ration: More Than 48dB
  • Current Consumption: No more than 150mA
  • Power Supply: DC12V±10%
  • Operating Temperature: -20°C~60°C RH95%MAX
  • Storage Temperature: -30°C~60°C RH95%MAX
  • Horizontal Angle: 92° / 110°
  • Lens Angle: 92° / 120°
  • Water-proof: IP67/IP68
  • Minimum Illumination: 0.5 Lux/F1.2 (0 Lux with Red)
  • Product Weight: Approx. 0.40 lbs. / 6.4oz.
  • Product Dimensions: Approx. 9 x 7 x 4 inches
