MB Quart NA2-500.5 500 Watts 5-Channel Powersports Marine Grade Class D Amplifier

Brand New

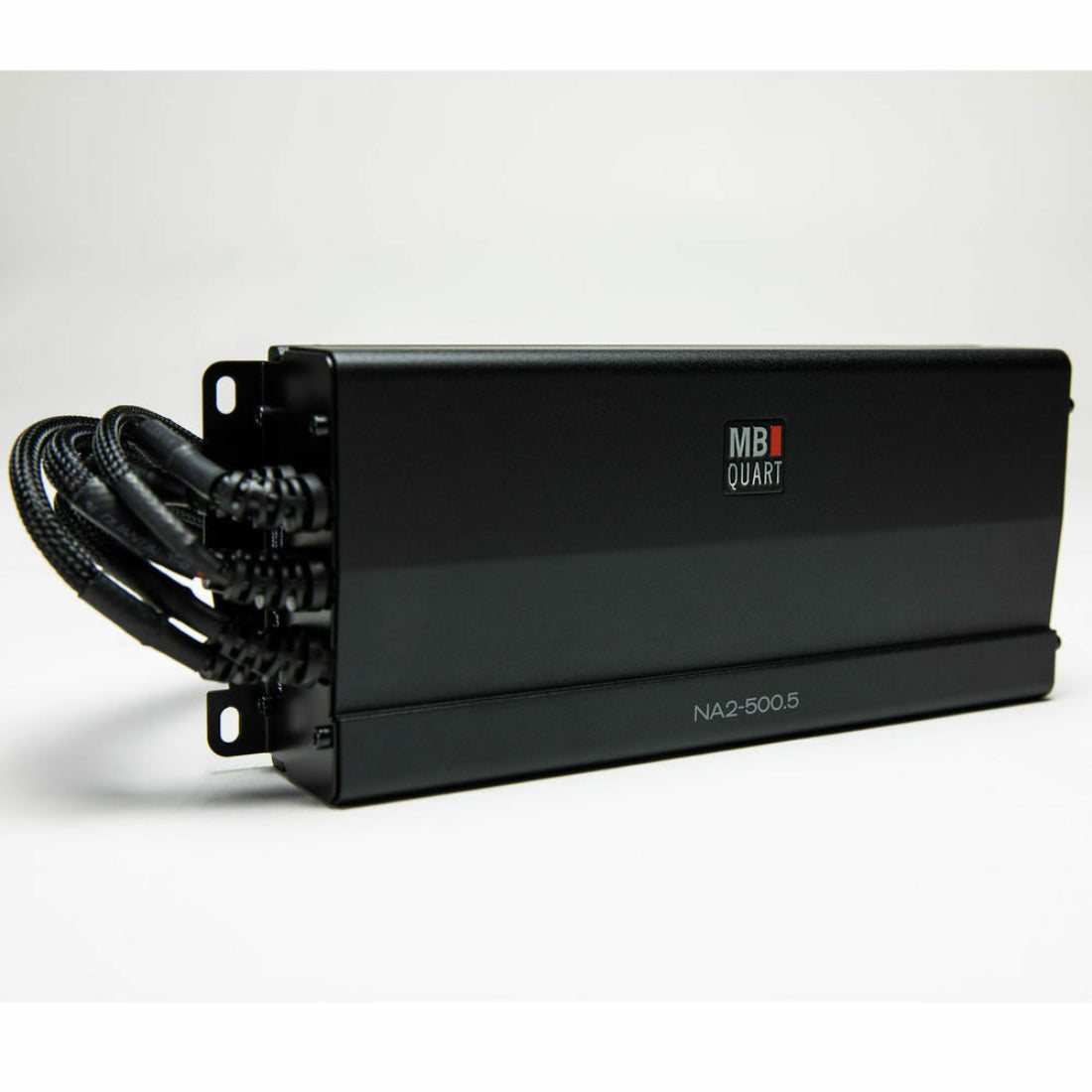

MB Quart NA2-500.5

500 Watts 5-Channel Powersports Marine Grade Class D Amplifier

Key Features:

MB Quart NA2-500.5

Class-D Full Range 2-Ohm Stable 5-Channel Amplifier

Ultra Compact design built for powersports applications

Marine and powersports certified

RMS Power Rating:

4 ohms: 40 watts x 4 chan., 100 watts x 1 chan.

2 ohms: 80 watts x 4 chan., 200 watts x 1 chan.

Total power output: 500 watts

Pulse Width Modulated MOSFET power supply

Wired remote bass level control included

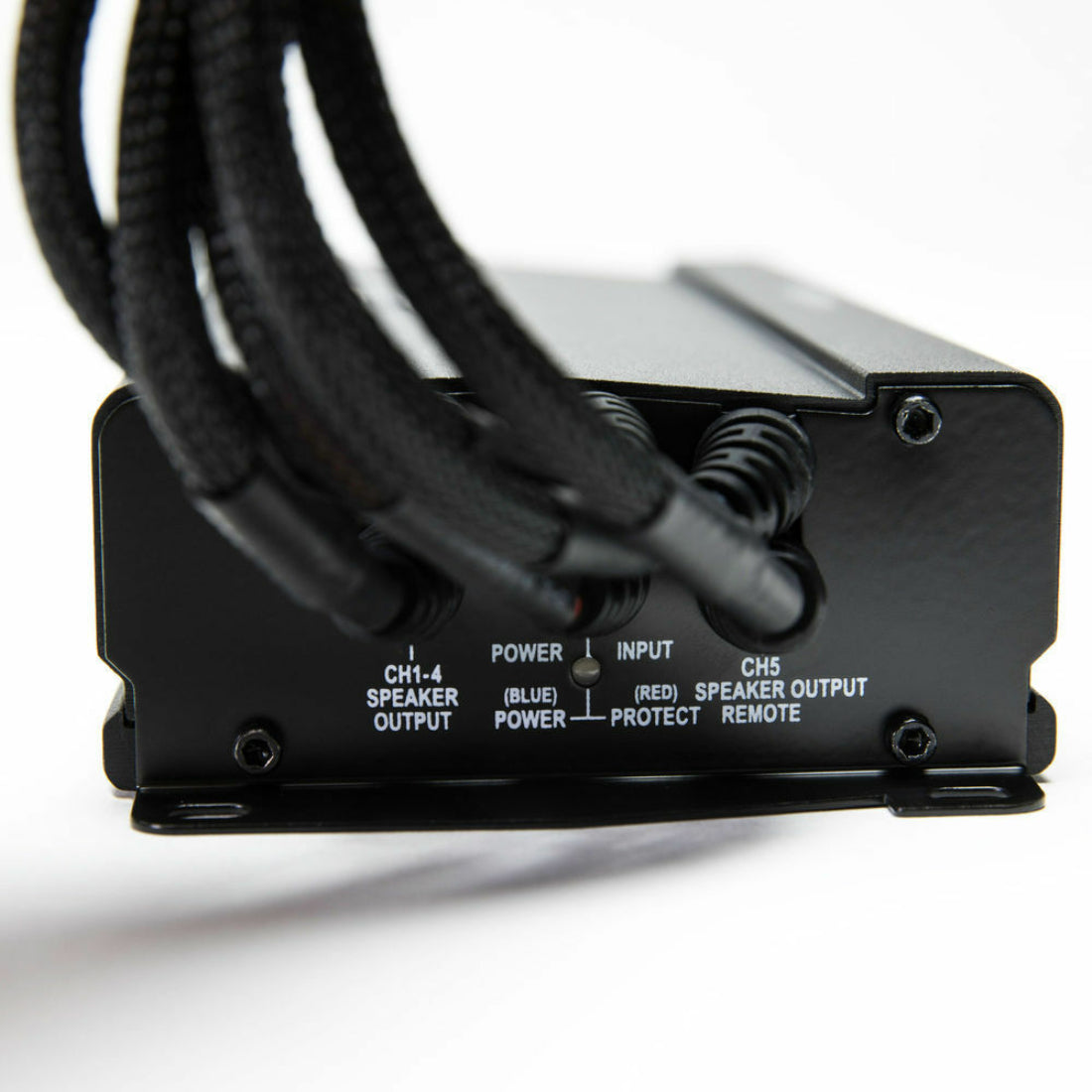

LED power (green) and protect (red) indicators

Soft start turn-on

5/4/2 channel operation

Speaker-level (high-level) inputs

Preamp RCA outputs to daisy chain multiple amps

3-way protection circuitry (thermal, overload, and speaker short protection)

Dual speaker terminals simplify the hookup of multiple speakers

Heavy duty aluminum alloy heat-sink

Frequency Response: 20 - 20,000 Hz

Signal to Noise Ratio: >90dB

Variable subsonic filter: 15 - 50 Hz, 12 dB/octave

Variable low-pass filter: 50 - 150 Hz, 12 dB/octave

Fuse Rating: 40 A x 1

10 gauge power and ground wiring is recommended for installation.

Product Dimensions: 2 x 4 x 9 inches

Item Weight: 3.35 pounds/53.6 Ounces
