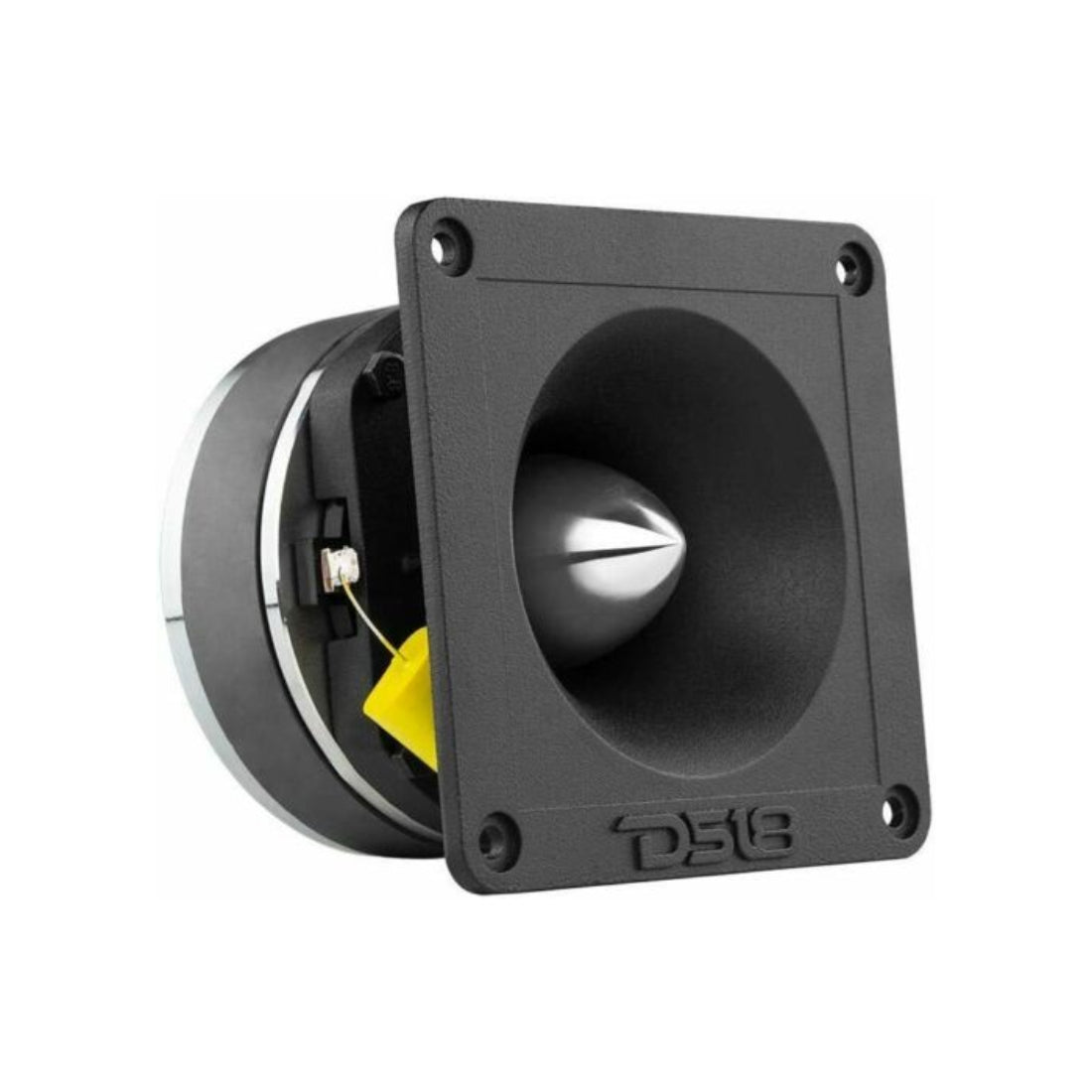

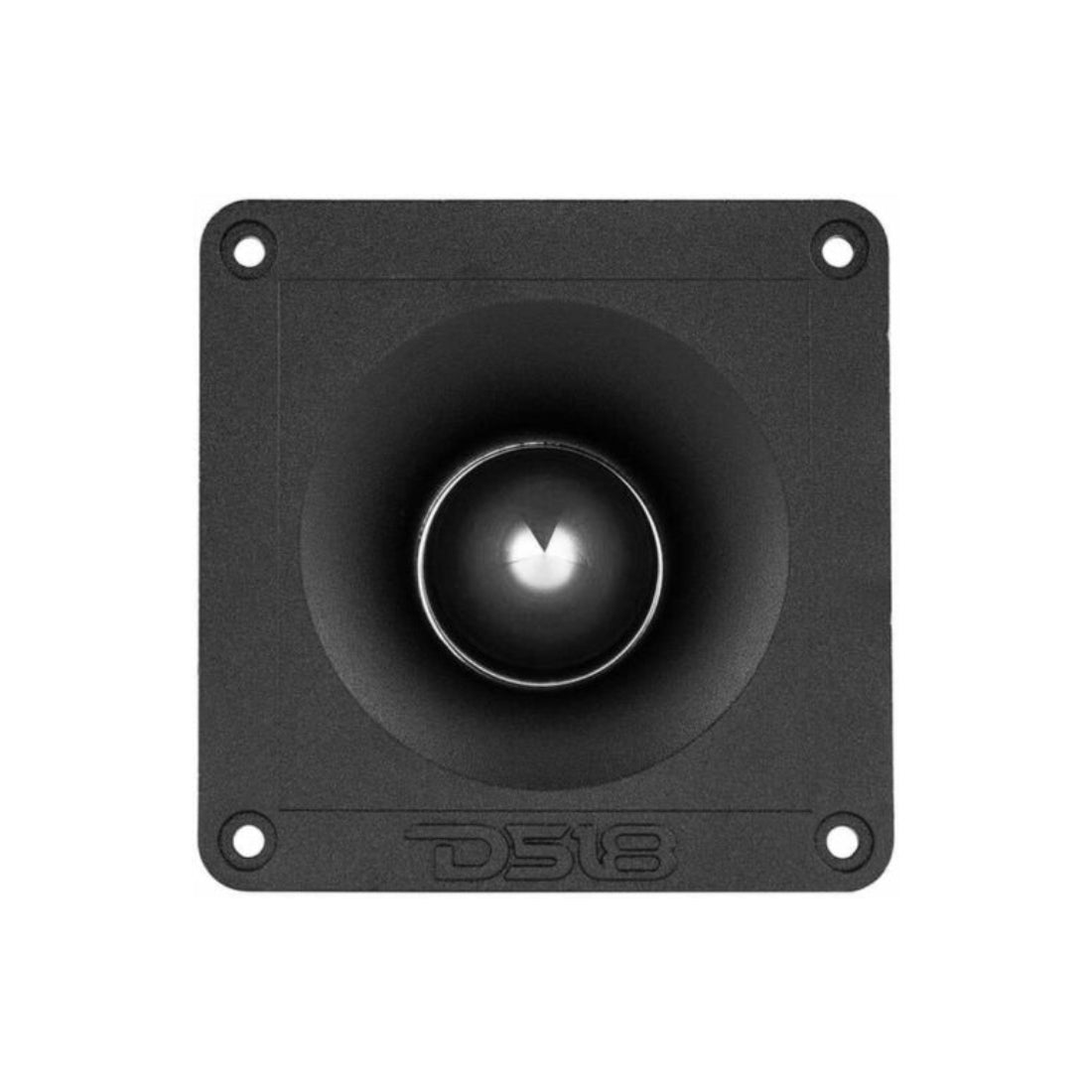

DS18 PRO-TWX6 1.5" VC 480W Max 8-Ohm Car Audio Aluminum Super Bullet Tweeter

Brand New

DS18 PRO-TWX6

1.5" Voice Coil Aluminum Super Bullet Tweeter 480 Watts 8-Ohm Square

Key Features:

Sturdy 4x4 aluminum throat for easy mounting and aesthetic symmetrical look.

112db sensitivity with a 240w program and 280w peak power rating.

Mounting depth of 2.5 inches so they will clear most door panel locations with minimal fabrication work.

Silver bullet resonator helps clear and loud frequencies to carry through the air.

Specifications:

Nominal Diameter: 4"x4" / 102x102mm

Nominal Impedance: 8 ohms

Peak Power: 480 watts

Program Power: 240 watts

AES Power: 120 watts

Sensitivity (1w/1m): 112 db

Frequency Response: 1.7Hz-20KHz

Recommended Hi Pass Crossover: 2.5hz

Voice Coil Diameter: 1.5'' / 38mm

Voice Coil Former Material: KSV

Winding Material: SN

Diaphragm Material: Titanium

Body Material: Aluminum

Magnet Material: Ferrite

Magnet Weight: 15 oz

Measurements:

Overall Diameter: 4''x4'' / 102x102mm

Front Mount Baffle Cutout: 3.5'' / 90mm

Overall Depth: 2.7''/ 69mm

Mounting Depth: 2.5'' / 65mm

Motor Diameter: 3.5'' / 90mm

Package Dimensions: 4.25 x 4.25 x 3.31 inches

Item Weight: 15 ounces
