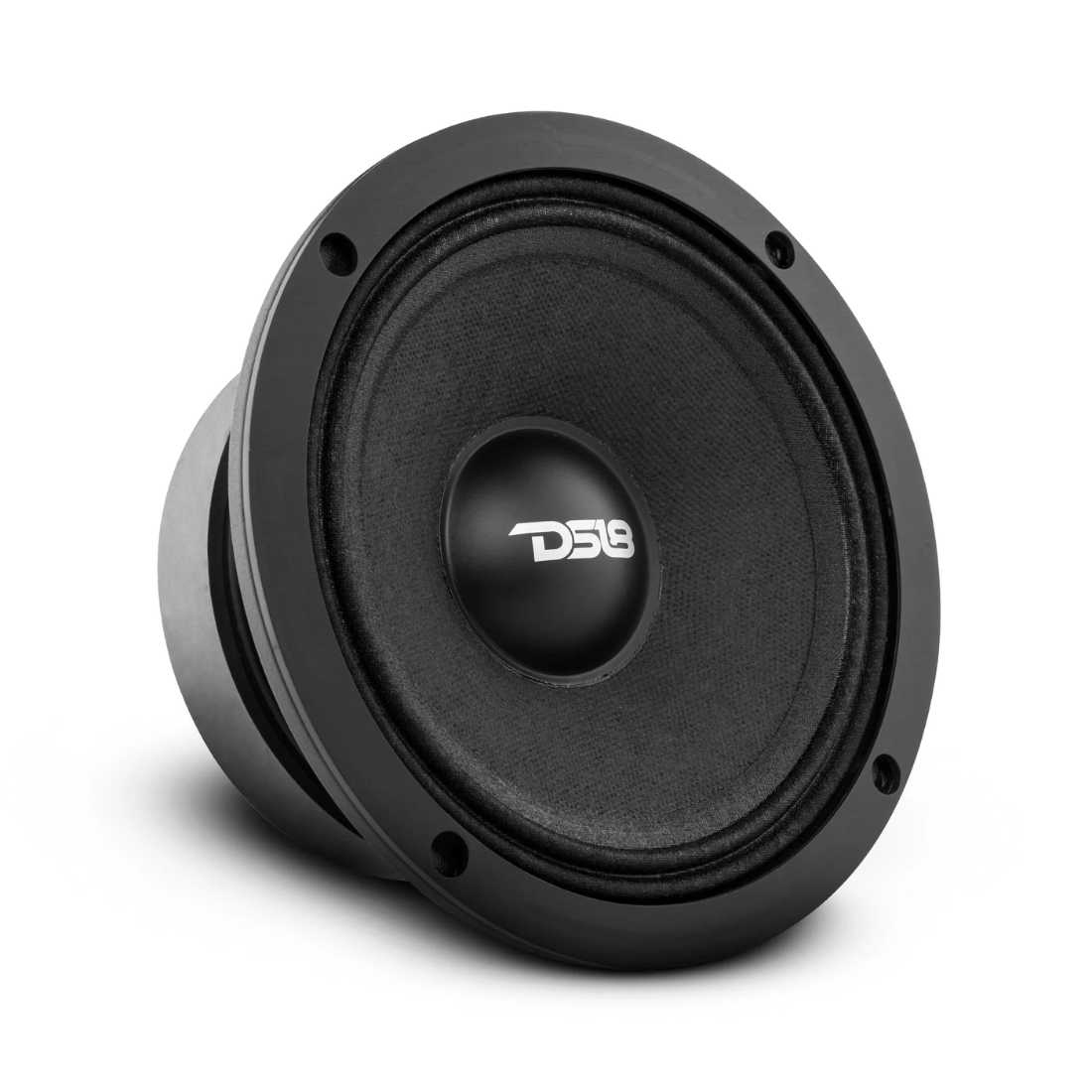

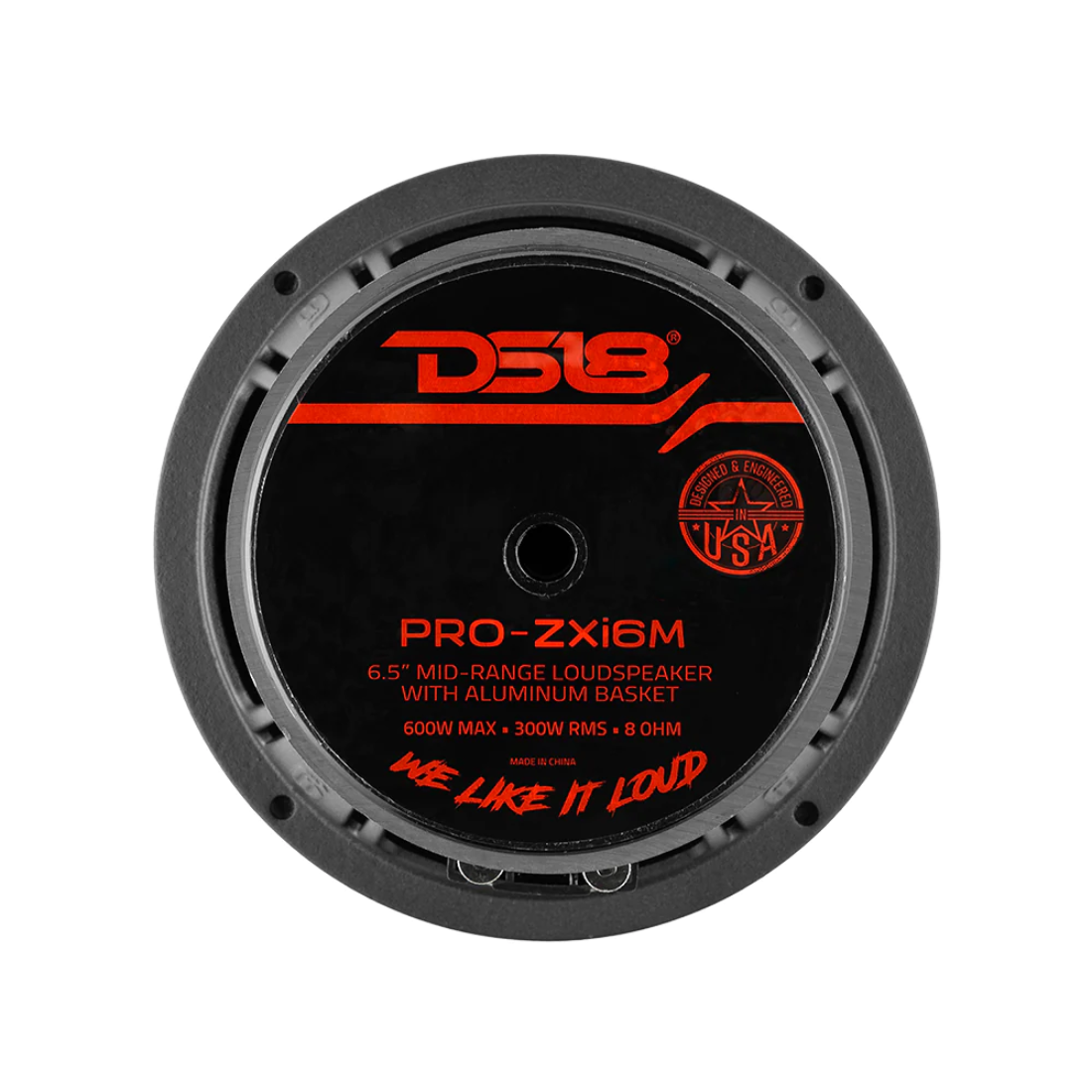

DS18 PRO-ZXI6M 6.5" 600 Watts Max 8-Ohm Car Audio Mid-Range Loudspeaker

DS18 PRO-ZXI6M 6.5" 600 Watts Max 8-Ohm Car Audio Mid-Range Loudspeaker

$61.95 USD
$61.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 PRO-ZXI6M

6.5-Inch 600W Max 8-Ohm Mid-Range Loudspeaker

Key Features:

  • Nominal Diameter: 6.5" / 165mm
  • Nominal Impedance: 8 ohm
  • RMS Power Handling: 300W
  • MAX Power Handling: 600W
  • Sensitivity (1w/1m): 97dB
  • Frequency Response: 100Hz - 8Khz
  • Recommended HI Pass Crossover: 160Hz
  • Pair or Single: Single
  • Grill Included: No
Motor:

  • Voice Coil Diameter: 1.5" / 38.6mm
  • Voice Coil Former Material: Glass fiber
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dust Cap Material: Paper
  • Bullet Material: N/A
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color/Finish: Black Sandblasted
  • Magnet Material: Ferrite + Neodymium
  • Magnet Weight: 30 + 3 Oz
  • Displacement Volume: 0.36L / 0.012ft3
Thiele & Small Parameters:

  • Equivalent Volume Vas: 7.63L / 0.269ft3
  • Excursion (one way) Xmax: 7.2mm
  • Free Air Resonance Fs: 148Hz
  • Mechanical Factor Qms: 10.21
  • Electrical Factor Qes: 0.682
  • Total Factor Qts: 0.639
  • Mechanical Mass Mms: 3.857g
  • Mechanical Compliance Cms: 0.299mm/N
  • BL Factor BL: 4.991
  • Voice Coil Inductance Le: 0.6814mH
  • Cone Area Sd: 134.78cm2
  • DC Resistance Re: 4.7 ohm
Measurement:

  • Overall Diameter: 6.5" / 166mm
  • Overall Depth: 3.16" / 80.5mm
  • Front Mount Baffle Cutout: 5.78" / 147mm
  • Mounting Depth: 2.83" / 72mm
  • Motor Diameter: 4.72" / 120mm
