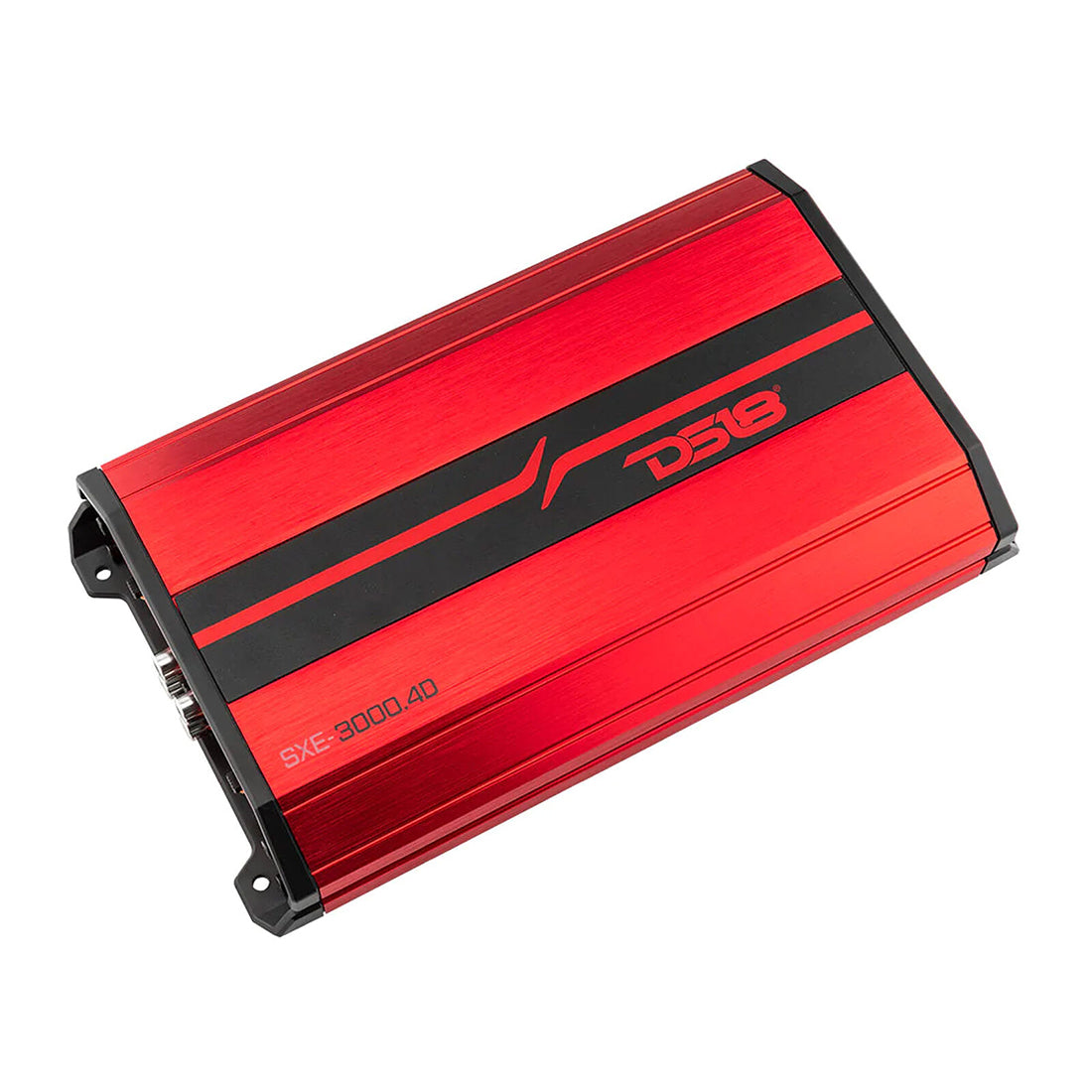

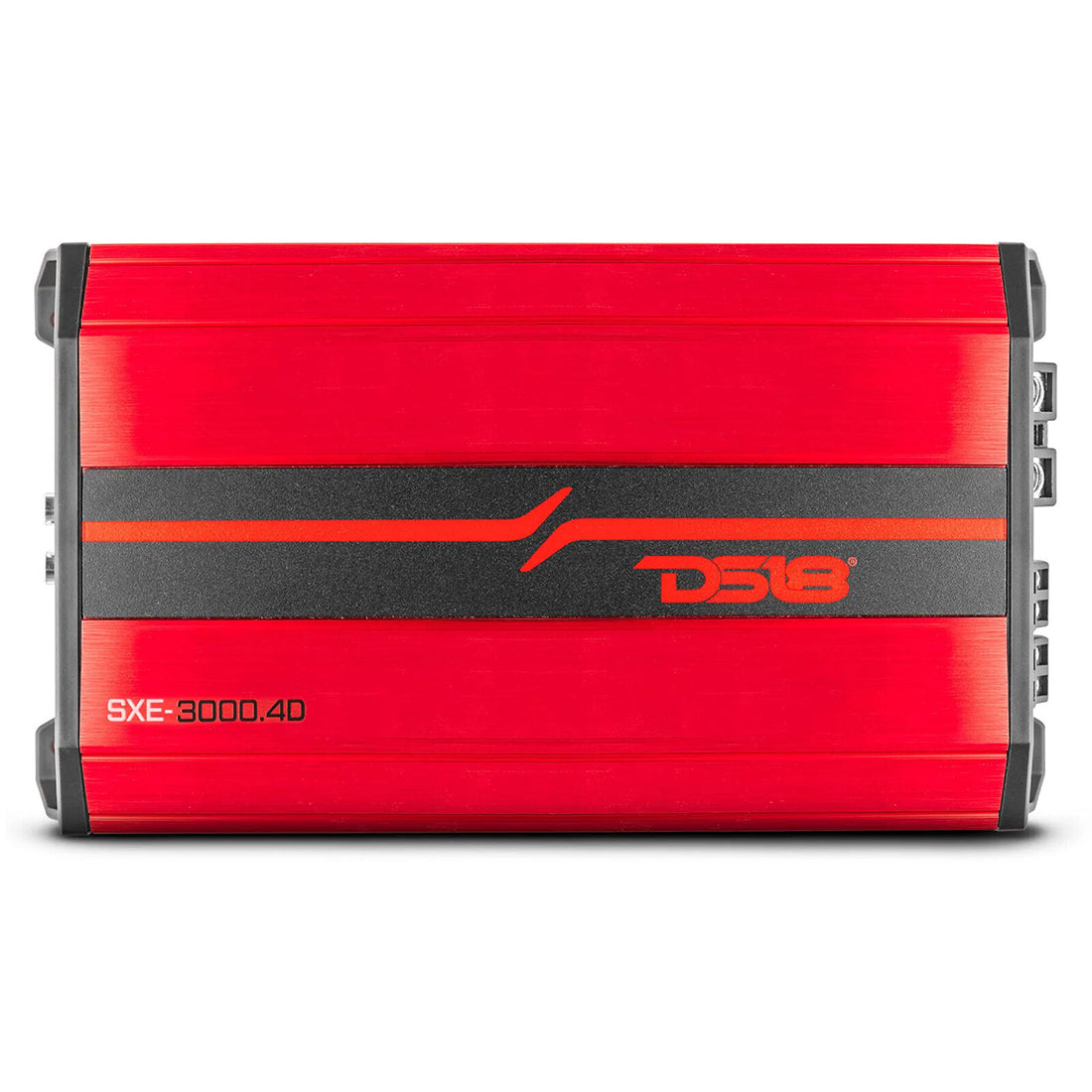

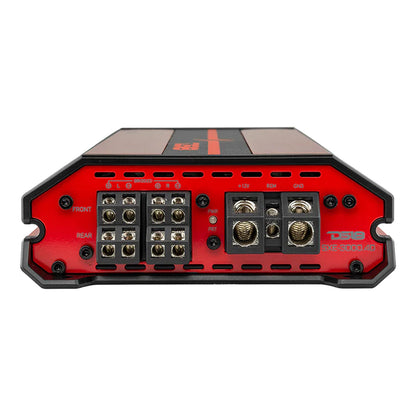

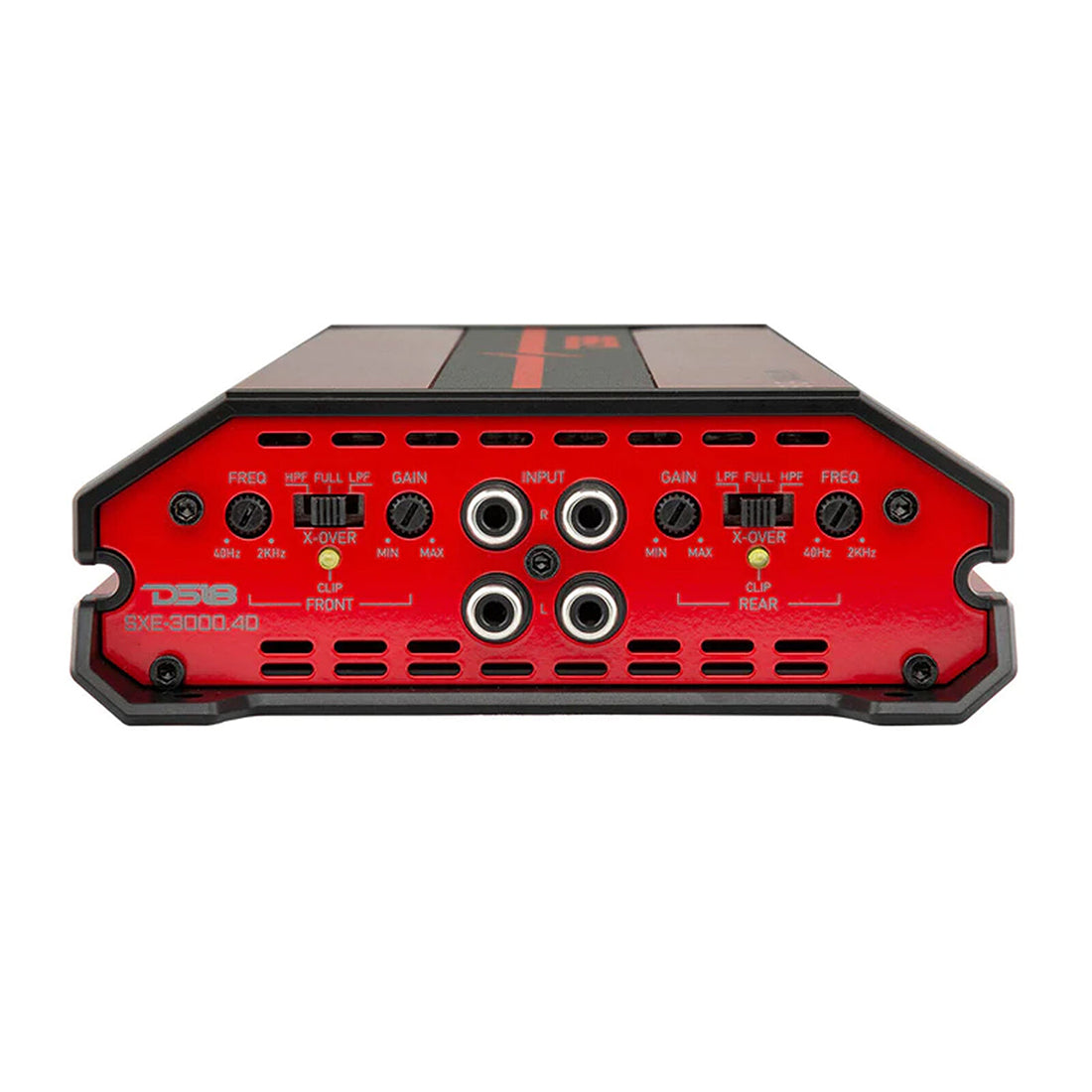

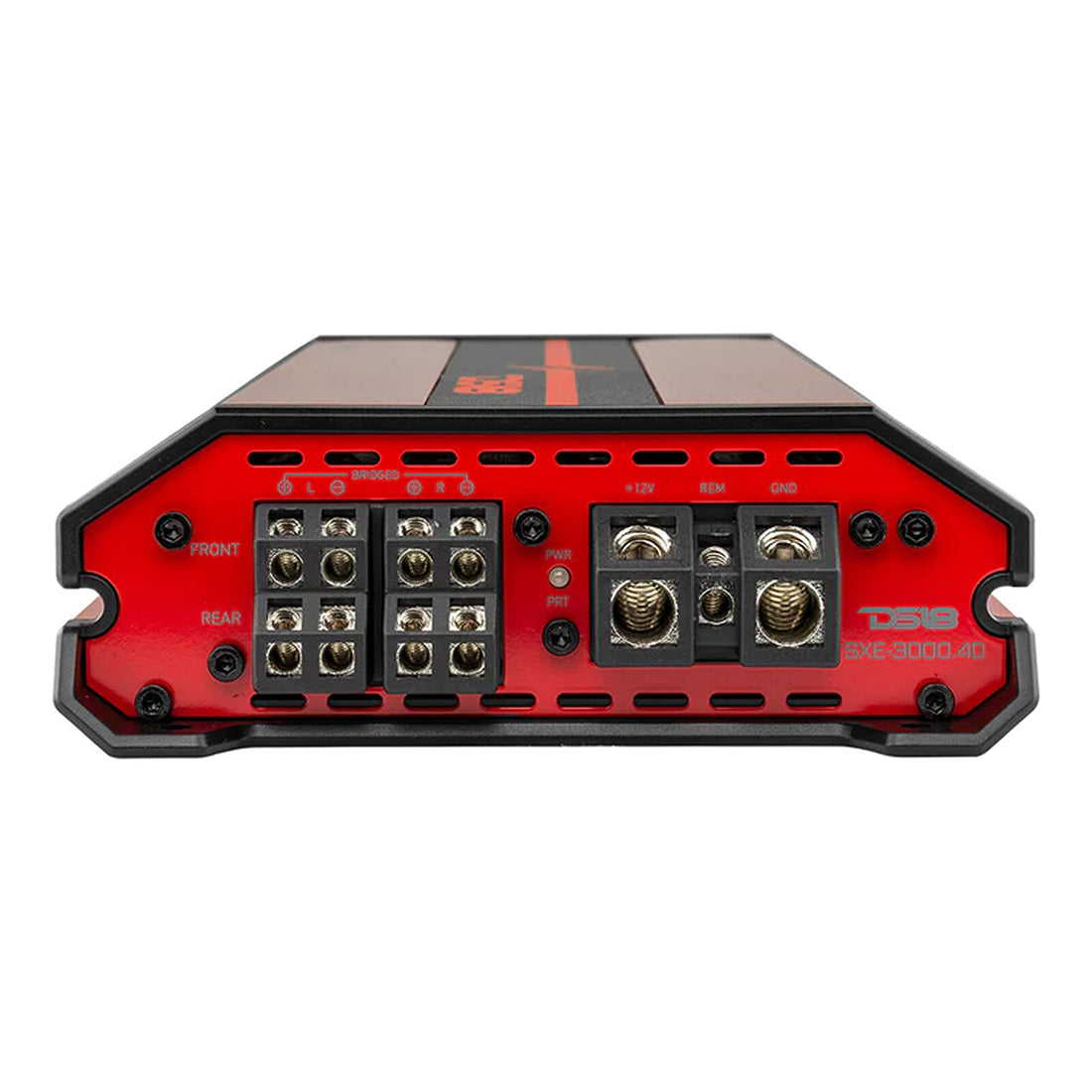

DS18 SXE-3000.4D/RD 4-Channel 3000W Peak Class-D Full Range Car Amplifier (RED)

Name: DS18 SXE-3000.4D/RD 4-Channel 3000W Peak Class-D Full Range Car Amplifier (RED)
Brand: DS18
SKU: SXE-3000.4D/RD
Price: 239.95 USD
Availability: InStock

$239.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 SXE-3000.4D (RED)

SXE Series | 3000 Watts Peak 4-Channel Class-D Full Range Car Audio Amplifier

Key Features:

Compact size for easy installation anywhere

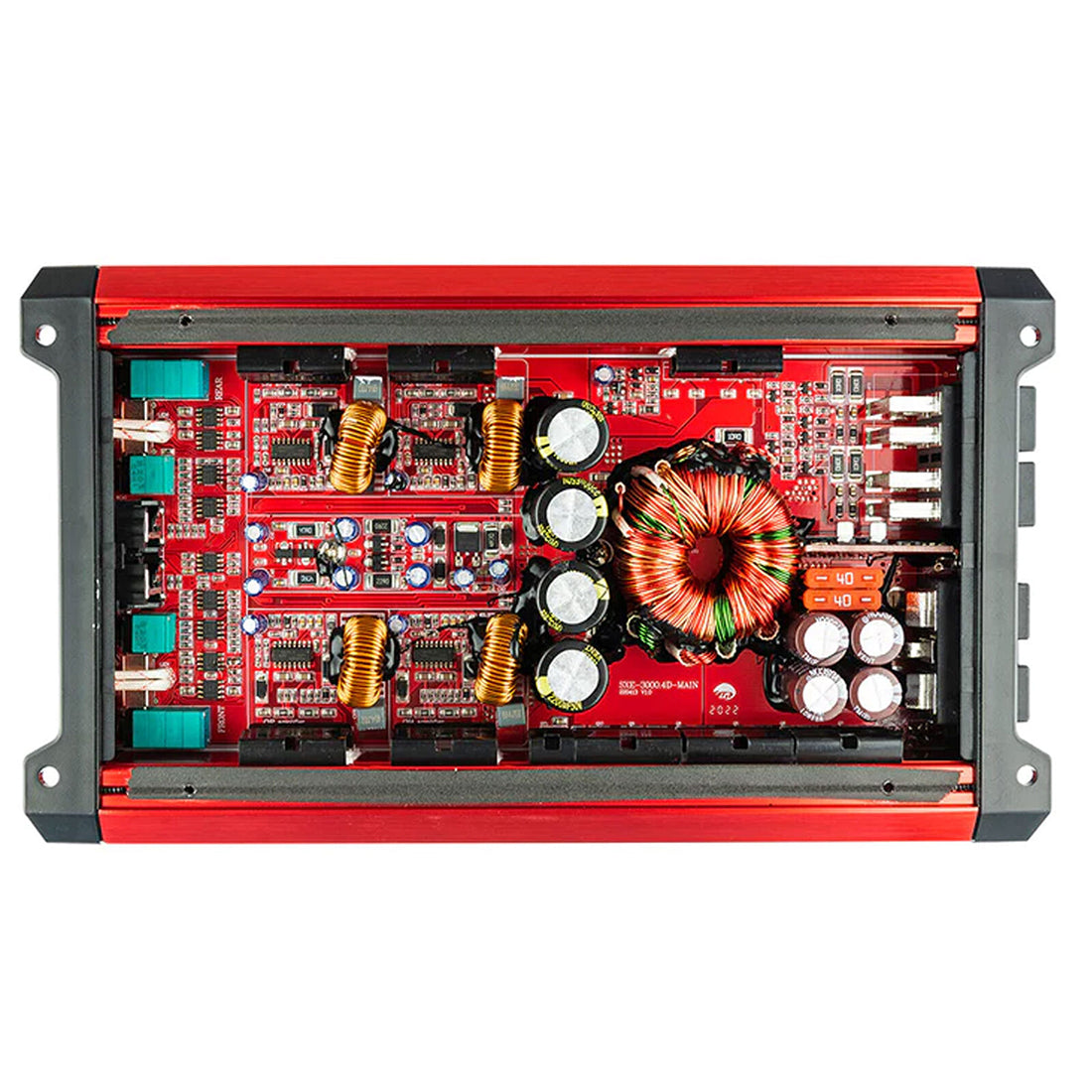

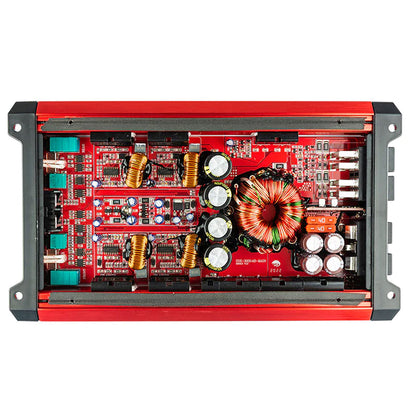

Stable Two or Four Layer-Traced PCB Design
Audio Precision Quality Control Verification
Full Adjustable HP/LP @ 12dB/oct Crossover
Various Forms of Electronic Protection

Specifications:

Amplifier Class: Digital (D)
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 Ohms Stereo / 4 Ohms Bridge
Led Indicator: Power/Protect/Clip
Power Input Terminal Size: 4Ga
Fuse Size: 2 x 40A (80A)
Remote Level Control: /
Cooling Fan: /
Voltmeter: /
Thermal Protection: Yes (80℃)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (16.5v)
Clipping Protection: Yes
Body Color / Finish: Red / Black Brushed Aluminum
Total Watts (Peak): 3000W
RMS Power @ 4 ohms: 4 x 200W
RMS Power @ 2 ohms: 4 x 320W
RMS Power @ 1 ohm: /
RMS Power @ 4 ohms Bridge: 2 x 500W
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 90dB
Efficiency @ 4 ohms: 88%
Damping Factor: 140
Input Impedance: 20kΩ
Channel Separation: 45dB
Total Harmonic Distortion (THD): 0.05%
Low-Level Input Range: 200mV-5V
High-Level Input: /
Selectable X-Over: HPF/FULL/LPF
X-Over Filter Range: 40Hz-2KHz
Bass Boost Range: /
Bass Boost Frequency: /
Infrasonic Filter: /
Phase Selector: /
Overall Length: 9.8" / 249.3mm
Overall Wide: 5.5" / 140mm
Overall Height: 1.8" / 48mm
Heatsink Length: 8.34" / 212mm
Gross Single Unit Weight: 1.86Kg
