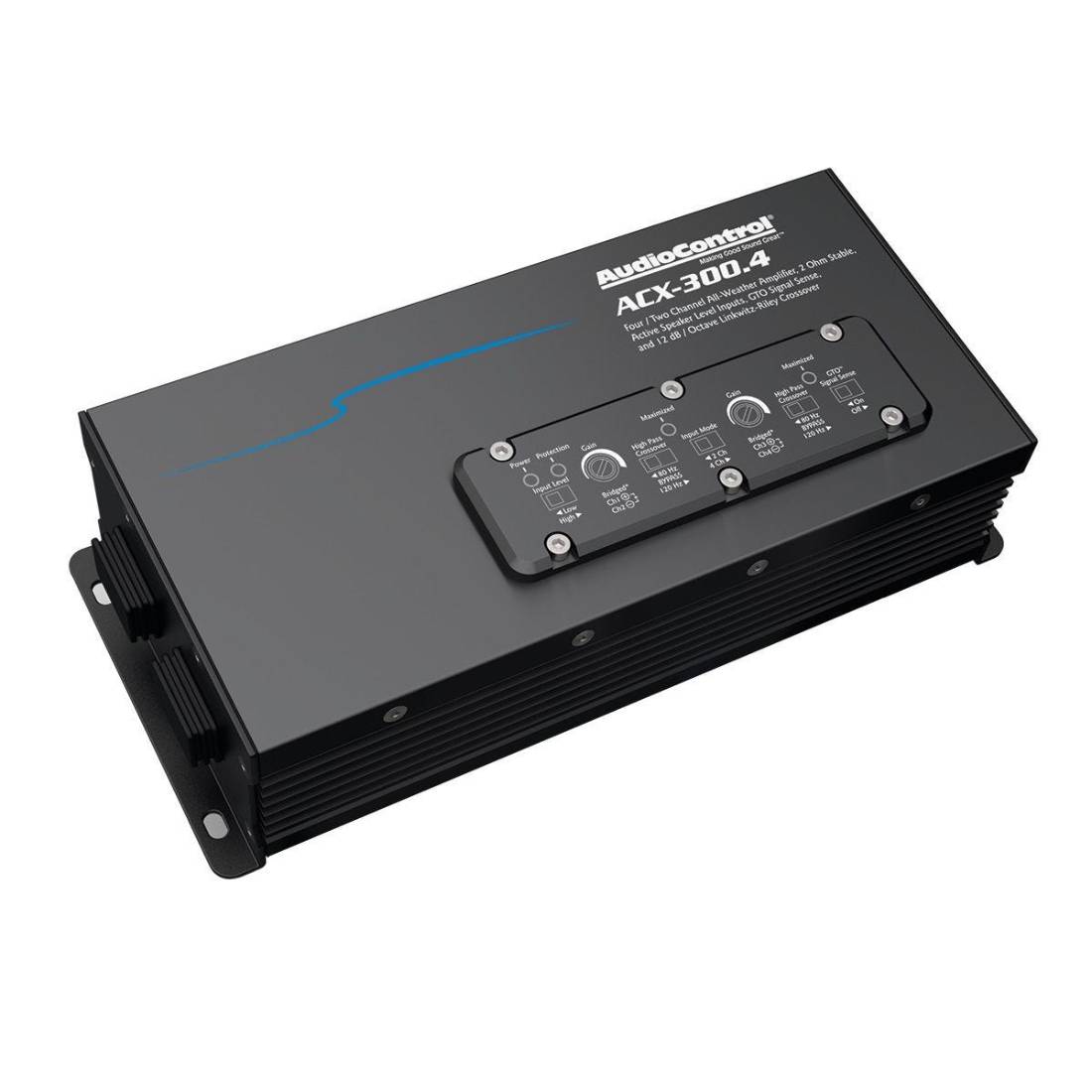

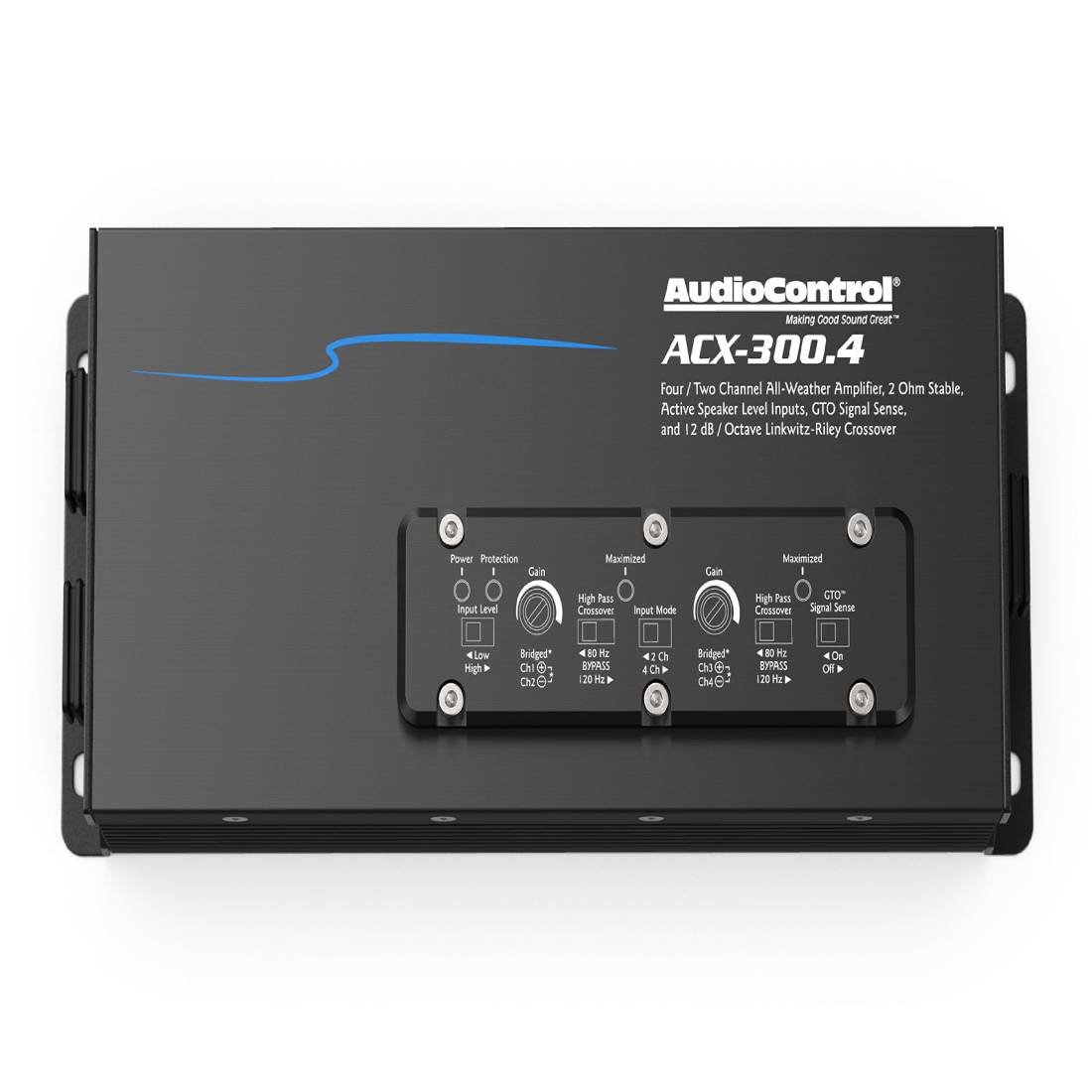

AudioControl ACX-300.4 All-Weather 4 Channel Input Mode Amplifier

Brand New

AudioControl ACX-300.4

All-Weather 4 Channel Input Mode Amplifier

Key Features

High Power Output from a Compact Chassis

IPX6 Rated

High/Low Input Modes

GTO™ Signal Sense

Linkwitz-Riley Crossovers

Installer Friendly Quick Connect Wiring

Specifications

Channels: 2/4

Inputs: 4

Continuous Power (RMS) at 14.4V: 50W @ 4Ω / 75W @ 2Ω / 150W @ 4Ω Bridged

Maximum Input Voltage:

      Low: 500 mV - 6 Vrms

      High: 1 Vrms - 12 Vrms 106 dBa >250 / 1kHz

S/N Ratio (ref: rated power): 106 dBa

Damping Factor (4Ω): >250 / 1kHz

THD+N: <0.2%

Frequency Response: 26 Hz - 22 kHz

Linkwitz-Riley X-Over:

      Mode: High Pass

      Settings: 80 Hz / 120 Hz / Bypass

Package Dimensions: Approx. 9.0″W x 3.875″D x 2.25″H

Package Weight: Approx. 7.2 lbs./115.2 Oz
