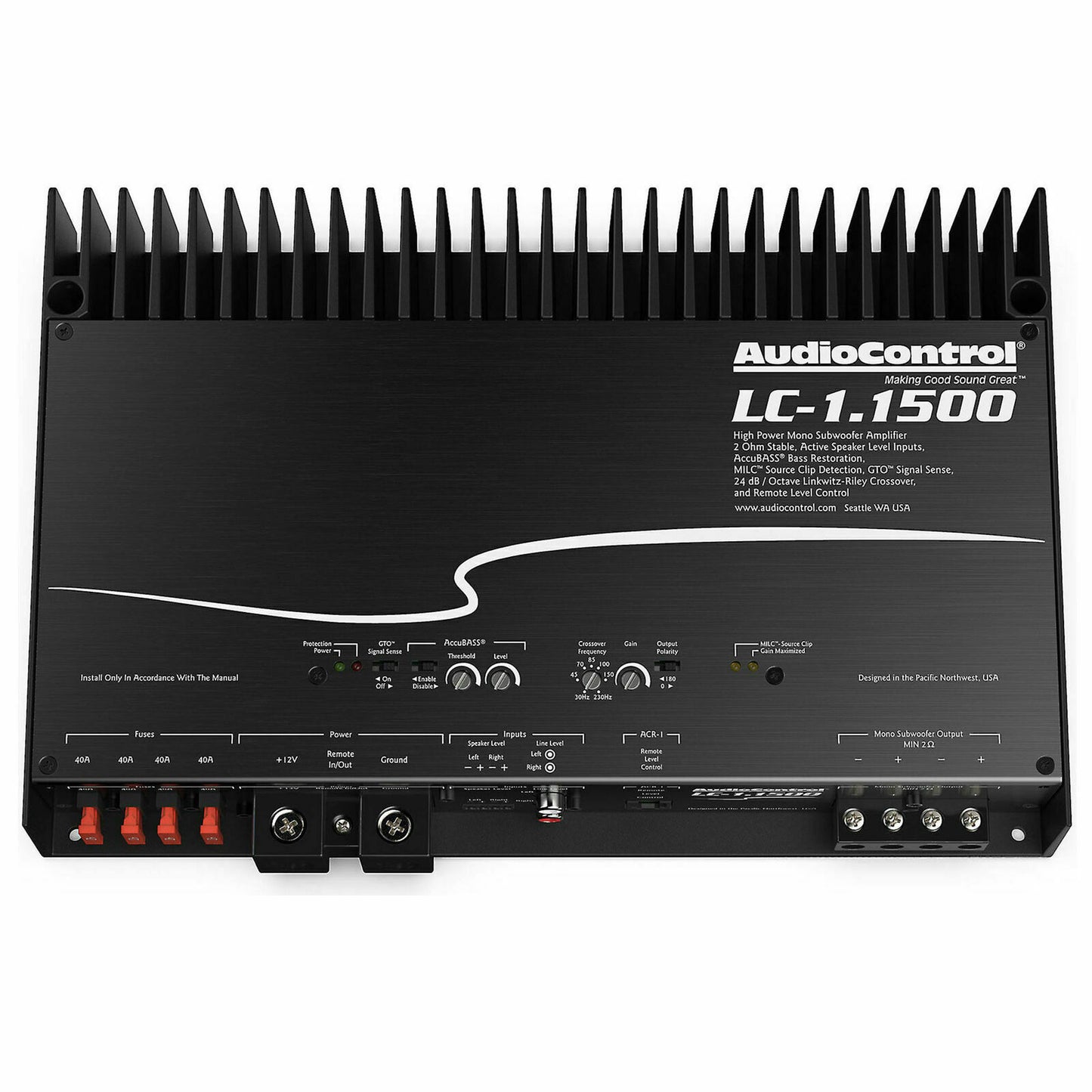

AudioControl LC-1.1500 High Power Mono Subwoofer Amplifier with Accubass
AudioControl LC-1.1500 High Power Mono Subwoofer Amplifier with Accubass
Couldn't load pickup availability
Brand New
AudioControl LC-1.1500
High Power Mono Subwoofer Amplifier with Accubass
Key Features:
Audiocontrol LC Series LC-1.1500
[Class-XXX] Full Range 4-Ohm Stable Monoblock Amplifier
RMS Power Rating:
2 ohms: 1500 watts x 1 chan.
4 ohms: 850 watts x 1 chan.
1 ohm: ------------N/A------------
Total RMS power output: 1500 watts
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Speaker-level (high-level) inputs
Preamp RCA outputs to daisy chain multiple amps
Optional Dash Remote: ACR-1 Wired Remote (Sold Separately)
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity:
Low level: 125mV-5V
High level: 250mV-10V
Frequency Response: 10 - 3000 Hz
Total Harmonic Distortion (THD):
Signal to Noise Ratio: 102 dBa
Variable high-pass filter: 30 - 230 Hz, 24 dB/octave
Variable low-pass filter: 30 - 230 Hz, 24 dB/octave
PFM Subsonic filter: 24 dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 40A x 4
0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select Oxygen Free Power Wire Kits
Dimensions: 12"W x 7.95"D x 2.1"H
Product weight: 6 pounds/96 Ounces
