AudioControl
Regular price
$229.00 USD
Regular price
Sale price
$229.00 USD
Unit price
/
per
Couldn't load pickup availability
BRAND NEW

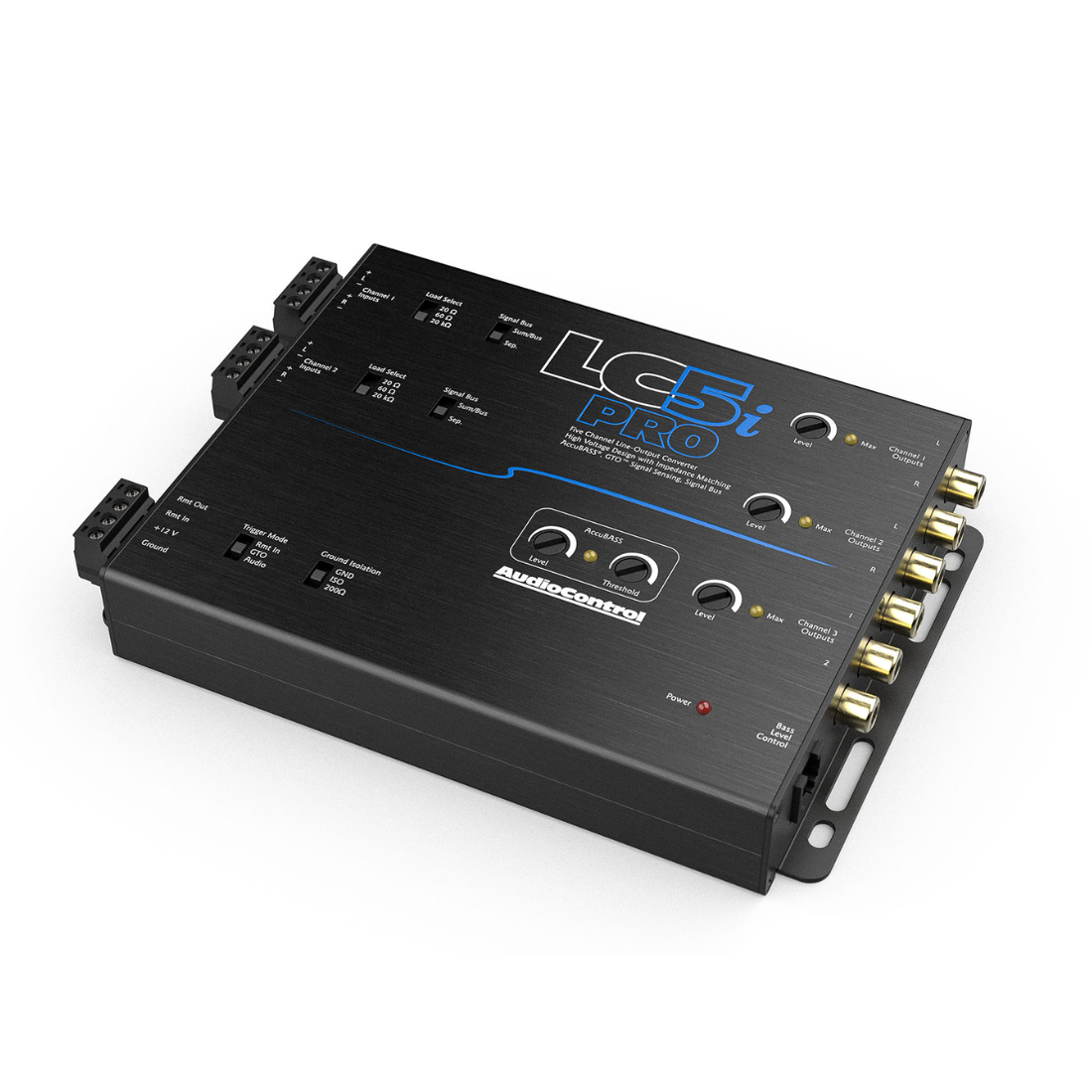

AUDIOCONTROL LC5i PRO
5 Channel Line Out Converter with AccuBASS & Dash Remote
Key Features:
- Five channels of active speaker-level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete-level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote included
- Compact design
Specifications:
INPUTS
- Speaker Level Input: 1 (5 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS
- Preamp Outputs: 5 (5 channels main, 5 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 15 dB
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >124 dB
- Frequency Response: 20 Hz – 20 kHz
CONTROL
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
GENERAL
- Current Draw: 330 mA
- Recommended Fuse Rating: 2 A
WEIGHT & DIMENSIONS
- Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
- Weight: 1.1 lbs.
IN THE BOX

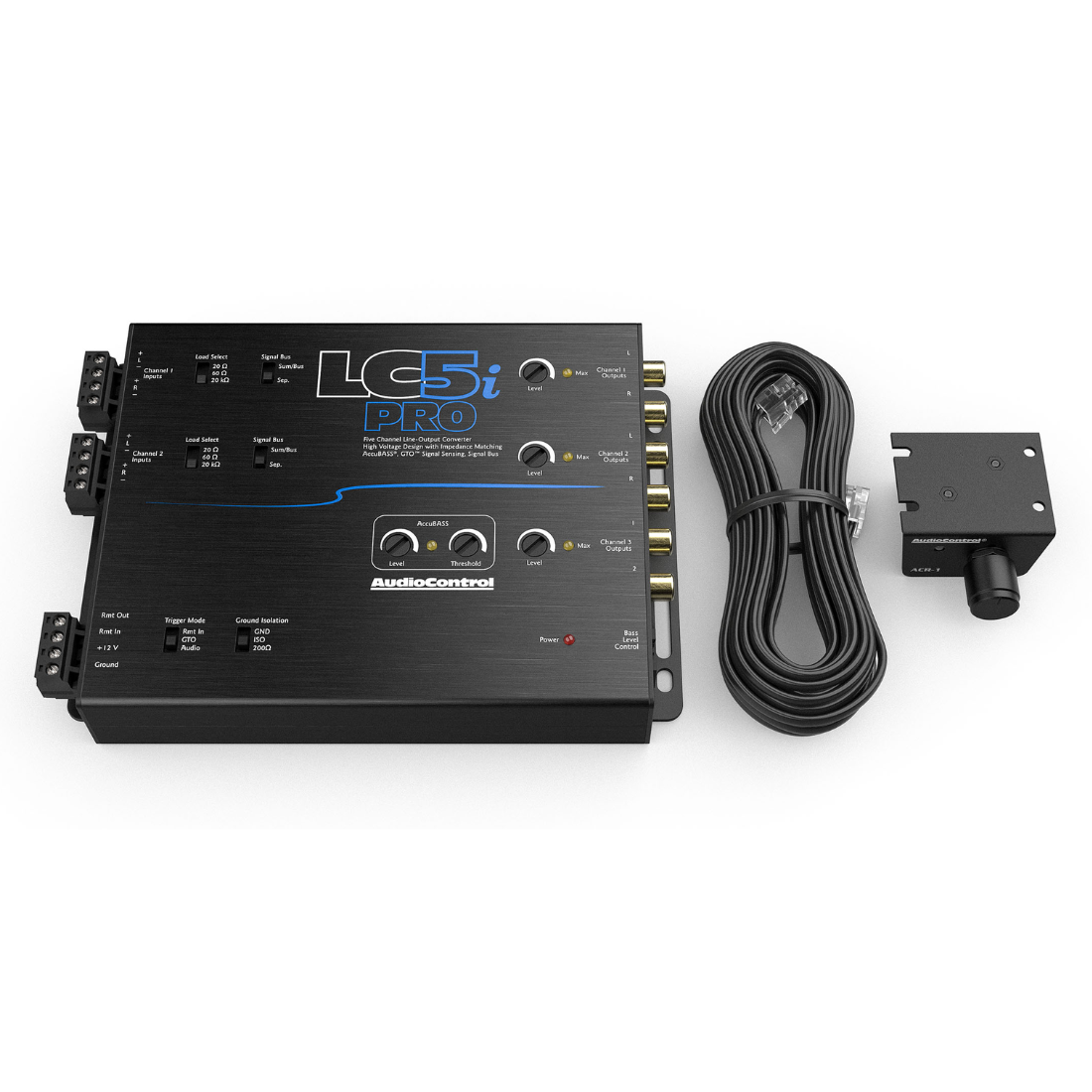

- LC5i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
