AudioControl

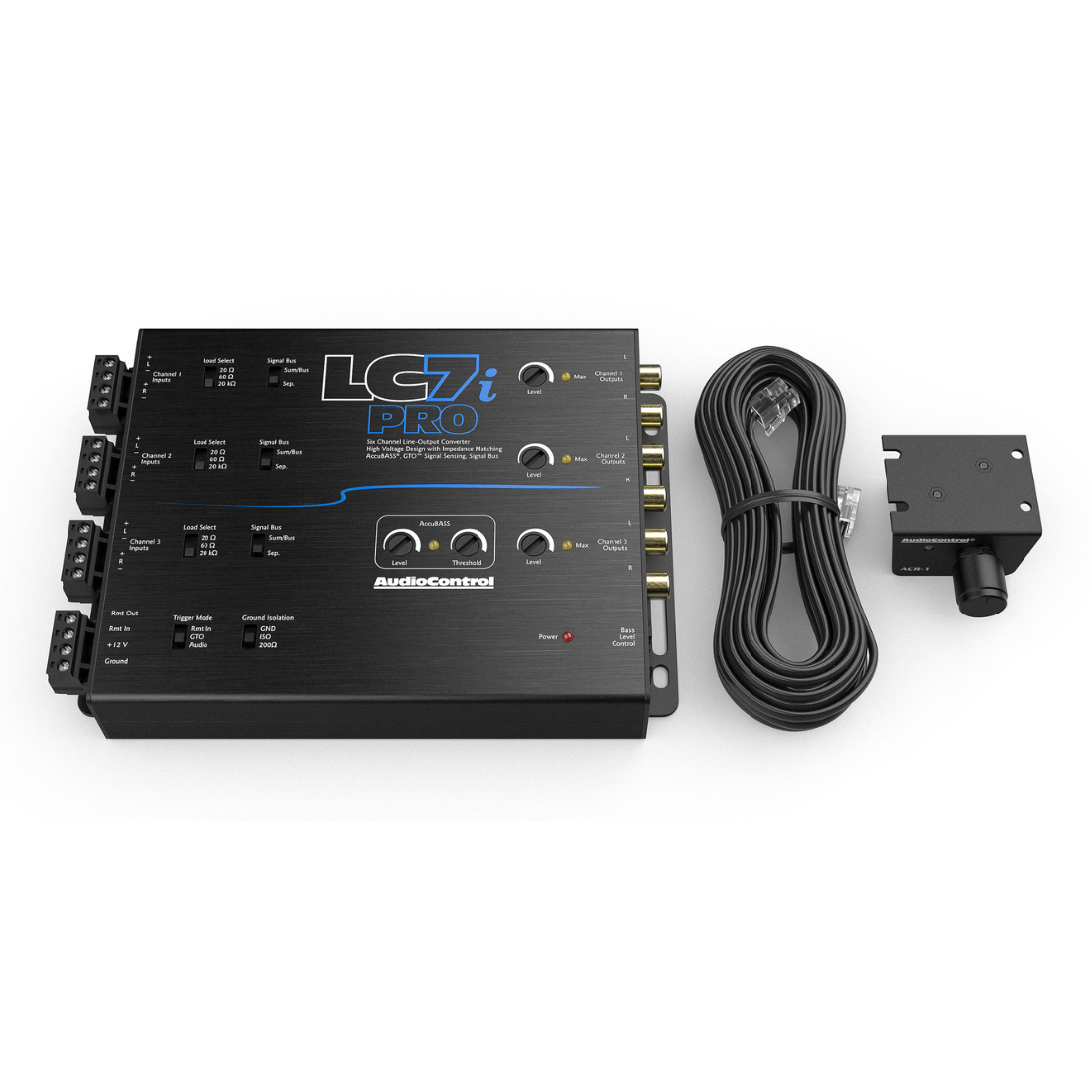

AudioControl LC7i PRO 6 Channel Line Out Converter with AccuBASS & Dash Remote

AudioControl LC7i PRO 6 Channel Line Out Converter with AccuBASS & Dash Remote

Regular price $279.00 USD
Regular price Sale price $279.00 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

AUDIOCONTROL LC7i PRO

6 Channel Line Out Converter with AccuBASS & Dash Remote

Key Features:

  • Six channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load Selection Switch
  • GTOTM Signal Sensing
  • Ground Isolation Switch
  • ACR-1 dash remote included
  • Compact design
Specifications:

INPUTS
  • Speaker Level Input: 1 (6 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS
  • Preamp Outputs: 6 (4 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/- 15 dB
  • Output Impedance: 150Ω
PERFORMANCE
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20 Hz – 20 kHz
CONTROL
  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)
GENERAL
  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A
WEIGHT & DIMENSIONS
  • Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
  • Weight: 1.15 lbs.
IN THE BOX
  • LC7i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
