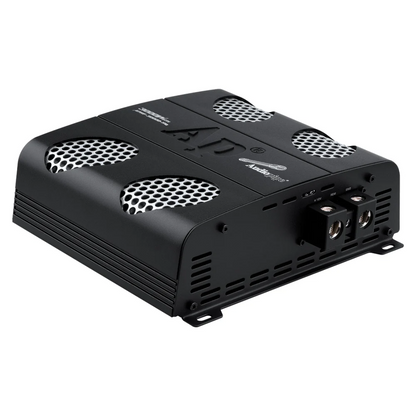

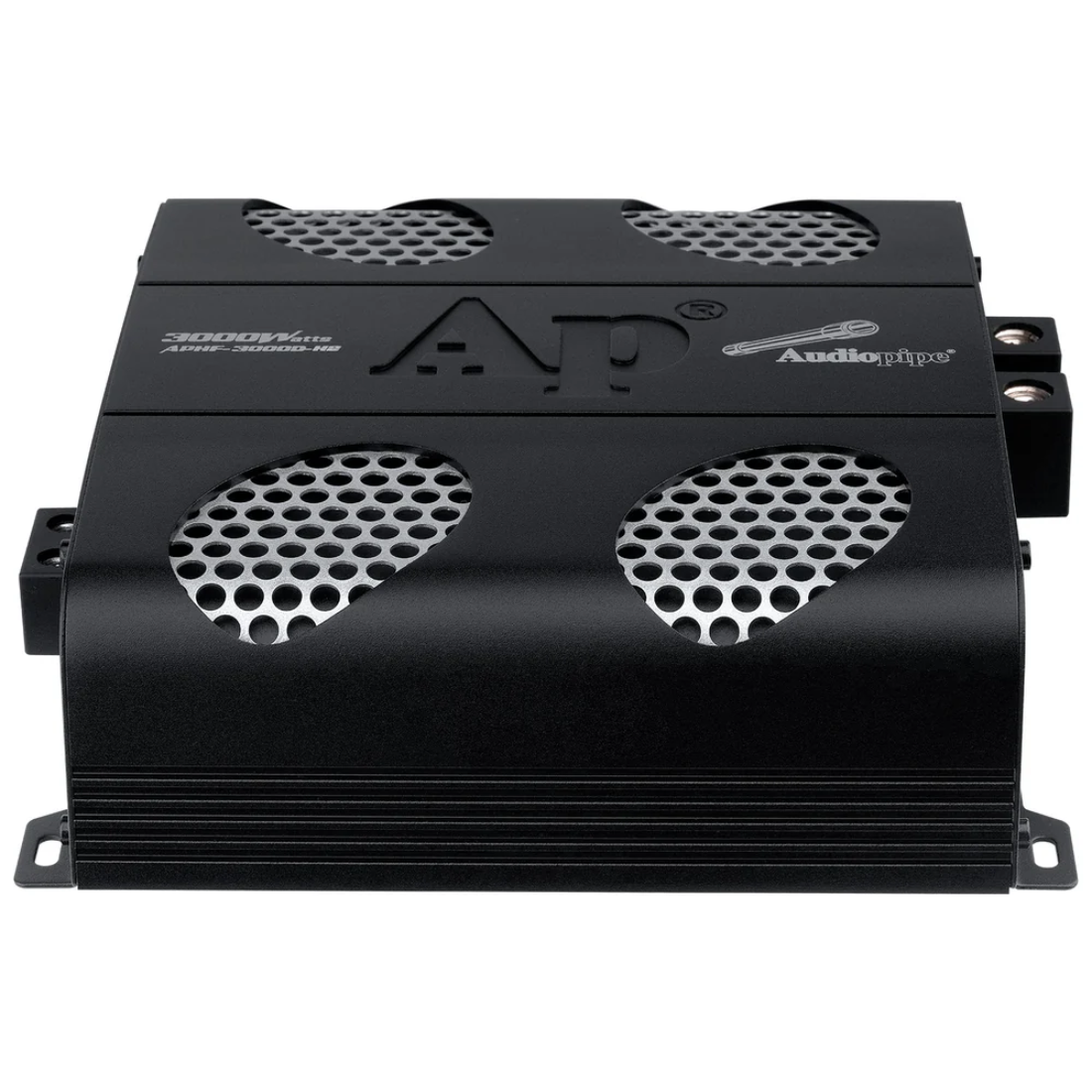

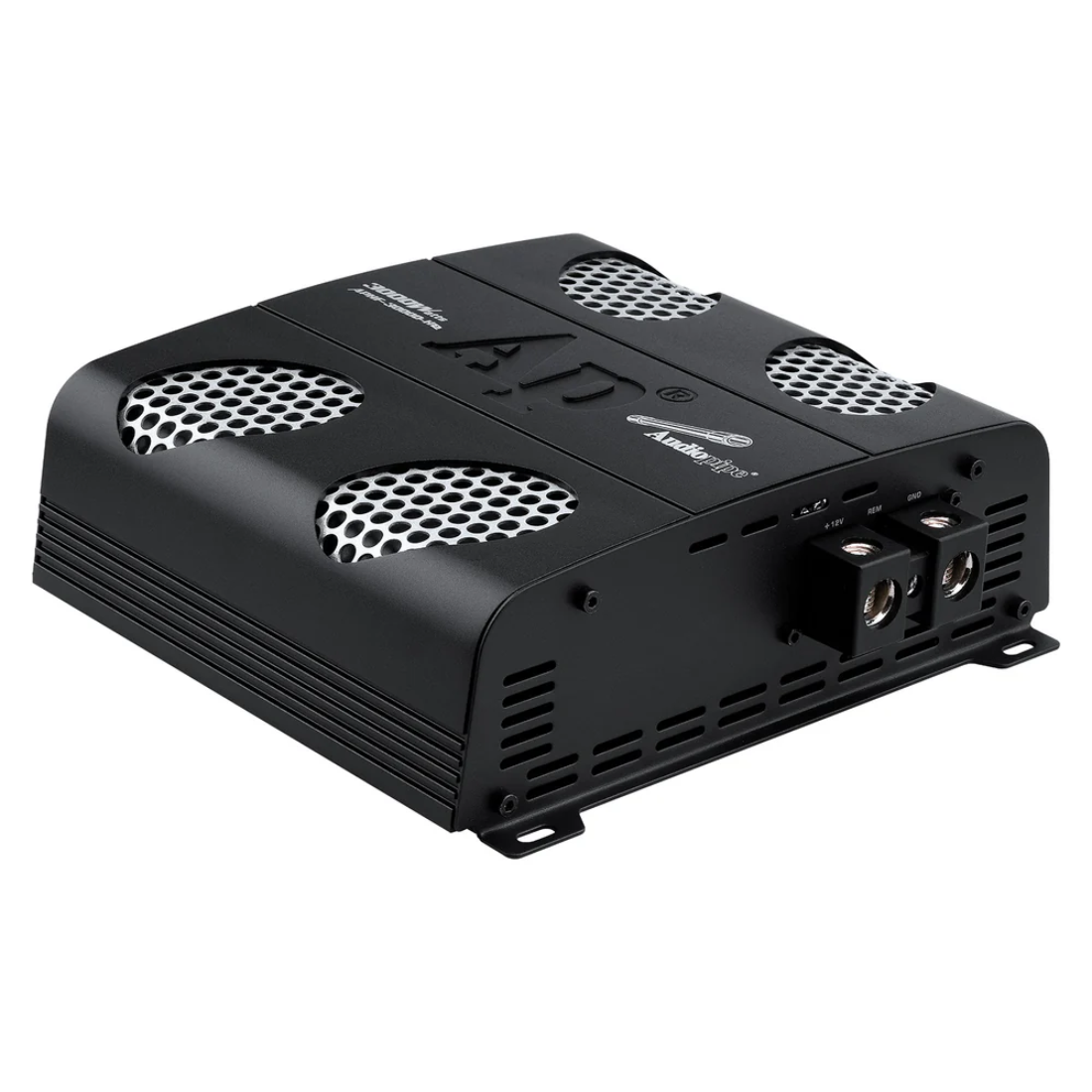

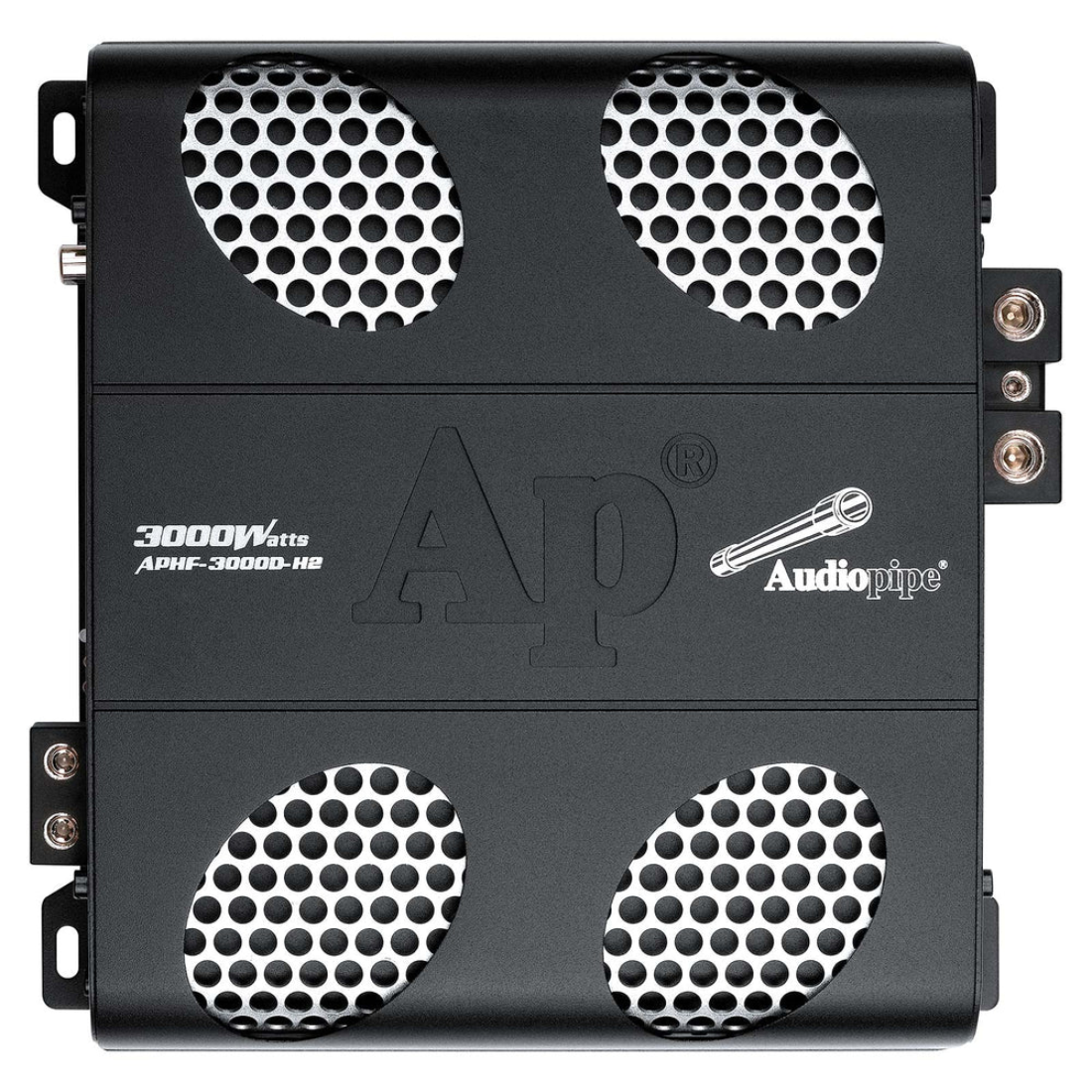

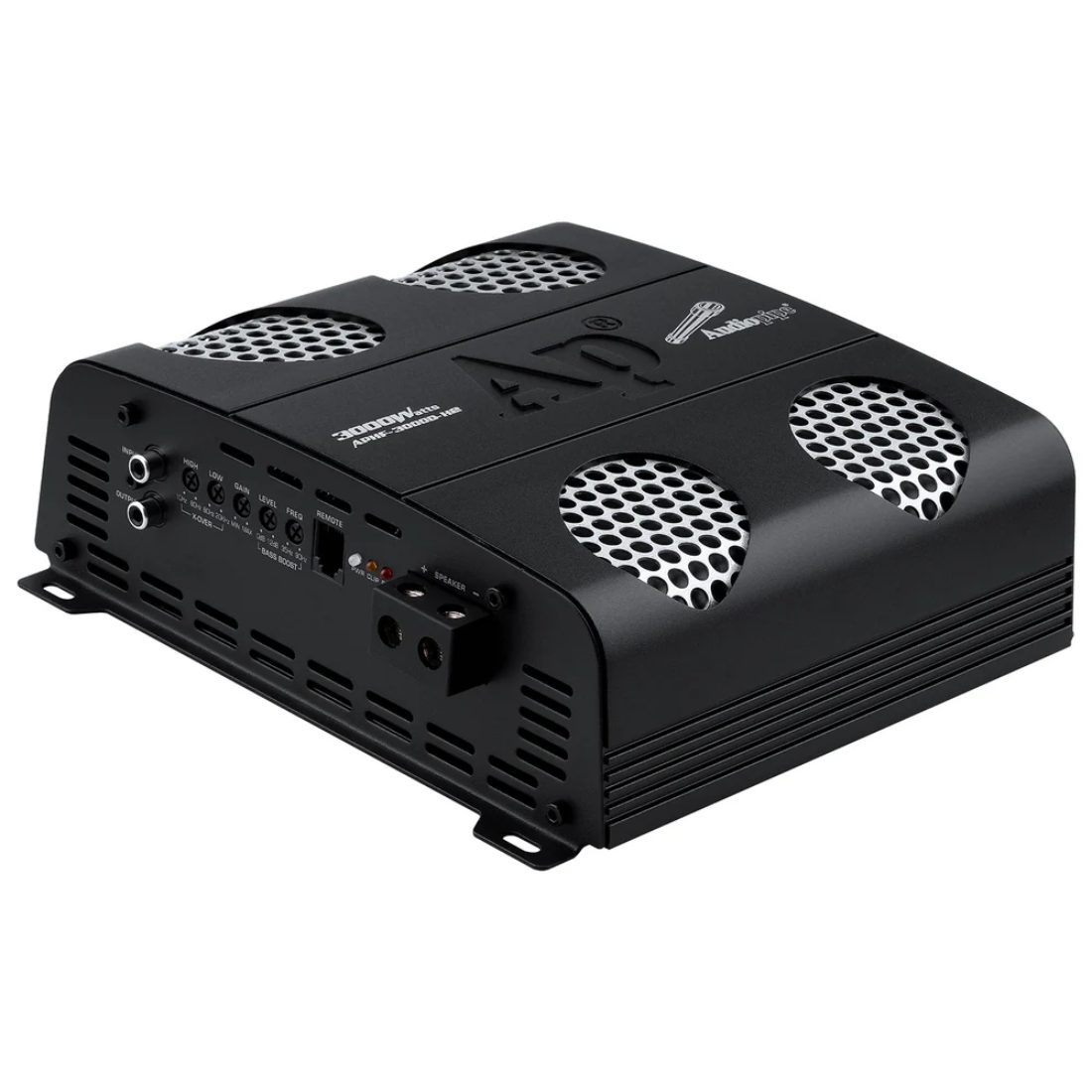

3000 Watts Full Range Class D MOSFET Amplifier 2 Ohms (APHF-3000D-H2)
Key Features:
FULL RANGE CLASS D MOSFET AMPLIFIER: Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound

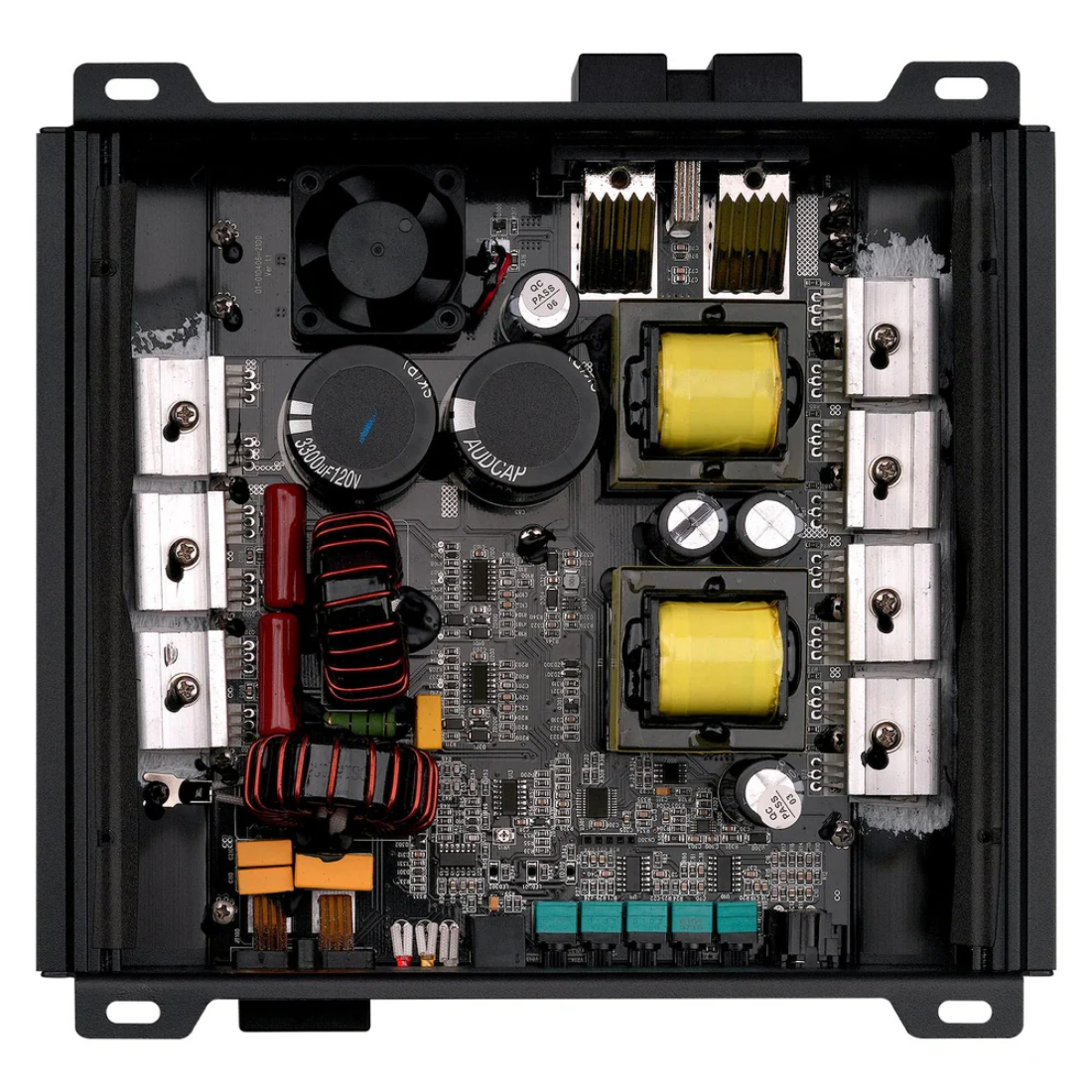

DESIGNED WITH ADVANCED MOSFET CIRCUITRY: Our Full Range Class D Mono Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power in-cased in a small footprint heatsink without sacrificing sound quality or performance
MAXIMUM POWER OUTPUT: As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 3000 Watts
UNMATCHED PERFORMANCE: Our amplifiers are the premier choice for "Brazilian Style" amplification with a track record of proven performance, ensuring an exceptional car audio experience
FREQUENCY RESPONSE -3dB: 10Hz-20KHz
CONTINUOUS POWER OUTPUT @ 1% 1KHz: 14.4V
MONO @ 4 Ohm: 1 x 1600 WATTS (130A)
MONO @ 2 Ohm: 1 x 3100 WATTS (265A)
SIGNAL TO NOISE RATIO: ≥85dB
INPUT SENSITIVITY: 0.25 - 4V
OVERLOAD PROTECTION: This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience
OVERHEAT PROTECTION: This amplifier features an advanced heatsink, designed to provide superior overheat protection
OVER-VOLTAGE PROTECTION: 16V
UNDER-VOLTAGE PROTECTION: 9.5V

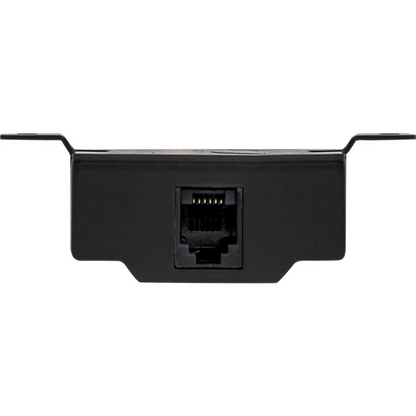

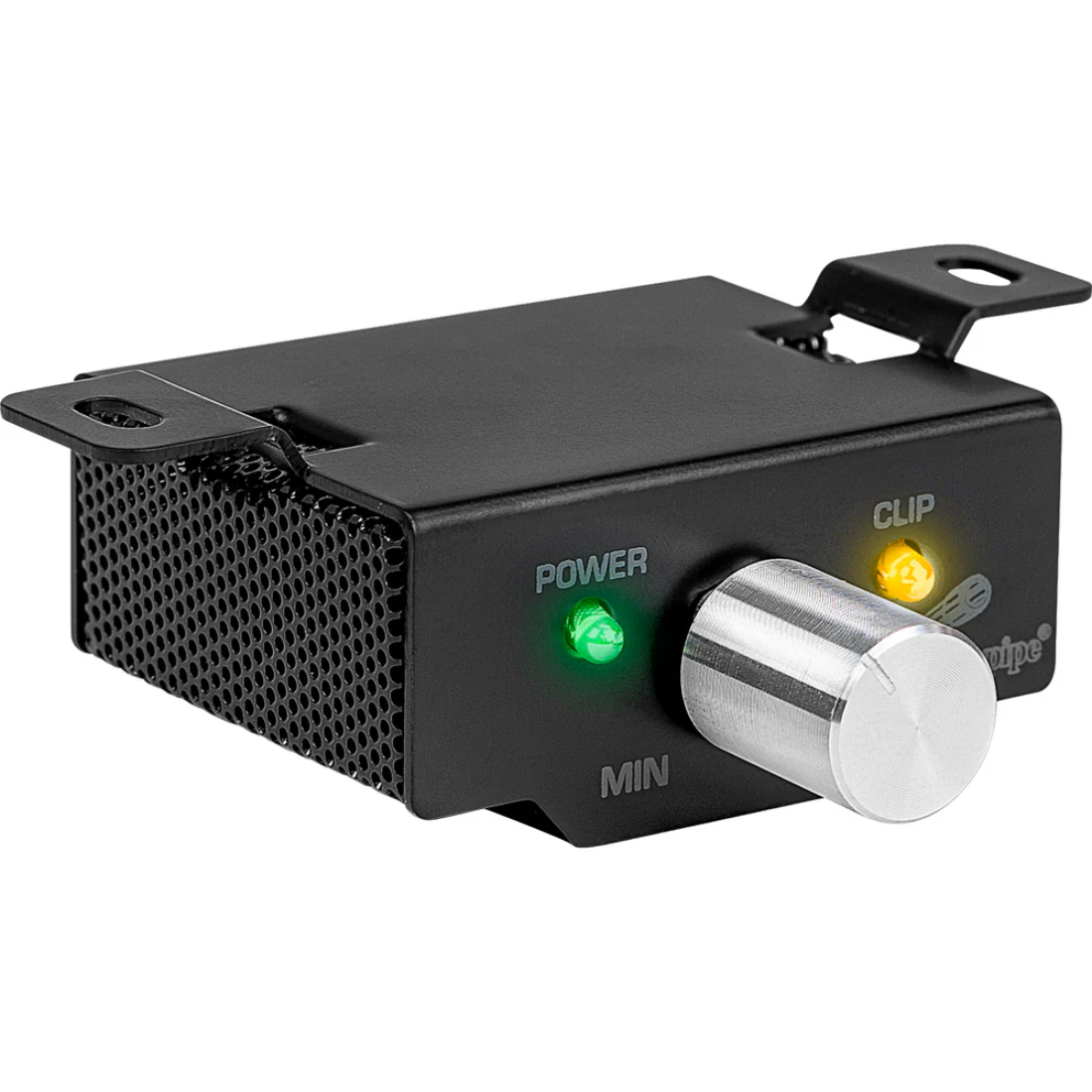

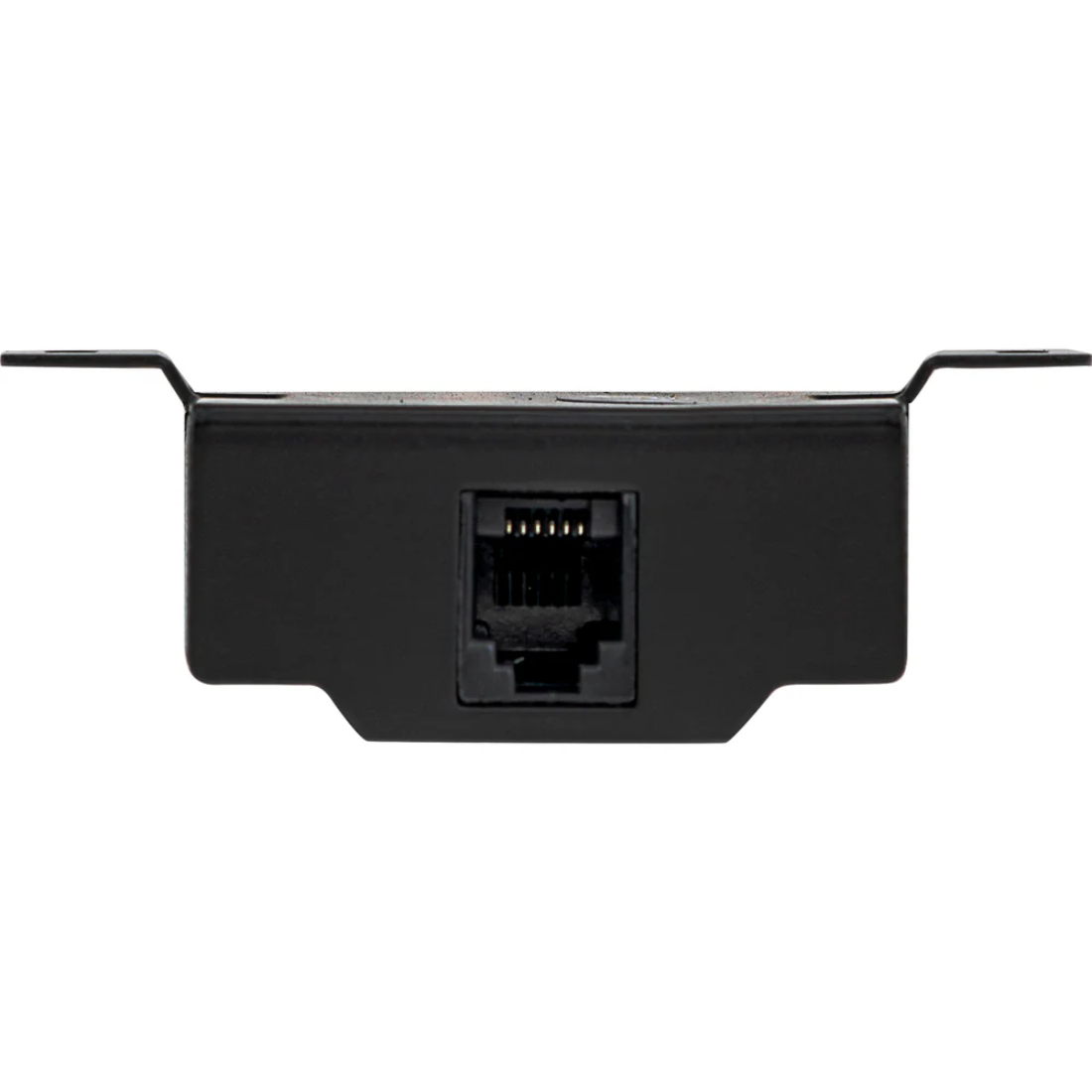

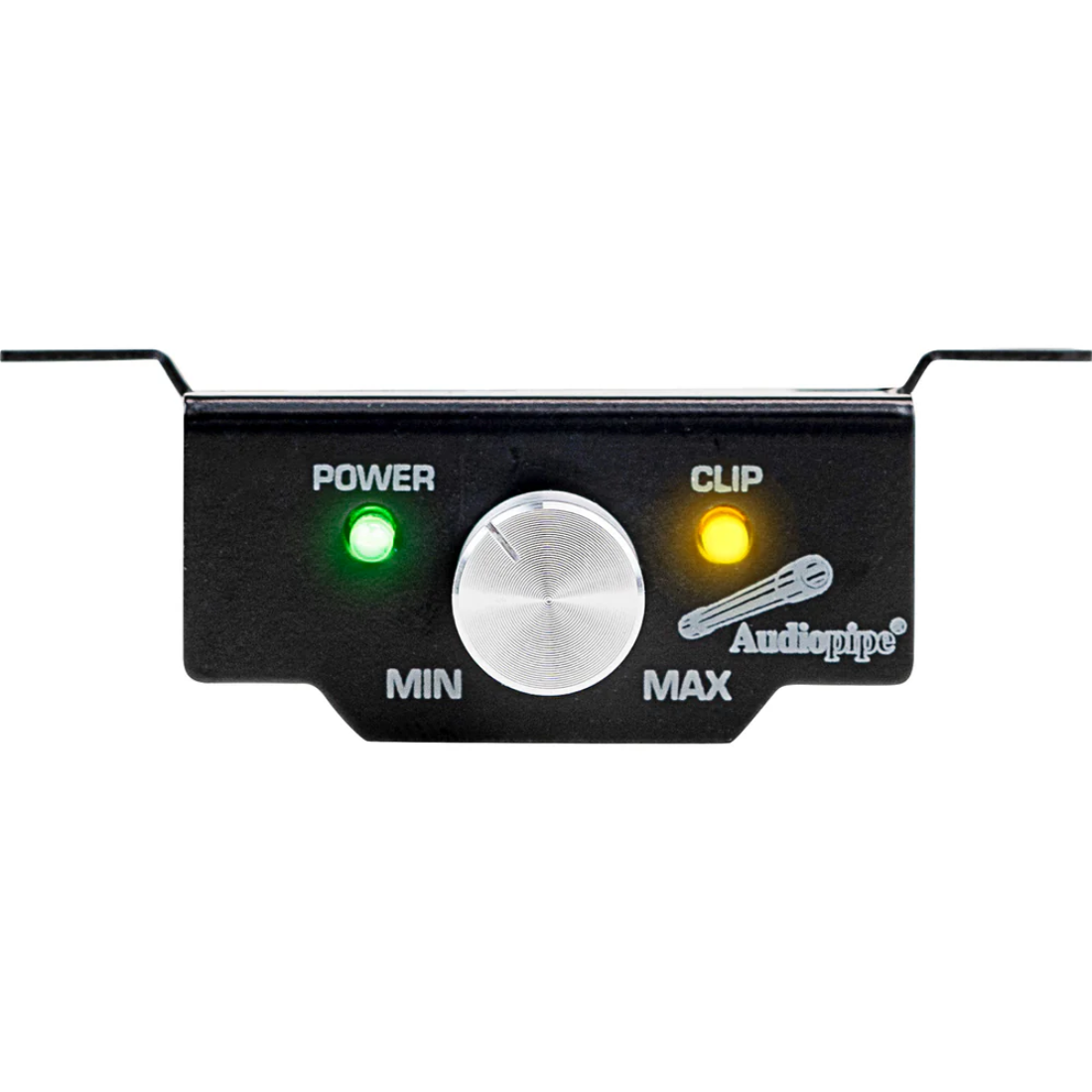

REMOTE SUBWOOFER VOLUME CONTROL: This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier's performance.
HIGH PASS: 10Hz-80Hz 12dB/Octave
LOW PASS: 80Hz-20KHz 12dB/Octave
BASS BOOST: 0-12 dB @ 35Hz-90Hz
DIMENSIONS (L x W x H): 7.4" x 9" x 2.9" (189 x 229 x 73 mm)
