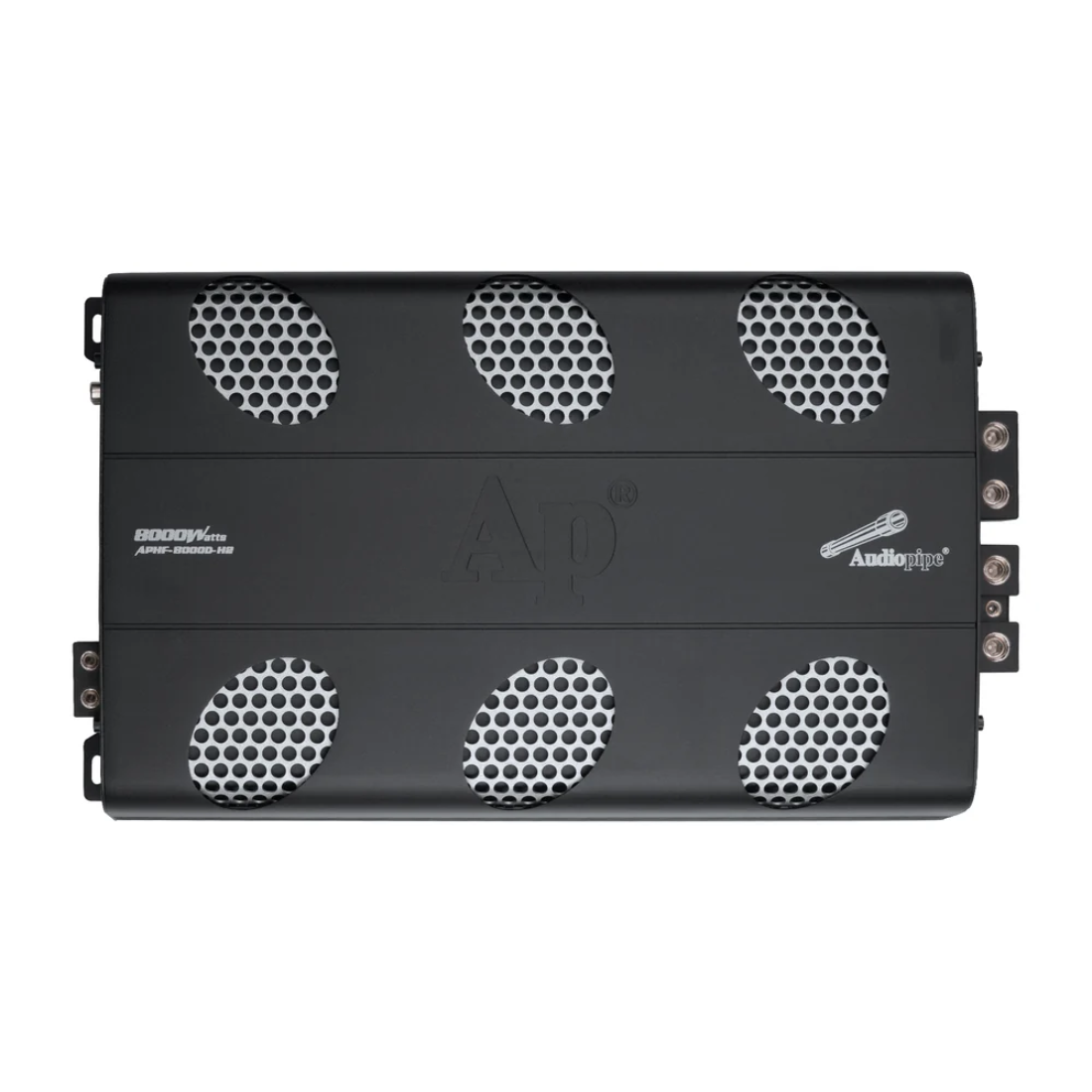

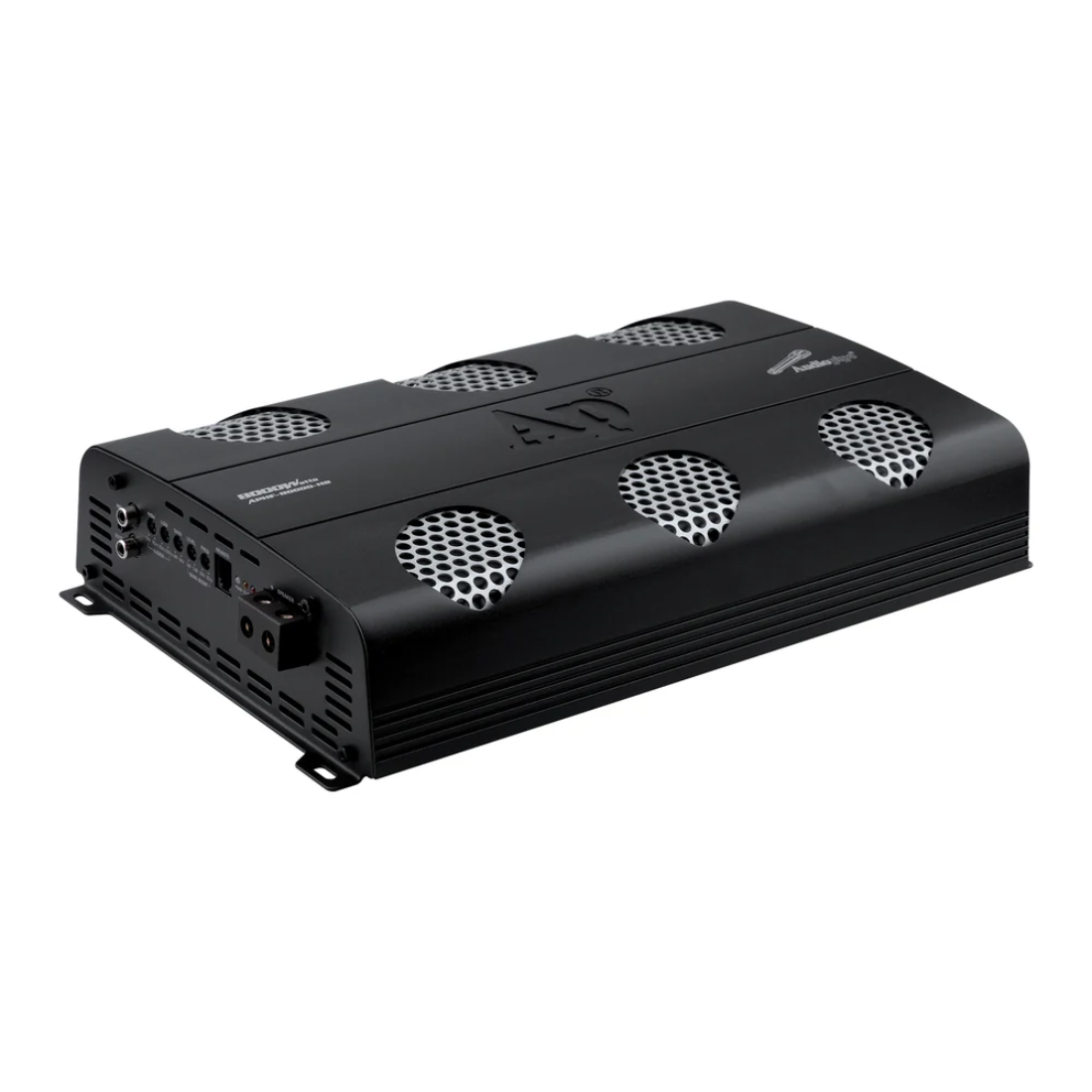

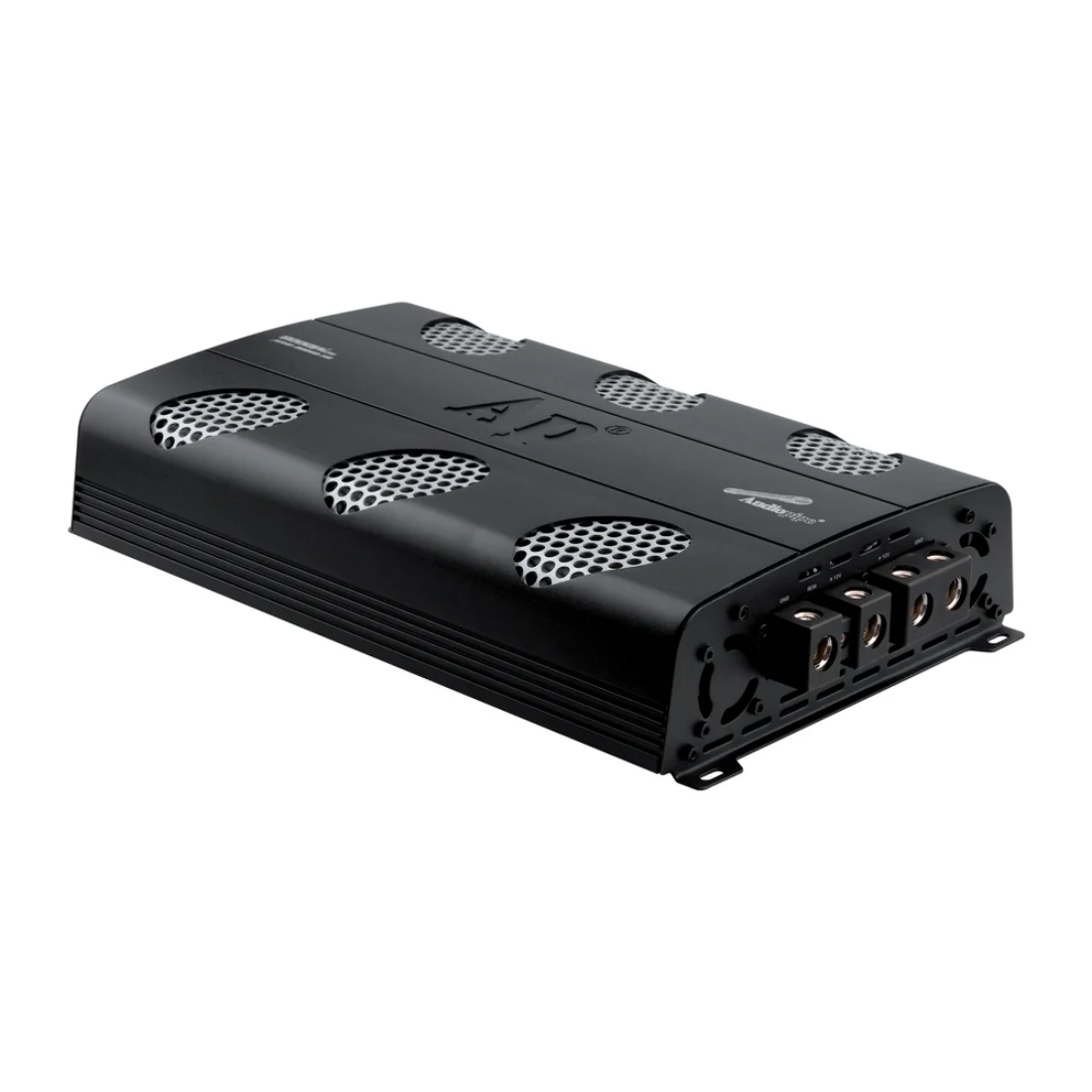

Monoblock 8000W Max Class-D Full-Range MOSFET Amplifier
Key Features:
FULL RANGE CLASS D MOSFET AMPLIFIER: Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound.

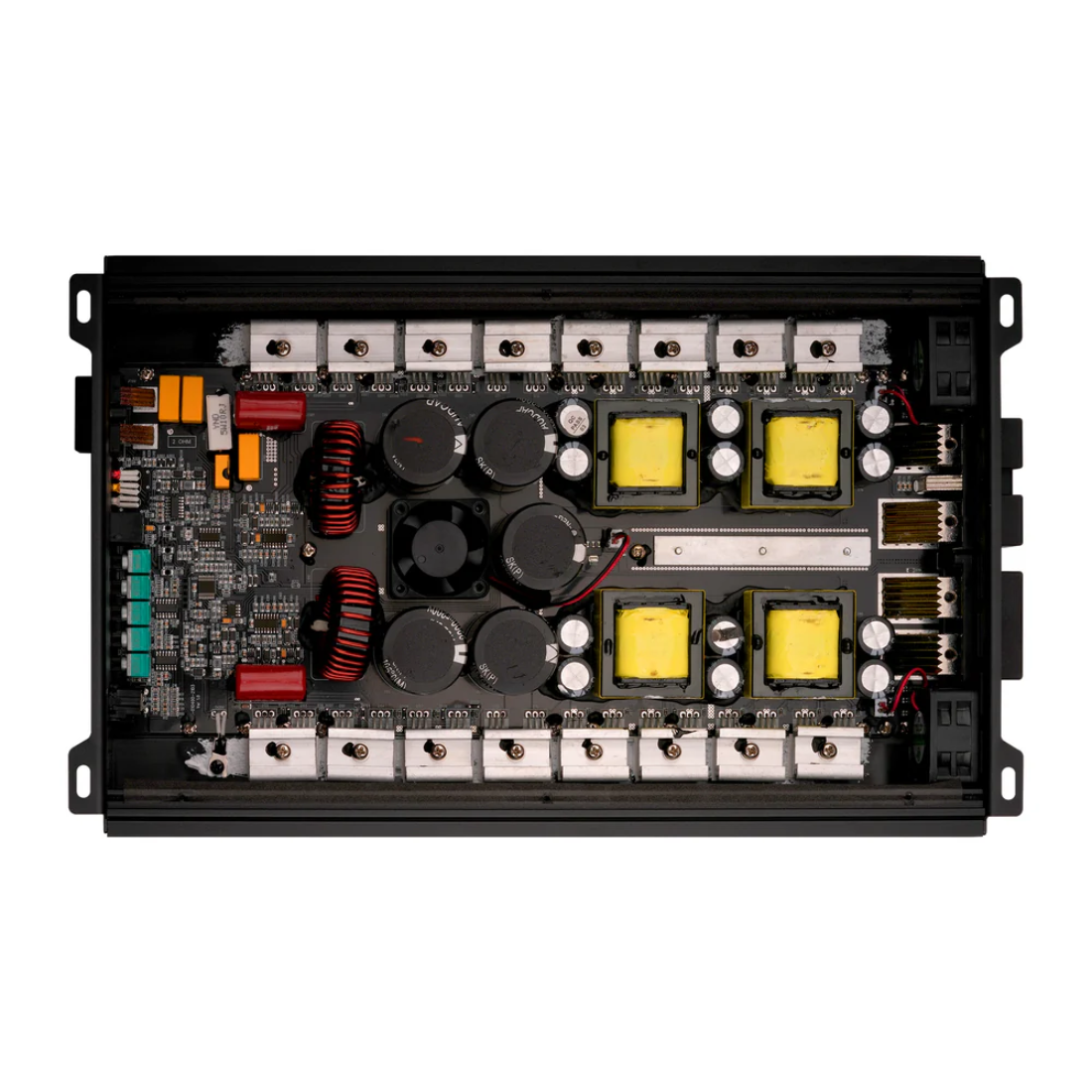

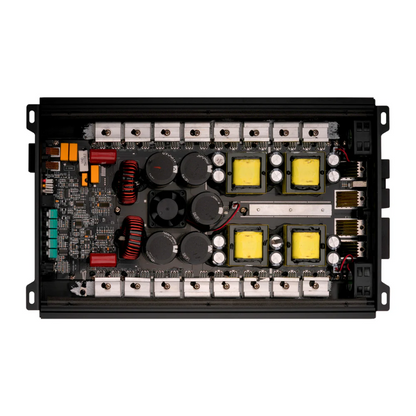

DESIGNED WITH ADVANCED MOSFET CIRCUITRY: Our Full Range Class D Mono Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power incased in a small footprint heatsink without sacrificing sound quality or performance.
MAXIMUM POWER OUTPUT: As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 8000 Watts.
UNMATCHED PERFORMANCE: Our amplifiers are the premier choice for "Brazilian Style" amplification with a track record of proven performance, ensuring an exceptional car audio experience.
FREQUENCY RESPONSE: 10Hz-20KHz
CONTINUOUS POWER OUTPUT:
RMS @ 4 Ohm (<1% DISTORTION): 4000W (14.4V)
RMS @ 2 Ohm (<1% DISTORTION): 8000W (14.4V)
SIGNAL TO NOISE RATIO: ≥85dB
INPUT SENSITIVITY: 0.25 - 4V
OVERLOAD PROTECTION: This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience.
OVERHEAT PROTECTION: This amplifier features an advanced heatsink, designed to provide superior overheat protection.
OVER-VOLTAGE PROTECTION: 16V
UNDER-VOLTAGE PROTECTION: 9V

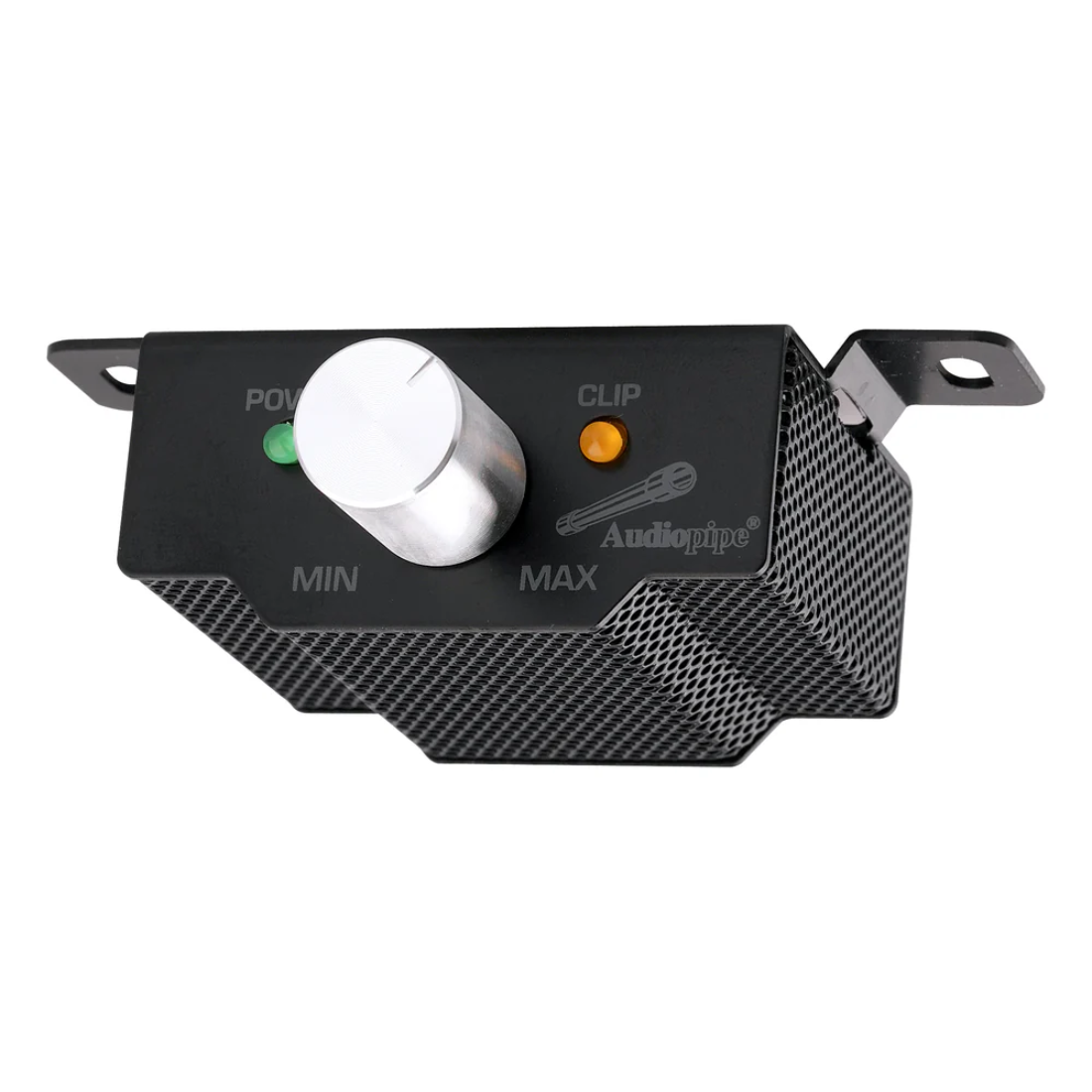

REMOTE SUBWOOFER VOLUME CONTROL: This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier's performance.

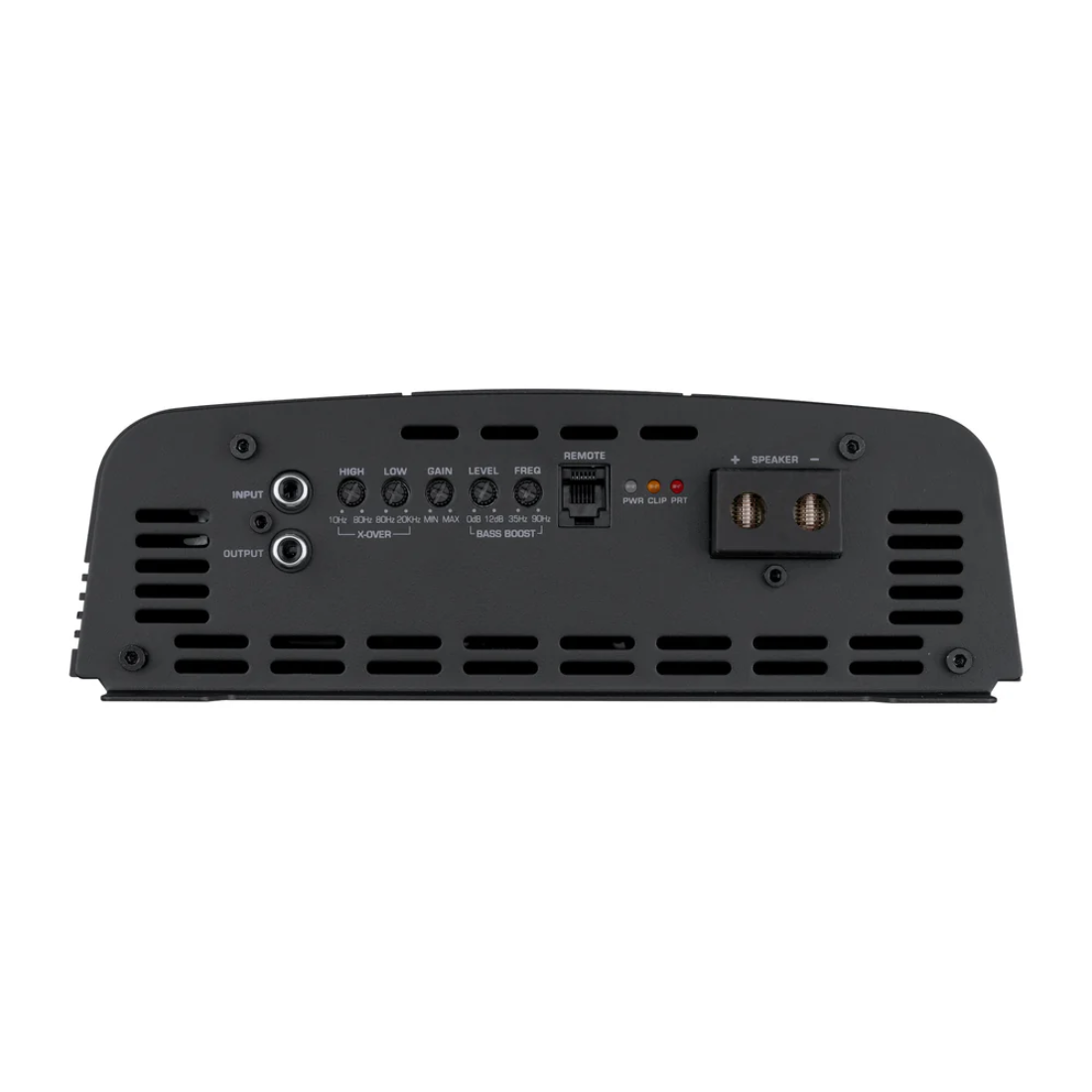

HIGH PASS: 10Hz-80Hz 12dB/Octave
LOW PASS: 80Hz-20KHz 12dB/Octave
BASS BOOST: 0-12 dB @ 35Hz-90Hz
DIMENSIONS: 13.7" x 9" x 2.9" (L x W x H) 349 x 229 x 73 mm
