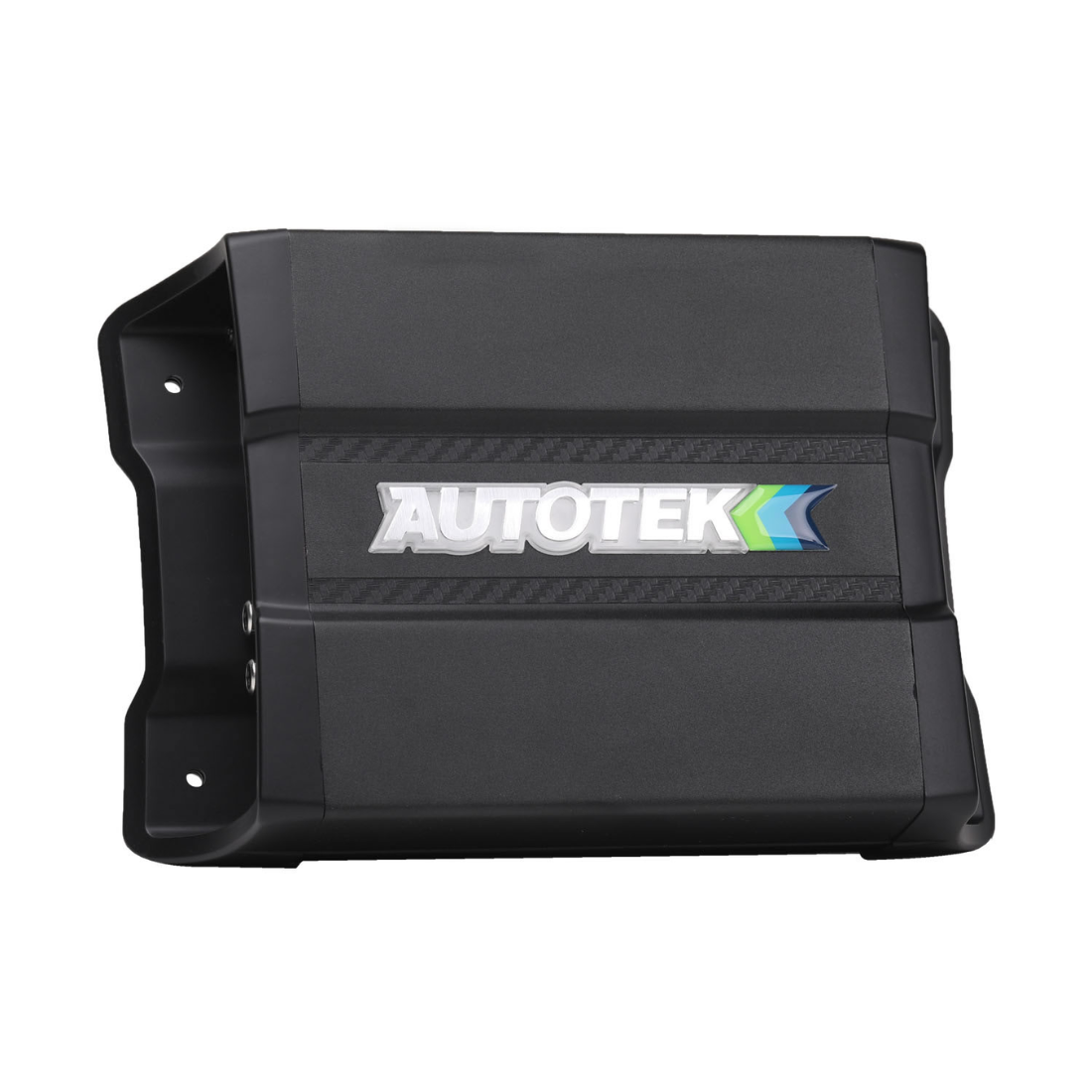

Autotek MM-1525.4D 1500W Max 4-Channel Class-D Car Audio Compact Amplifier
MEAN MACHINE | 1500 Watts Max 4-Channel Class-D Compact Amplifier
- Low Noise Preamplifier Circuit: Delivers minimal distortion through the amplification process.
- RCA Inputs: Provide the highest sound quality connection.
- Operation Mode: Four Channel, Full Range, Bridgeable. Can run in four-channel or bridged mono mode.
- Crossover Type: Onboard electronic crossover.
- Electronic Equalizer: Provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
- Class / Topology: Very efficient D-Class to drive additional power while remaining a small footprint.
- Output Device Technology: MEAN MACHINE'S ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High-Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels.
- Heat Sink: Heavy-duty aluminum alloy heatsink with an illuminated logo adds a vibrant display and showcase for every car audio installation.
- Power Supply: High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact.

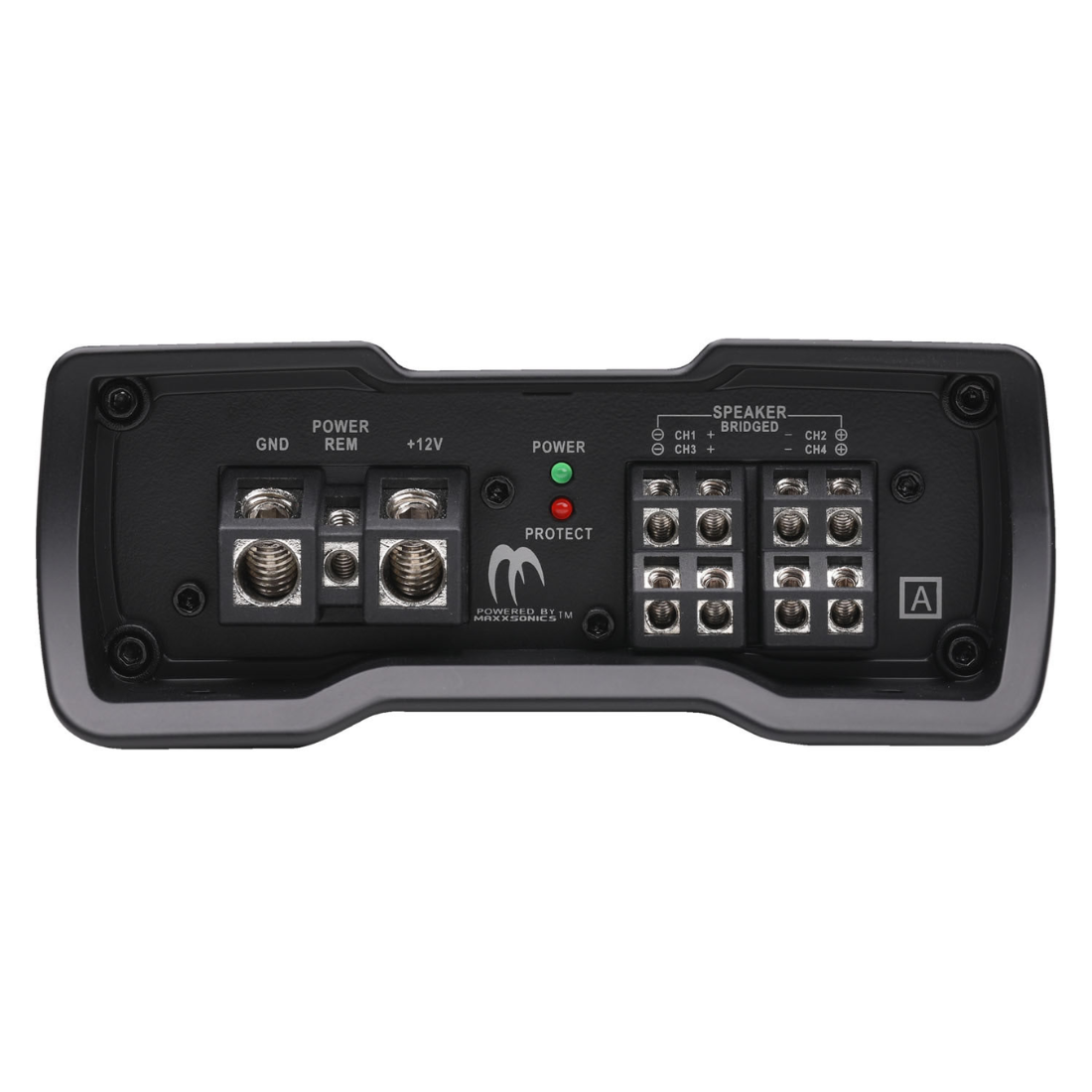

- Output Connections: Nickel-plated brass connection with hex set screw terminals allow for secure connection and resist erosion.
- Connection Type: Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection.
- Full-Range RCA Outputs for Signal Pass-Through: Allows additional amplifiers to be run from the "output" RCA connections which minimizes the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
- LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
- Weight: 3.75 lbs
- Dimensions: 11.75 × 7 × 3.25 in
- Type: Amplifier
- Brand: Autotek
- Series: Compact MEAN MACHINE
- Category: Mobile
- Condition: New
- Color: Black
- Compatible Vehicles: Universal
- Amp Class: Class D
- Amp Total Channels: 4
- Amp Max Power (watts): 1500
- Amp Power @ 2 Ohms (ch x watts): 4 x 375
- Amp Power @ 4 Ohms (ch x watts): 4 x 200
- Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 750
- Amp Crossover: Variable Electronic 12dB Per Octave
- Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
- Amp Tone Control / Parametric EQ: Built-in Bass Control
- Amp Variable Voltage: 0.2-6V
- Amp Frequency Response: 10Hz-22kHz
- Amp Total Harmonic Distortion (THD): < 0.05%

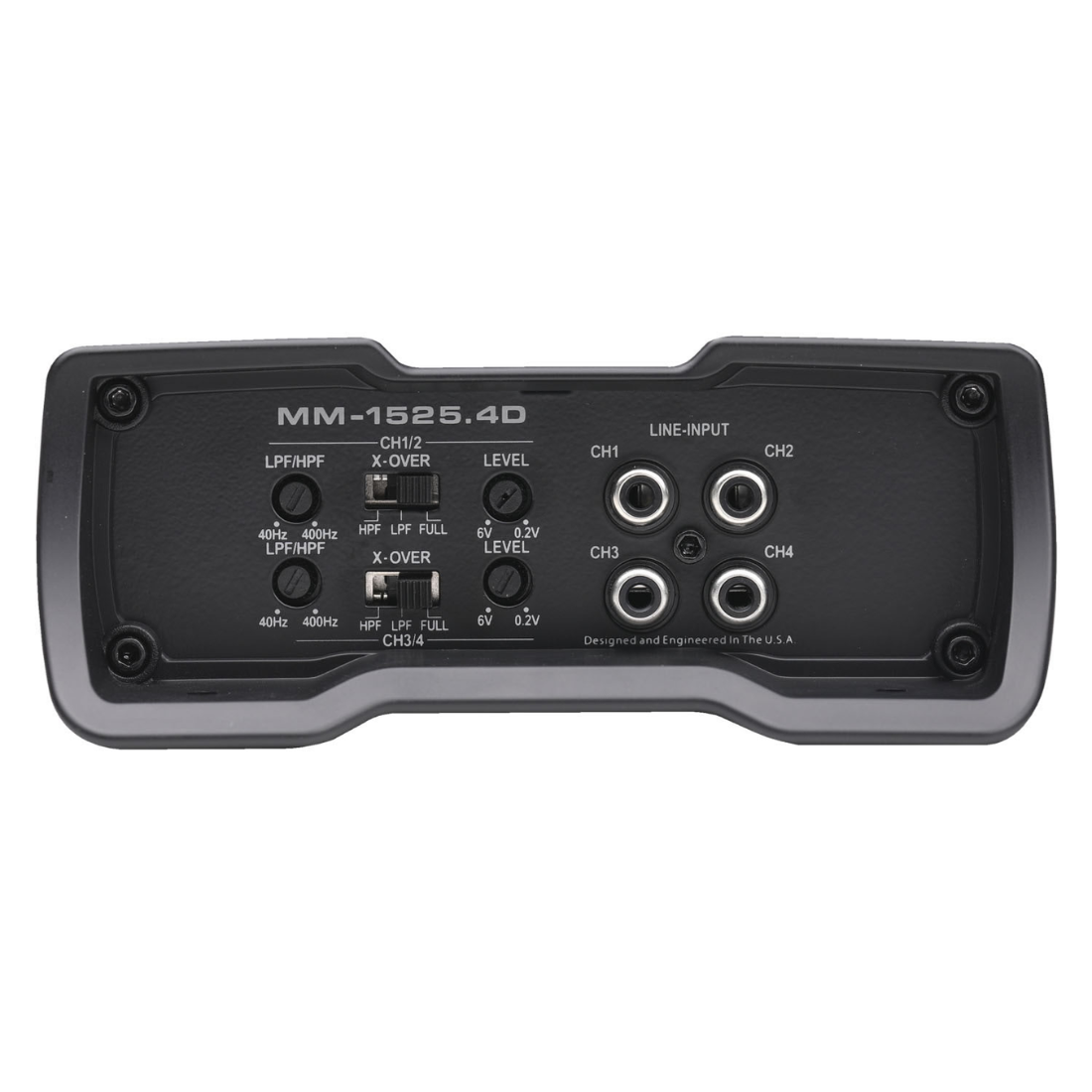

- Amp Speaker Level Audio Inputs: RCA
- Pre-amp Audio Outputs: RCA
- Amp Power Terminal 12v/GND: 4 AWG
- Amp Speaker Terminal Wire Gauge: 12 AWG
- Amp Fusing: External 40A
