Autotek

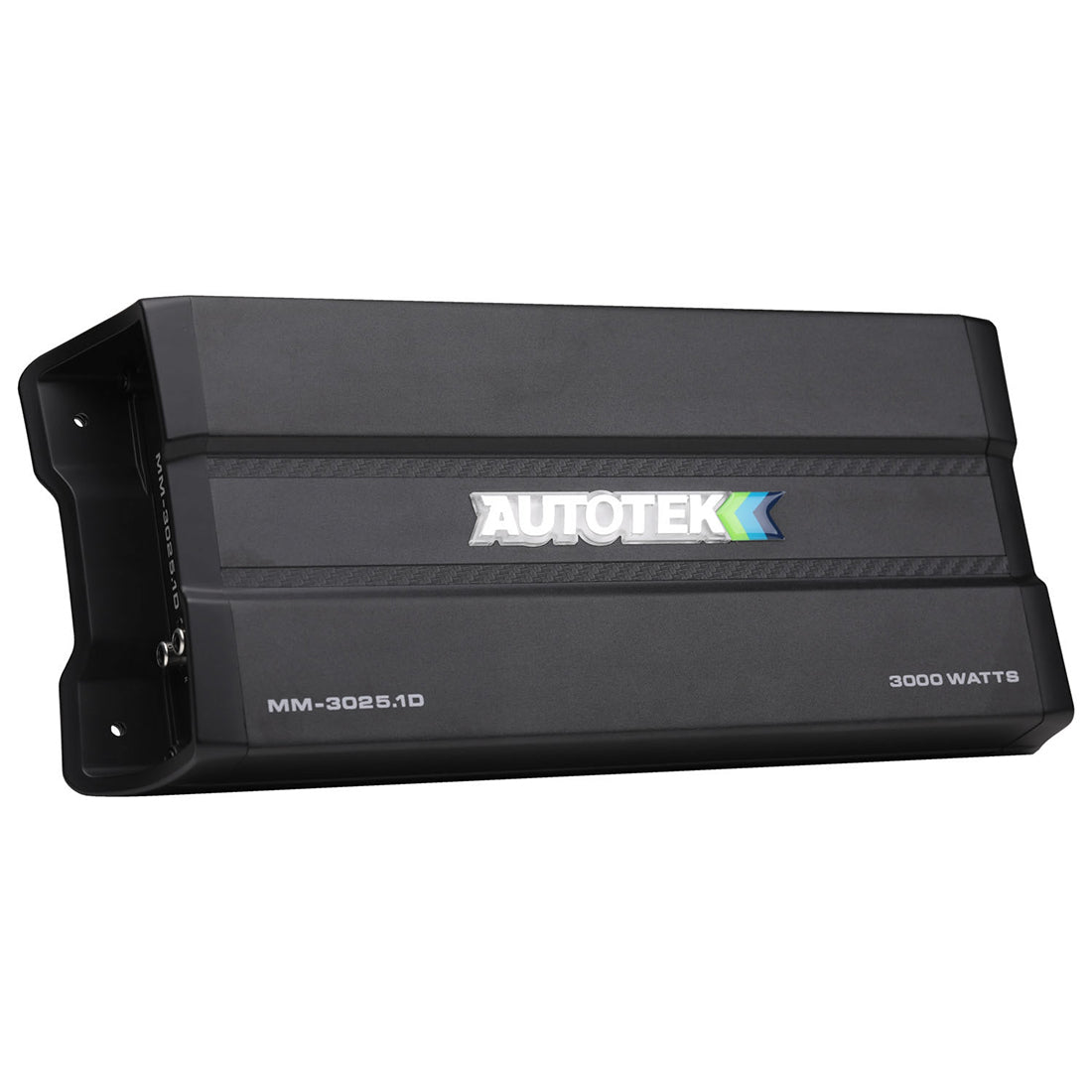

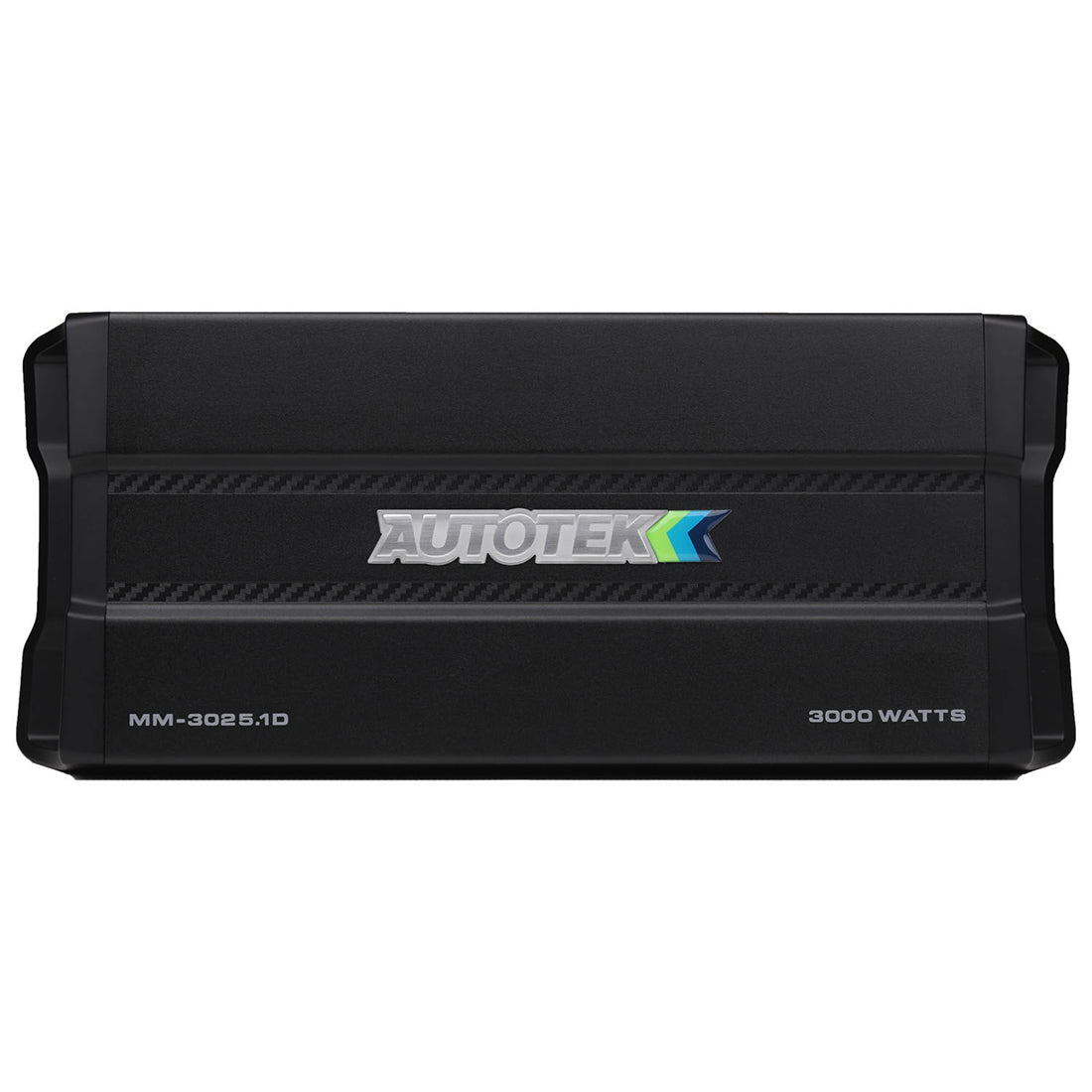

Autotek MM-3025.1D 3000W Max 1-CH Monoblock Class-D Car Audio Compact Amplifier

Autotek MM-3025.1D 3000W Max 1-CH Monoblock Class-D Car Audio Compact Amplifier

Regular price $142.79 USD
Regular price Sale price $142.79 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

AUTOTEK MM-3025.1D

MEAN MACHINE | 3000 Watts Max Monoblock Class-D Compact Amplifier

Key Features:

  • Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
  • RCA Inputs: RCA inputs and outputs provide the highest sound quality connection.
  • Operation Mode: Mono only
  • Crossover Type: Onboard electronic crossover
  • Electronic Equalizer: Provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
  • Class / Topology: Very efficient D-Class to drive additional power while remaining a small footprint.
  • Output Device Technology: MEAN MACHINE'S ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High-Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels.
  • Heat Sink: Heavy-duty aluminum alloy heatsink with an illuminated logo adds a vibrant display and showcase for every car audio installation.
  • Power Supply: High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact.
  • Output Connections: Nickel-plated brass connection with hex set screw terminals allow for secure connection and resist erosion.
  • Connection Type: Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection.
  • Full-Range RCA Outputs for Signal Pass-Through: Full-range signal pass-through output allows additional amplifiers to be run from the "output" RCA connections which minimizes the need for additional cables running the length of the vehicle. This can dramatically minimize noise.

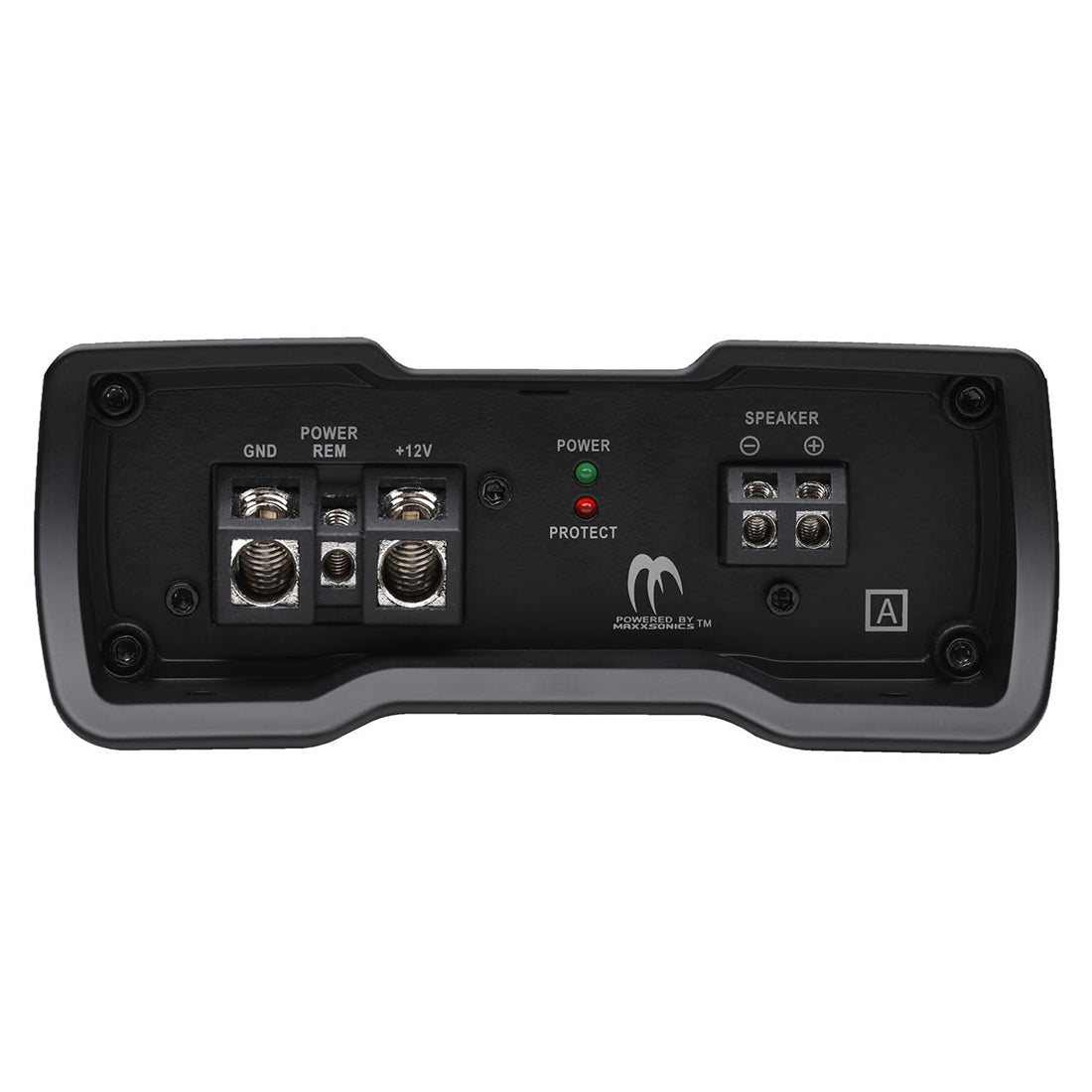

  • LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.

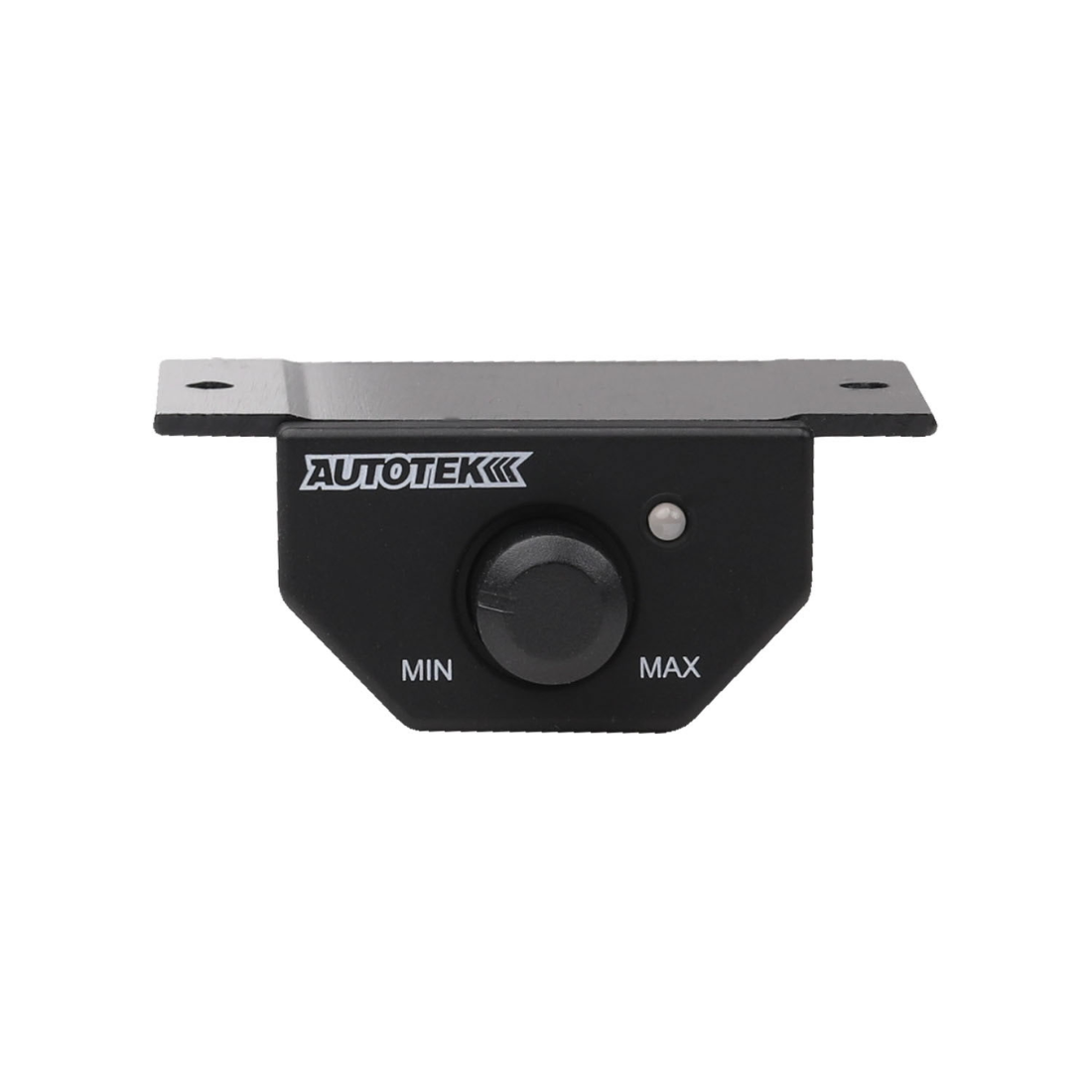

  • Bass Remote Included: Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
Specifications:

  • Weight: 6.85 lbs
  • Dimensions: 17 × 7 × 3.25 in
  • Type: Amplifier
  • Brand: Autotek
  • Series: Compact MEAN MACHINE
  • Category: Mobile
  • Condition: New
  • Color: Black
  • Compatible Vehicles: Universal
  • Amp Class: Class D
  • Amp Total Channels: 1
  • Amp Max Power (watts): 3000
  • Amp Power @ 1 Ohm (ch x watts): 1 x 3000
  • Amp Power @ 2 Ohms (ch x watts): 1 x 1500
  • Amp Power @ 4 Ohms (ch x watts): 1 x 750

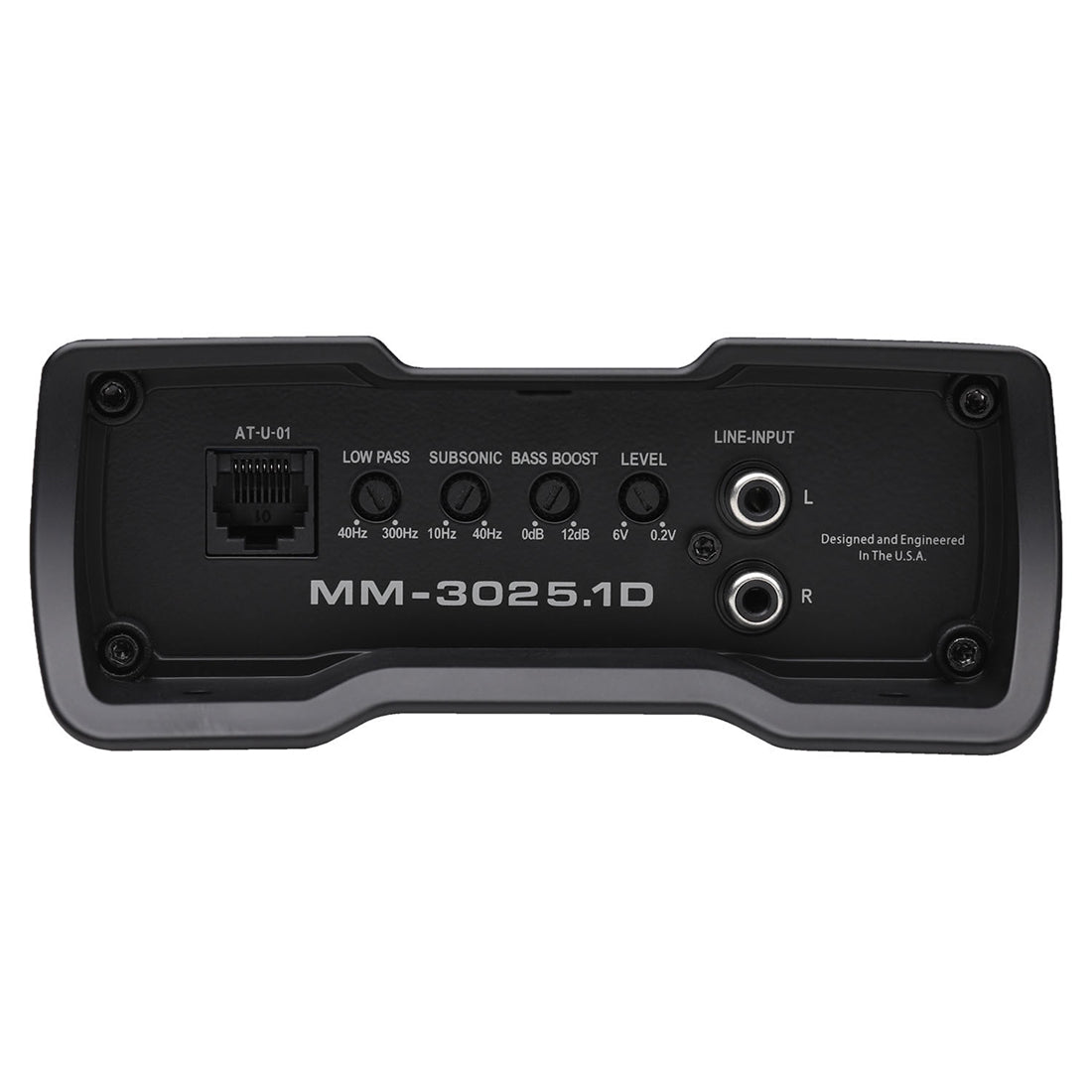

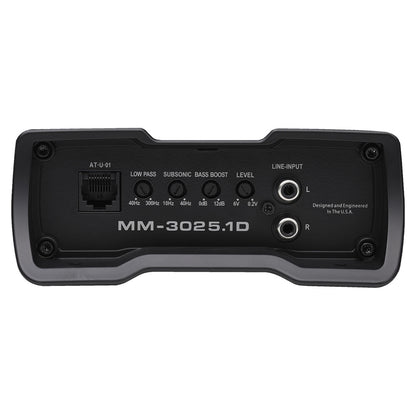

  • Amp Crossover: Variable Electronic 12dB Per Octave
  • Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
  • Amp Tone Control / Parametric EQ: Built-in Bass Control
  • Amp Bass Boost: 0-12dB
  • Amp Subsonic Filter: 10Hz-40Hz
  • Amp Variable Voltage: 0.2-6V
  • Amp Frequency Response: 10Hz-500Hz
  • Amp Total Harmonic Distortion (THD): < 0.1%
  • Amp Speaker Level Audio Inputs: Yes
  • Pre-amp Audio Outputs: RCA
  • Amp Power Terminal 12v/GND: 4 AWG
  • Amp Speaker Terminal Wire Gauge: 12 AWG
  • Amp Fusing: External 125A
