DS18

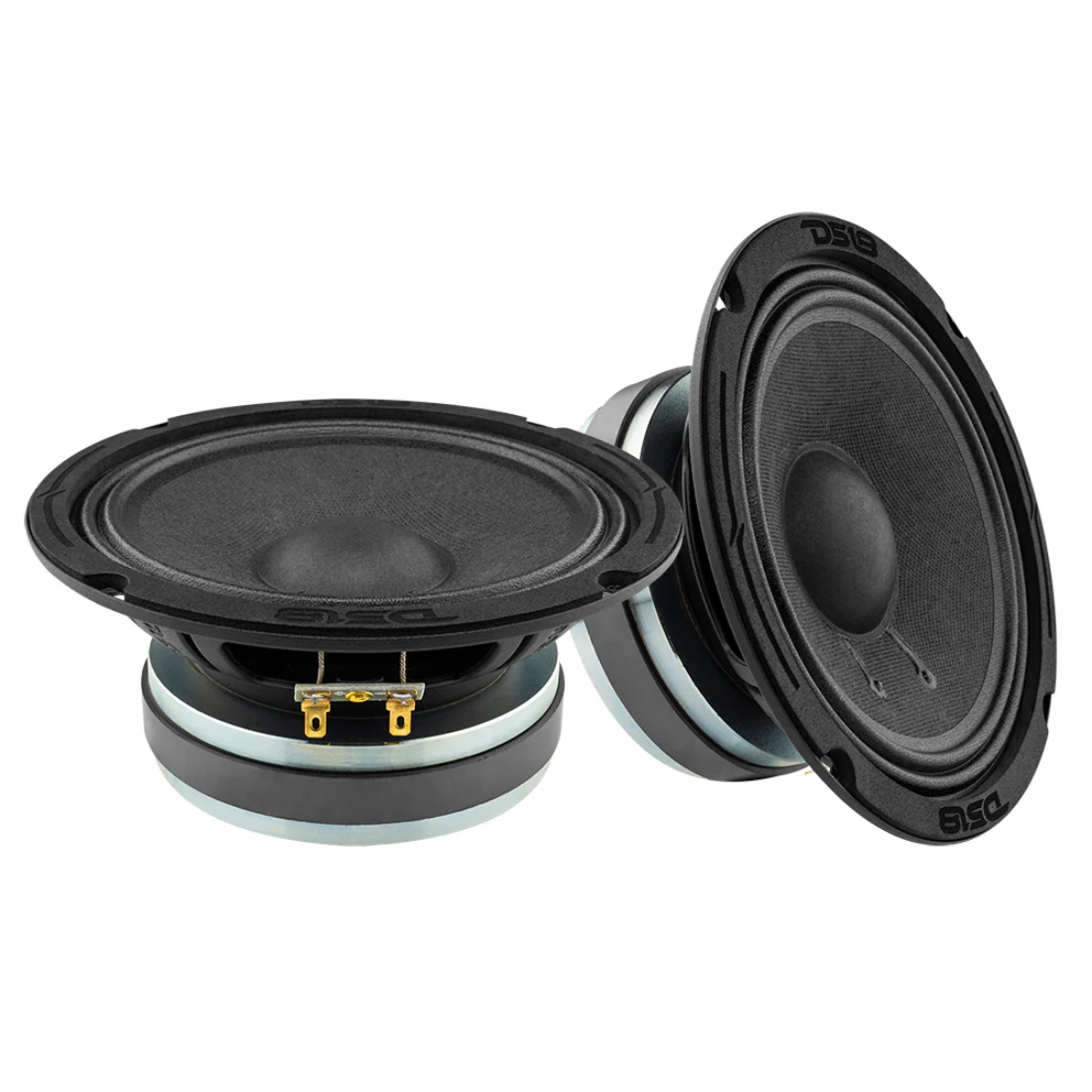

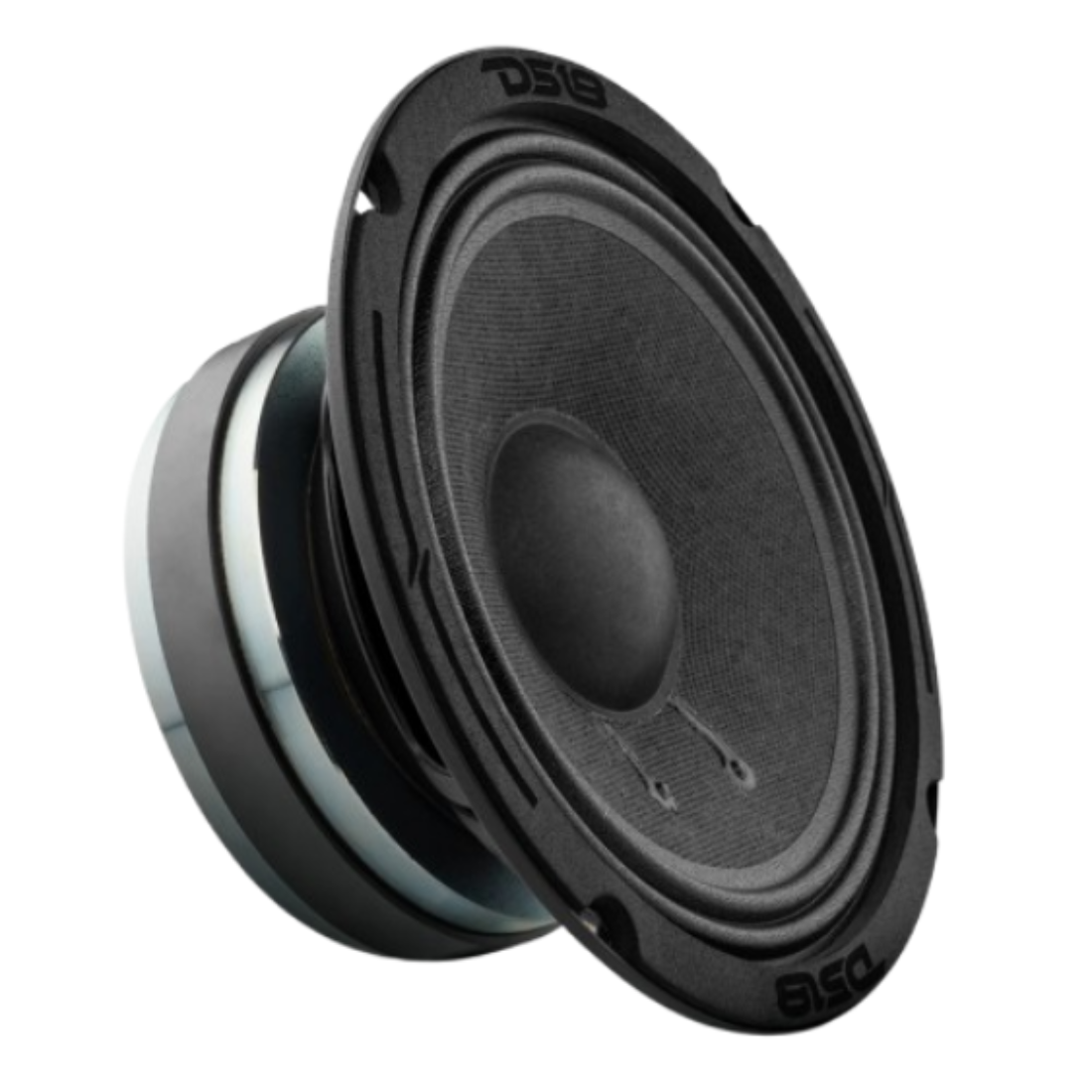

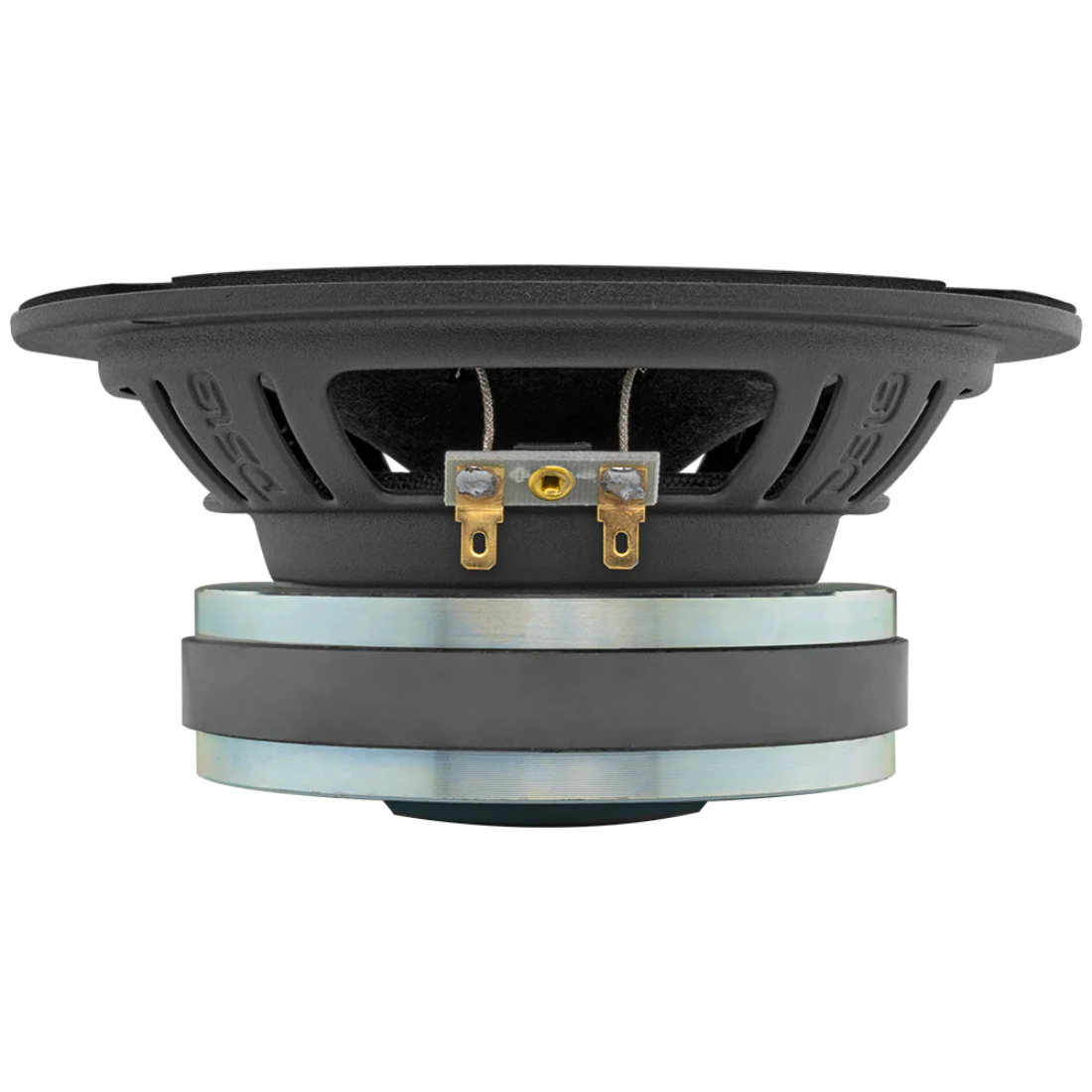

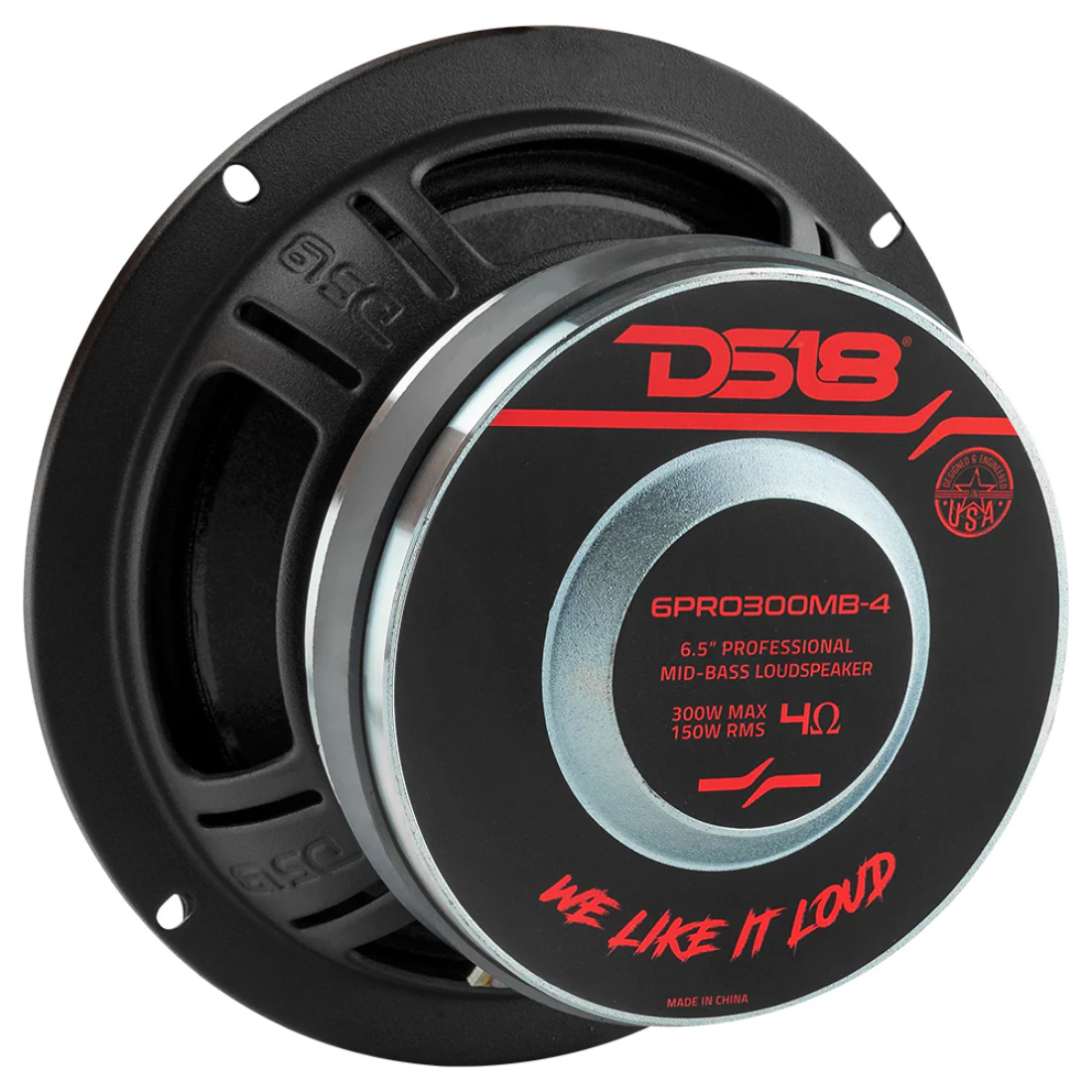

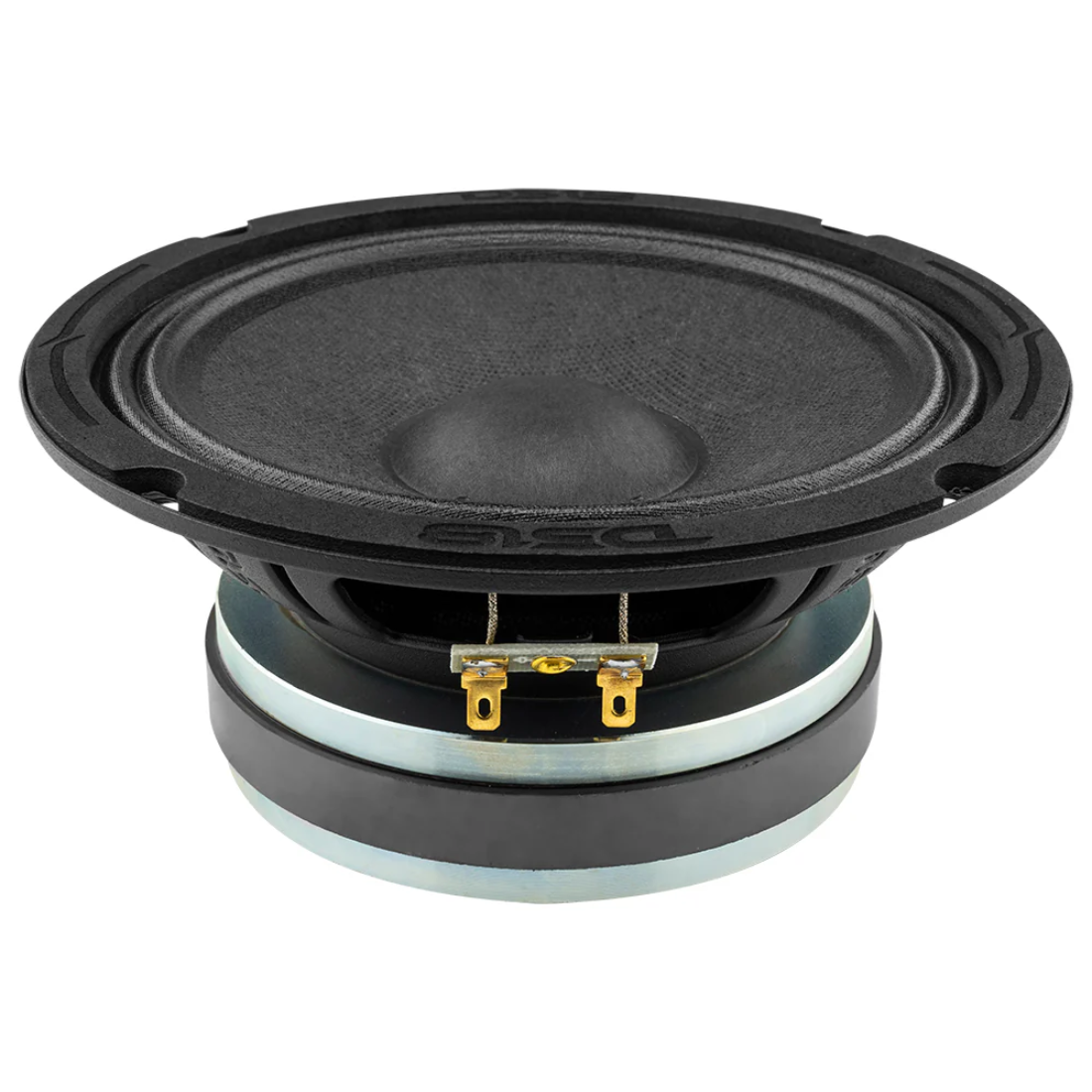

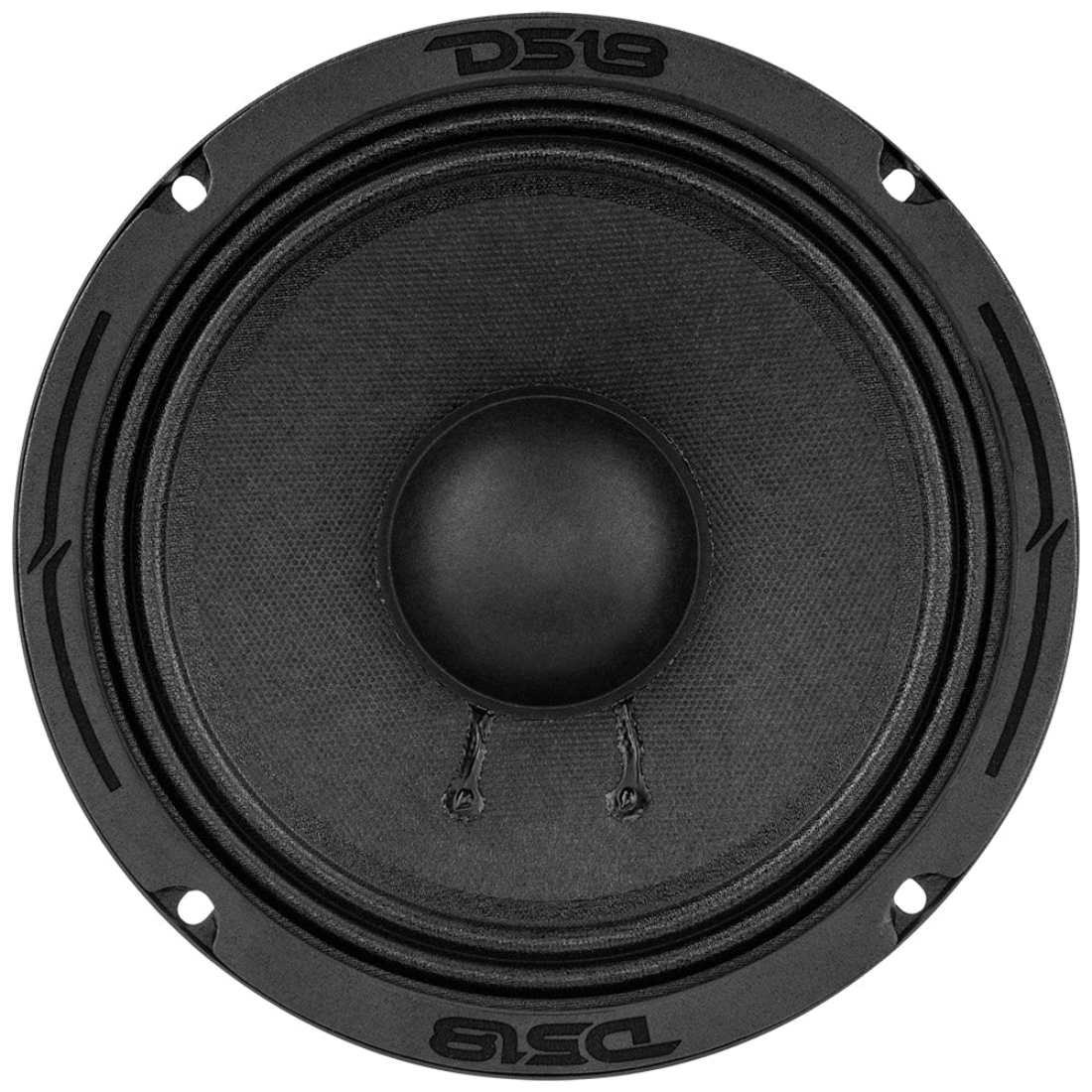

DS18 6PRO300MB-4 6.5" 300W Max 4-Ohm Mid-Bass Car Audio Loudspeaker (Single)

Name: DS18 6PRO300MB-4 6.5" 300W Max 4-Ohm Mid-Bass Car Audio Loudspeaker (Single)
Brand: DS18
SKU: 6PRO300MB-4
Price: 59.95 USD
Availability: InStock

$59.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 6PRO300MB-4

6.5-inch 300 Watts Max 4-Ohm Mid-Bass Loudspeaker (Single)

Key Features:

6.5" Mid-Bass
MAX Power: 300 Watts
RMS Power: 150 Watts
Impedance: 4 Ohm
Ferrite Magnet
96dB

Specifications:

SKU: 6PRO300MB-4
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 Ohm
RMS Power Handling: 150W
Maximum Power Handling: 300W
Sensitivity (1w/1m): 96 dB
Frequency Response: 80Hz-6KHz
Recommended HI Pass Crossover: 100Hz
Sold in Pair or Single: Single
Grill Included: No

Motor Features:

Voice Coil Diameter: 1.5" / 38.1mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Basket Color/Finish: Satin Black
Magnet Material: Ferrite
Magnet Weight: 20oz
Displacement Volume: 0.32L / 0.011ft3

Thiele & Small Parameters:

Equivalent Volume Vas: 2.79L / 0.098ft3
Excursion (one way) Xmax: 9.4mm
Free Air Resonance Fs: 142Hz
Mechanical Factor Qms: 2.09
Electrical Factor Qes: 0.47
Total Factor Qts: 0.39
Moving Mass Mms: 10.85g
Compliance Cms: 0.12mm/N
Bl Factor Bl: 8.47
Voice Coil Inductance Le: 0.16mH
Diaphragm Area Sd: 130.7cm2
DC Resistance Re: 3.5ohms

Measurements:

Overall Diameter: 6.5" / 166mm
Overall Depth: 3.1" / 79mm
Front Mount Baffle Cutout: 5.6" / 143mm
Mounting Depth: 2.8" / 73mm
Motor Diameter: 4.5" / 115mm
Gross Single Unit Weight (lb): 5
Dimensions W x L x H (Inches): 7.25 x 7.25 x 3.5

View full details
