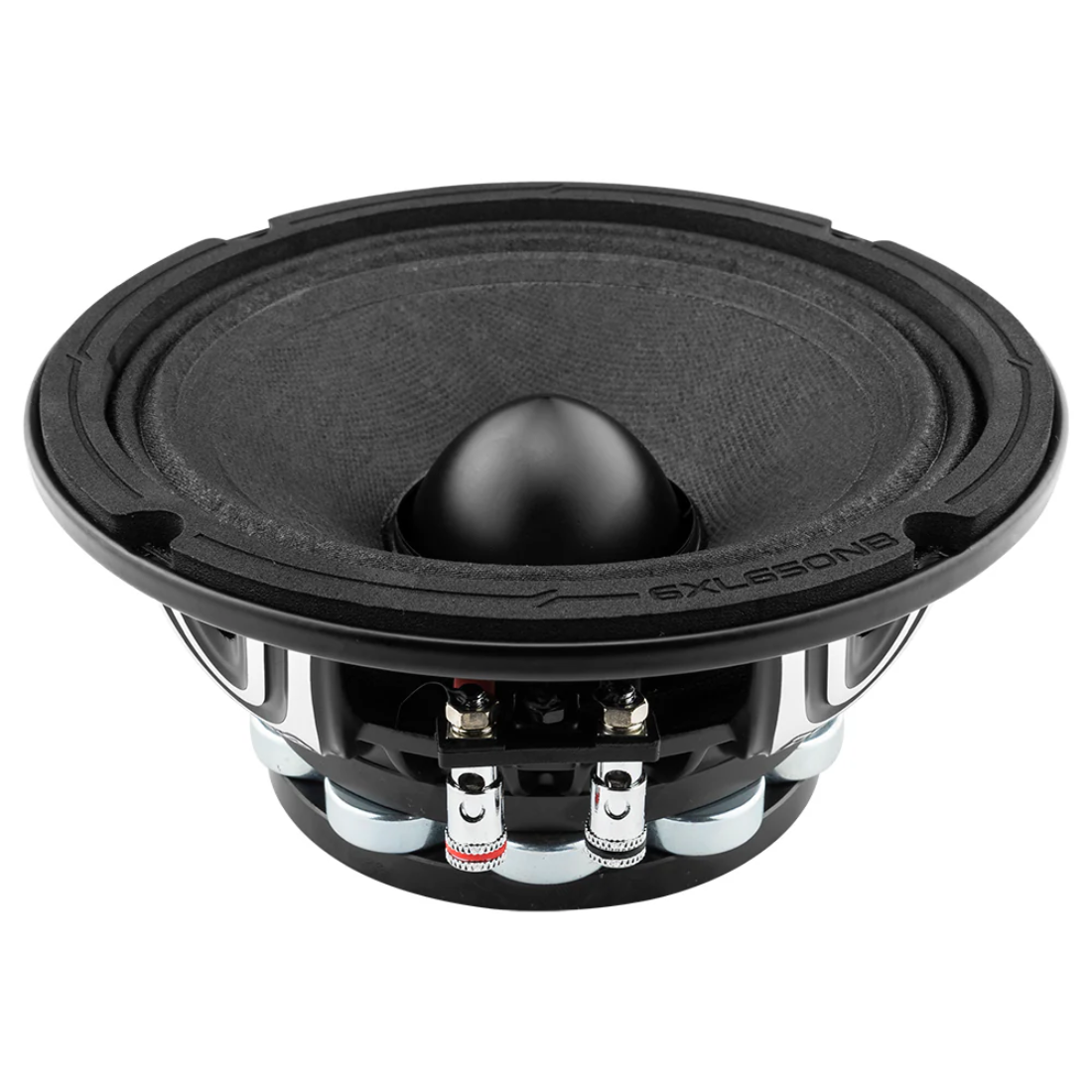

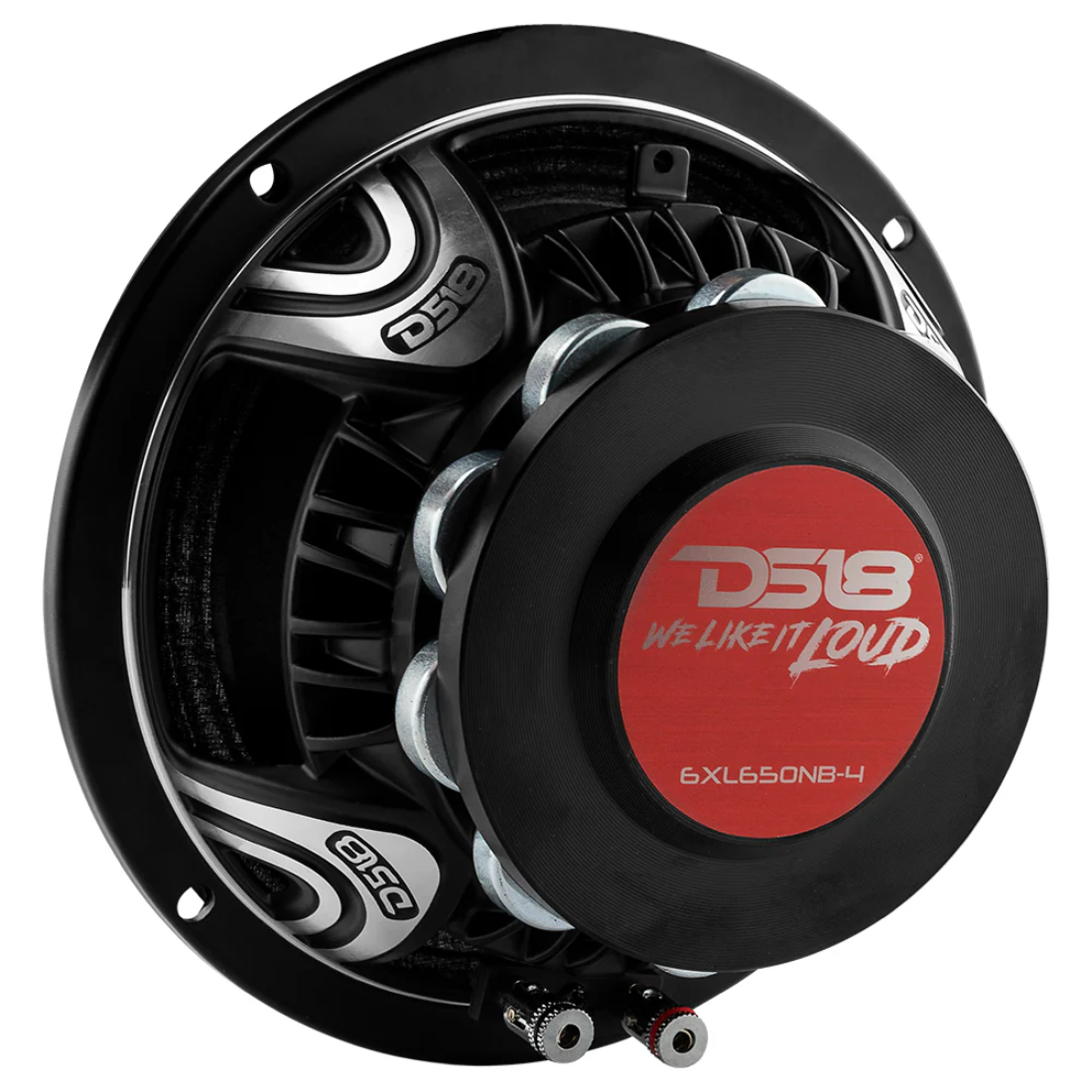

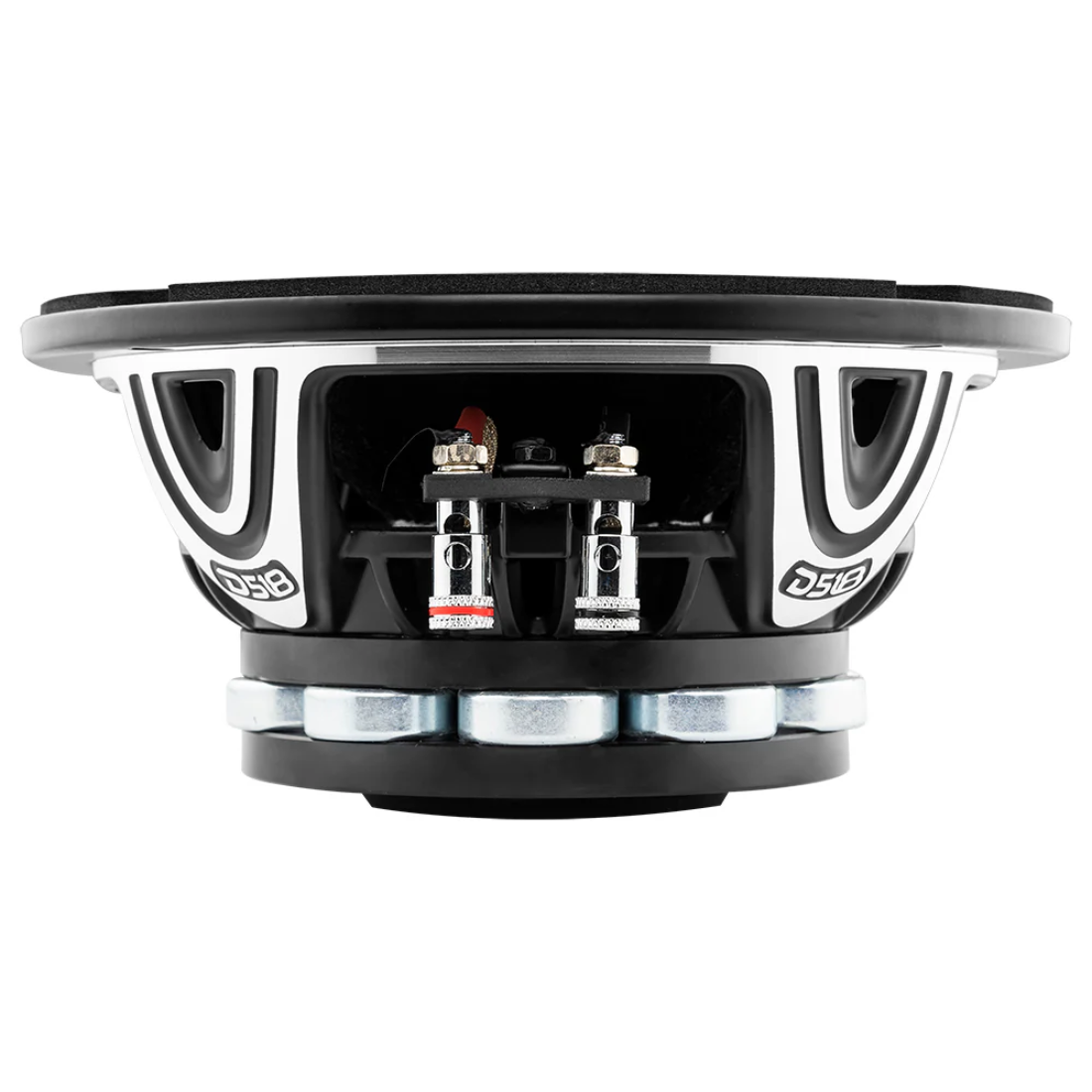

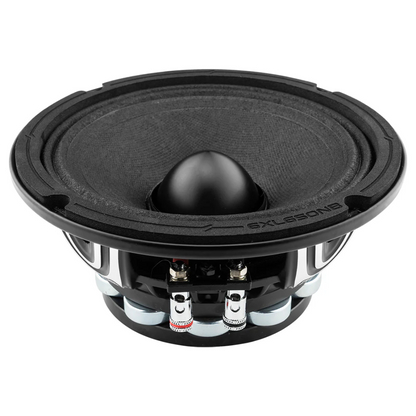

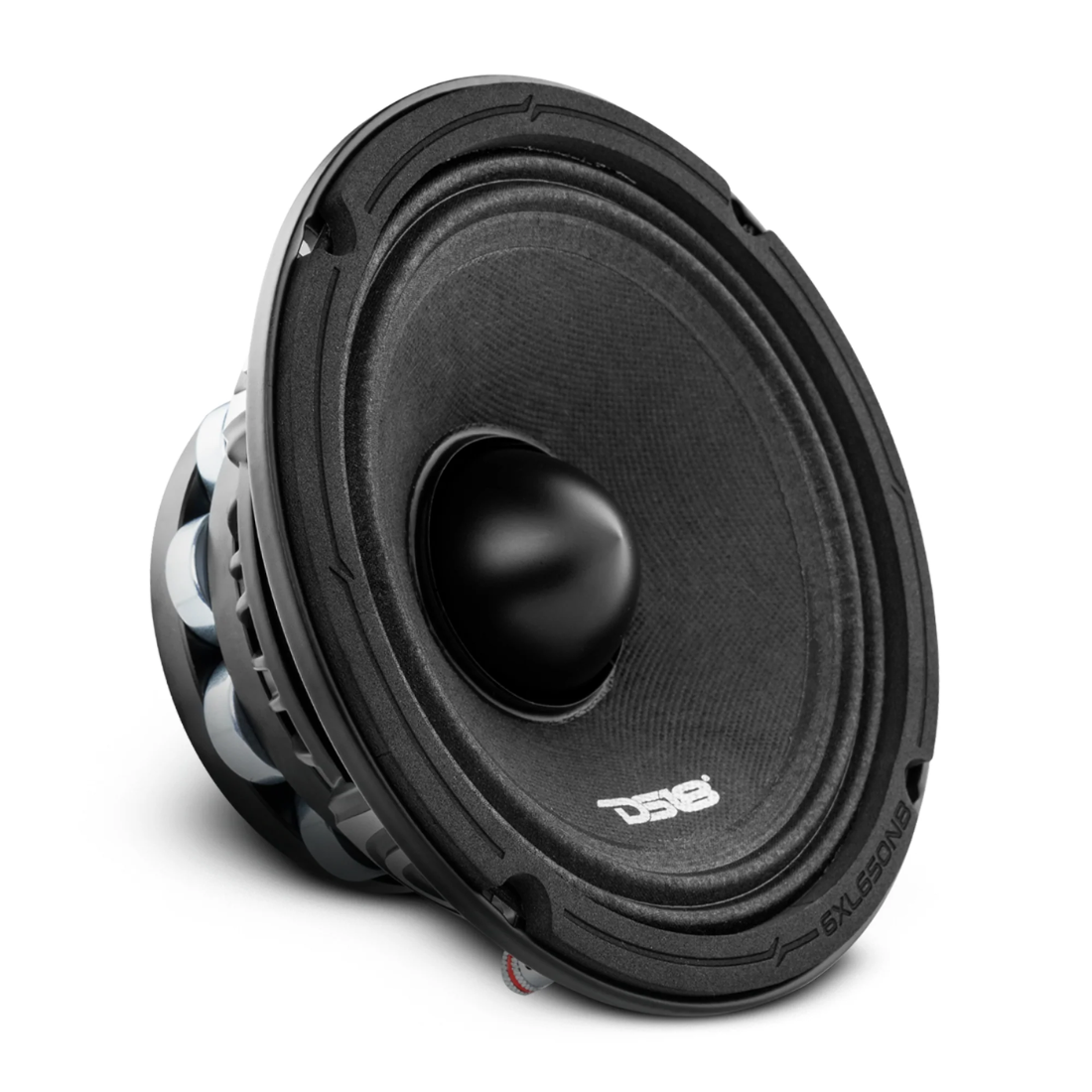

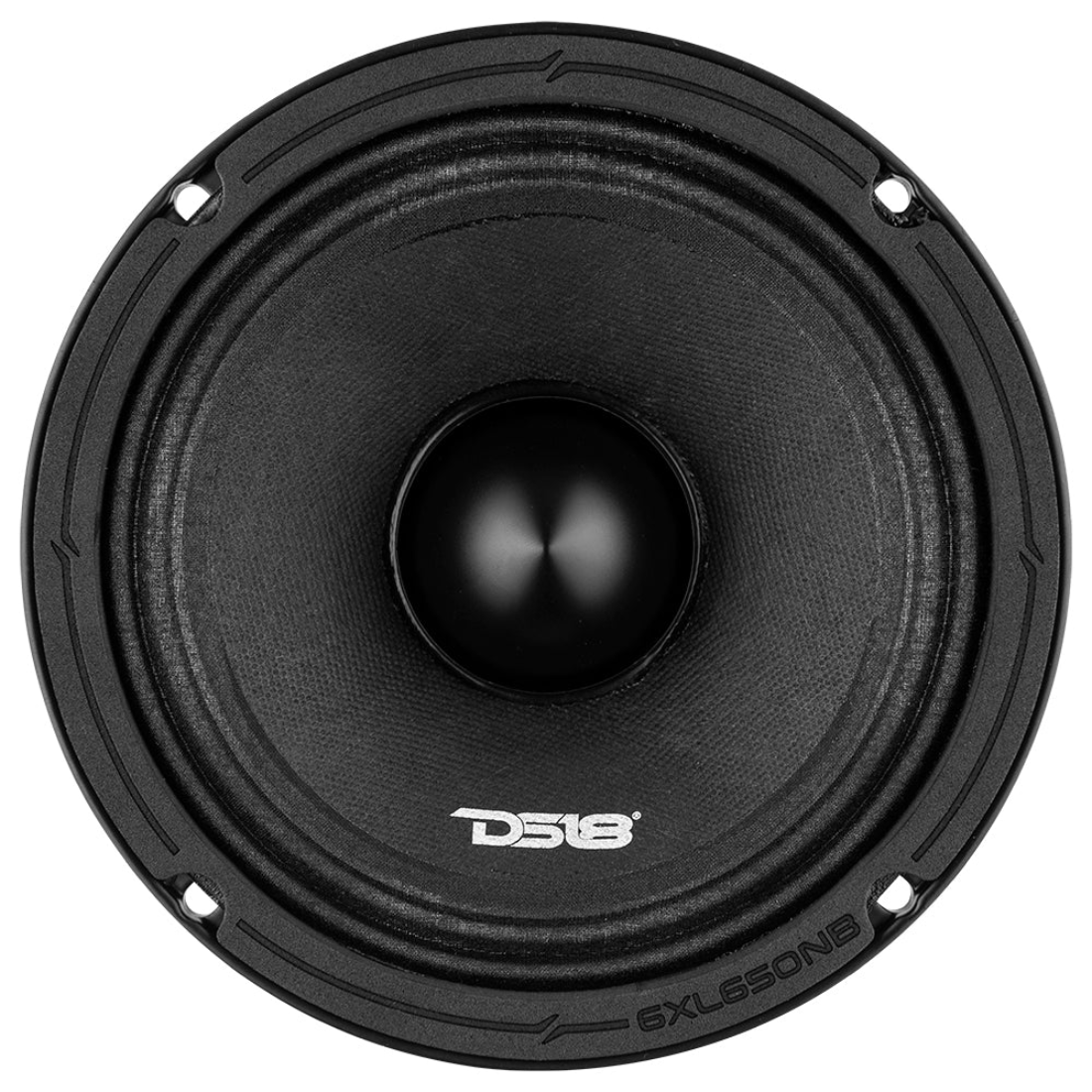

DS18 6XL650NB-4 6.5" 650W Max 4-Ohms Neodymium Mid-Range Loudspeaker with Bullet

Name: DS18 6XL650NB-4 6.5" 650W Max 4-Ohms Neodymium Mid-Range Loudspeaker with Bullet
Brand: DS18
SKU: 6XL650NB-4
Price: 203.95 USD
Availability: OutOfStock

$203.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 6XL650NB-4

6.5-Inch 650 Watts Max 4-Ohms Neodymium Mid-Range Loudspeaker

Key Features:

6.5" Mid-Range w/ Bullet
MAX Power: 650 Watts
RMS Power: 325 Watts
Impedance: 4 Ohm
Neodymium Magnet
97dB

Specifications:

Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 Ohm / 8 Ohm
RMS Power Handling: 325 watts
MAX Power Handling: 650 watts
Sensitivity (1w/1m): 97dB
Frequency Response: 80Hz-12.5KHz
Recommended HI Pass Crossover: 100Hz
Sold in Pair or Single: Single
Grill Included: No

Motor Specs:

Voice Coil Diameter: 2" / 50.8mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-pressed Paper
Dust Cap Material: N/A
Bullet Material: Aluminum
Bullet Color/Finish: Black
Surround Material: Cloth
Basket Material: Aluminum
Basket Color/Finish: Satin Black
Magnet Material: Neodymium Rings
Magnet Weight: 11.4 Oz
Displacement Volume: 0.34L / 0.012ft3

Thiele & Small Parameters:

Equivalent Volume: 5.07L / 0.17ft3
Excursion (one way): 3.7mm
Free Air Resonance: 120Hz
Mechanical Factor: 5.16
Electrical Factor: 0.28
Total Factor: 0.26
Mechanical Mass: 9.11g
Mechanical Compliance: 0.19mm/N
BL Factor: 9.41
Voice Coil Inductance: 0.05mH
Cone Area: 136.85cm2
DC Resistance: 3.5 ohm
Mechanical Mass w/o air: 8.2g

Measurement:

Overall Diameter: 6.7" / 170mm
Overall Depth: 3.19" / 81mm
Front Mount Baffle Cutout: 5.9" / 150mm
Mounting Depth: 2.83" / 72mm
Motor Diameter: 4.13" / 105mm
