BRAND NEW

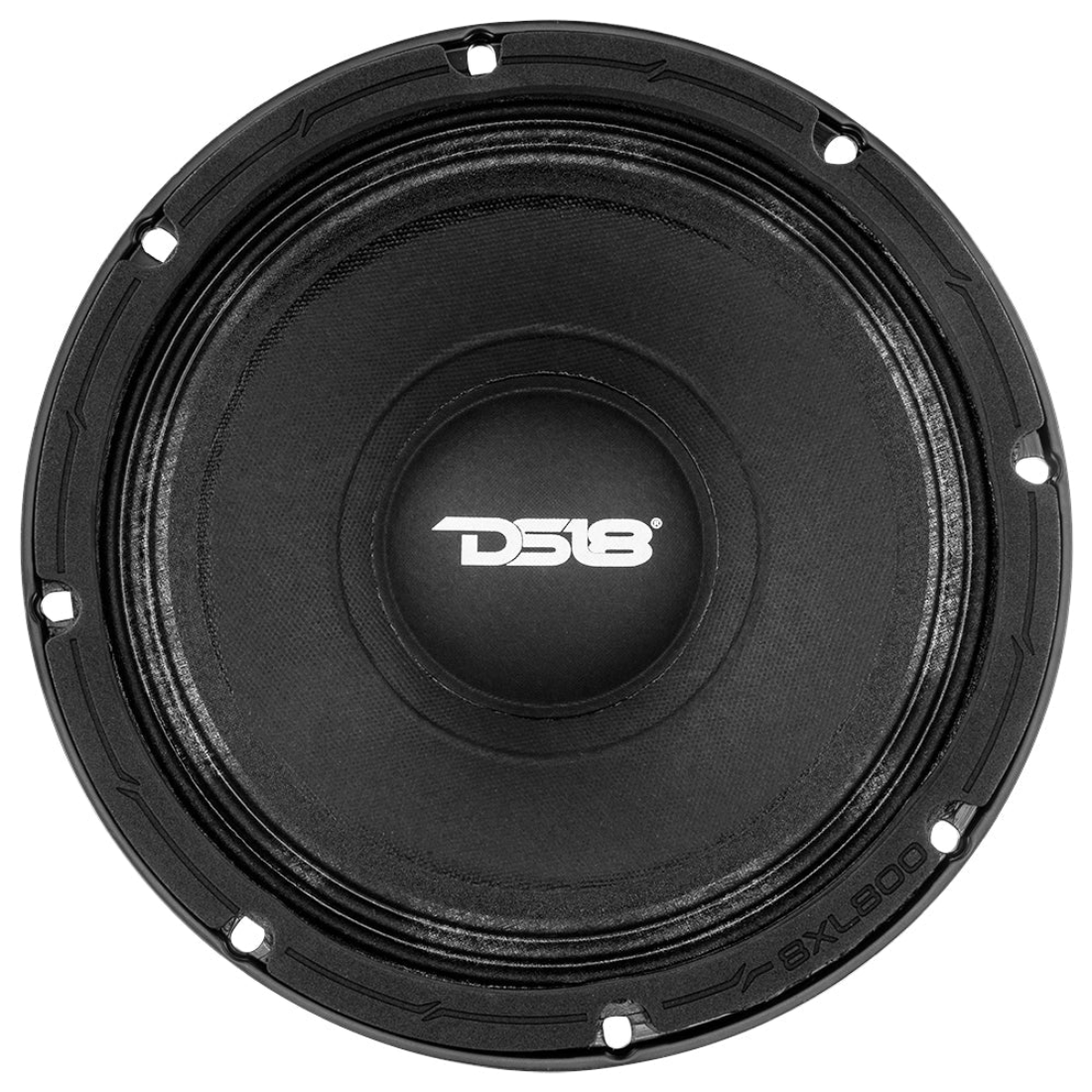

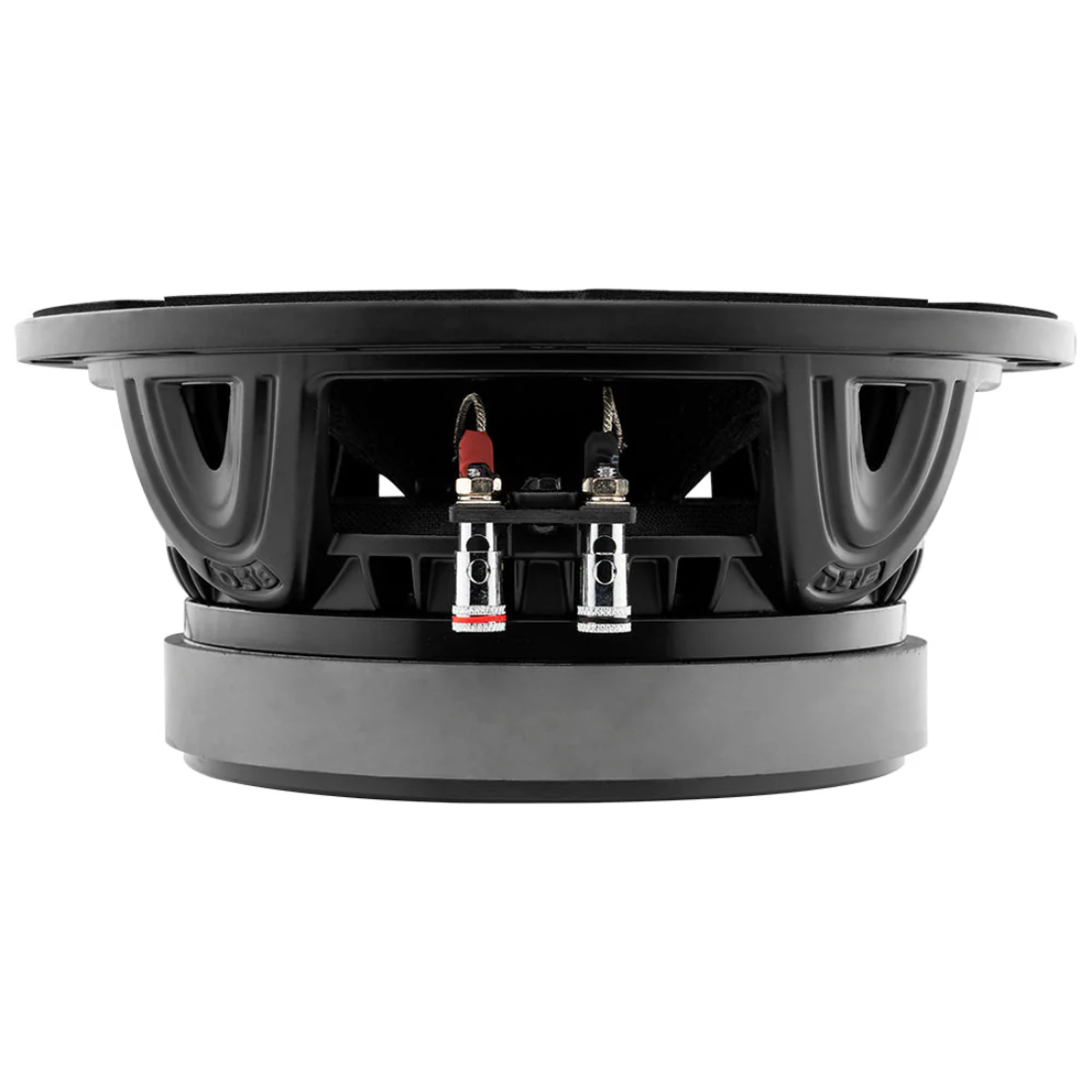

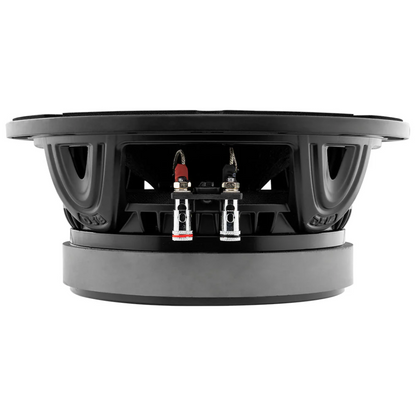

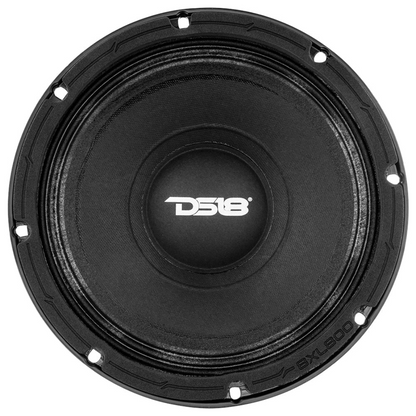

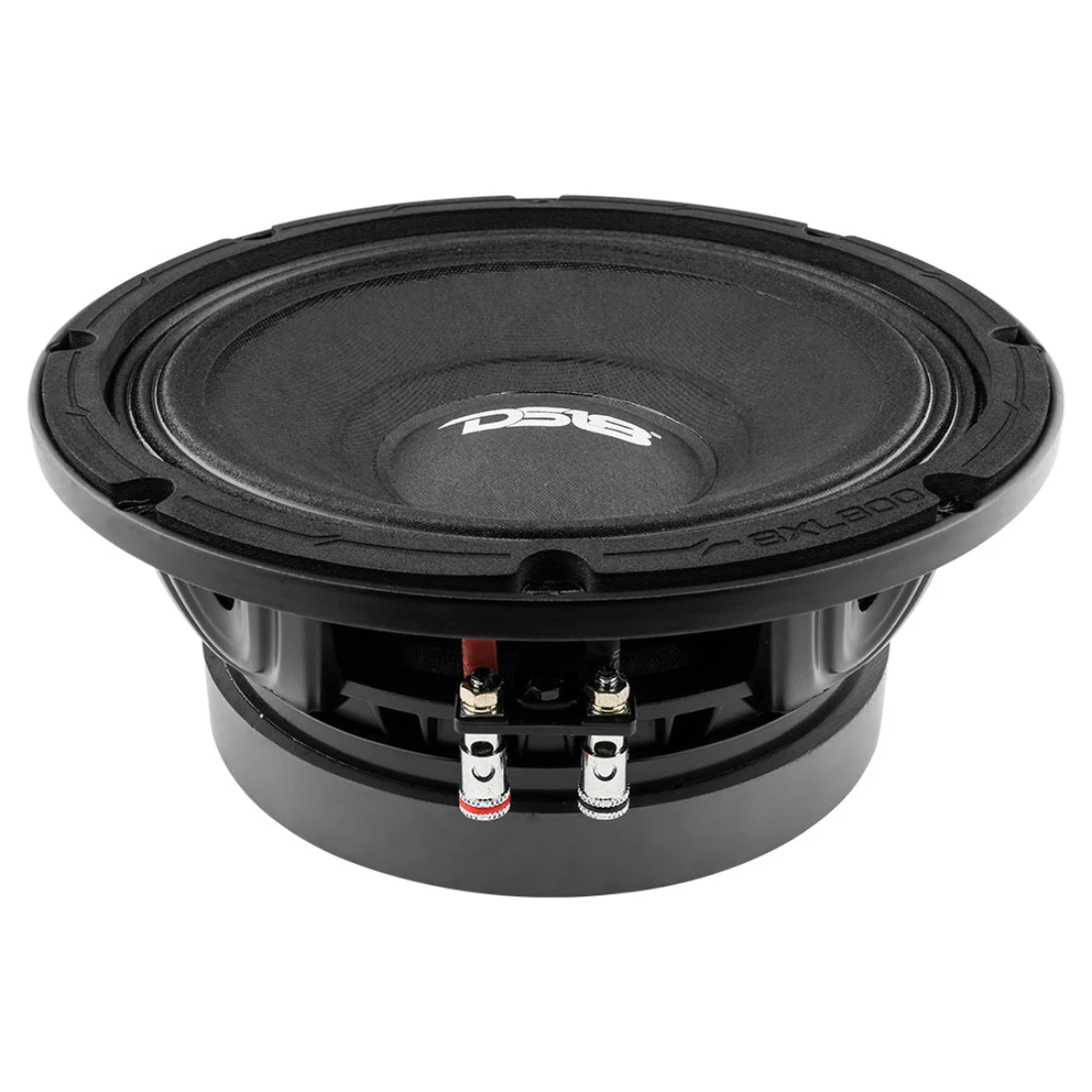

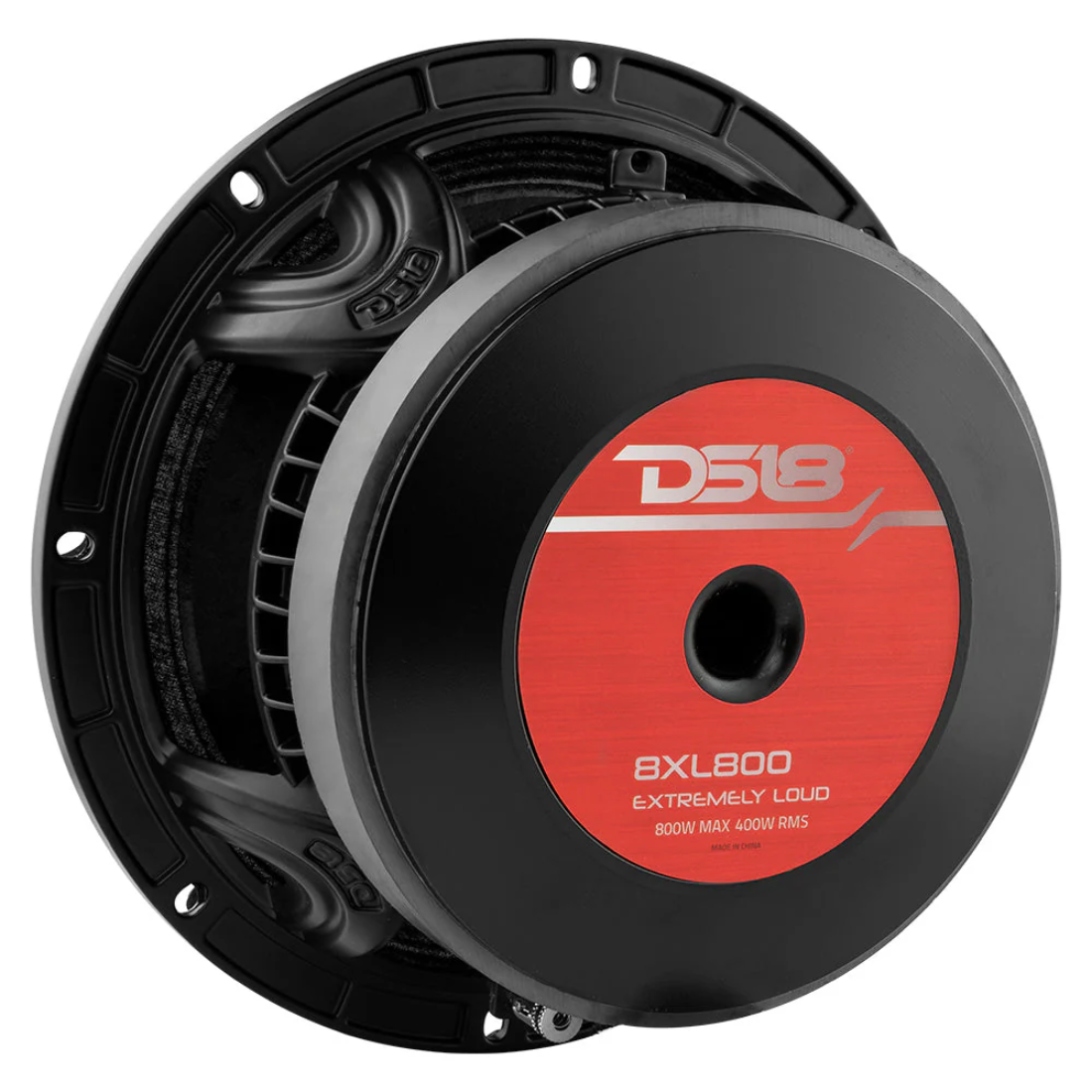

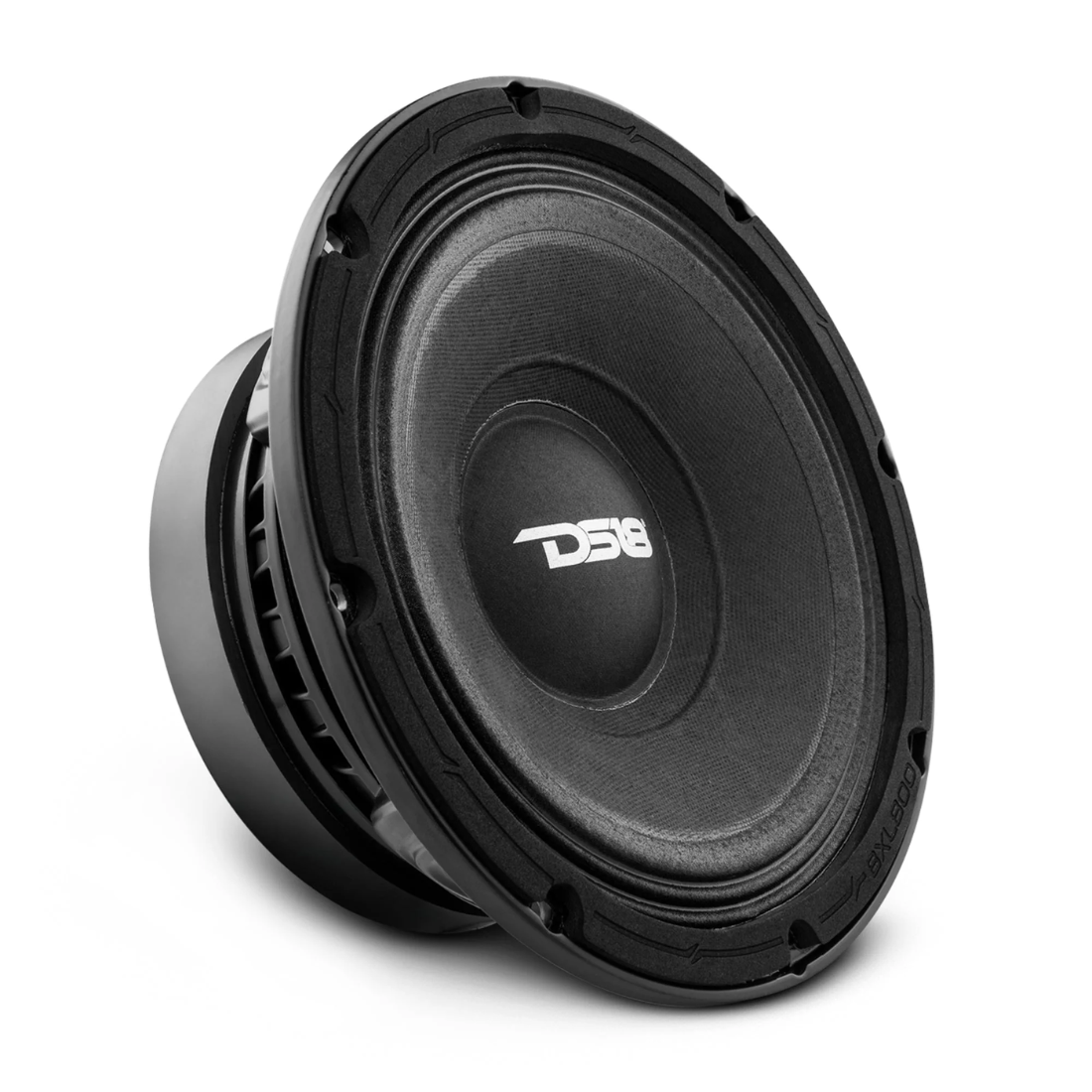

DS18 8XL800-8
8-Inch 800W Max 8-Ohm Mid-Range Loudspeaker (Single)
Key Features:
- SKU: 8XL800-8
- Nominal Diameter: 8" / 203mm
- Nominal Impedance: 8 Ohm
- RMS Power Handling: 400 watts
- MAX Power Handling: 800 watts
- Sensitivity (1w/1m): 99dB
- Frequency Response: 60Hz-8KHz
- Recommended HI Pass Crossover: 90Hz
- Sold in Pair or Single: Single
- Grill Included: No
Motor:
- Voice Coil Diameter: 2" / 50.8mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Non-pressed Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Satin Black
- Magnet Material: Ferrite
- Magnet Weight: 56 Oz
- Displacement Volume: 0.85L / 0.03ft3
Thiele & Small Parameters:
- Equivalent Volume: 14.8L / 0.52ft3
- Excursion (one way): 2.3mm
- Free Air Resonance: 90Hz
- Mechanical Factor: 5.62
- Electrical Factor: 0.39
- Total Factor: 0.36
- Mechanical Mass: 15.2g
- Mechanical Compliance: 0.23mm/N
- BL Factor: 10.7
- Voice Coil Inductance: 0.05mH
- Cone Area: 211.24cm²
- DC Resistance: 5.5 ohm
- Mechanical Mass w/o air: 17.5g
Measurement:
- Overall Diameter: 8.2" / 210mm
- Overall Depth: 3.8" / 96.4mm
- Front Mount Baffle Cutout: 7.2" / 183mm
- Mounting Depth: 3.34" / 84.5mm
- Motor Diameter: 6.14" / 156mm
