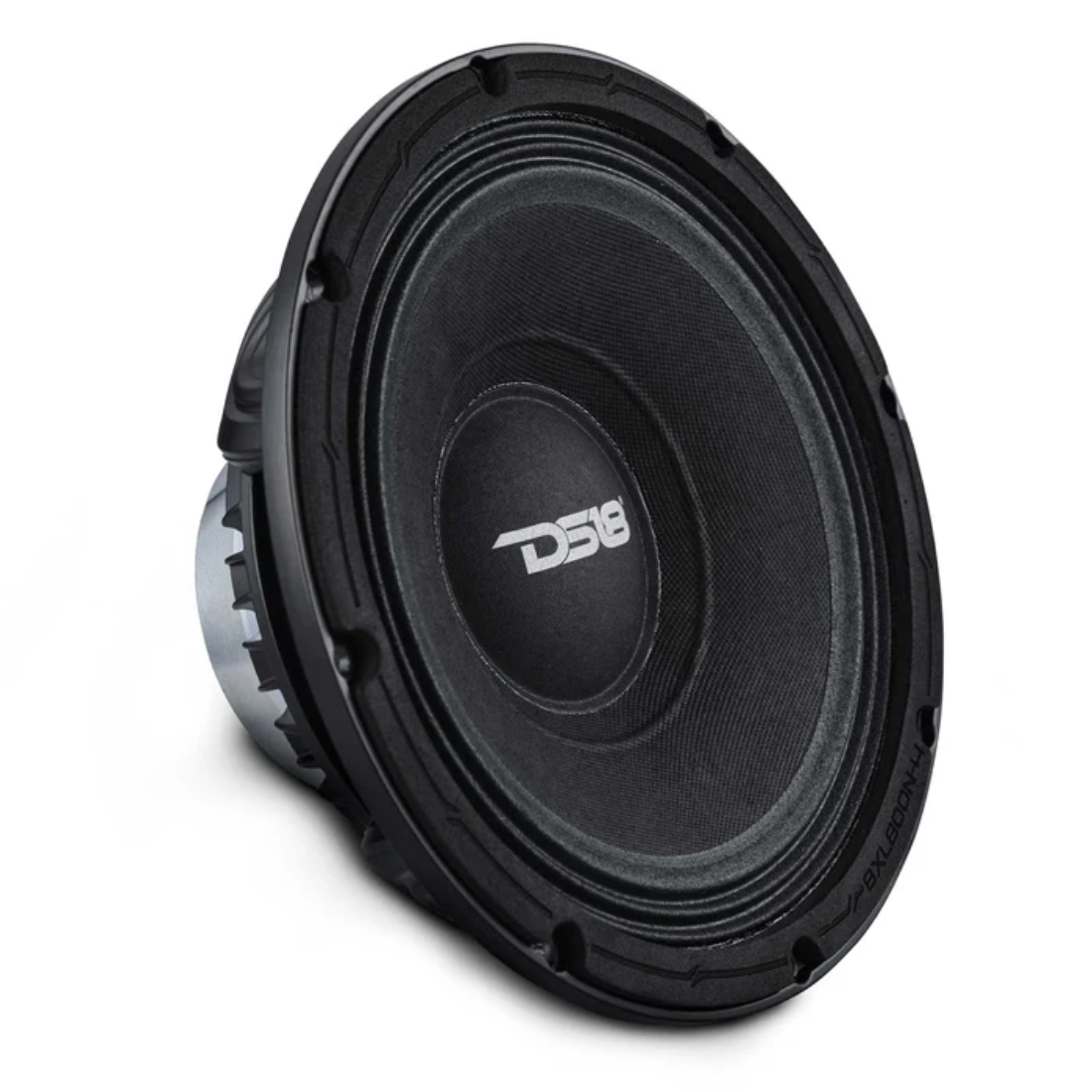

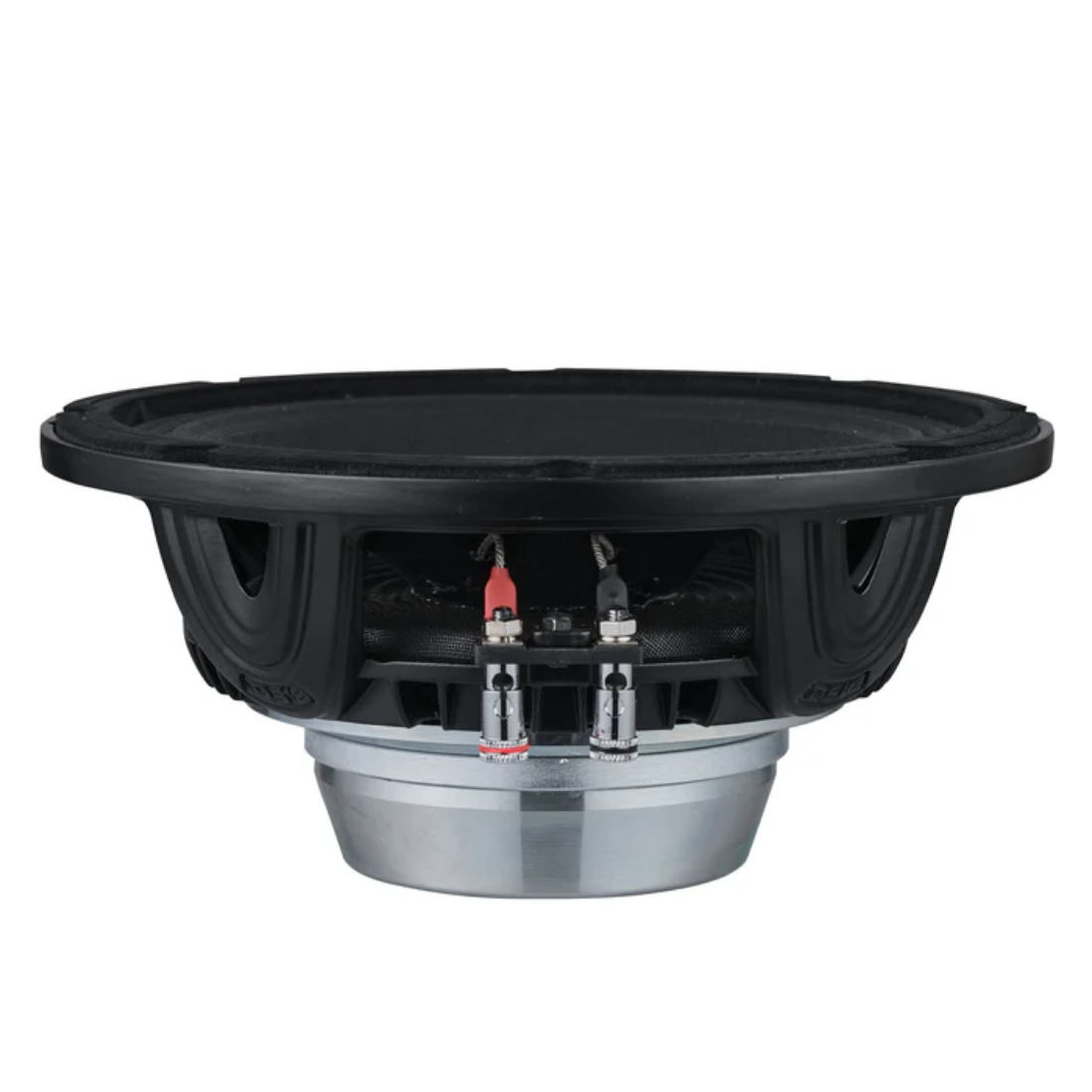

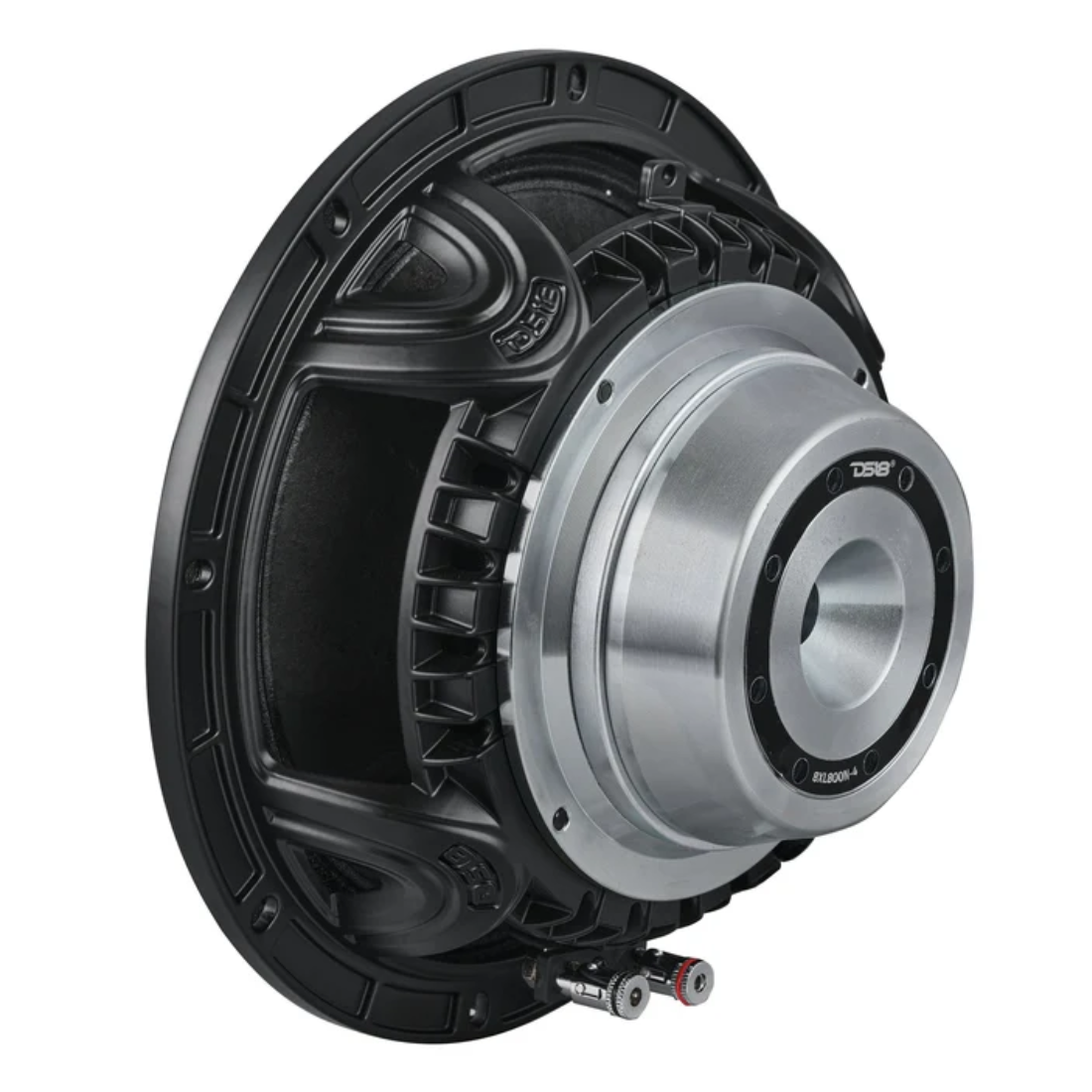

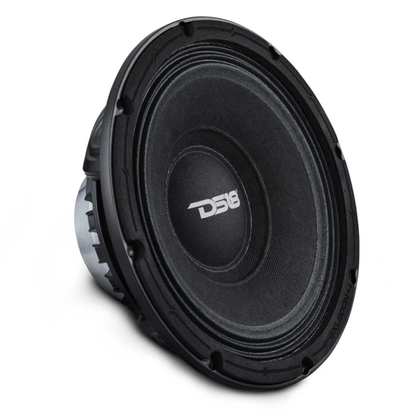

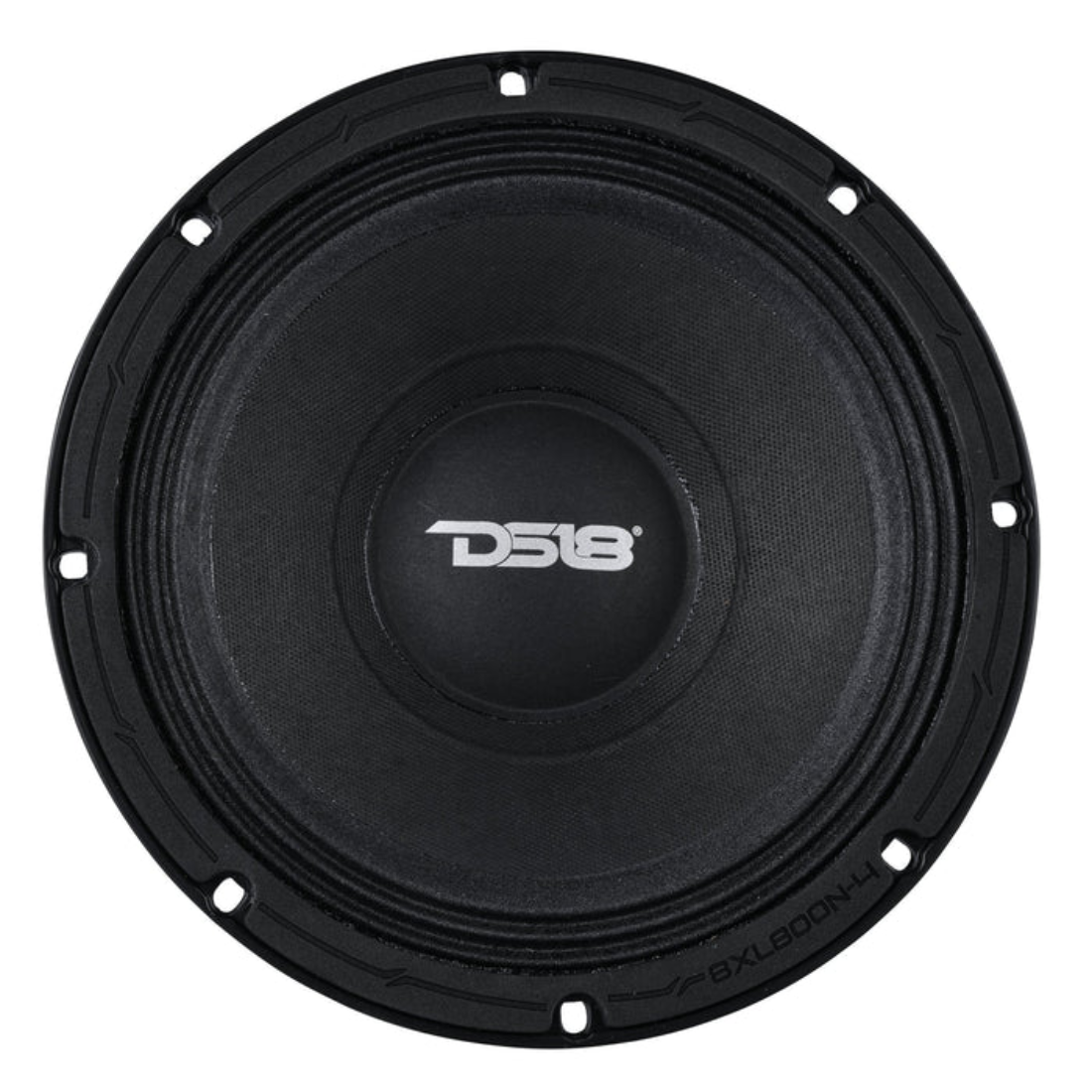

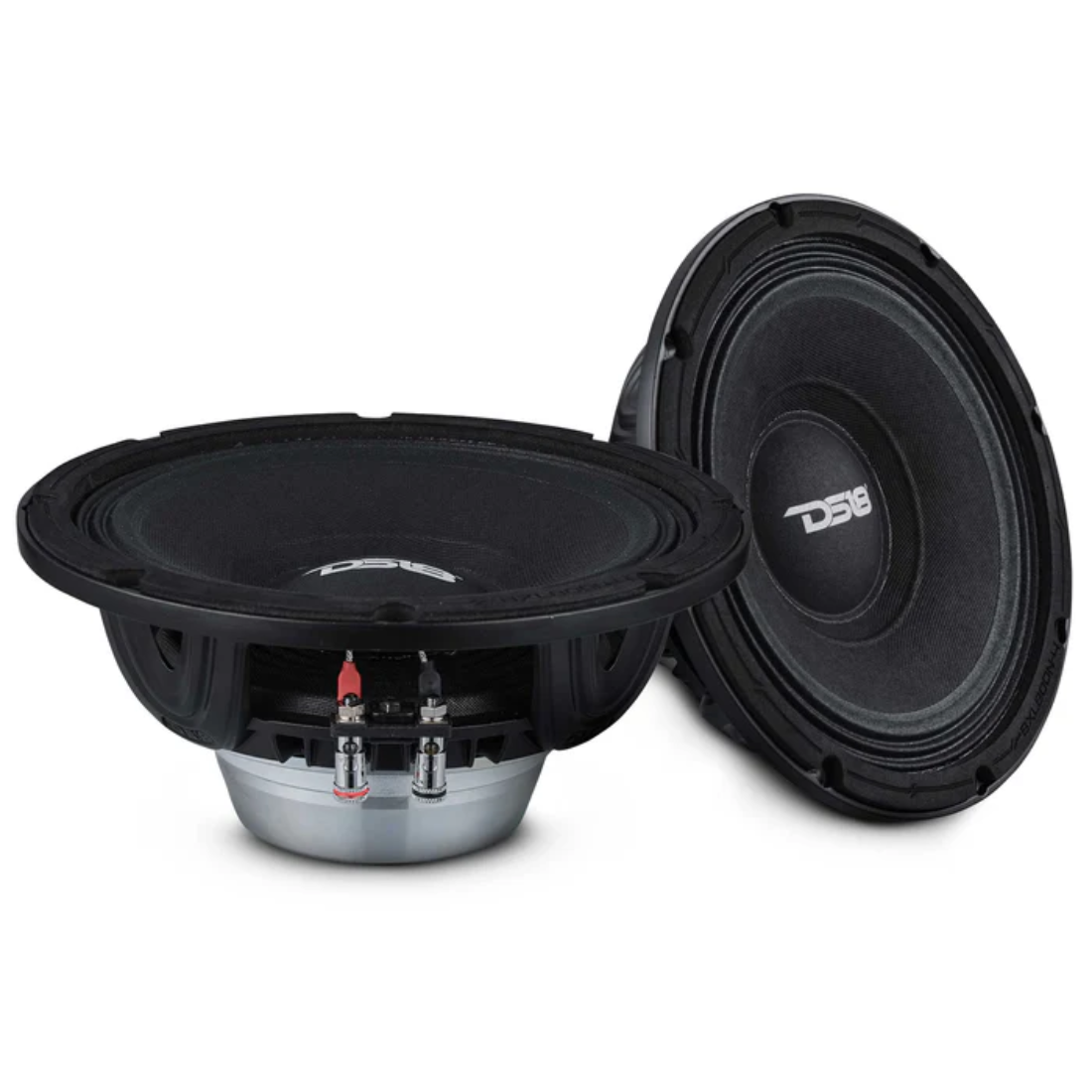

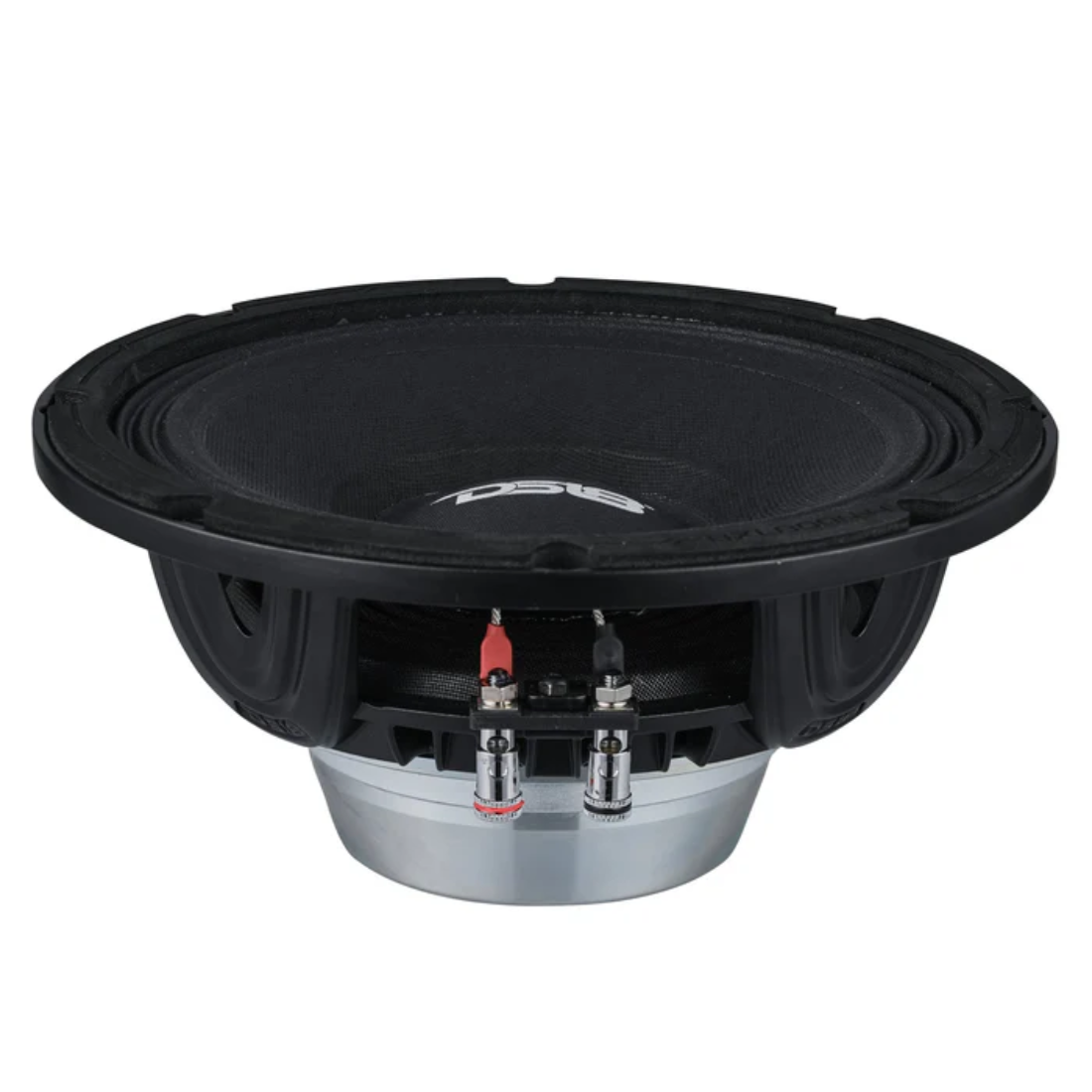

DS18 8XL800N-4 8" 800W Max 4-Ohm Neodymium Magnet Midrange Loudspeaker (Single)

Name: DS18 8XL800N-4 8" 800W Max 4-Ohm Neodymium Magnet Midrange Loudspeaker (Single)
Brand: DS18
SKU: 8XL800N-4
Price: 239.95 USD
Availability: InStock

$239.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 8XL800N-4

8-inch 800 Watts Max 4-Ohm Neodymium Magnet Midrange Loudspeaker (Single)

Key Features:

8" Mid-Range
MAX Power: 800 Watts
RMS Power: 400 Watts
Impedance: 4-Ohm
Neodymium Magnet
100.7dB

General Specs:

Nominal Diameter: 8" / 203mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 400 Watts
Maximum Power Handling: 800 Watts
Sensitivity (1W/1m): 100.7 dB
Frequency Response: 100 Hz – 10 kHz
Recommended High-Pass Crossover: 160 Hz
Sold in Pair or Single: Single
Grill Included: No
Interleaved Sandwich Voice Coil (ISV): No
Demodulating Rings: Yes
Improved Heat Dissipation: Yes
Cone Shape: Curvilinear
Speaker Terminals: Push 12ga

Motor Specs:

Voice Coil Diameter: 2" / 50.8mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-pressed Paper
Dust Cap Material: Paper
Bullet Material: N/A
Bullet Color/Finish: N/A
Surround Material: Cloth
Spider Diameter: 5" / 127mm
Leads Type: Direct to Cone
Basket Material: Aluminum
Basket Color/Finish: Satin Black
Magnet Material: Neodymium
Magnet Weight: 7.5 Oz
Displacement Volume: 0.03L / 0.00105ft?

Thiele & Small Parameters:

Equivalent Volume: 18.11L / 0.639ft?
Excursion (one way): 2.3mm
Free Air Resonance: 87Hz
Mechanical Factor: 5.325
Electrical Factor: 0.207
Total Factor: 0.199
Mechanical Mass: 16.17g
Mechanical Compliance: 0.278mm/N
BL Factor: 10.8
Voice Coil Inductance: 0.04mH
Cone Area: 213.82cm?
DC Resistance: 3.4 ohm
Mechanical Mass w/o air: 12.5g

Measurement:

Overall Diameter: 8.2" / 210mm
Overall Depth: 3.85" / 98mm
Front Mount Baffle Cutout: 7.2" / 183mm
Mounting Depth: 3.38" / 86mm
Motor Diameter: 4" / 102mm
