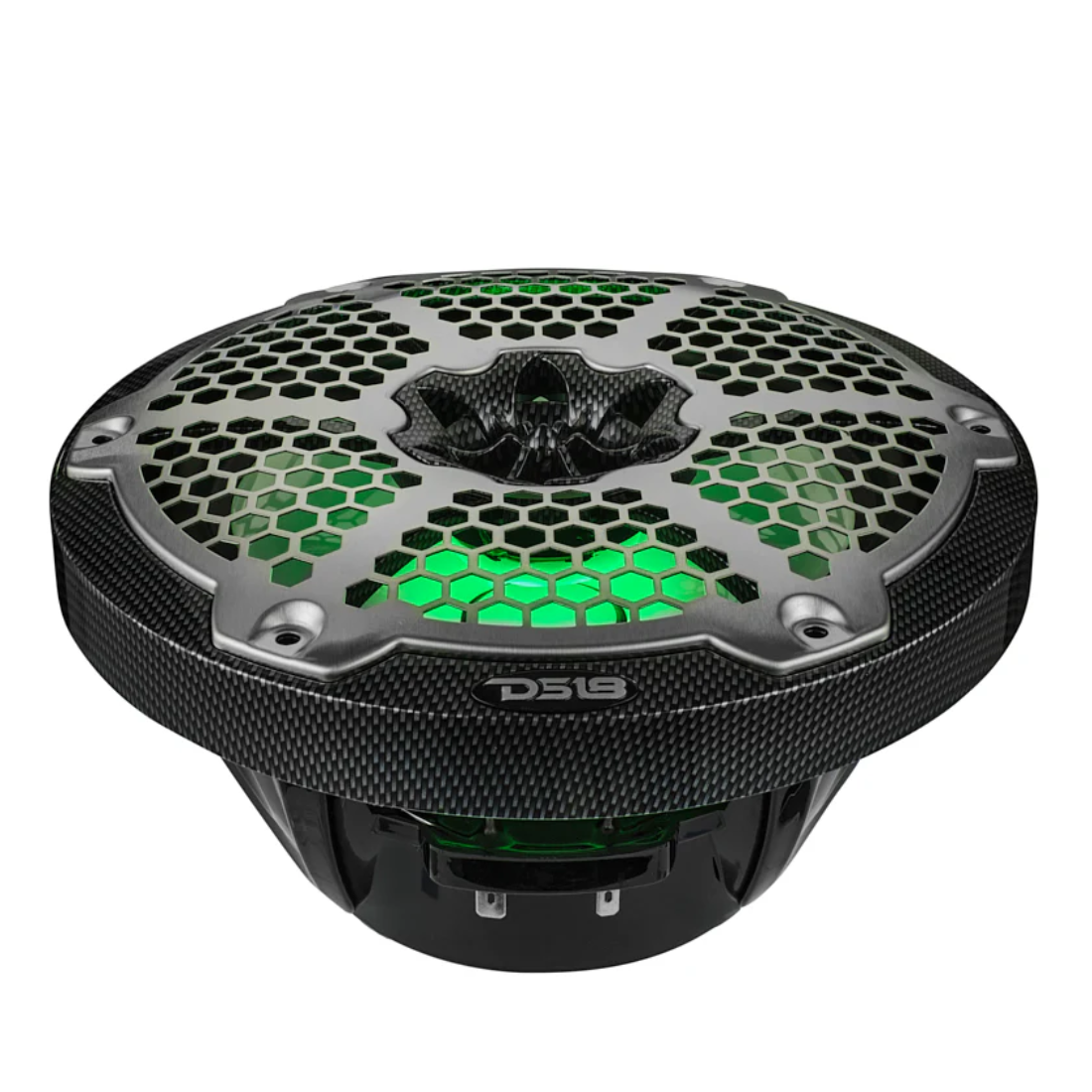

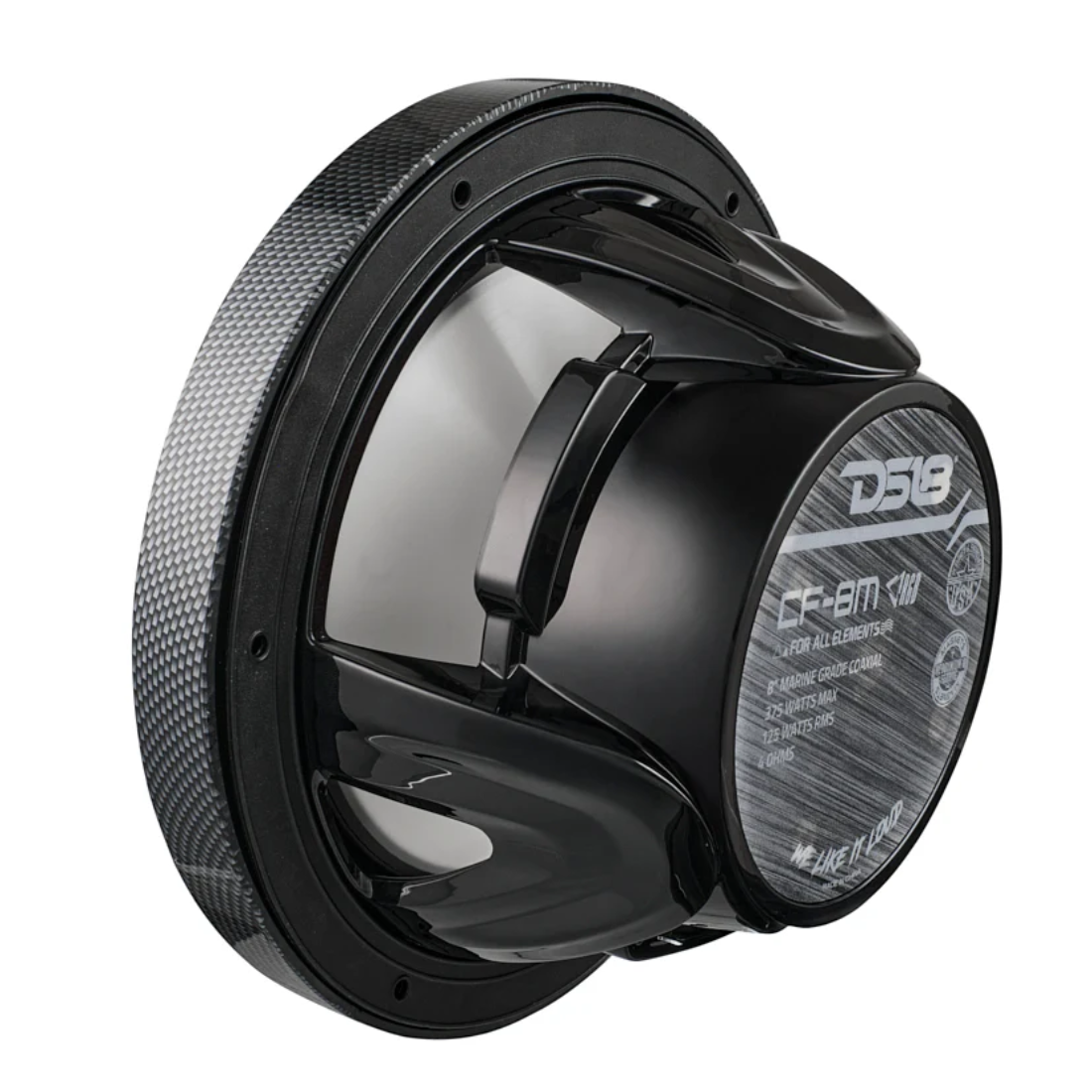

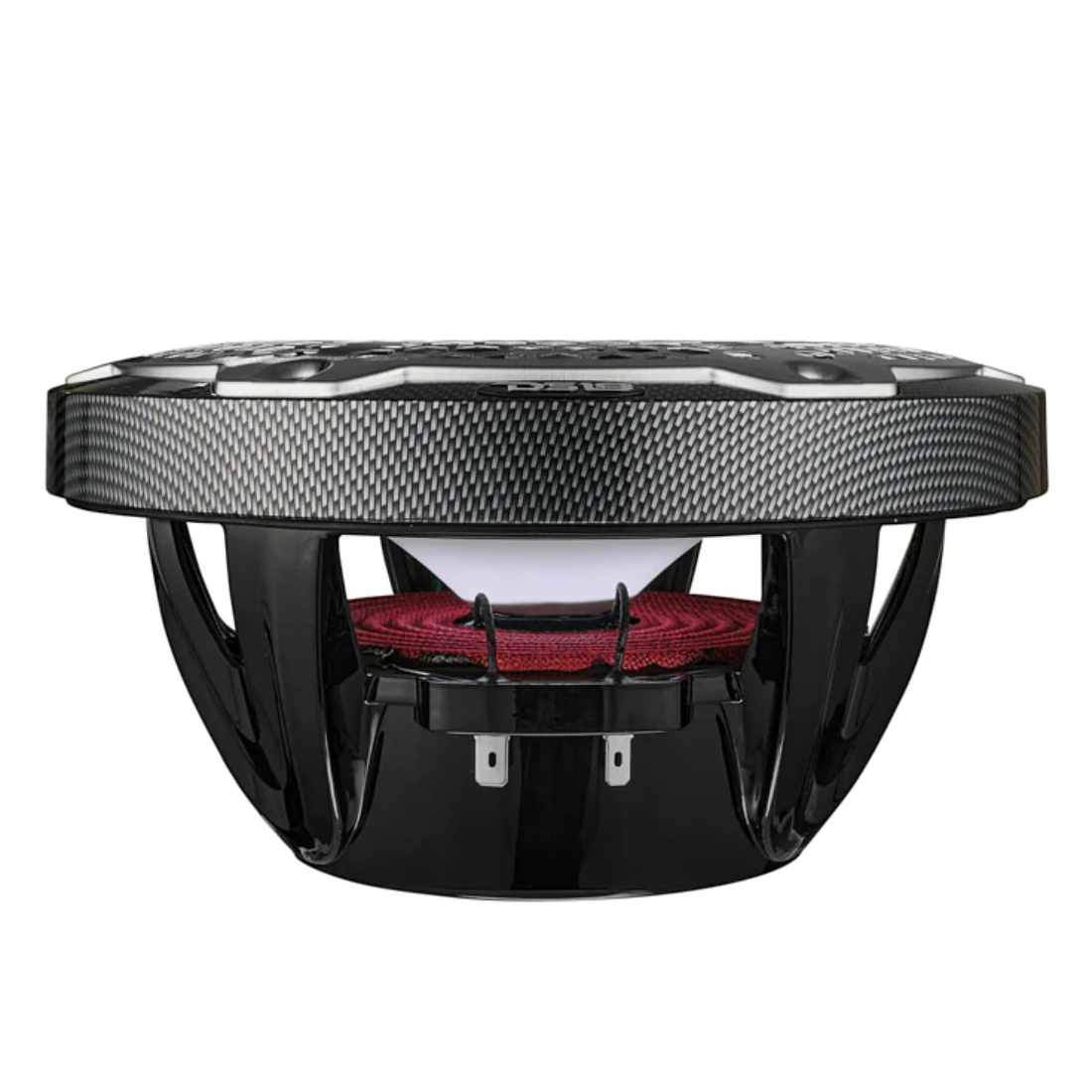

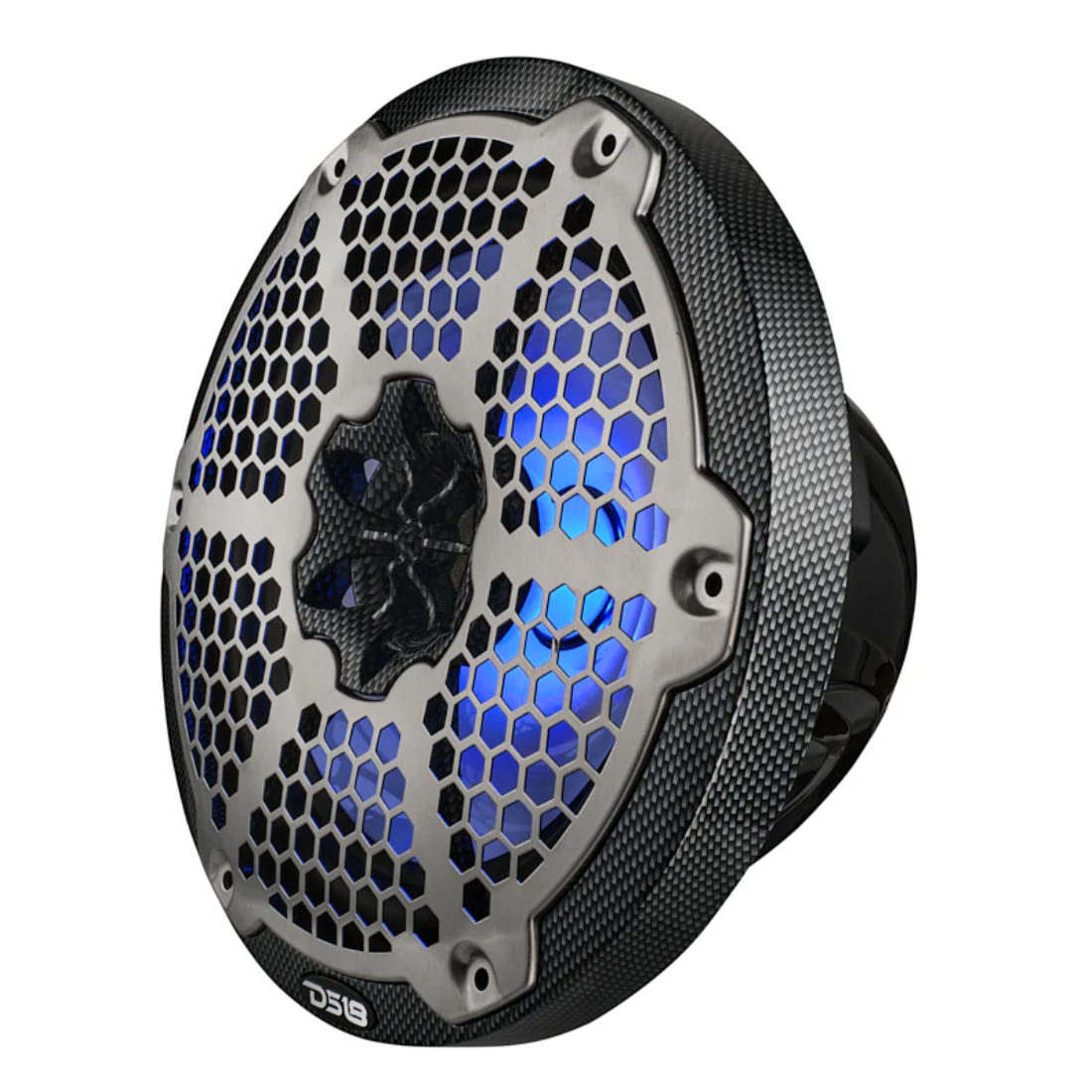

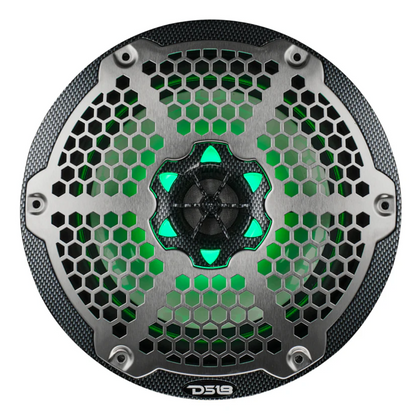

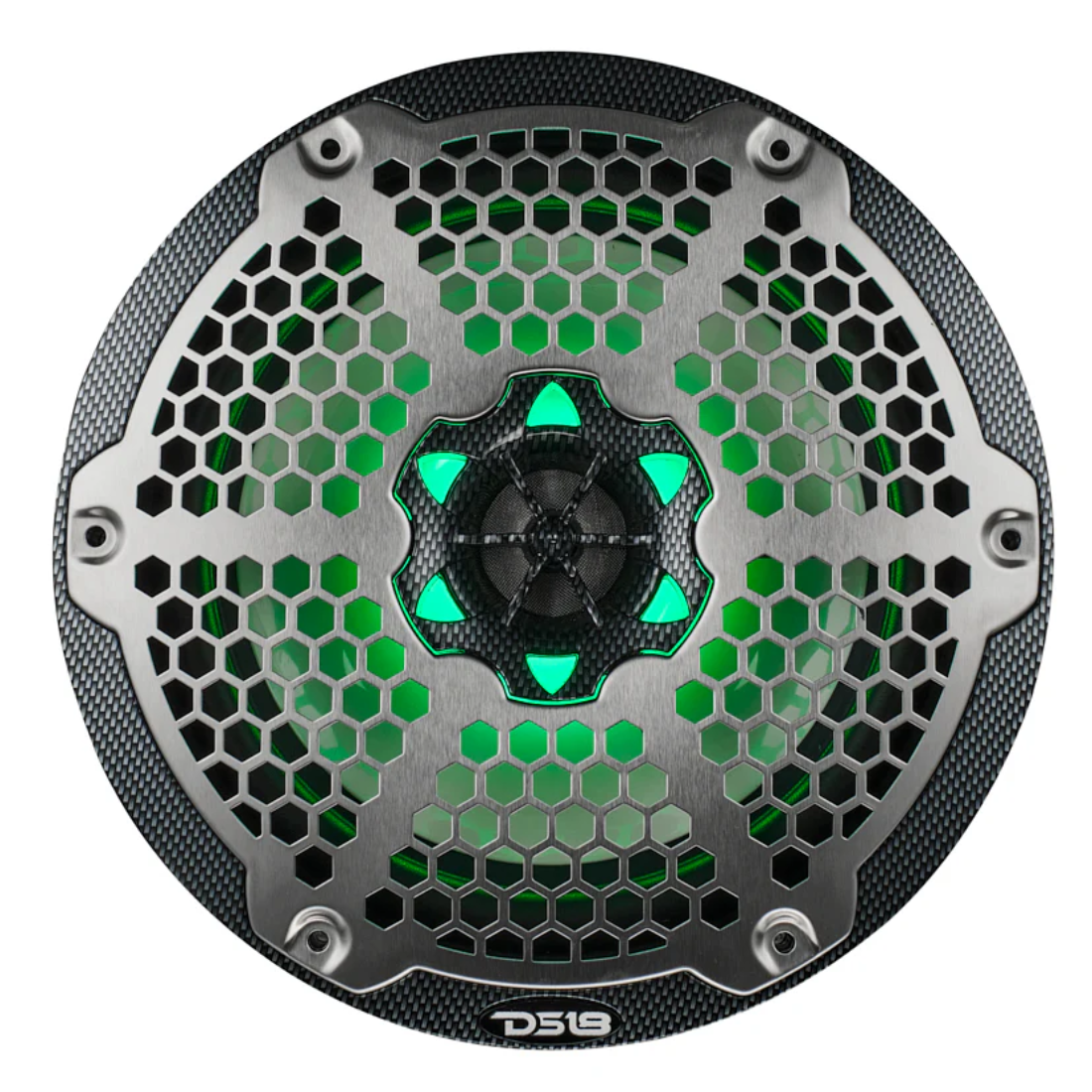

DS18 CF-8M 8" 2-Way 125W RMS 4-Ohm Marine Coaxial Speakers w/ RGB LED Lights

DS18 CF-8M 8" 2-Way 125W RMS 4-Ohm Marine Coaxial Speakers w/ RGB LED Lights

$323.95 USD
$323.95 USD
Sale Sold out
Shipping calculated at checkout.
PayPal payment Venmo payment Affirm payment
BRAND NEW

DS18 CF-8M

8" 2-Way 125W RMS 4-Ohm Marine Coaxial Speakers w/ RGB LED Lights

Key Features:

  • 8" 2-Way Marine Speaker
  • RMS Power: 125 Watts
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnet
  • RGB LED Light ~ Metal Mesh Grill
  • Water Resistant IP65
Specifications:

  • SKU: CF-8M
  • Nominal Diameter: 8" / 203mm
  • Nominal Impedance: 4 Ohm
  • RMS Power Handling: 125W
  • MAX Power Handling: 375W
  • Sensitivity (1w/1m): 93dB
  • Frequency Response: 35Hz-23KHz
  • Recommended HI Pass Crossover: 50 Hz
Body Features:

  • UV Compliant: Yes, 100% Stable
  • Marine Grade Type: IP65
  • RGB LED: Yes, RGB integrated

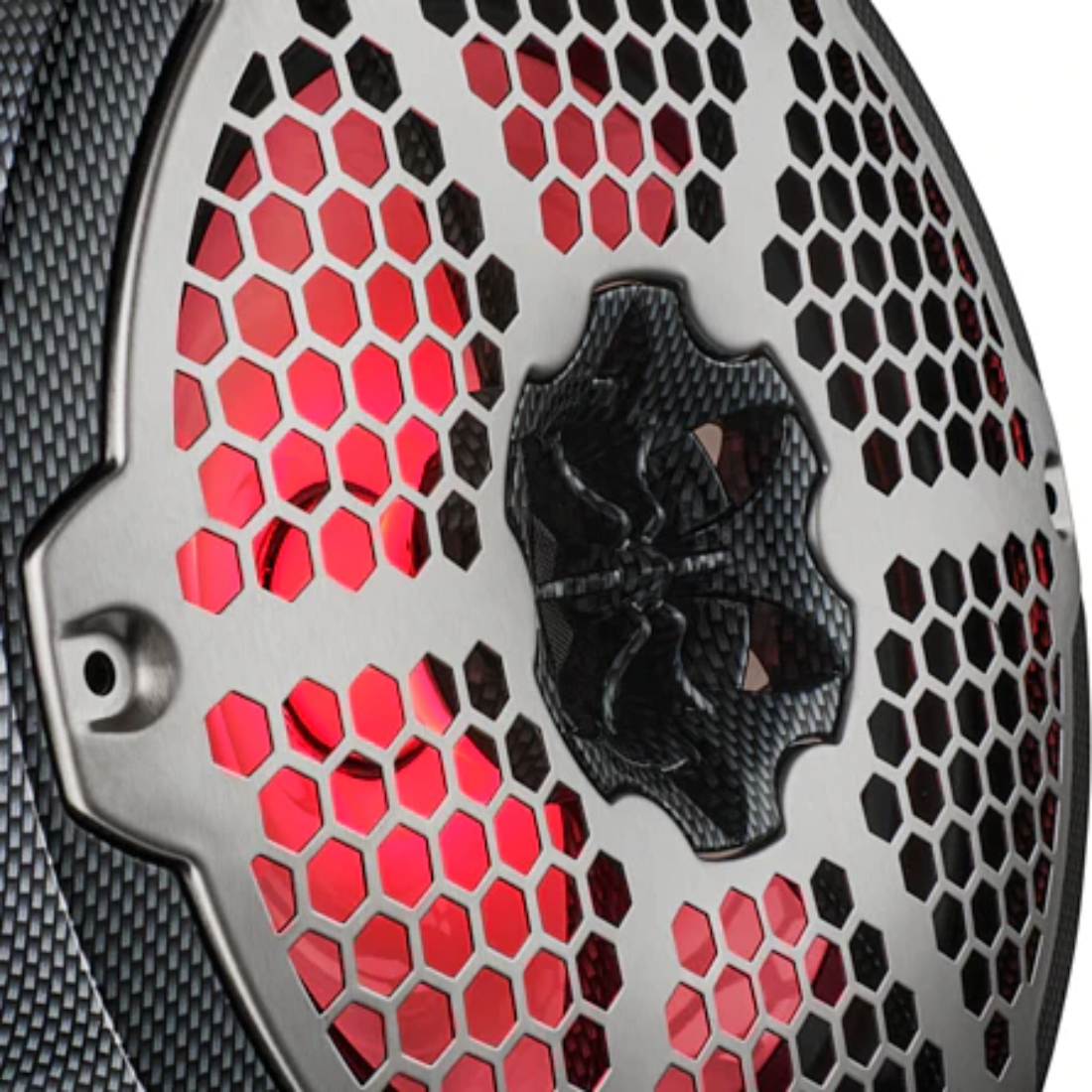

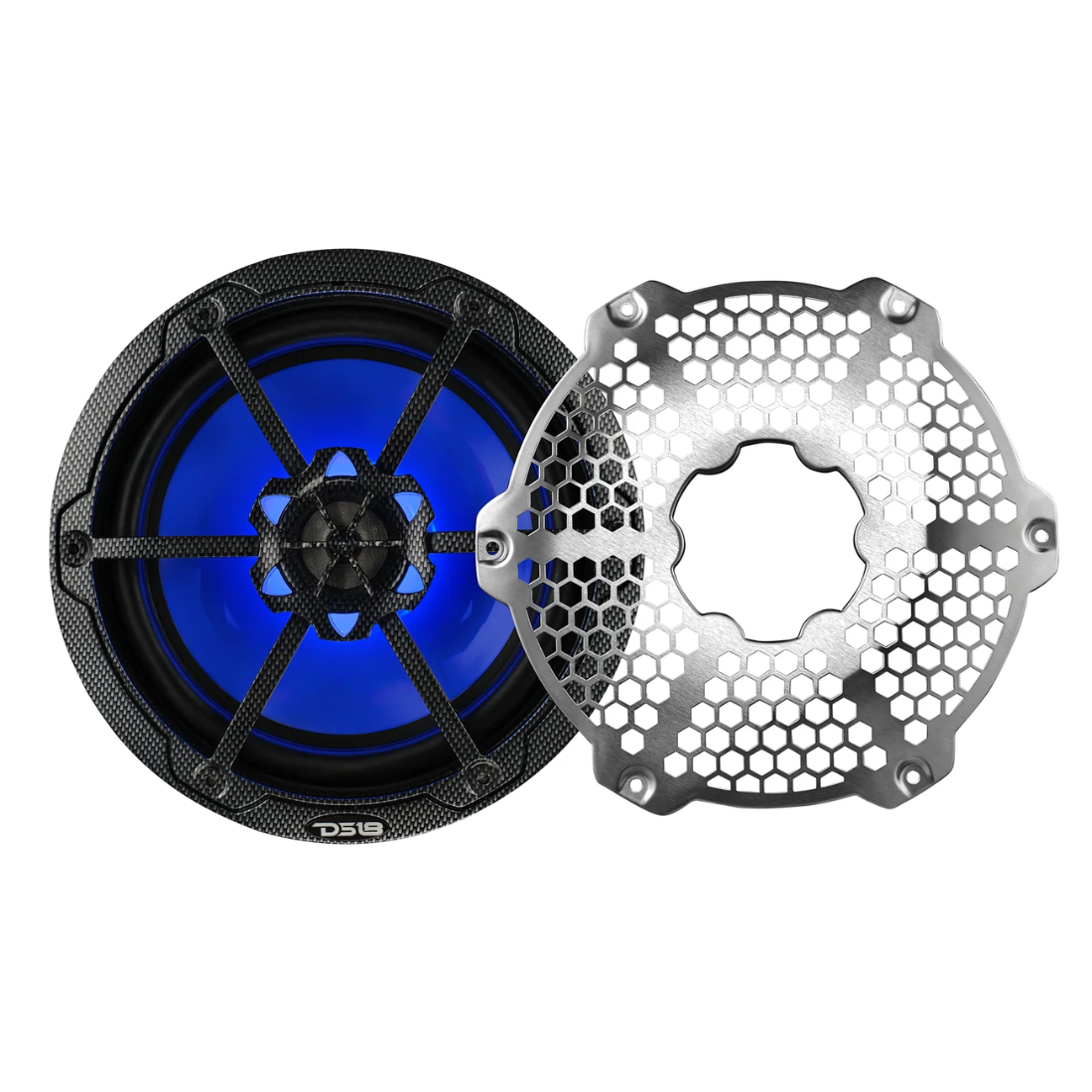

  • Grill Type: Injection Molded Composite (ASA) with 316 Stainless Steel mesh

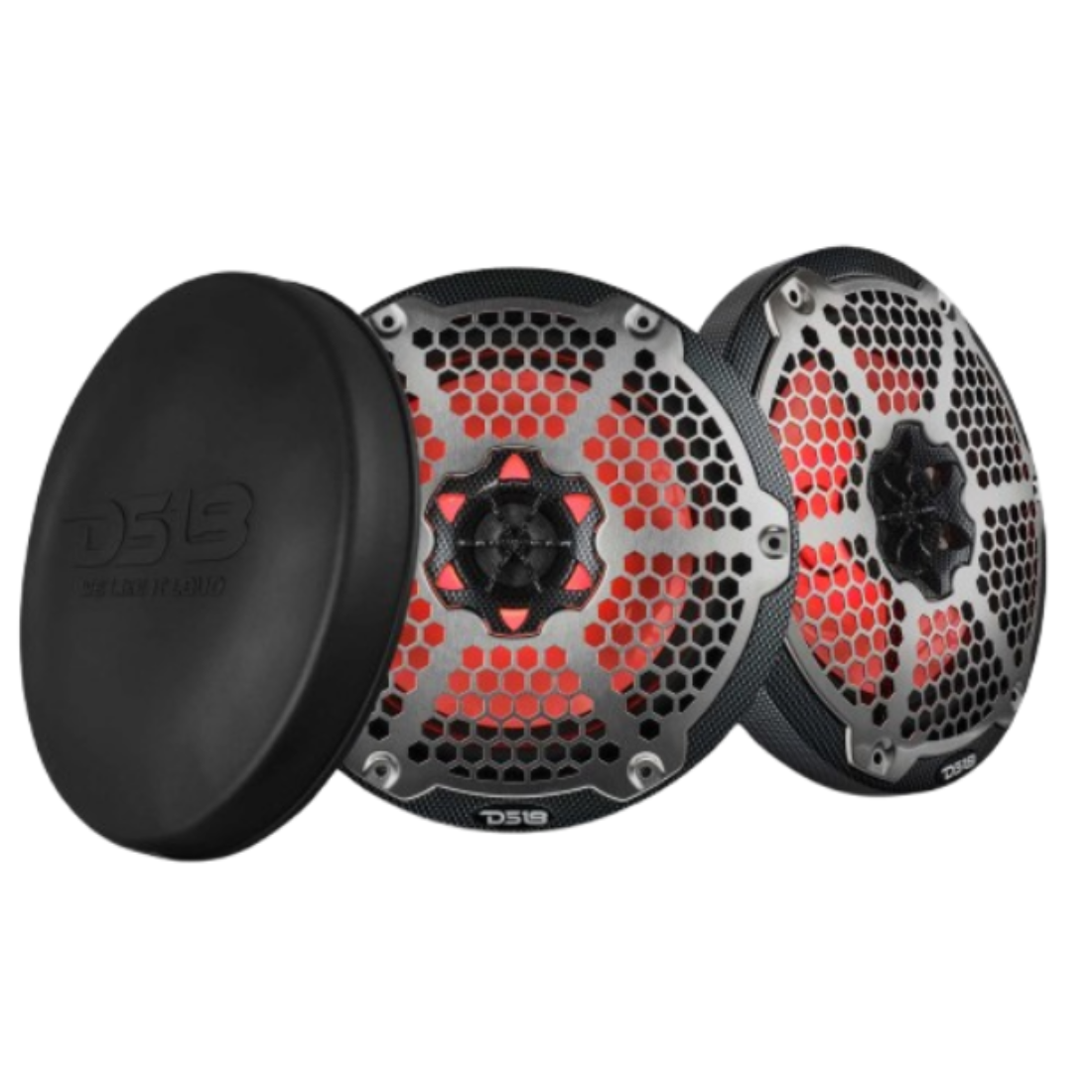

  • Pair: Yes
  • Color / Finish: Carbon Fiber Texture / Gloss
Woofer Specs:

  • Voice Coil Diameter: 1.2" / 30.5mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Injection Molded Polypropylene + UV Compliant
  • Surround Material: Butyl (Rubber)
  • Basket Material: High Temp Injection Molded Composite (ASA) with UV Protection coating
  • Magnet Material: Ferrite (Y35) + Neodymium (N35)
  • Magnet Weight: 24oz+0.32oz
Tweeter Specs:

  • Voice Coil Diameter: 1" / 25.4mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: PEI
  • Magnet Material: NEODYMIUM(N38H)
  • Magnet Weight: 0.54oz
Thiele & Small Parameters:

  • Equivalent Volume Vas: 66.7L / 2.35ft3
  • Excursion (one way) Xmax: 8.5 mm
  • Free Air Resonance Fs: 56Hz
  • Mechanical Factor Qms: 7.701
  • Electrical Factor Qes: 0.899
  • Total Factor Qts: 0.805
  • Moving Mass Mms: 7.265g
  • Compliance Cms: 1.119mm/N
  • Bl Factor Bl: 2.98
  • Voice Coil Inductance Le: 0.49mH
  • Cone Area Sd: 206.12cm2
  • DC Resistance Re: 3.15ohms
  • Efficiency Bandwidth Product EBP: 62.2
Speaker Measurement:

  • Overall Diameter: 8.59" / 218.2mm
  • Overall Depth: 4.45" / 113mm
  • Front Mount Baffle Cutout: 6.97" / 177mm
  • Mounting Depth: 3.09" / 78.5mm
  • Motor Diameter: 4.32" / 110mm
  • Gross Single Unit Weight (lb): 10.25
