DS18

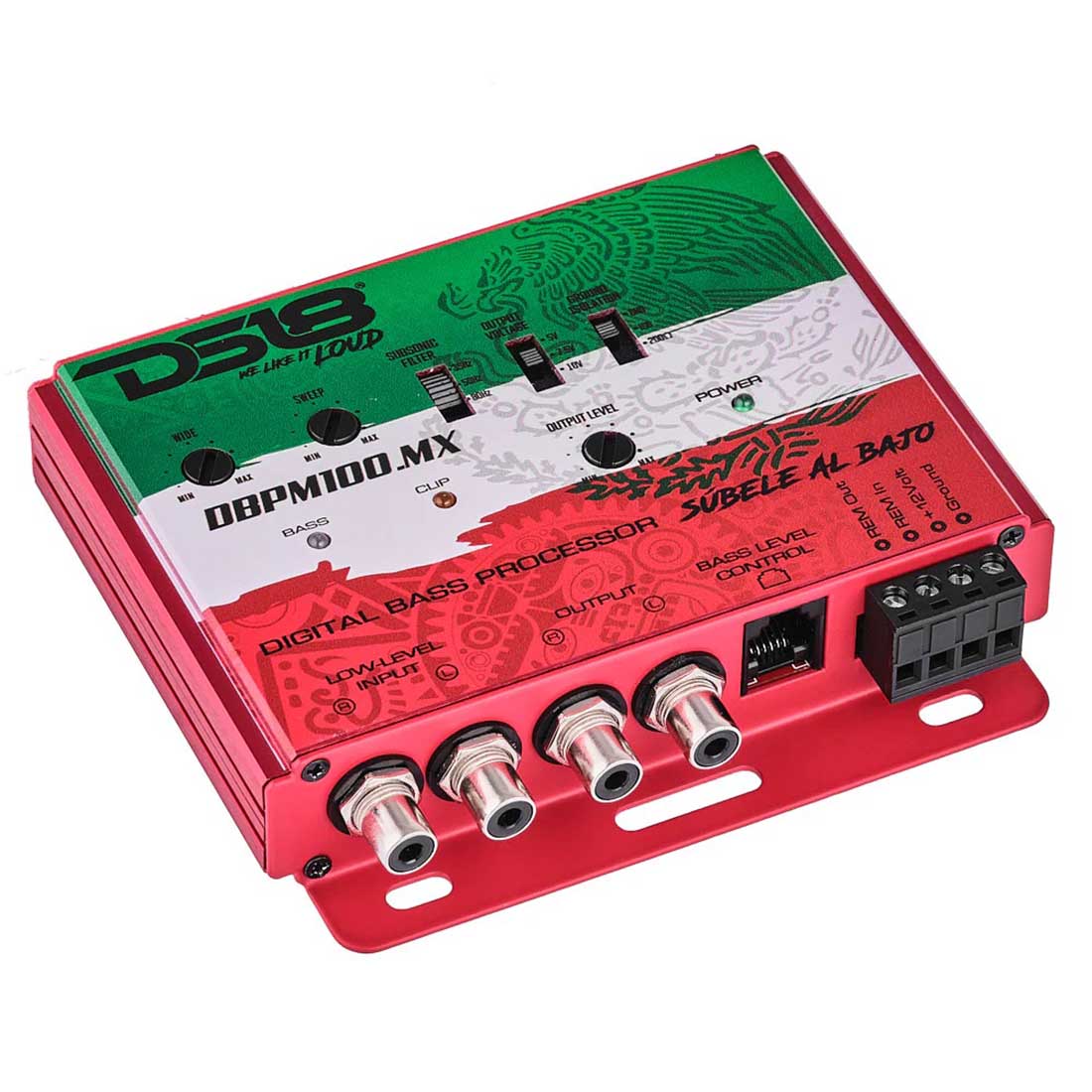

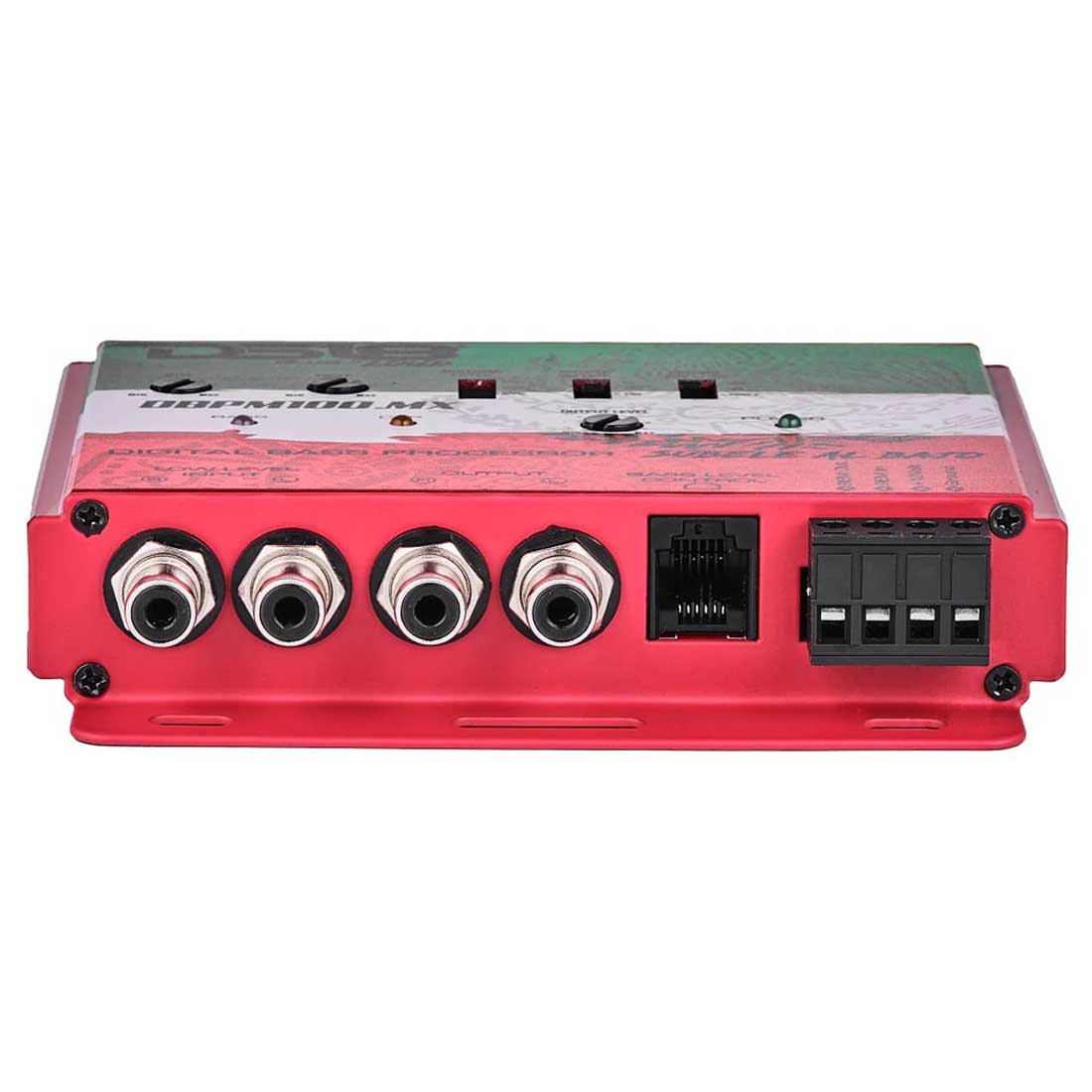

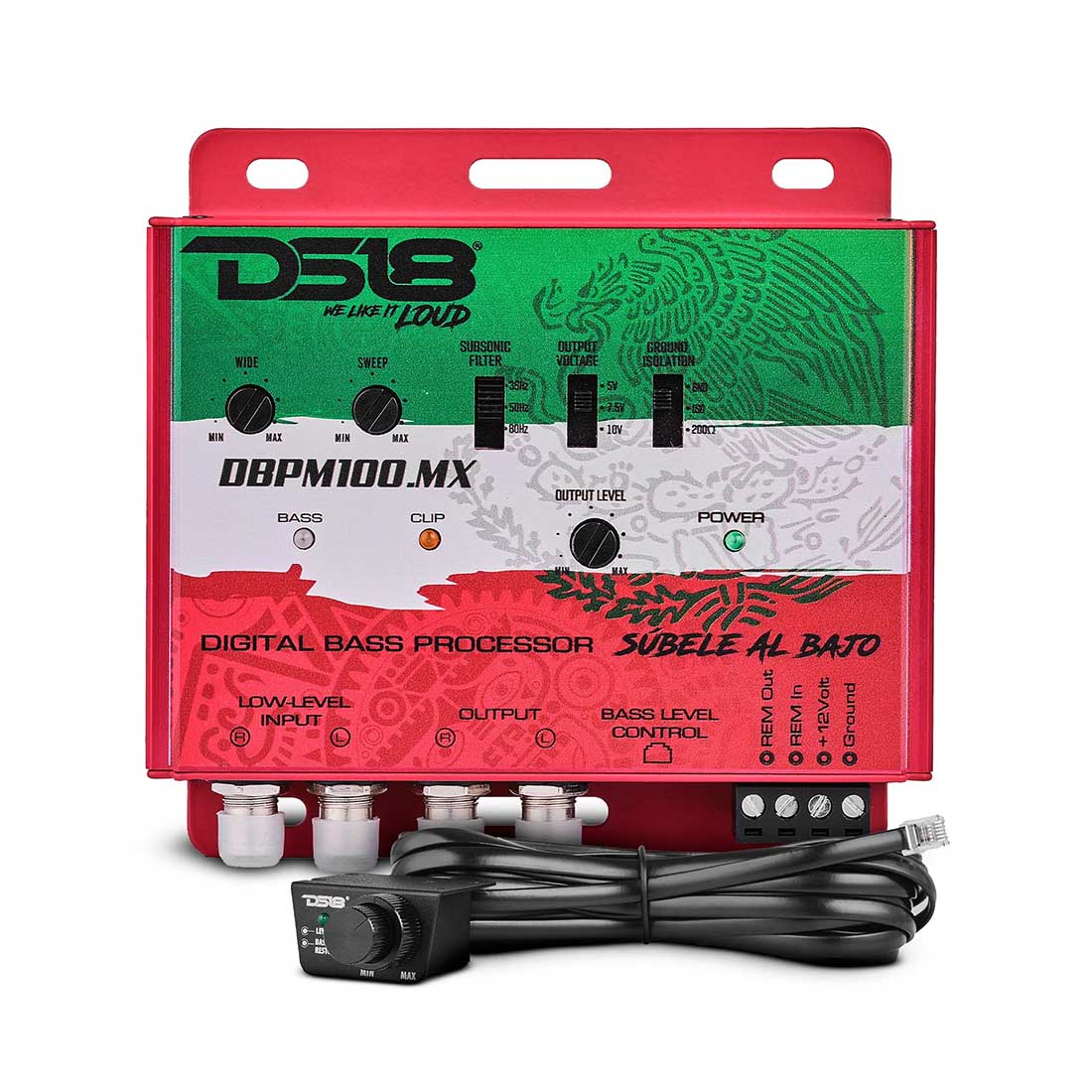

DS18 DBPM100.MX Car Audio Digital Bass Restoration Processor with Mexico Design

Name: DS18 DBPM100.MX Car Audio Digital Bass Restoration Processor with Mexico Design
Brand: DS18
SKU: DBPM100.MX
Price: 155.95 USD
Availability: OutOfStock

$155.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 DBPM100.MX

Car Audio Digital Bass Restoration Processor w/ Mexico Design

Key Features:

Digital Bass Restoration Processor W/ Mexico Design
2 Channel Preamp Input / Output
Subsonic Filter / Output Voltage / Ground Iso
Bass / Power / Clip LED

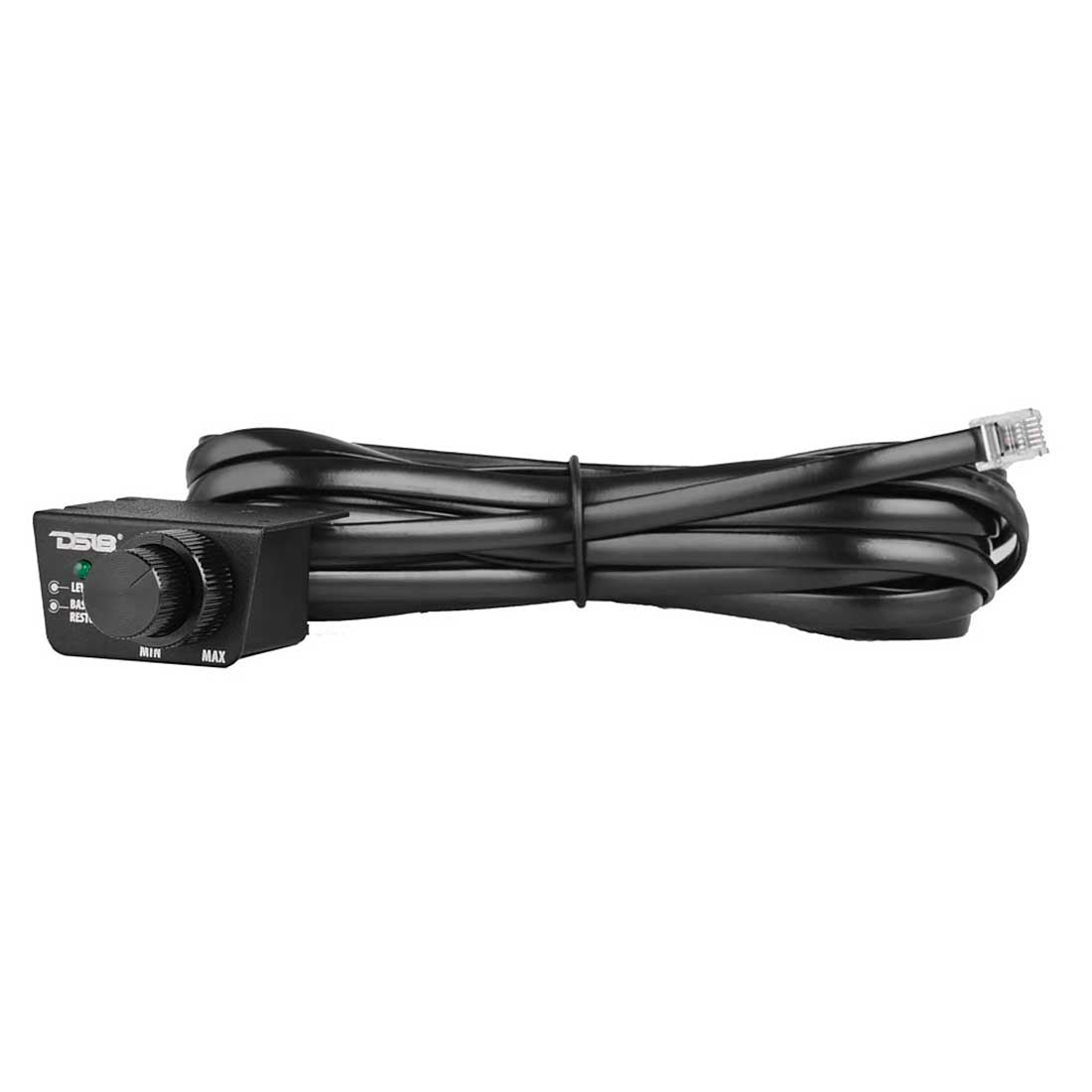

Remote Level Control w/ Clip LED
Compact Design

General Specs:

SKU: DBPM100.MX
Operating Voltage: 8-17V
Power Consumption: 0.24A
Recommended Fuse Rating: 1A
Power Input Terminal Size: 16ga
LED Indicator: Power / Bass Enhancer / Clip
Ground Isolation Switch: Yes (GND/ISO/200Ω)
Hi-Level Speaker Input: No
Auto Turn-on Function: No
Remote Turn-on (Input / Output): Yes
Remote Level Control: Yes (Bass Enhancer)
RCA Connector Type: Tiffany (Silver)
Housing Material: Aluminum
Body Color / Finish: Red/Green/White (Mexico Theme)

Audio Specs:

Frequency Response: 10Hz-20kHz
S/N Ratio: 120dB
THD: 0.0022%
Input Sensitivity (Low-Level): <10V
Input Sensitivity (Hi-Level): N/A
Input Impedance: 20Kohms
Output Voltage: Selectable (5V/7.5V/10V)
Output Impedance: 100ohms
Balanced Input Noise Rejection: >60dB
Stereo Separation: >80dB

Crossover Section & Bass Processor:

Subwoofer LPF Frequency Cut-off: No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off: Selectable (35/50/80Hz)
Gain: 0~8.8V
Center Frequency (Sweep): 75Hz~120Hz
Q Factor (Wide): 1~3

Extra Features:

Compact Size to easy Installation for Any Applications: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
Remote Level Control with Clip Indicator: Yes

Measurements:

Overall Length: 4.72" / 120mm
Overall Width: 4.4" / 113mm
Overall Height: 1" / 26mm
