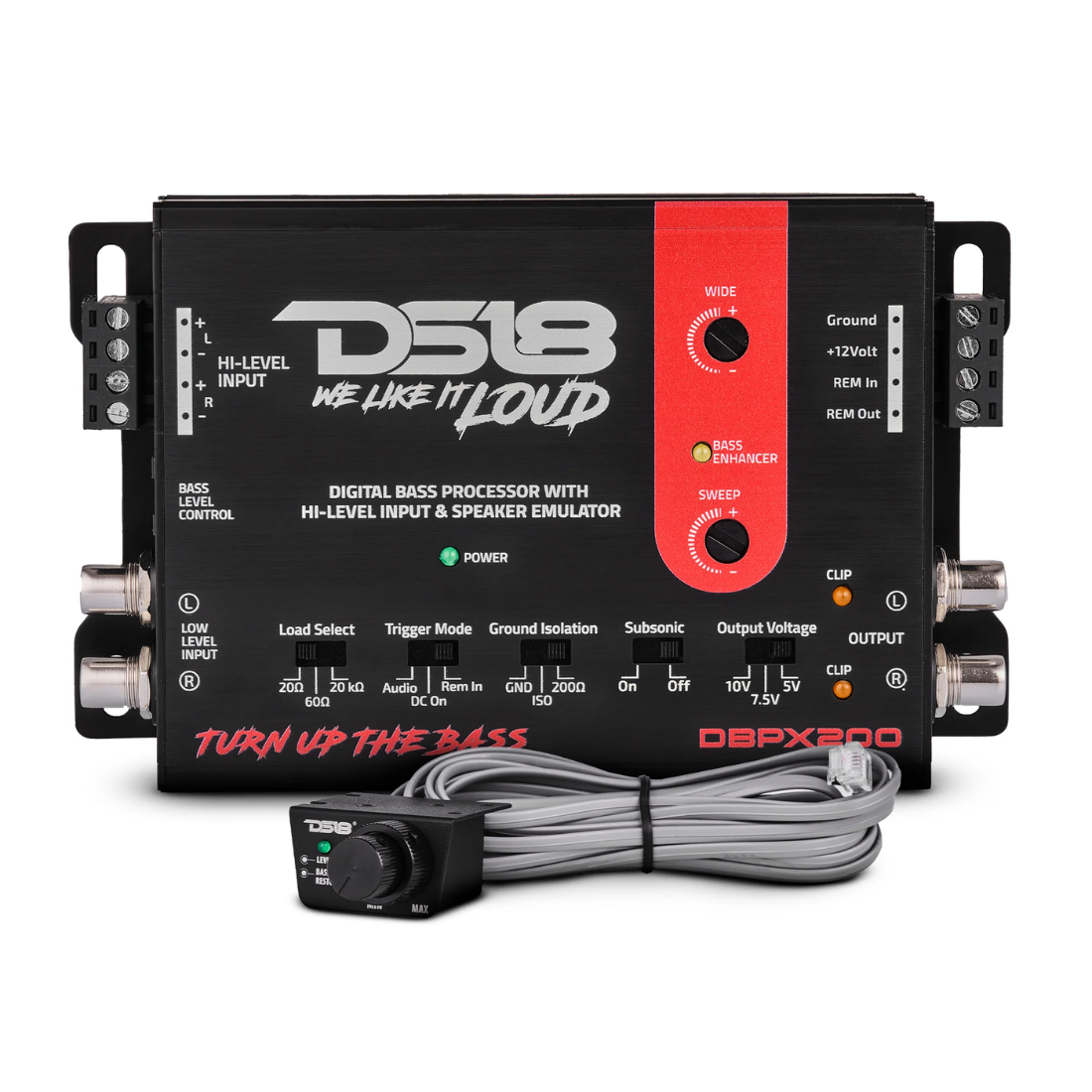

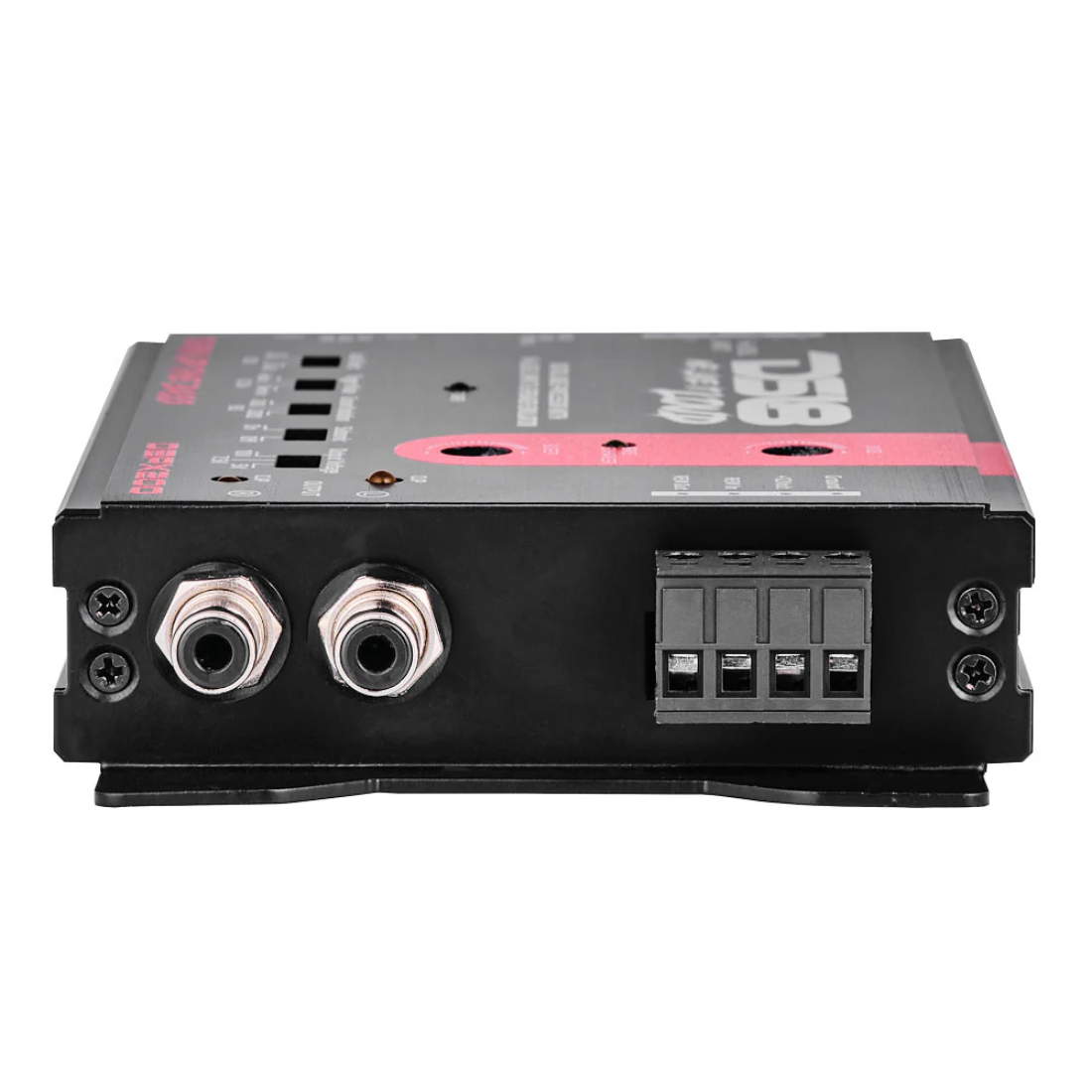

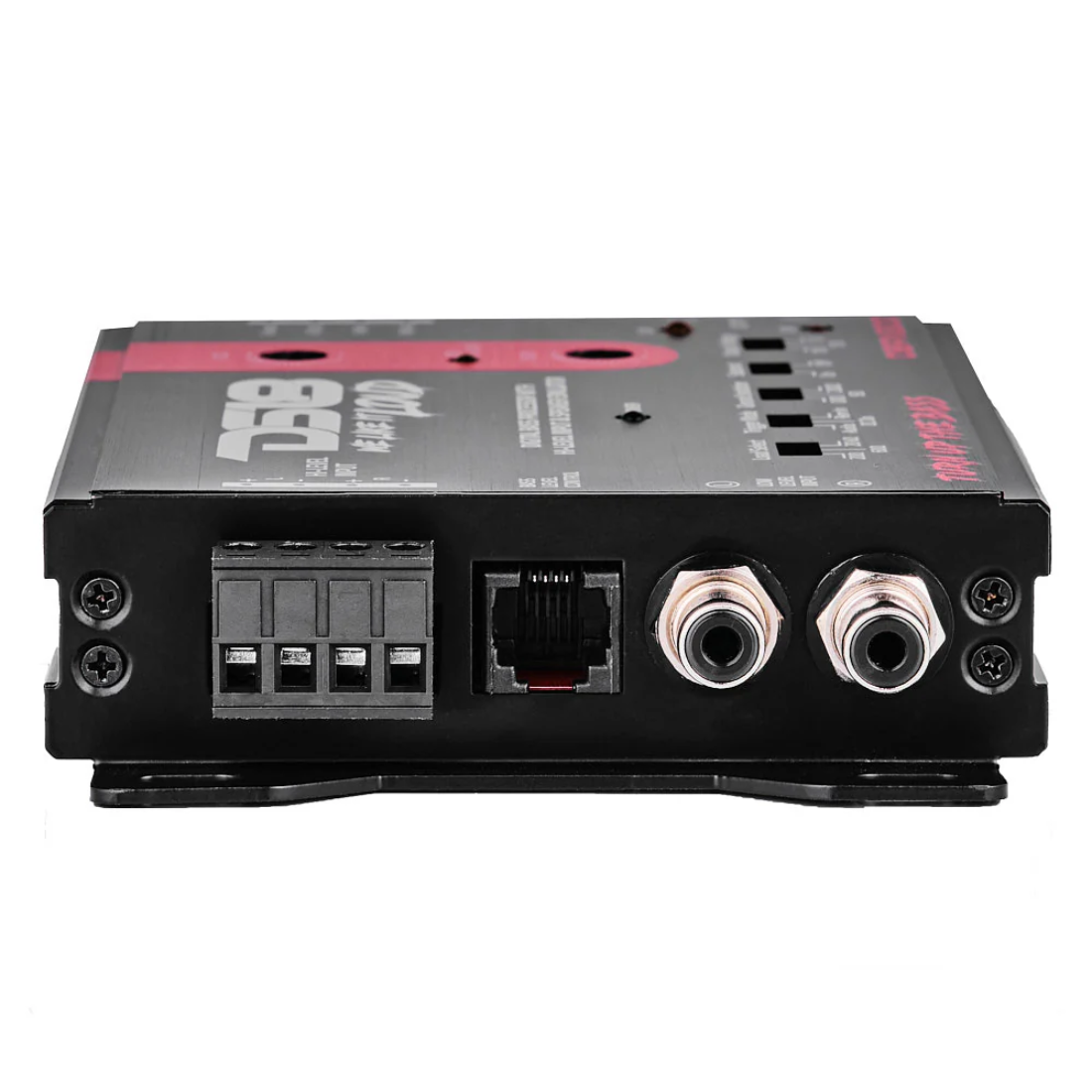

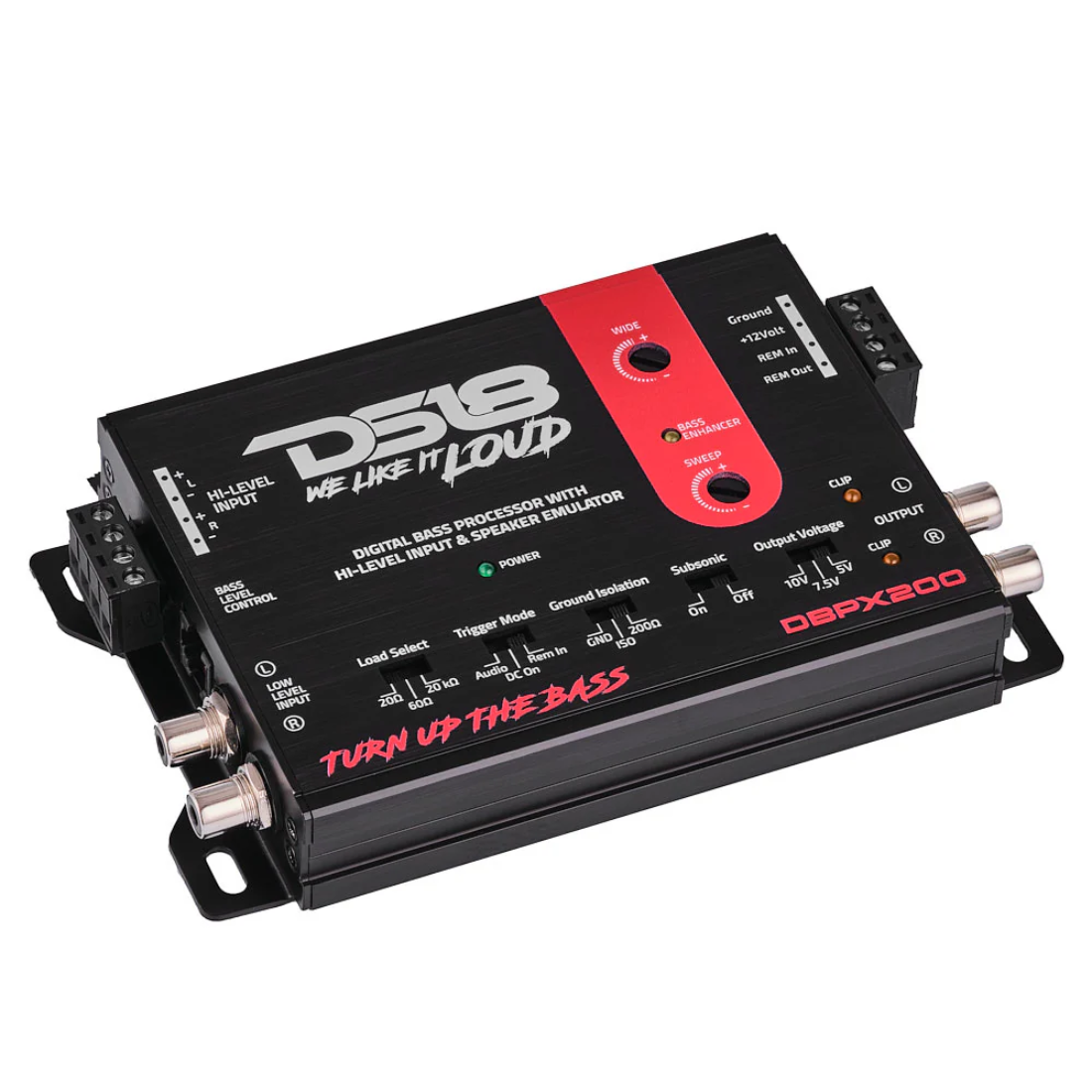

DS18 DBPX200 Digital Bass Processor w/ Hi-Low Signal Converter/Speaker Emulator

Name: DS18 DBPX200 Digital Bass Processor w/ Hi-Low Signal Converter/Speaker Emulator
Brand: DS18
SKU: DBPX200
Price: 199.95 USD
Availability: InStock

$199.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 DBPX200

Digital Bass Processor with Hi To Low Signal Converter & Speaker Emulator

Key Features:

Digital Bass Restoration Processor
Hi to Low Converter / Speaker Emulator
2 Channel Preamp Input / Output
Output Volts / Subsonic / Ground ISO / Trigger / Load Selectors

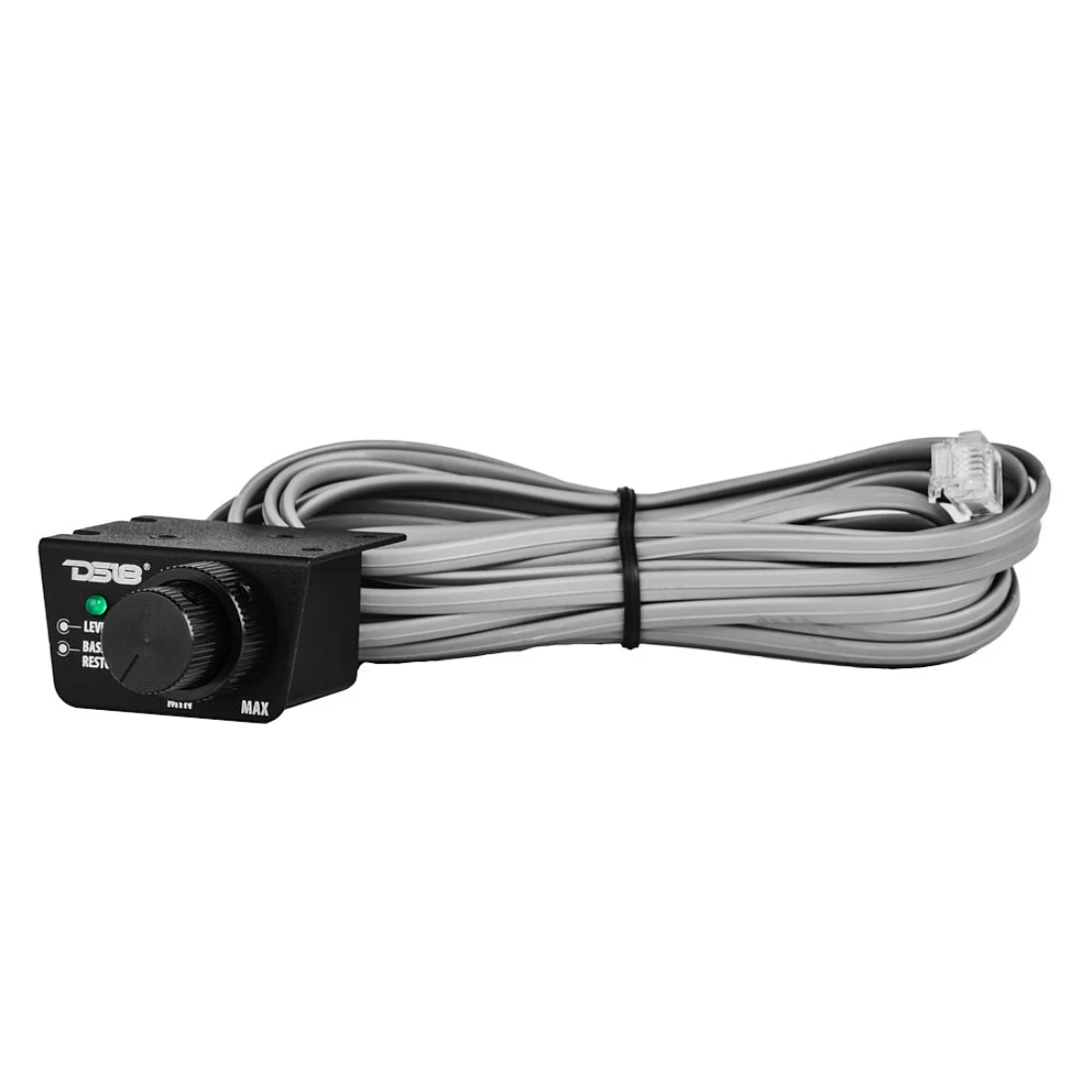

Remote Level Control w/ Bass and Level
Compact Design

General Specs:

SKU: DBPX200
Operating Voltage: 9-16V
Power Consumption: 0.18A
Recommended Fuse Rating: 1A
Power Input Terminal Size: 16ga
LED Indicator: Power / Bass Enhancer
Ground Isolation Switch: Yes (GND/ISO/200?)
Hi-Level Speaker Input: Yes (2 Channels)
Auto Turn-on Function: Yes (Audio/DC)
Remote Turn-on (Input / Output): Yes
Remote Level Control: Yes (Bass Enhancer/Level)
RCA Connector Type: Tiffany (Silver)
Housing Material: Aluminum
Body Color / Finish: Black

Audio Specs:

Frequency Response: 10Hz-20kHz
S/N Ratio: 95dB
THD: 0.05%
Input Sensitivity (Low-Level): <8.8V
Input Sensitivity (Hi-Level): >15V
Input Impedance: 20Kohms
Output Voltage: Selectable (5V/7.5V/10V)
Output Impedance: 110ohms
Balanced Input Noise Rejection: >45dB
Stereo Separation: >50dB

Crossover Section:

Subwoofer LPF Frequency Cut-off: No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off: Selectable (Off/50Hz)

Bass Processor Section:

Gain: 0~8.8V
Center Frequency (Sweep): 75Hz~120Hz
Q Factor (Wide): 1~4

Extra Features:

Compact Size to easy Installation for Any Applications: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
Remote Level Control with Clip Indicator: Yes

Measurements:

Overall Length: 6" / 153mm
Overall Width: 3.7" / 95mm
Overall Height: 1.1" / 28mm
