DS18

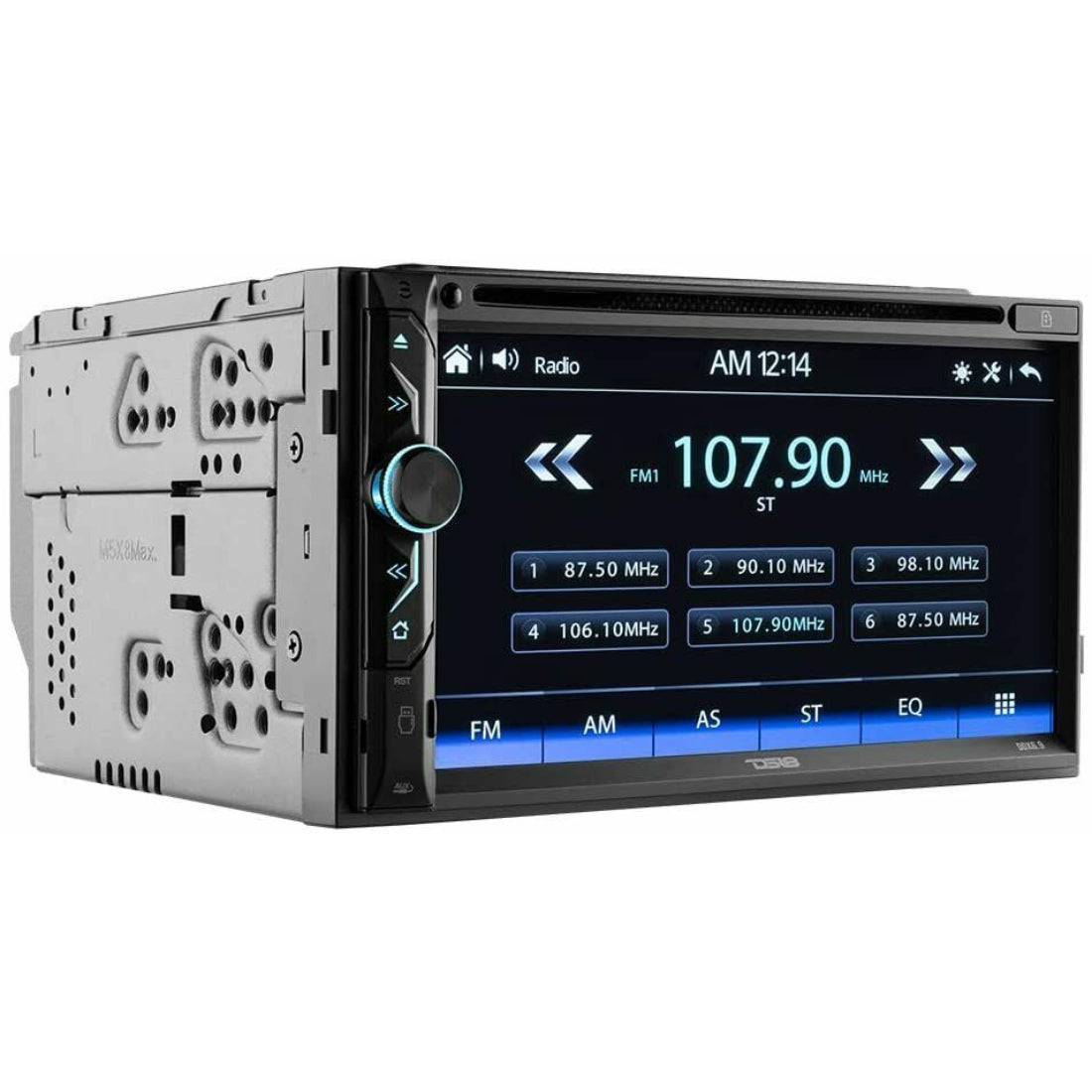

DS18 - DDX6.9 - 6.9" Touchscreen Double-Din Headunit with DVD, Bluetooth, USB
DS18 - DDX6.9 - 6.9" Touchscreen Double-Din Headunit with DVD, Bluetooth, USB
Regular price
$214.95 USD
Regular price
Sale price
$214.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Brand New
DS18 - DDX6.9
6.9" Touchscreen Double-Din Headunit with DVD, Bluetooth, USB
Key Features:
Rated power source: 14.4V DC (10.8V to 15V operation)
Maximum Current Consumption: 10 Amp
Dimensions (W x H x D): Chassis: 178mm x 100mm x 165mm
Bezel frame: 170mm x 96mm x 5mm
Weight: 1.52 Kg
Display:
Screen Size / Aspect Ratio: 9 inch / Wide 16:9
Pixels: 1024 x 600
Display Type: IPS / WSVGA / Capacitive Touch Screen
Temperature Operation: -20o C to +60o C (14o F to 140o F
Audio:
Maximum Power Output: 40W x 4 Ch / 4 ohm
Continuous Power Output: 15W x 4 Ch / 4 ohm
Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer: 10 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz,
16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz,
250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz,
5KHz, 8KHz, 12.5Khz, 16Khz)
Gain: +/- 12dB
Audio Control: Volume / Balance / Fader / Subwoofer Level
Tuner:
Frequency Range: FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory: 30 Stations (18 FM/12 AM)
Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)
DVD Player:
Format Files Supported: DVD-V, VCD, SVCD, MP3, WMA, DivX, MPG4
Region Number: 1 / Multi Region Selectable
Usable Discs: CD, CD-R, CD-RW, DVD-R, DVD-RW, DVD-RDL
USB / SD Player:
Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported: 1080P Video
Memory Size Reader: up to 64 Gb
Max Current Supply: 1.5 Amp (USB)
Number of USB Ports: 2 (1 x Front, 1 x Rear)
Connectivity:
Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls
Wi-Fi: Built-in
Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
Video Output: Dual RCA (1 Volt/75 ohm)
A/V Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone: 3.5mm Jack external MIC Input
Remote Control: Frontal IR Receptor / Wired Input / CAN-Bus Protocol
Other Info:
Product Dimensions: 8 x 6 x 3 inches
Item Weight: 5.98 pounds / 95.68 Ounces
