DS18

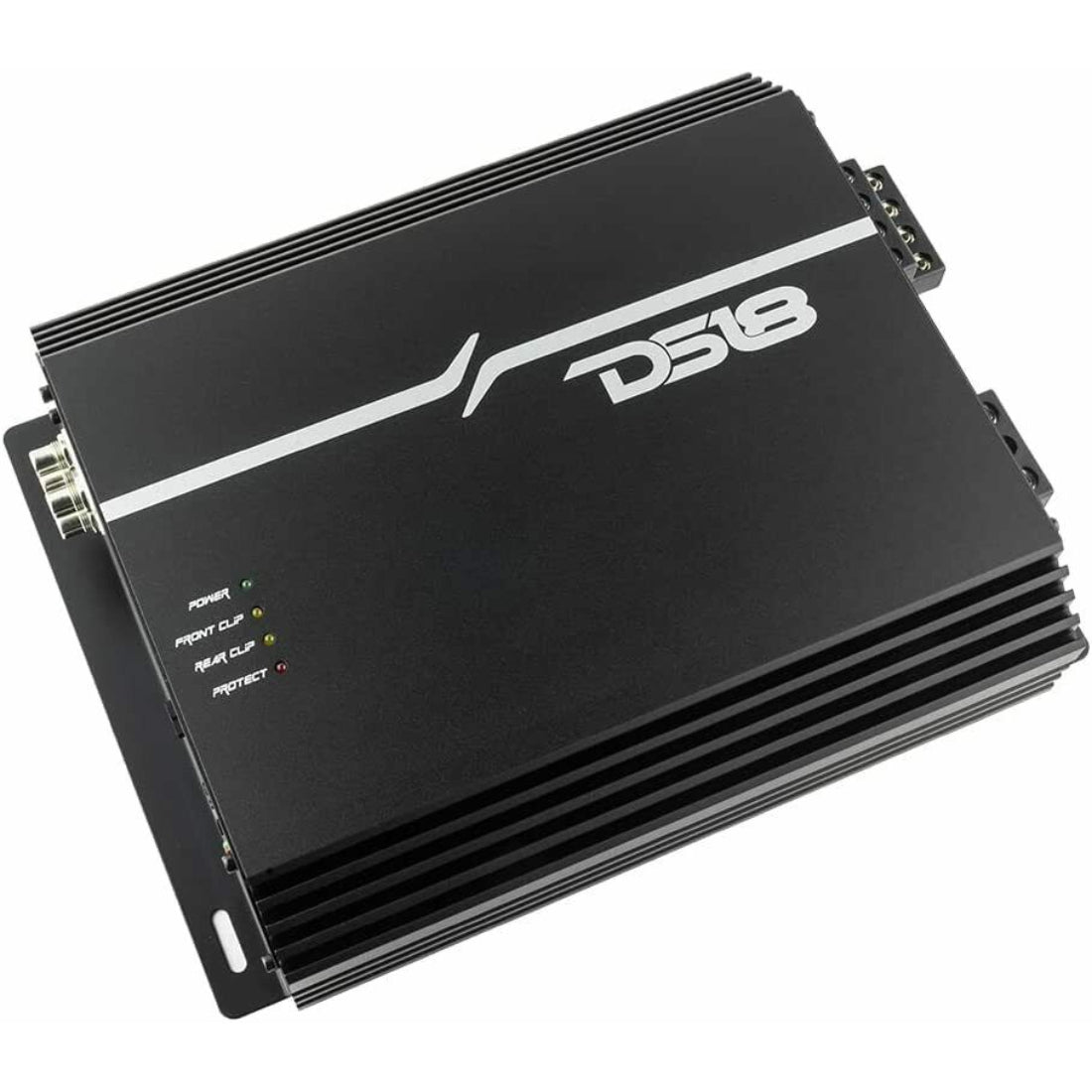

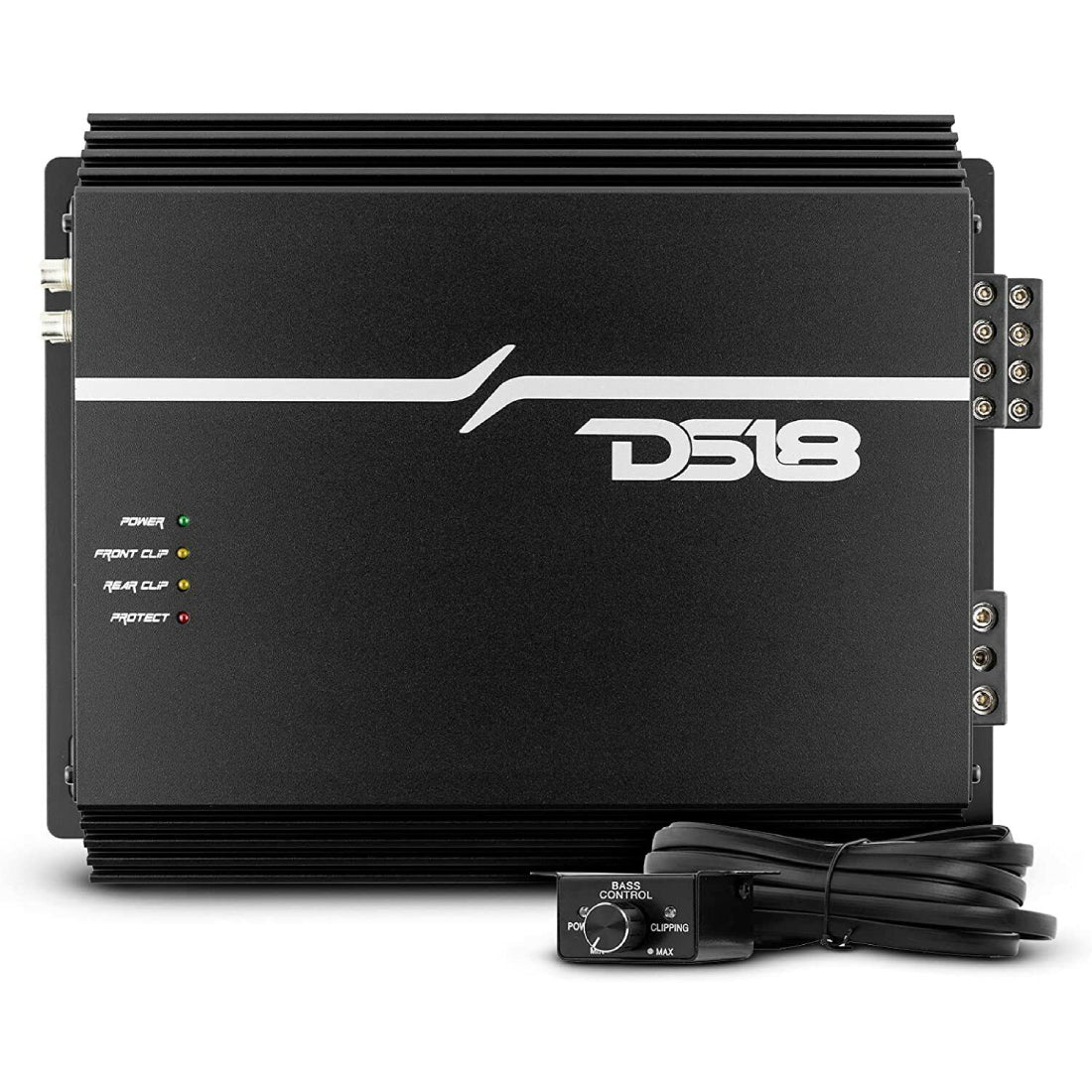

DS18 EXL-P800X4 4-Channel 400W RMS Class-A/B Full Range Car Audio Amplifier

DS18 EXL-P800X4 4-Channel 400W RMS Class-A/B Full Range Car Audio Amplifier

Regular price $249.95 USD
Regular price Sale price $249.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 EXL-P800X4

4-Channel 400 Watts RMS Power Class-AB Full Range Car Amplifier - Made in Korea

Key Features:

  • Rated at 400 watts RMS at 4-Ohms bridged, 200 watts RMS at 2-Ohms, and 150 watts RMS at 4-Ohms.
  • Made with premium Korean components and optimized circuitry to provide massive power levels at maximum efficiency, giving louder and deeper bass.
  • Precise filters help you easily adjust to your desired frequencies or box tuning. Low Pass Filter: 50HZ-2KHZ / 0–180-degree phase selector / Bass boost: 0-9 dB.
  • The included Bass knob lets you adjust your bass as you drive, which also includes a power and clipping indicator so you can monitor your signal and amplifier status.
  • Includes a wide voltage operational range of 9-15.5 volts with gain sensitivity adjustable from 200mv to 6v through the high-quality tiffany RCA jacks.
  • Built-in Clipping, Power, and Protect indicators so you can monitor your amp through all conditions.
  • Large power and ground 4 AWG inputs with 8 AWG speaker input terminals. We recommend a 120A inline fuse for this amplifier for optimal operation.
Specifications:

  • RMS Power @ 4 Ohm: 150W x 4CH
  • RMS Power @ 2 Ohm: 200W x 4CH
  • RMS Power @ 4 Ohm Bridged: 400W x 2CH
  • Frequency Response: 20Hz-20KHz
  • Signal/Noise Ratio: >98dB
  • Efficiency @ 4 Ohm: >63%
  • Damping Factor: 140
  • THD %: <0.10%
  • Low-Level Input Range: 200MV-6V
  • Selectable X-Over: Yes, HPF/FULL/LPF
  • X-Over Filter Range: 50Hz-2KHz
  • Bass Boost Range: 0-+9dB
  • Bass Boost Frequency: 30Hz-60Hz
  • Infrasonic Filter: No
  • Phase Selector: 0-180
  • Class: AB (Analog)
  • Amplifier Type: Stereo Full-Range
  • Channels: 4 CH
  • Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)
  • Led Indicator: PWR / CLIP / PROTECT
  • Power Input Size: 4 AWG
  • Fuse Rating: 120A
  • Remote Level Control: Yes - Dash Mount
  • Cooling Fan: Yes
  • Thermal Protection: Yes > 97°C / 206°F
  • Over-Load Protection: Yes
  • Dc Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes >15.5V
  • Clipping Protection: Yes
  • Body Color / Finish: Black Aluminum
  • Dimensions LxWxH (Inches)(mm): 11.5 x 8.77 x 2.67” / 292 x 223 x 68 mm
  • Heatsink Length: 9.84" / 250mm
