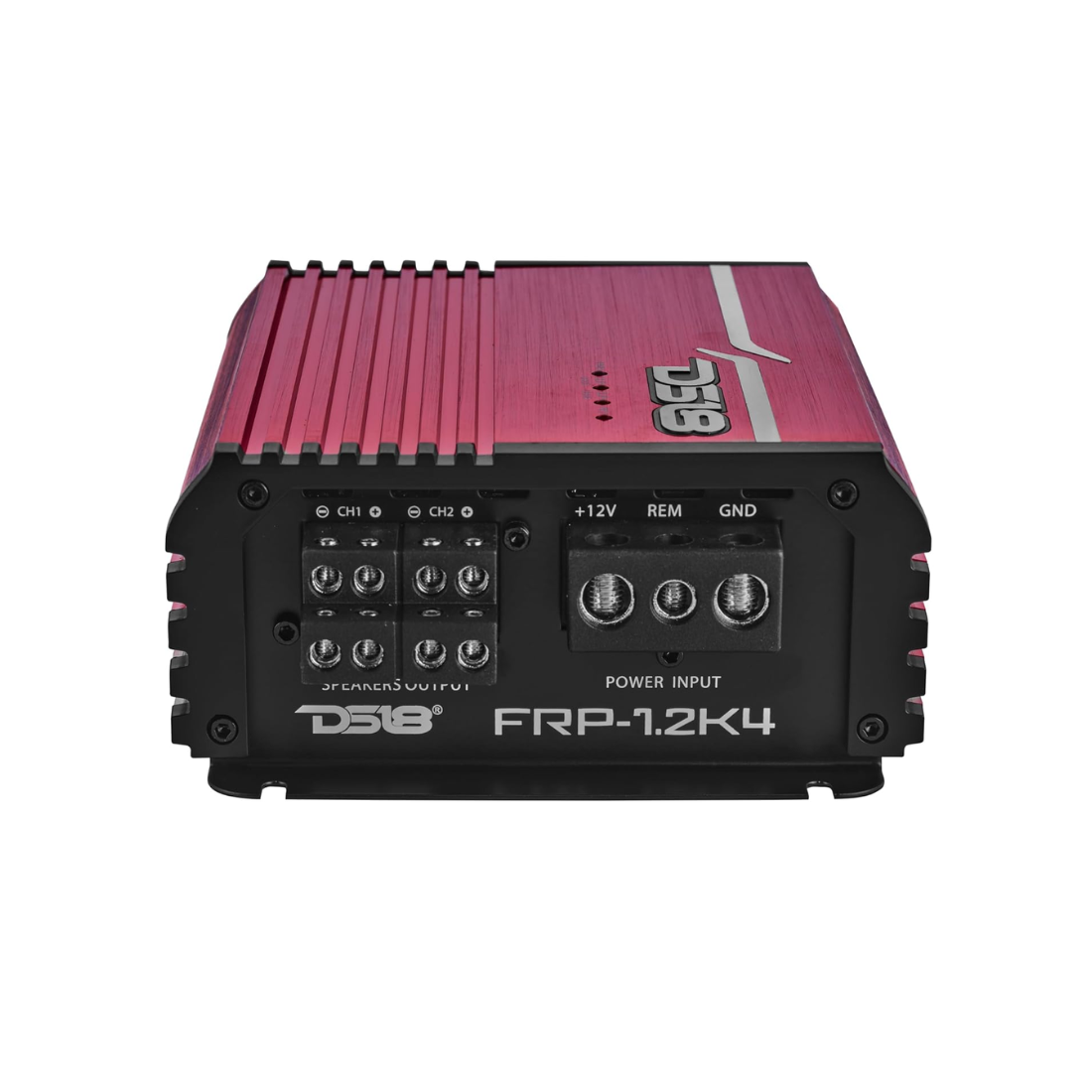

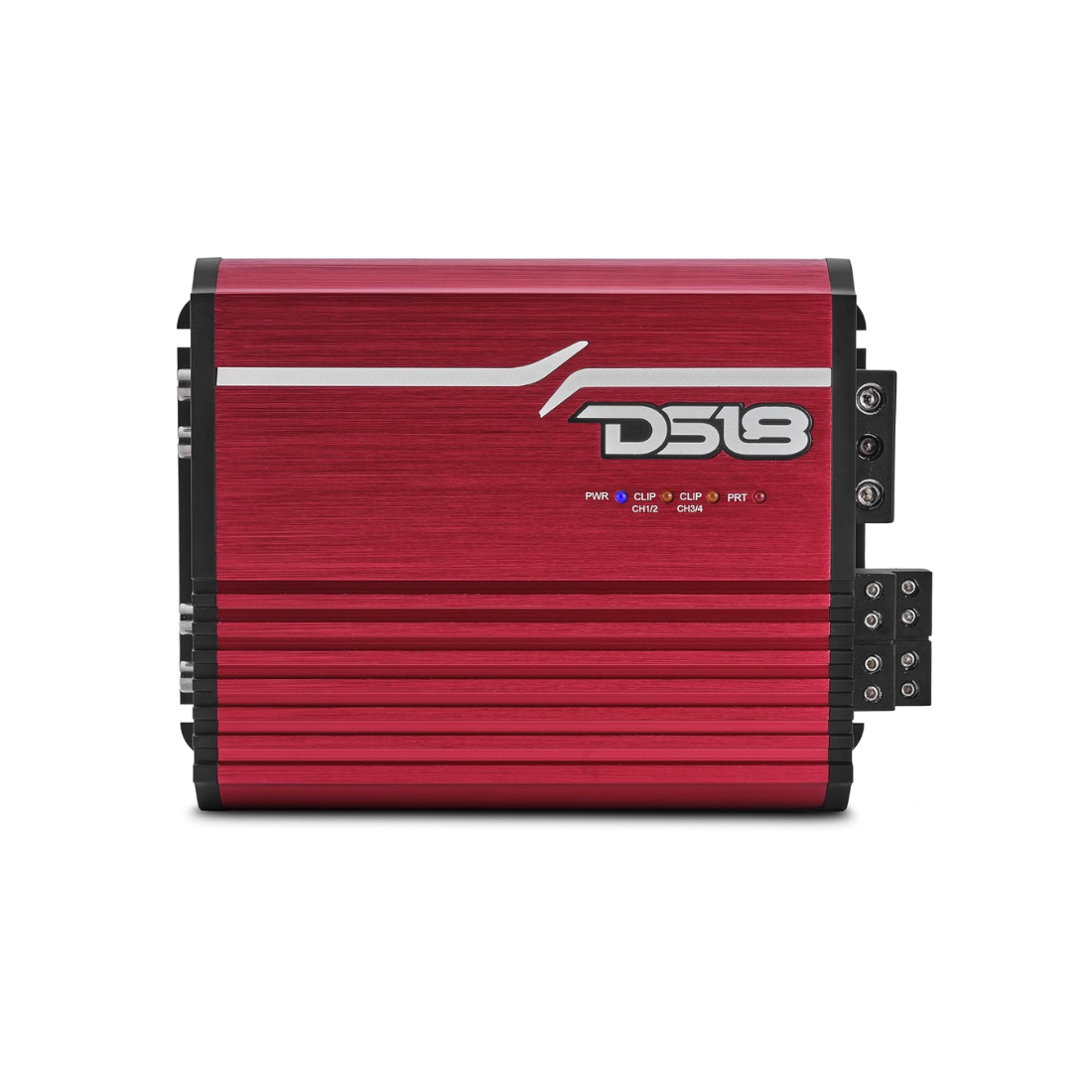

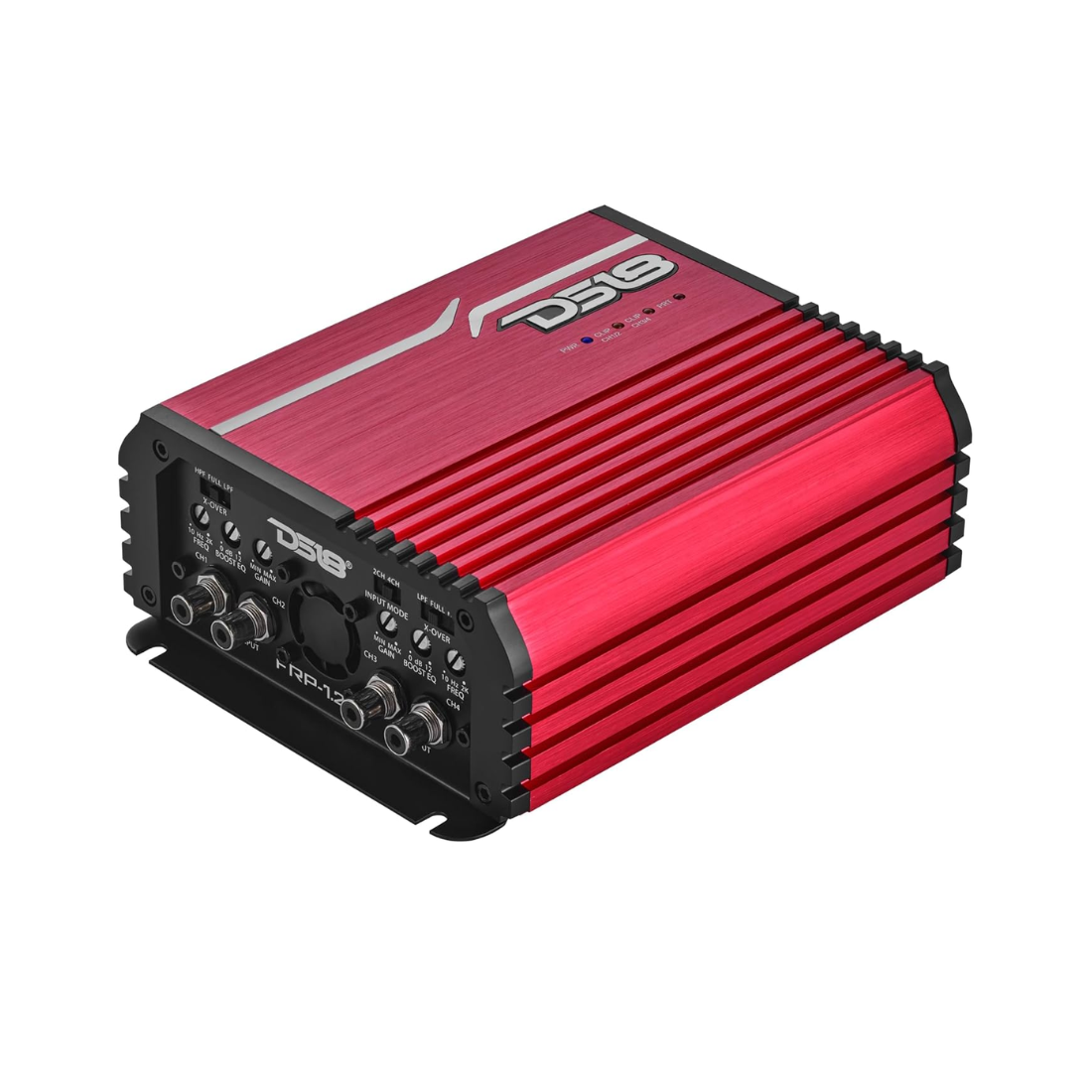

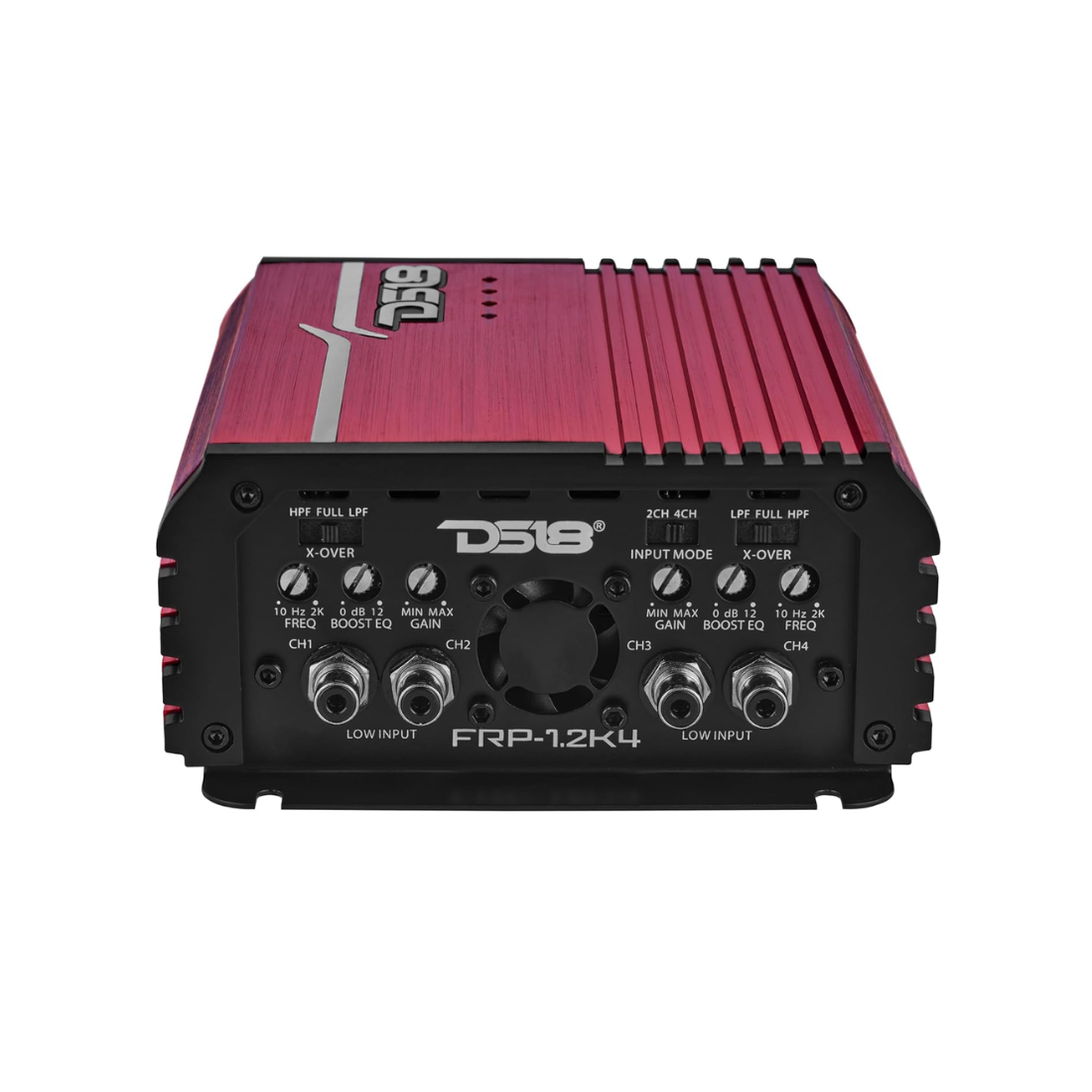

DS18 FRP-1.2K4/RD 4-Channel 1200W RMS Full-Range Class-D Car Amplifier (Red)

Name: DS18 FRP-1.2K4/RD 4-Channel 1200W RMS Full-Range Class-D Car Amplifier (Red)
Brand: DS18
SKU: FRP-1.2K4/RD
Price: 299.95 USD
Availability: InStock

$299.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 FRP-1.2K4/RD

4-Channel 1200W RMS Full-Range Class-D Car Amplifier (Red)

Key Features:

RMS Power: 4 x 120W @ 4Ω, 4 x 200W @ 2Ω, 4 x 300W @ 1Ω
Bridged Power: 2 x 350W @ 4Ω | 2 x 500W @ 2Ω
Selectable HPF / LPF / Full crossover
Bass Boost: 0–12dB at 50Hz

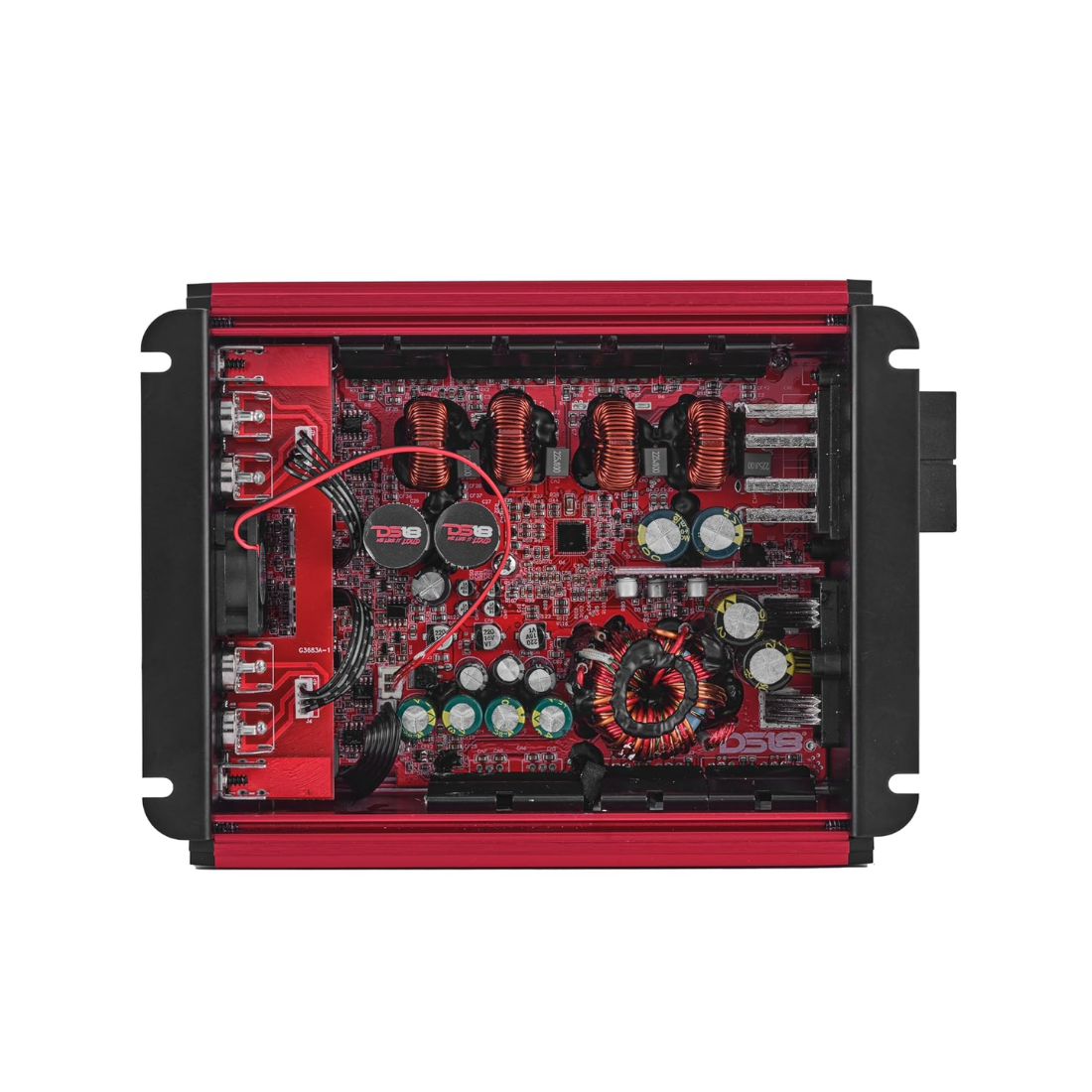

Smart cooling fan + 4-layer PCB
Power, Protect, Clip LED indicators

General Specifications:

Amplifier Class: Digital
Amplifier Type: Full-Range Multi-Channel
Number of Channels: 4CH
Minimum Impedance: 1ohm St / 2ohm Bridge
Led Indicator: Power / Protect / Clipping
Power Input Terminal Size: 4GA
Fuse Size (Recommended): 140A
Cooling Fan: Yes (Smart Cooling x 1)
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Red
Compact Size to Easy Installation for Any Applications: Yes
Stable/Reliable Four Layers Traces PCB Design: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
Metal Knobs with Click Steps: Yes
Input Selector: Yes (2ch/4ch)
Remote Level Control with Clip Indicator: No
Remote Level Control with Clip Indicator and Voltmeter: No

Power Specs:

RMS Power @ 4 ohms: 4 x 120W
RMS Power @ 2 ohms: 4 x 200W
RMS Power @ 1 ohm: 4 x 300W
RMS Power @ 4 ohm Bridge: 2 x 350W
RMS Power @ 2 ohm Bridge: 2 x 500W

Audio Specs:

Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 90dB
Efficiency @ 4ohm: 97%
Damping Factor: 90
Input Impedance: 10KΩ
Channel Separation: 50dB
Total Harmonic Distortion (THD): 0.5%
Low Level Input Range: 400mv-6V
High Level Input: No
Selectable X-Over: Yes, HPF/FULL/LPF
X-Over Filter Range: 10Hz-2KHz
Bass Boost Range: 0-12dB
Bass Boost Frequency: 50Hz
Phase Selector: No

Measurement:

Overall Length: 7.2" / 183mm
Overall Width: 5.5" / 140mm
Overall Height: 2.4" / 63.5mm
Heatsink Length: 6" / 152mm
Gross Single Unit Weight: 1.6Kg
