DS18

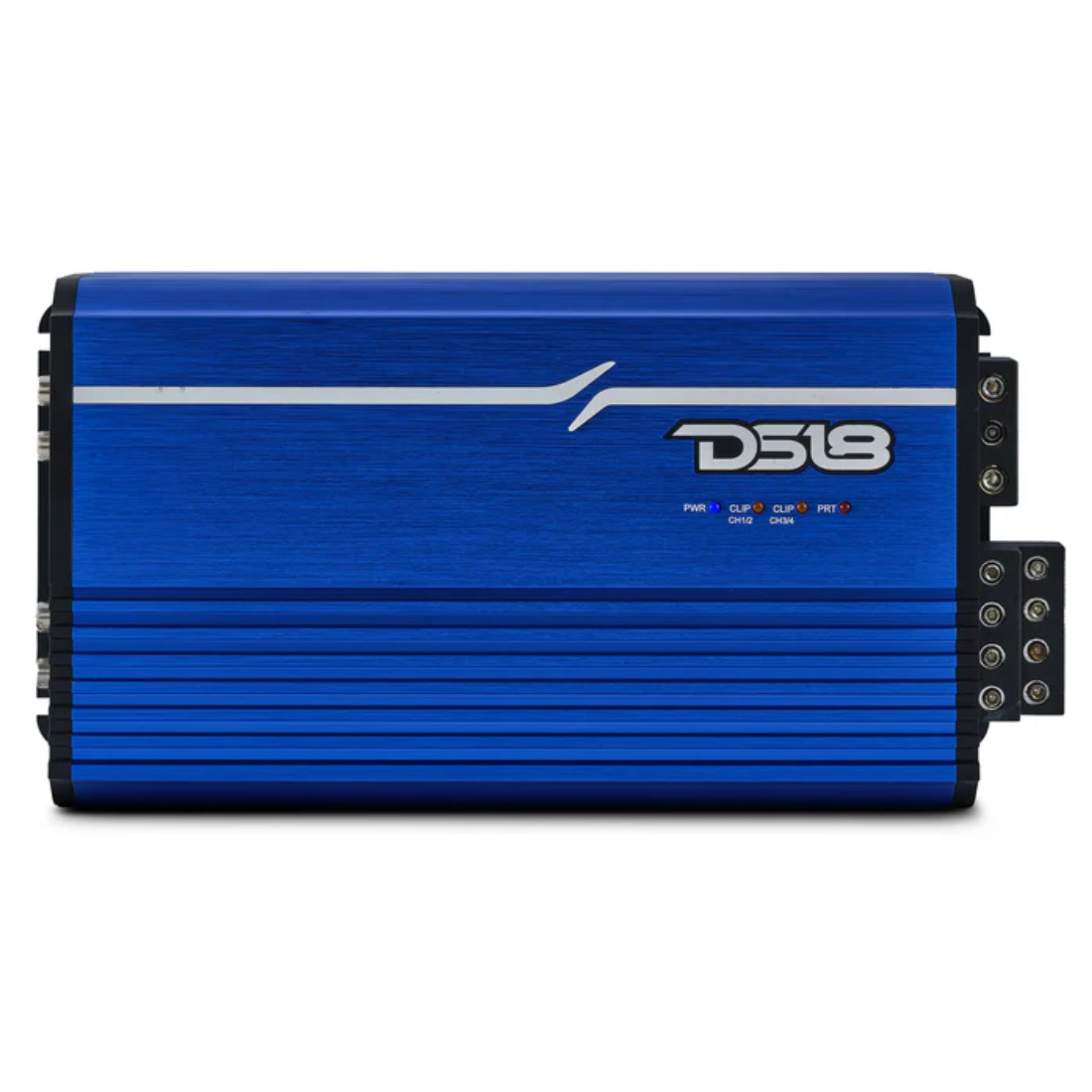

DS18 FRP-2.4K4/BL 4-Channel 2400W RMS Full-Range Class-D Amplifier (Blue)
DS18 FRP-2.4K4/BL 4-Channel 2400W RMS Full-Range Class-D Amplifier (Blue)
Regular price
$349.95 USD
Regular price
Sale price
$349.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 FRP-2.4K4/BL
4-Channel 2400W RMS Full-Range Class-D Amplifier (Blue)
Key Features:
- RMS Power: 4 x 250W @ 4Ω, 4 x 400W @ 2Ω, 4 x 600W @ 1Ω
- Bridged Power: 2 x 750W @ 4Ω | 2 x 1000W @ 2Ω
- Selectable HPF / LPF / Full crossover
- Bass Boost: 0–12dB at 50Hz
- Smart cooling fan
- Power, Protect, Clip LED indicators
General Specs:
- Amplifier Class: Digital
- Amplifier Type: Full-Range Multi-Channel
- Number of Channels: 4CH
- Minimum Impedance: 1 Ω St / 2 Ω Bridge
- LED Indicator: Power / Protect / Clipping
- Power Input Terminal Size: 0GA
- Fuse Size (Recommended): 240A
- Cooling Fan: Yes (Smart Cooling × 1)
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes
- Body Color / Finish: Blue
- Tiffany RCA Terminal: Yes
- Metal Knobs with Click Steps: Yes
- Input Selector: Yes (2ch/4ch)
Power Specs:
- RMS Power @ 4 ohms: 4 x 250W
- RMS Power @ 2 ohms: 4 x 400W
- RMS Power @ 1 ohm: 4 x 600W
- RMS Power @ 4 ohm Bridge: 2 x 750W
- RMS Power @ 2 ohm Bridge: 2 x 1000W
Audio Specs:
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio: 90dB
- Efficiency @ 4ohm: 97%
- Damping Factor: 90
- Input Impedance: 10KΩ
- Channel Separation: 50dB
- Total Harmonic Distortion (THD): 0.5%
- Low Level Input Range: 400mv-6V
- Selectable X-Over: Yes, HPF/FULL/LPF
- X-Over Filter Range: 10Hz-2KHz
- Bass Boost Range0-12dB
- Bass Boost Frequency: 50Hz
Measurement:
- Overall Length: 10.3" / 262mm
- Overall Width: 5.5" / 140mm
- Overall Height: 2.4" / 63.5mm
- Heatsink Length: 9" / 230mm
- Gross Single Unit Weight: 5Lbs / 2.3Kgs
