DS18

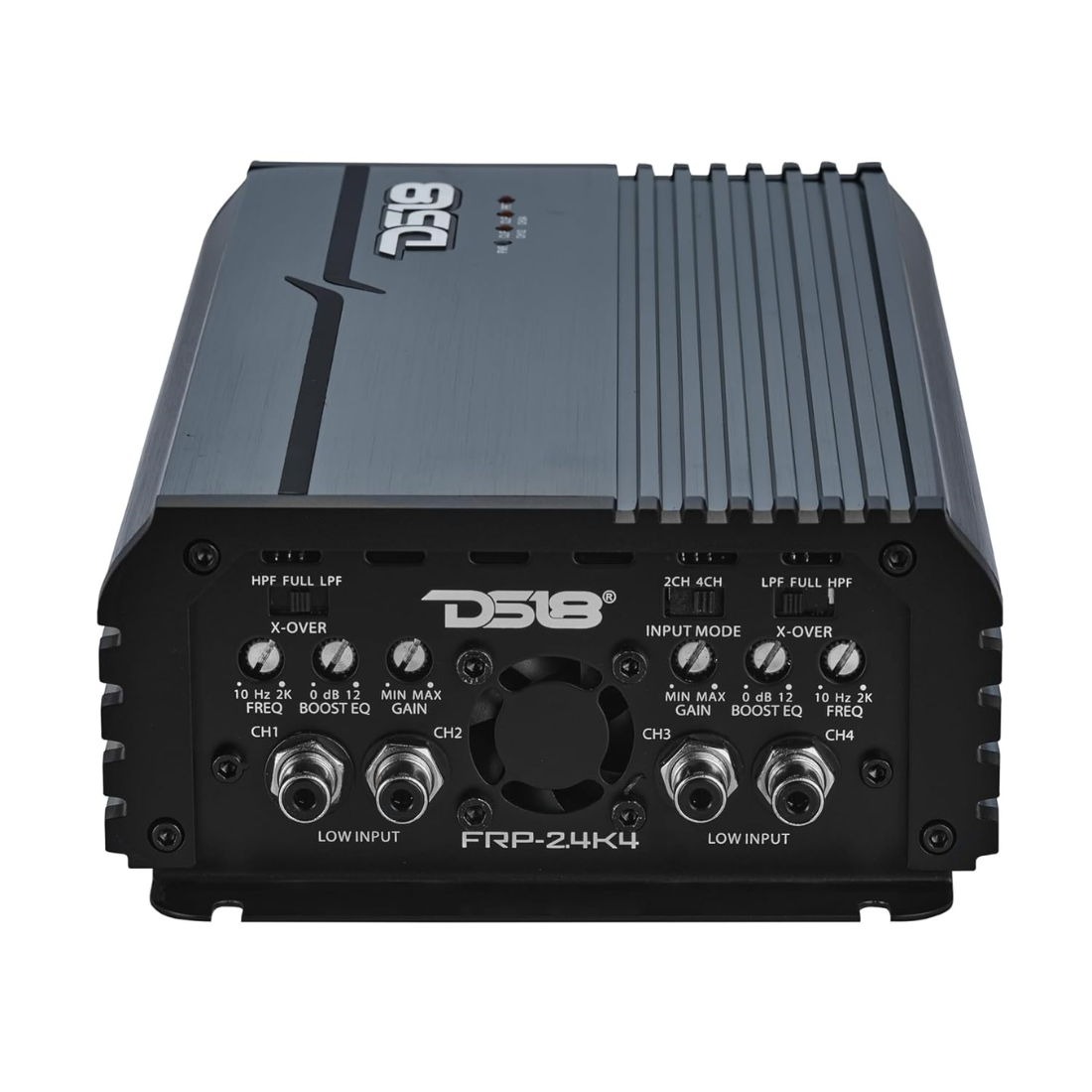

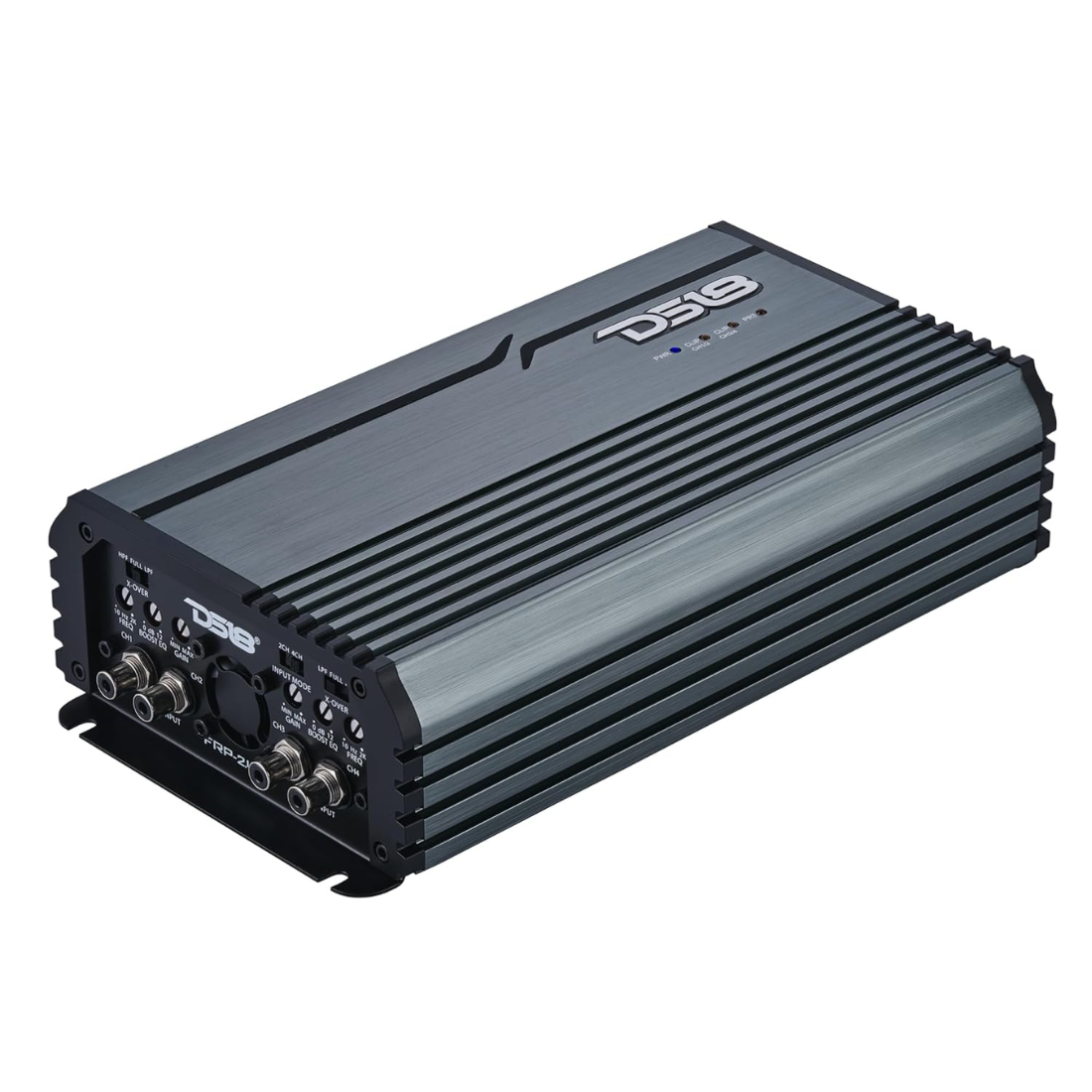

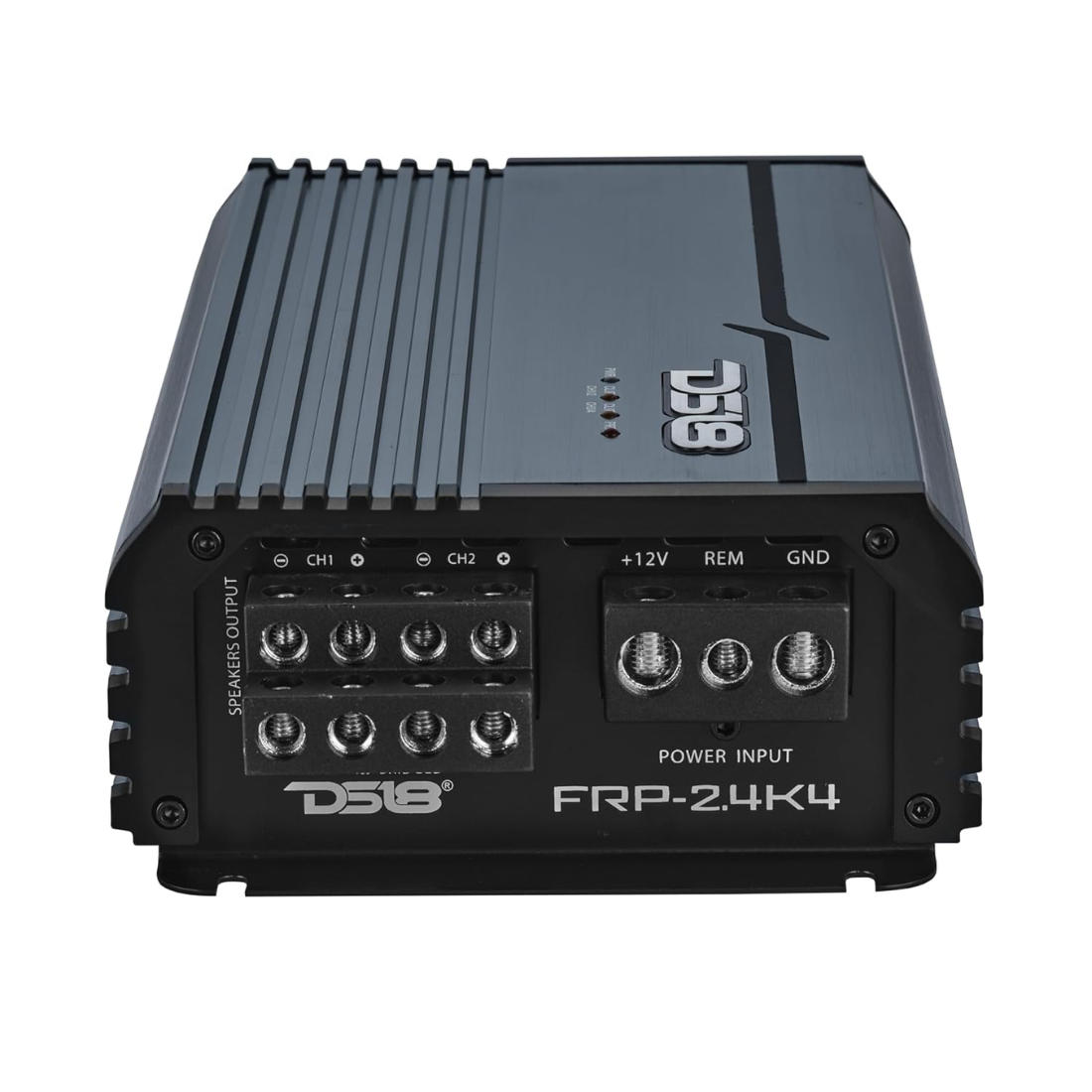

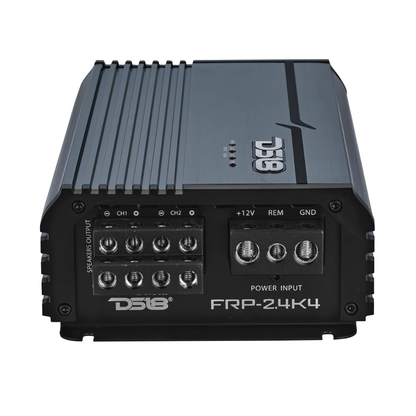

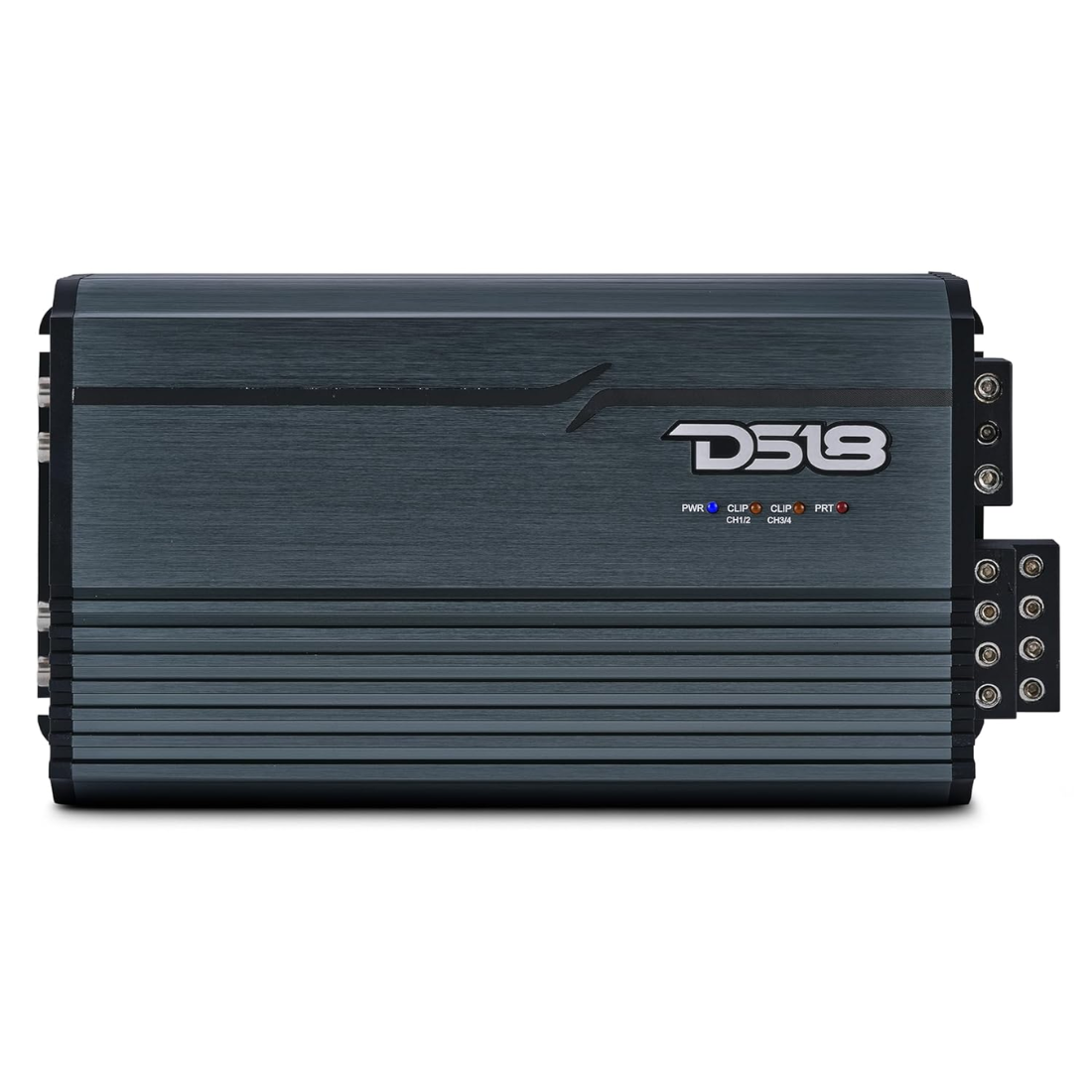

DS18 FRP-2.4K4/TI 4-Channel 2400W RMS Full-Range Class-D Amplifier (Titanium)
DS18 FRP-2.4K4/TI 4-Channel 2400W RMS Full-Range Class-D Amplifier (Titanium)
Regular price
$349.95 USD
Regular price
Sale price
$349.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 FRP-2.4K4/TI
4-Channel 2400W RMS Full-Range Class-D Amplifier (Titanium)
Key Features:
- Amplifier Class: Digital (Class D)
- Amplifier Type: Full-Range Multi-Channel
- Number of Channels: 4
- Minimum Impedance: 1Ω Stereo / 2Ω Bridged
- LED Indicators: Power / Protect / Clipping
- Power Input Terminal Size: 0GA
- Recommended Fuse Size: 240A
- Cooling System: Smart Cooling Fan (x1)
- Thermal Protection: Yes
- Audio Specifications
- Frequency Response: 10Hz – 20KHz
- Signal-to-Noise Ratio: 90dB
- Efficiency @ 4 Ohms: 97%
- Damping Factor: 90
- Input Impedance: 10KΩ
- Channel Separation: 50dB
- Total Harmonic Distortion (THD): 0.5%
- Low-Level Input Range: 400mV – 6V
- Selectable Crossover: HPF / FULL / LPF
- Crossover Filter Range: 10Hz – 2KHz
- Bass Boost Range: 0 – 12dB
- Bass Boost Frequency: 50Hz
- Power Output
- RMS Power @ 4 Ohms: 4 x 250W
- RMS Power @ 2 Ohms: 4 x 400W
- RMS Power @ 1 Ohm: 4 x 600W
- RMS Power @ 4 Ohm Bridged: 2 x 750W
- RMS Power @ 2 Ohm Bridged: 2 x 1000W
- Dimensions & Weight
- Overall Length: 10.3" (262mm)
- Overall Width: 5.5" (140mm)
- Overall Height: 2.4" (63.5mm
- Heatsink Length: 9" (230mm)
- Gross Weight (Single Unit): 5 lbs (2.3 kg)
