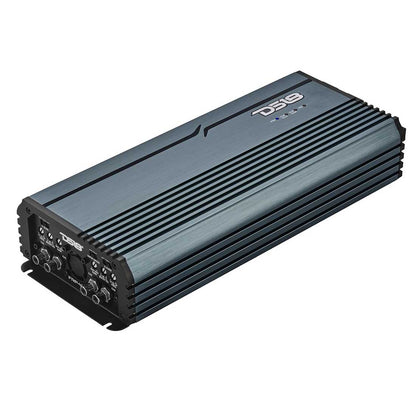

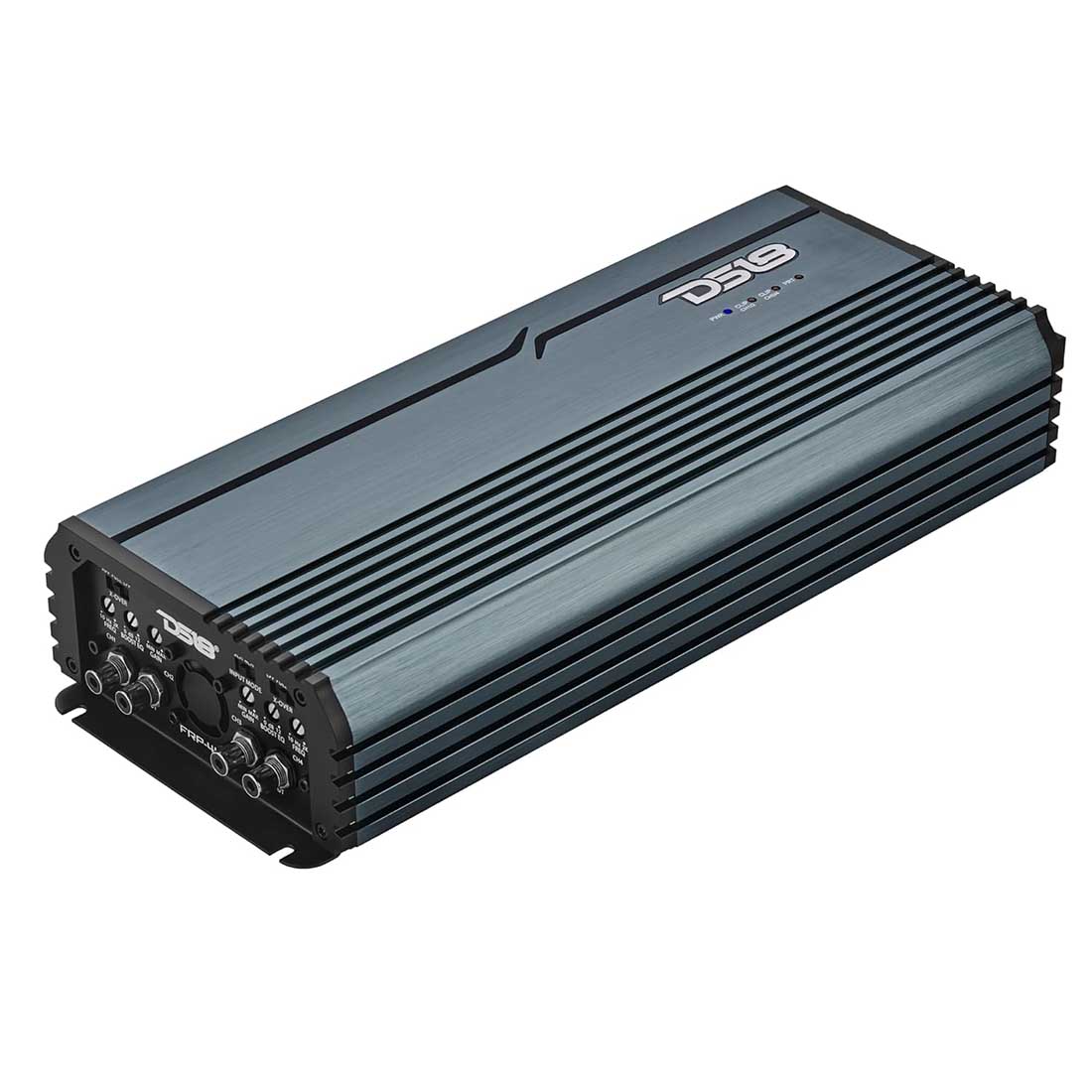

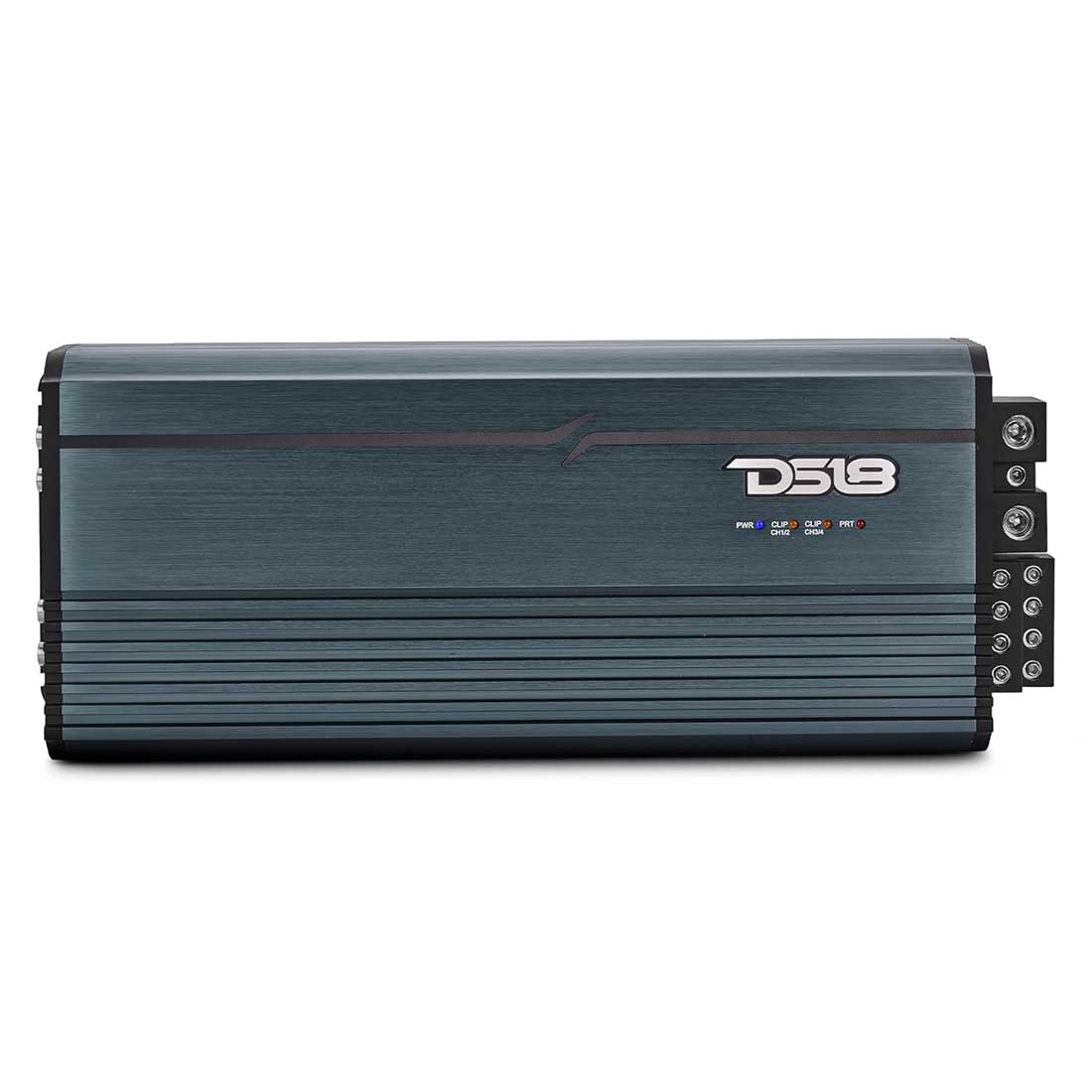

DS18 FRP-4K4/TI 4-Channel 4000W RMS Full-Range Class-D Car Audio Amplifier
DS18 FRP-4K4/TI 4-Channel 4000W RMS Full-Range Class-D Car Audio Amplifier
Regular price
$499.95 USD
Regular price
Sale price
$499.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 FRP-4K4/TI
4-Channel 4000W RMS Full-Range Class-D Car Audio Amplifier
Key Features:
- RMS Power: 4 x 400W @ 4Ω, 4 x 700W @ 2Ω, 4 x 1000W @ 1Ω
- Bridged Power: 2 x 1200W @ 4Ω | 2 x 1800W @ 2Ω

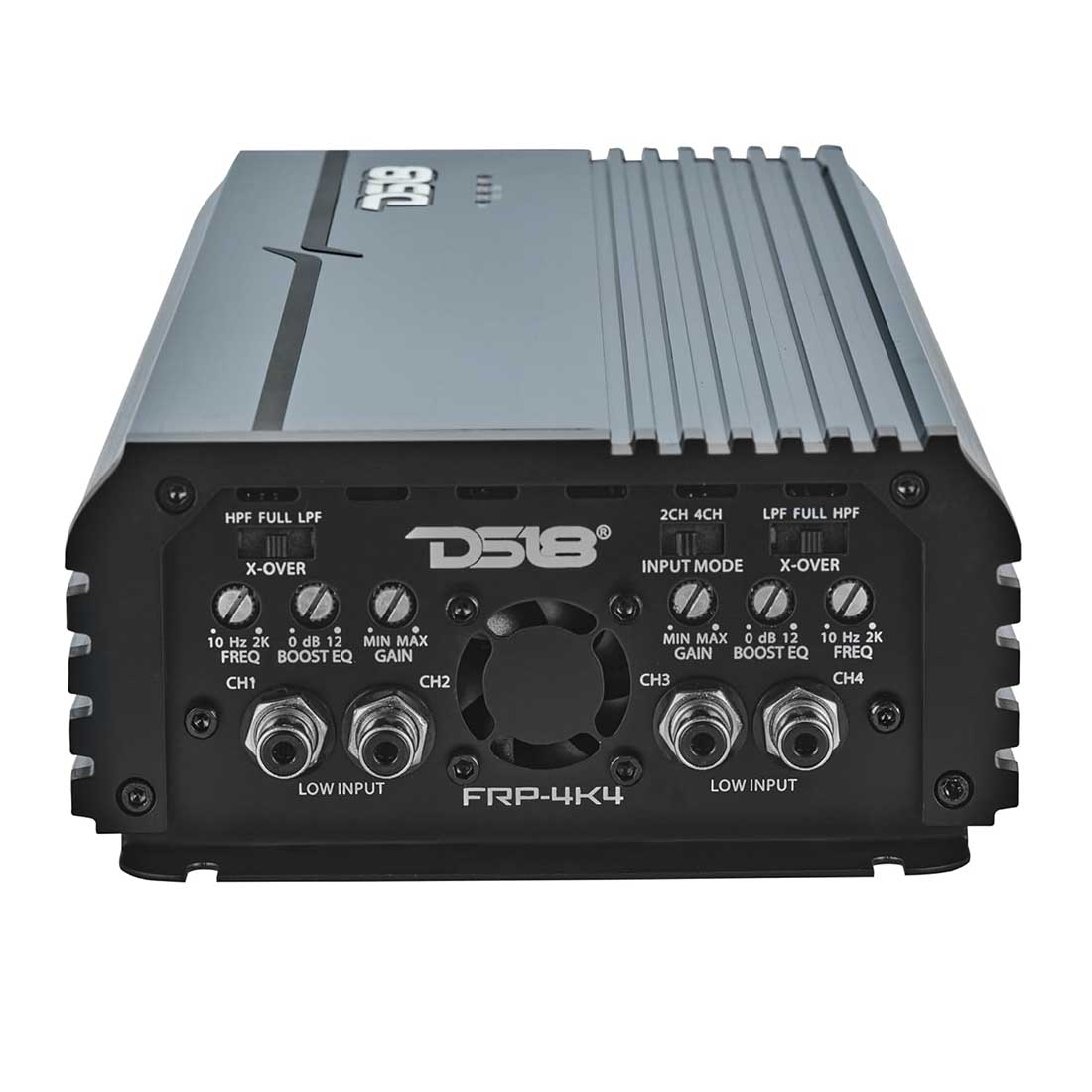

- Selectable HPF / LPF / Full crossover
- Bass Boost: 0–12dB at 50Hz

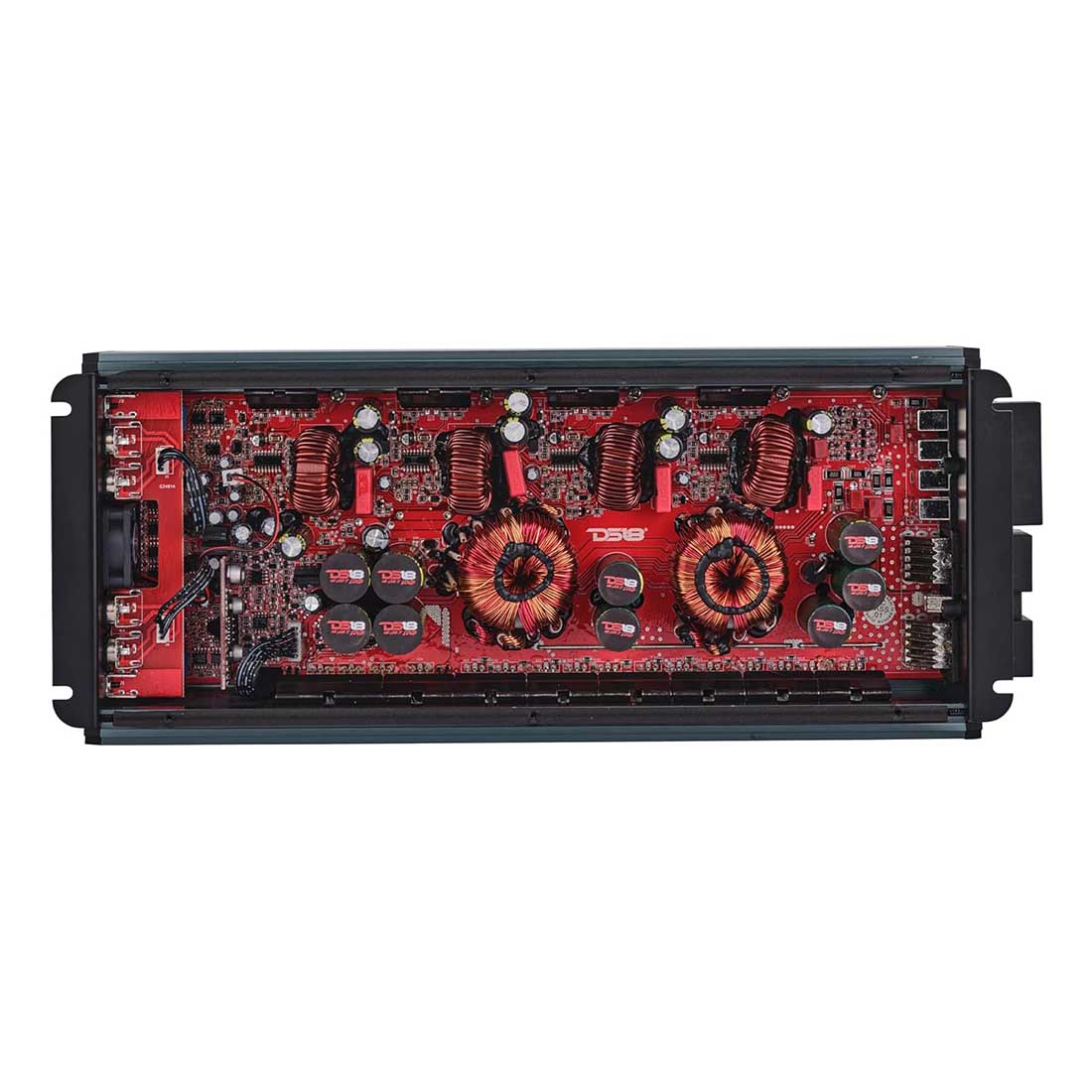

- Smart cooling fan + 4-layer PCB
- Power, Protect, Clip LED indicators
Specifications:
- Amplifier Class: Digital
- Amplifier Type: Full-Range Multi-Channel
- Number of Channels: 4CH
- Minimum Impedance: 1ohm St / 2ohm Bridge
- Led Indicator: Power / Protect / Clipping

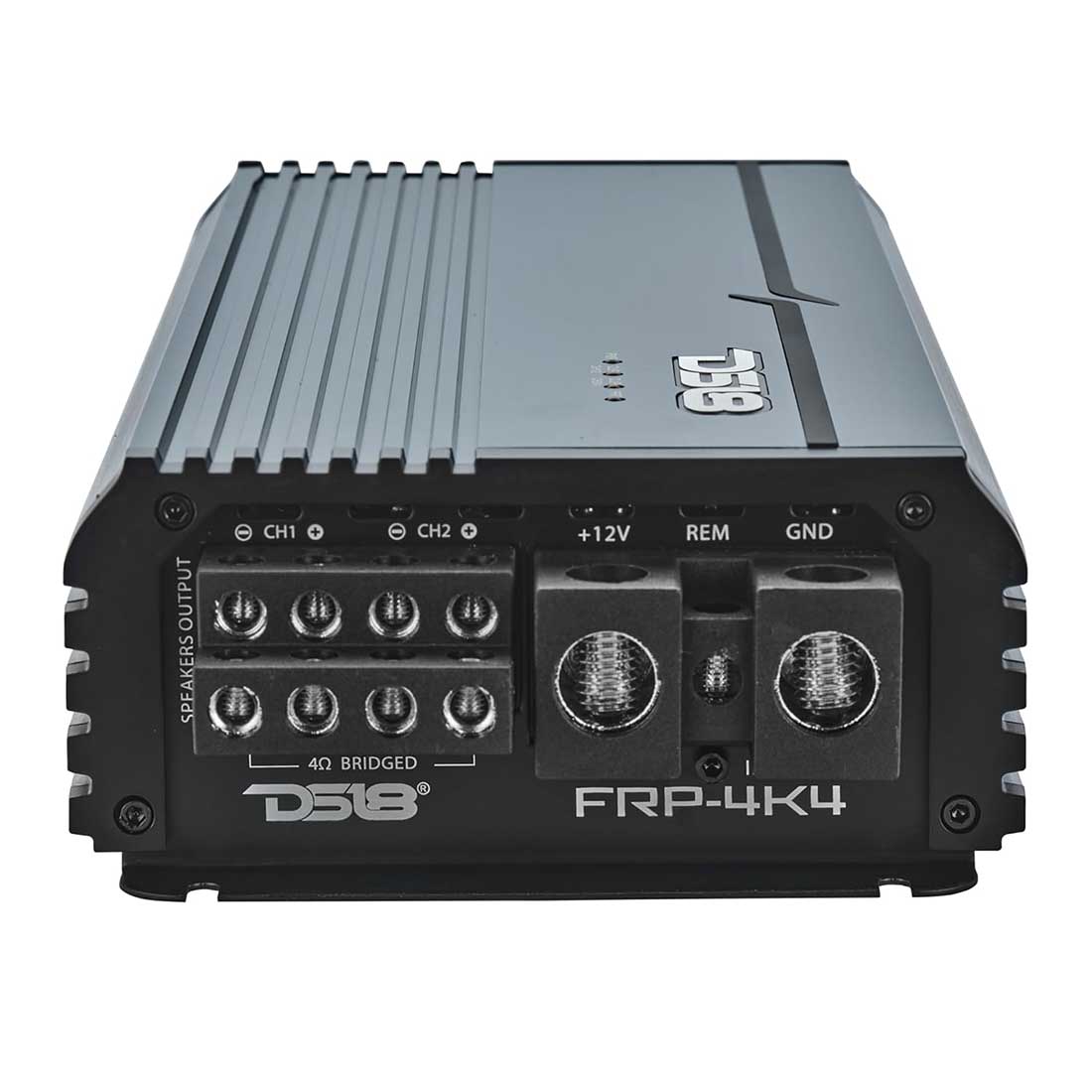

- Power Input Terminal Size: 0GA
- Fuse Size (Recommended): 500A
- Cooling Fan: Yes (Smart Cooling x 1)
- Voltmeter: No
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes
- Clipping Protection: Yes
- Body Color / Finish: Titanium
- Compact Size to Easy Installation for Any Applications: Yes
- Stable/Reliable Four Layers Traces PCB Design: Yes
- Surface Mount Component Technology: Yes
- Quality Control Verification using Audio Precision Instruments: Yes
- Tiffany RCA Terminal: Yes
- LED Clip Indicator: Yes
- Metal Knobs with Click Steps: Yes
- Input Selector: Yes (2ch/4ch)
- Remote Level Control with Clip Indicator: No
- Remote Level Control with Clip Indicator and Voltmeter: No
Power Rating:
- RMS Power @ 4 ohms 4 x 400W
- RMS Power @ 2 ohms 4 x 700W
- RMS Power @ 1 ohm 4 x 1000W
- RMS Power @ 4 ohm Bridge 2 x 1200W
- RMS Power @ 2 ohm Bridge 2 x 1800W
Audio Specs:
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio: 90dB
- Efficiency @ 4ohm: 97%
- Damping Factor: 90
- Input Impedance: 10KΩ
- Channel Separation: 50dB
- Total Harmonic Distortion (THD): 0.5%
- Low Level Input Range: 400mv-6V
- High Level Input: No
- Selectable X-Over: Yes, HPF/FULL/LPF
- X-Over Filter Range: 10Hz-2KHz
- Bass Boost Range: 0-12dB
- Bass Boost Frequency: 50Hz
- Phase Selector: No
Measurement:
- Overall Length: 13.4" / 340mm
- Overall Width: 5.5" / 140mm
- Overall Height: 2.4" / 63.5mm
- Heatsink Length: 12" / 307mm
- Gross Single Unit Weight: 3.2kg
