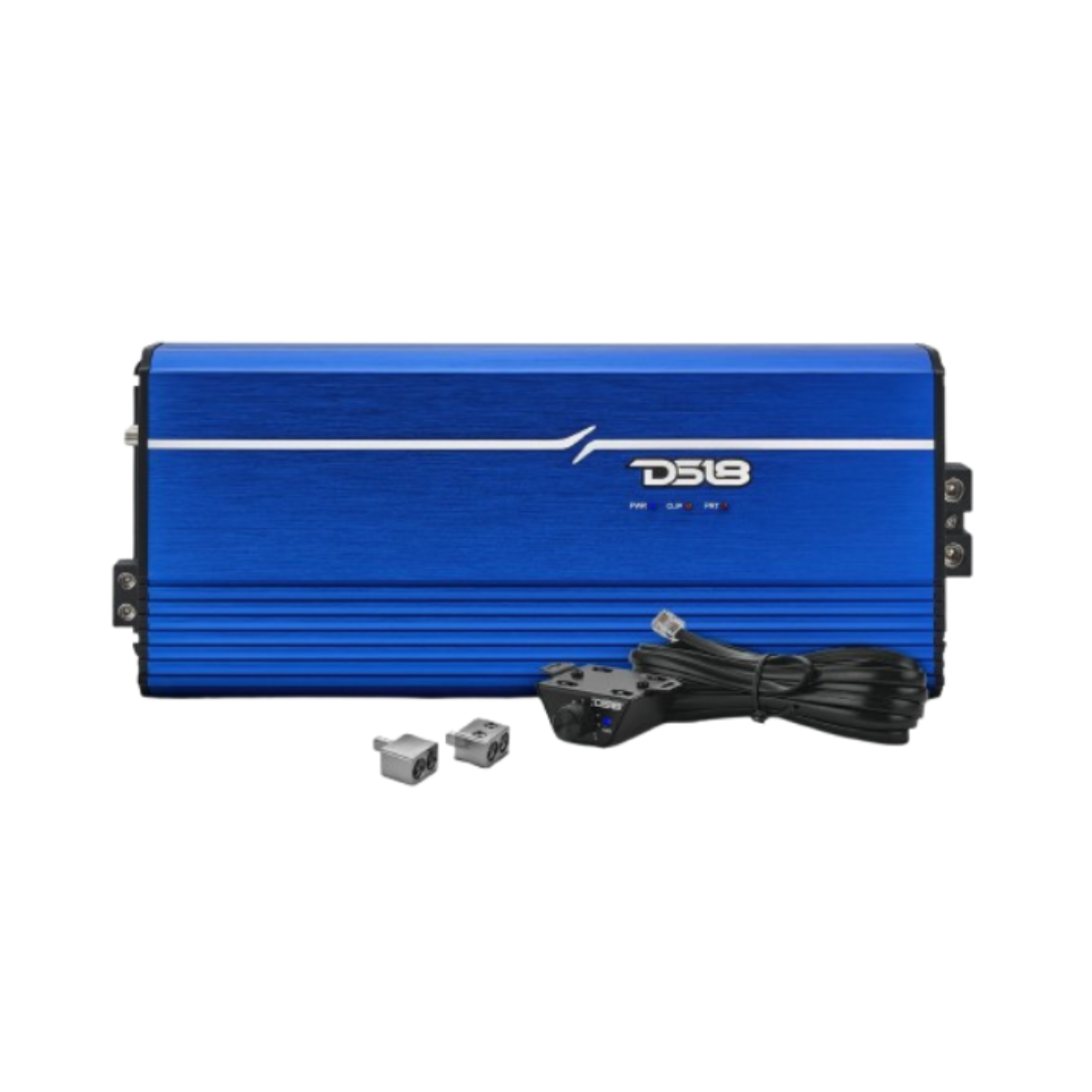

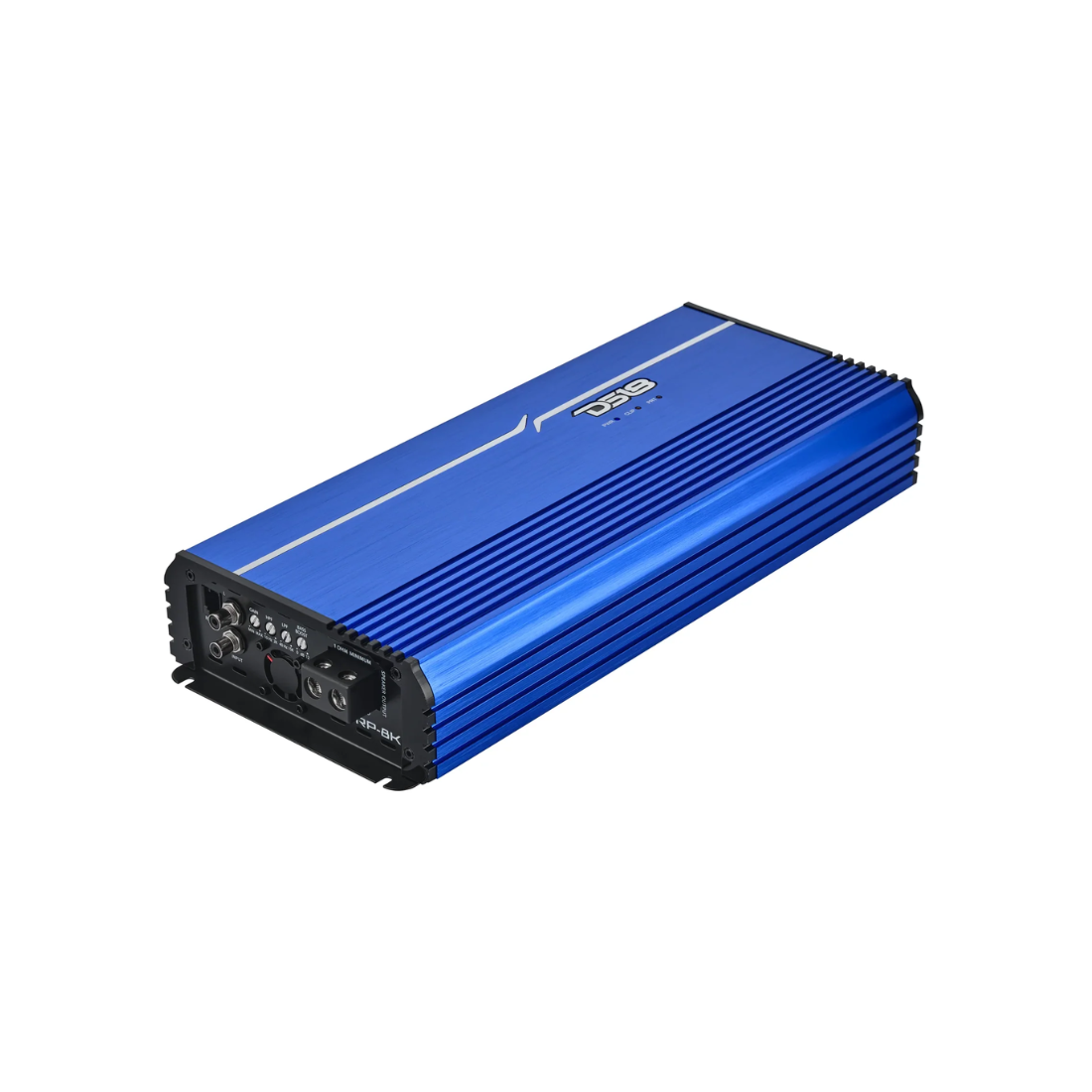

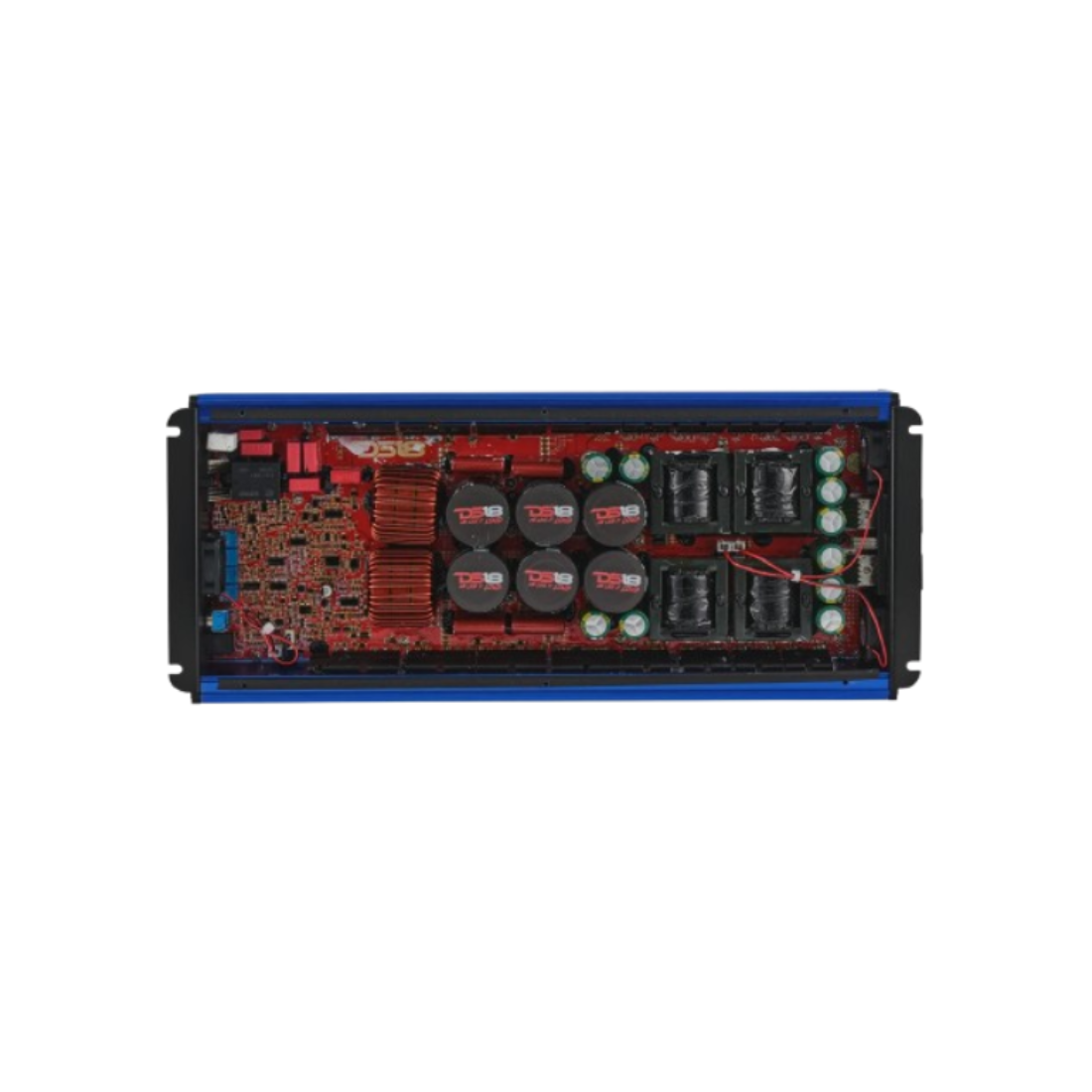

DS18 FRP-8K/BL Monoblock 8000W RMS Class-D Full-Range Car Amplifier (Blue)

Name: DS18 FRP-8K/BL Monoblock 8000W RMS Class-D Full-Range Car Amplifier (Blue)
Brand: DS18
SKU: FRP-8K/BL
Price: 899.95 USD
Availability: InStock

$899.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 FRP-8K/BL

Monoblock 8000W RMS Class-D Full-Range Car Amplifier (Blue)

Key Features:

8000W RMS @ 1 Ohm – Full-Range Monoblock Power
Compact design with Smart Cooling and LED Clipping Indicator
Variable Low-Pass & Subsonic Filters (10Hz–2KHz & 10Hz–80Hz)
12dB Bass Boost @ 50Hz for maximum low-end punch

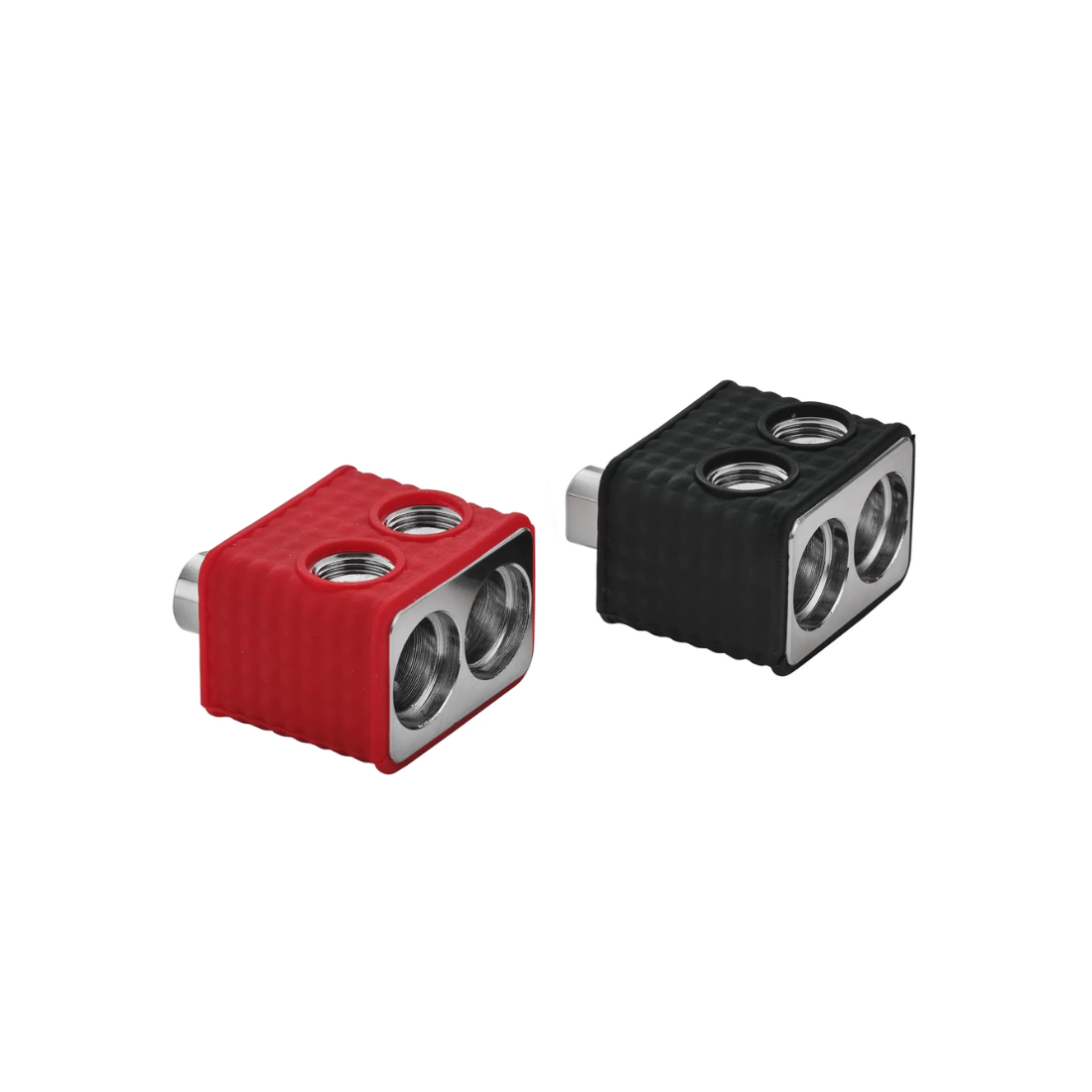

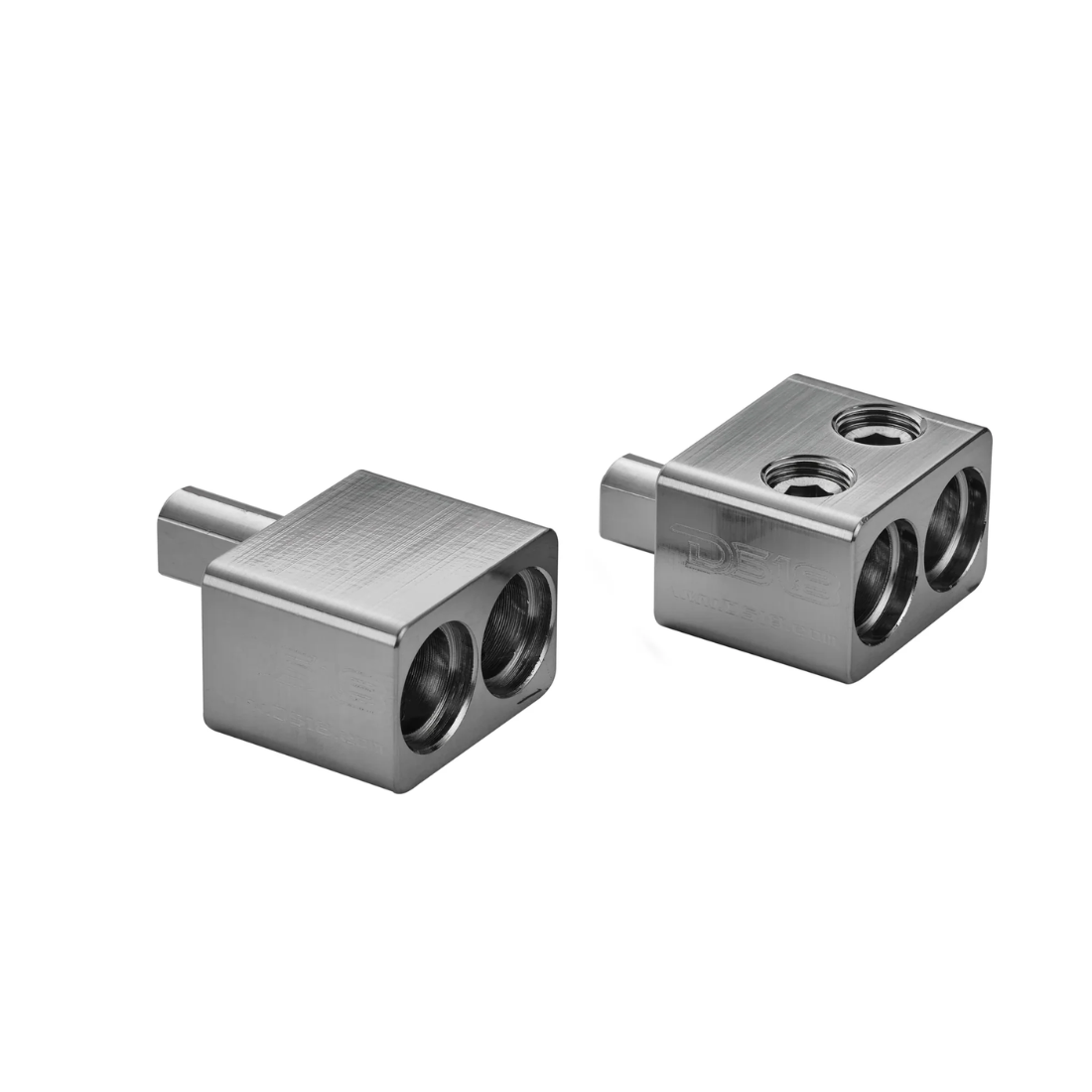

0GA terminals & Tiffany RCA inputs
Tested with Audio Precision equipment for real-world durability

General Specs:

Amplifier Class: Digital
Amplifier Type: Full-Range Monoblock
Number of Channels: 1CH
Minimum Impedance: 1Ω
Led Indicator: Power / Protect / Clipping

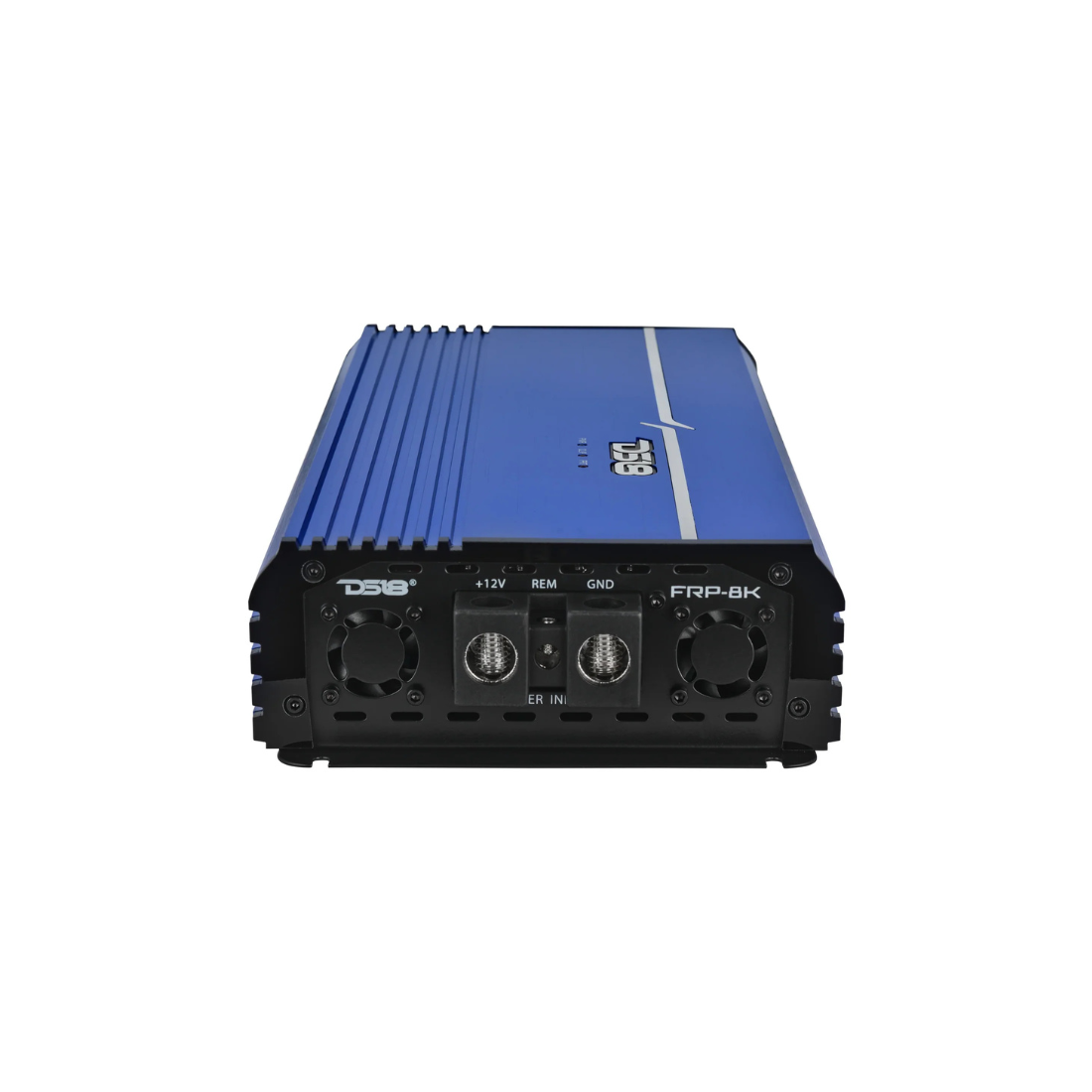

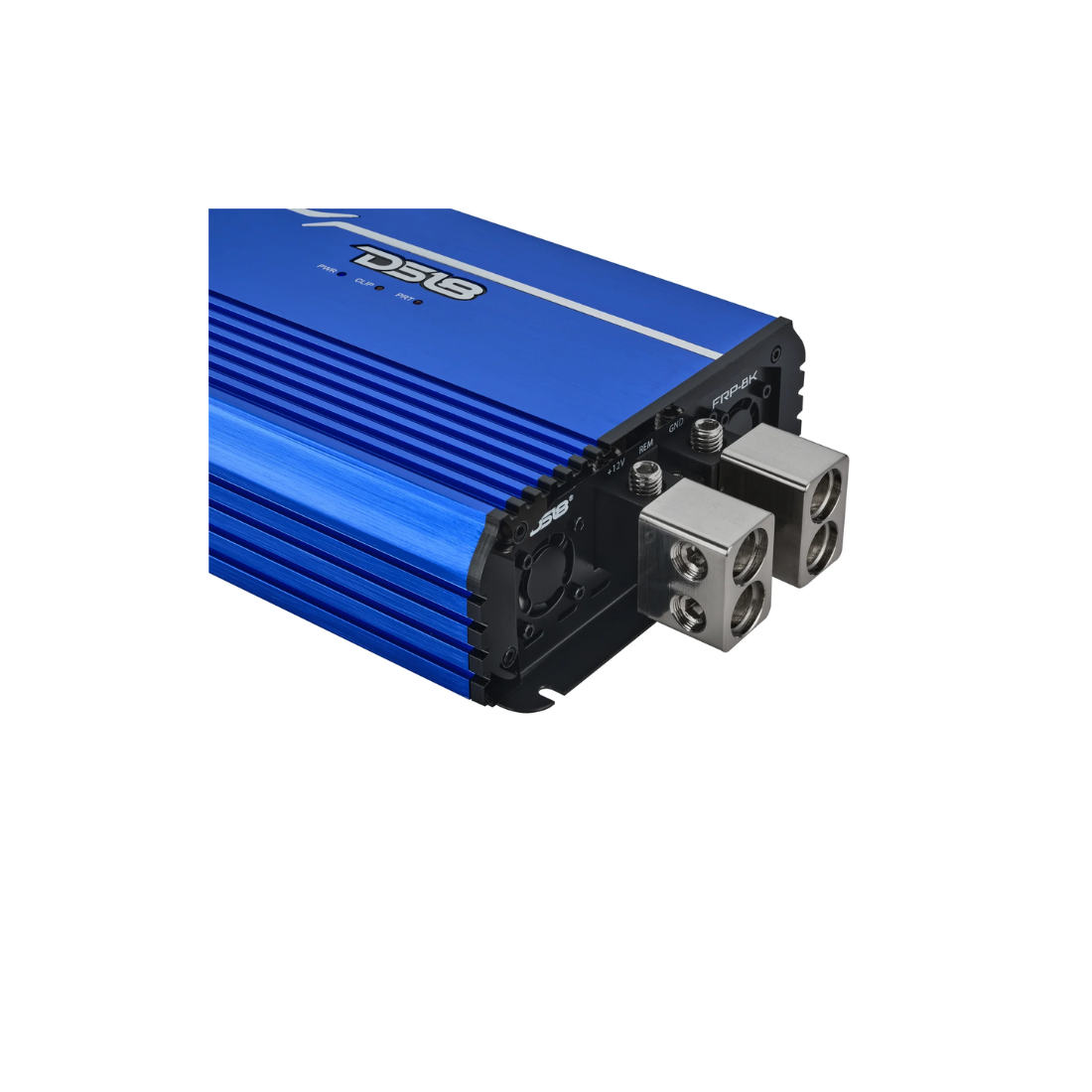

Power Input Terminal Size: 0GA
Fuse Size (Recommended): 750A
Cooling Fan: Yes (Smart Cooling x 3)
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Blue
Compact Size to Easy Installation for Any Applications: Yes
Stable/Reliable Four Layers Traces PCB Design: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes

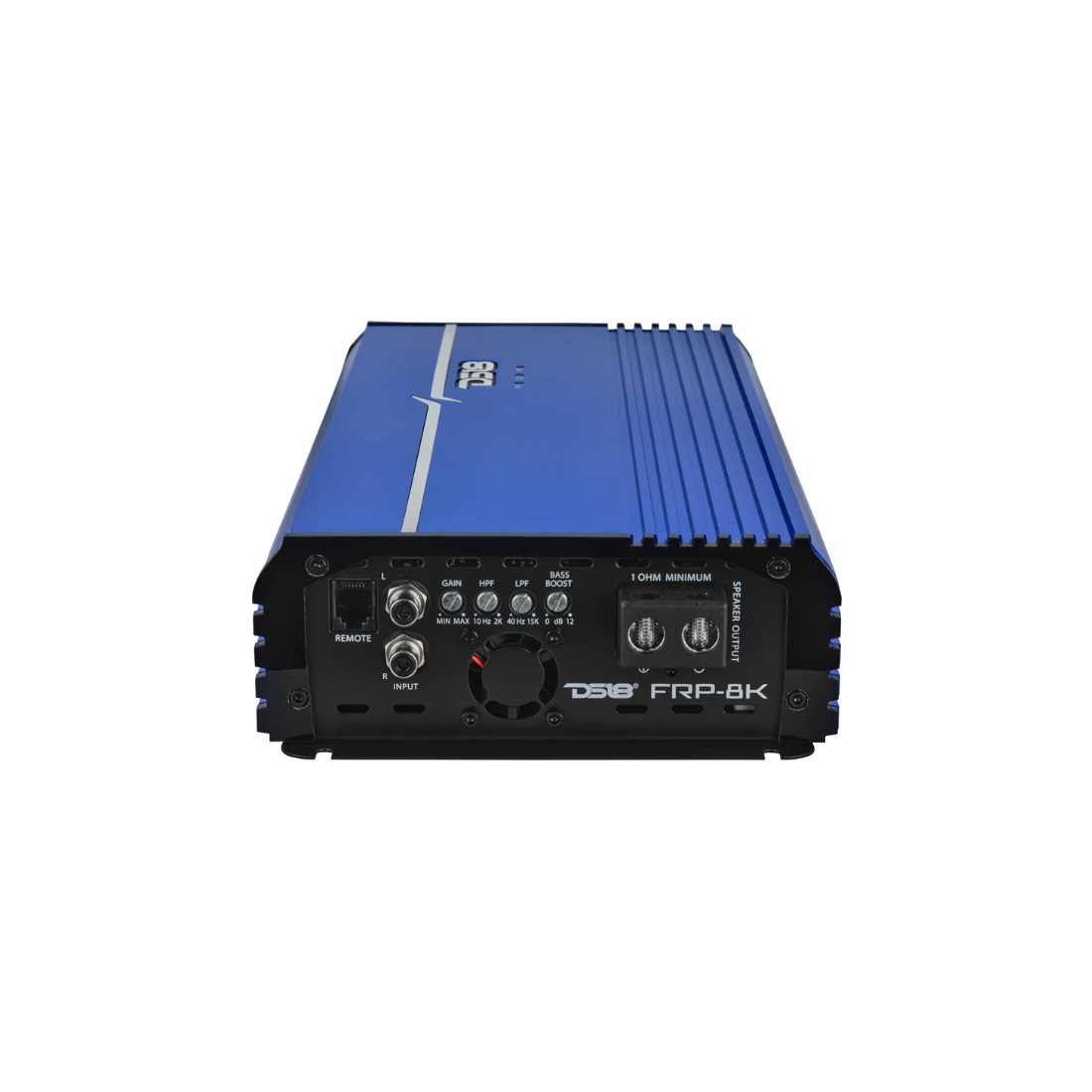

Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
Metal Knobs with Click Steps: Yes

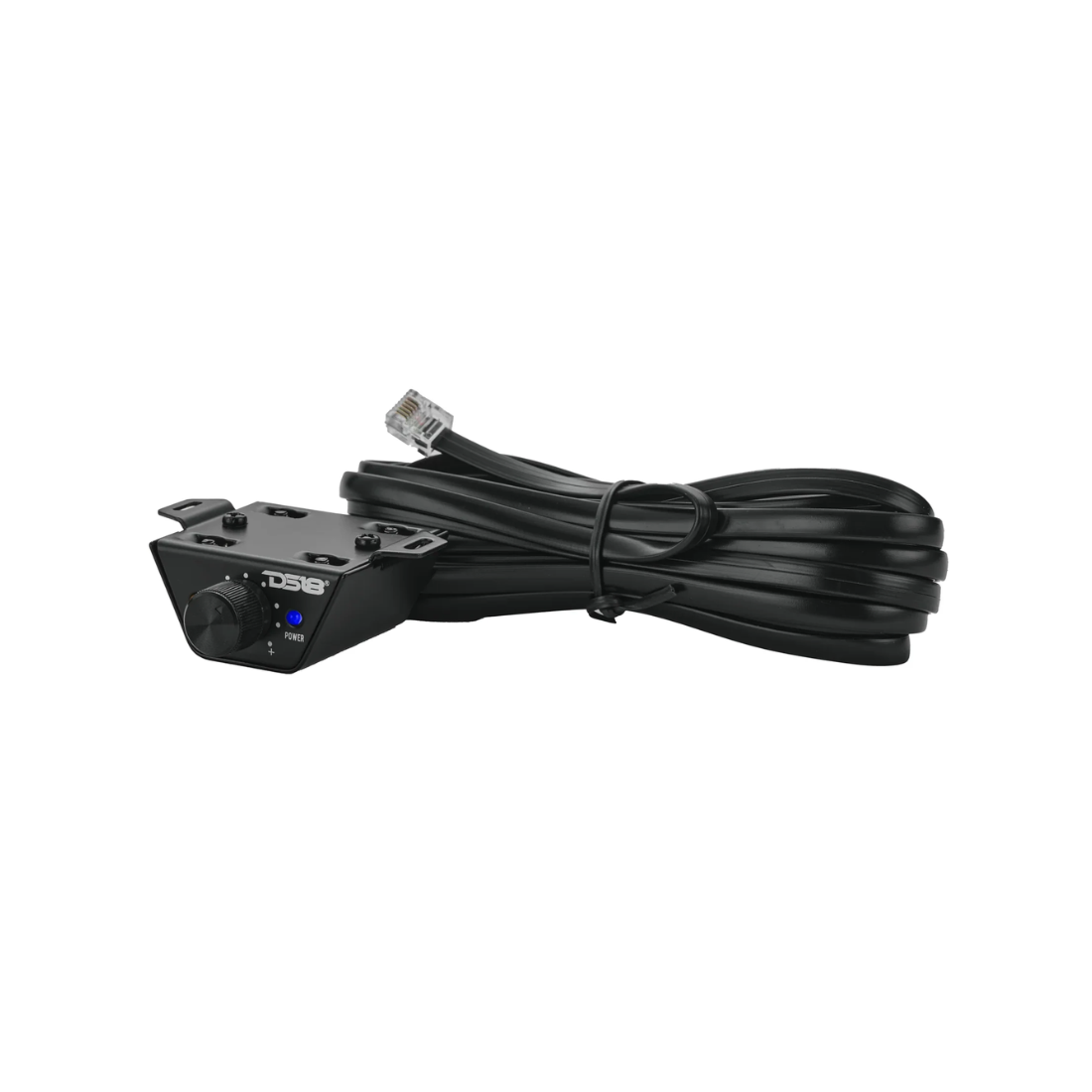

Remote Level Control with Clip Indicator: (Included)
Remote Level Control with Clip Indicator and Voltmeter: (Optional)
Overall Length: 15.8" / 403mm
Overall Width: 6.5" / 166mm
Overall Height: 2.4" / 62mm
Heatsink Length: 14.6" / 371mm
Gross Single Unit Weight: 5kg

Audio Specs:

RMS Power @ 4 ohms: 2500W
RMS Power @ 2 ohms: 5000W
RMS Power @ 1 ohm: 8000W
MAX Power @ 1 ohm (Burst): 9000W
Frequency Response: 10Hz-15KHz
Signal to Noise Ratio: 83dB
Efficiency @ 4ohm: 95%
Damping Factor: 90
Input Impedance: 10KΩ
Total Harmonic Distortion (THD): 0.5%
Low Level Input Range: 400mV-6V
High Level Input: No
Selectable X-Over: Fixed Band-Pass
X-Over Filter Range (HP): 10Hz-2KHz
X-Over Filter Range (LP): 40Hz-15KHz
Bass Boost Range: 0-12dB
Bass Boost Frequency: 50Hz
Phase Selector: No
