DS18 G4000.5D 5-Channel 4000W Peak Class-D Full-Range Car Audio Amplifier

DS18 G4000.5D 5-Channel 4000W Peak Class-D Full-Range Car Audio Amplifier

$329.95 USD
$329.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 G4000.5D

5-Channel 4000W Peak Class-D Full-Range Car Audio Amplifier

Key Features:

  • Small and powerful design so you can power your subs with great efficiency and power without taking up much space
  • Integrated low-pass and high-pass filter to help you get the perfect response you are looking for.
  • High-quality terminals that look great and will transfer your power and signal with no loss.
Specifications:

POWER
  • Total Watts (Peak) 4000W
  • RMS Power @ 4 ohm 4 x 130W / SUB: 300W
  • RMS Power @ 2 ohm 4 x 220W / SUB: 600W
  • RMS Power @ 1 ohm SUB: 900W
  • RMS Power @ 4 ohm Bridge 2 x 420W
AUDIO
  • Frequency Response 20Hz-20Khz
  • Signal to Noise Ratio >90dB
  • Efficiency @ 4ohm 0.83
  • Damping Factor 78
  • Input Impedance 22K
  • Channel Separation 55dB
  • Total Harmonic Distortion (THD) 0.0001
  • Low-Level Input Range 0.25-6V
  • High-Level Input No
  • Selectable X-Over HPF/LPF
  • X-Over Filter Range HPF:10-250Hz / LPF:50-250Hz
  • Bass Boost Range 0-12dB
  • Bass Boost Frequency Fixed @ 45Hz
  • Infrasonic Filter 10-50Hz
  • Phase Selector No
FEATURES
  • Amplifier Class Digital (D)
  • Amplifier Type 5CH Full Range
  • Number of Channels 5CH
  • Minimum Impedance 2ohm St / 4ohm Bridge / 1ohm Sub
  • Led Indicator Power / Protection / Clip
  • Power Input Terminal Size 4ga
  • Fuse Size 160A

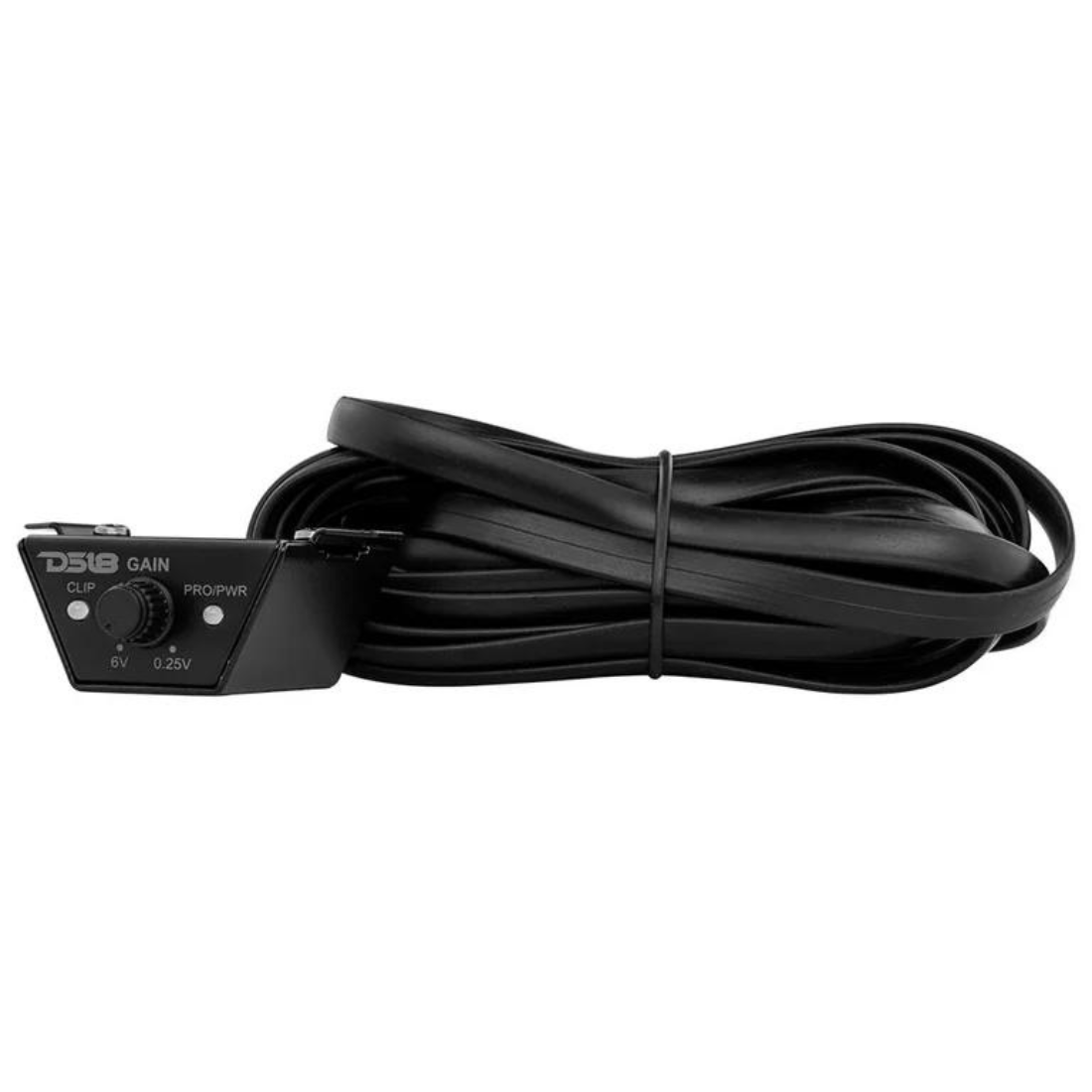

  • Remote Level Control Yes
  • Cooling Fan No
  • Voltmeter  No
  • Thermal Protection Yes
  • Over-Load Protection Yes
  • DC Output Protection Yes
  • Short Circuit Output Protection Yes
  • Voltage Input Protection Yes
  • Clipping Protection  Yes
  • Body Color / Finish Matte black
MEASUREMENT
  • Overall Length 12.8" / 325mm
  • Overall Wide 4.72" / 120mm
  • Overall Height 1.96" / 50mm
  • Heatsink Length  10.9" / 278mm
  • Gross Single Unit Weight 2.2KG
GREAT FOR
  • Car Audio
  • Pro Audio
  • Motorcycles
  • Hi-Fi installation
  • Off-Road
  • DIY Projects
