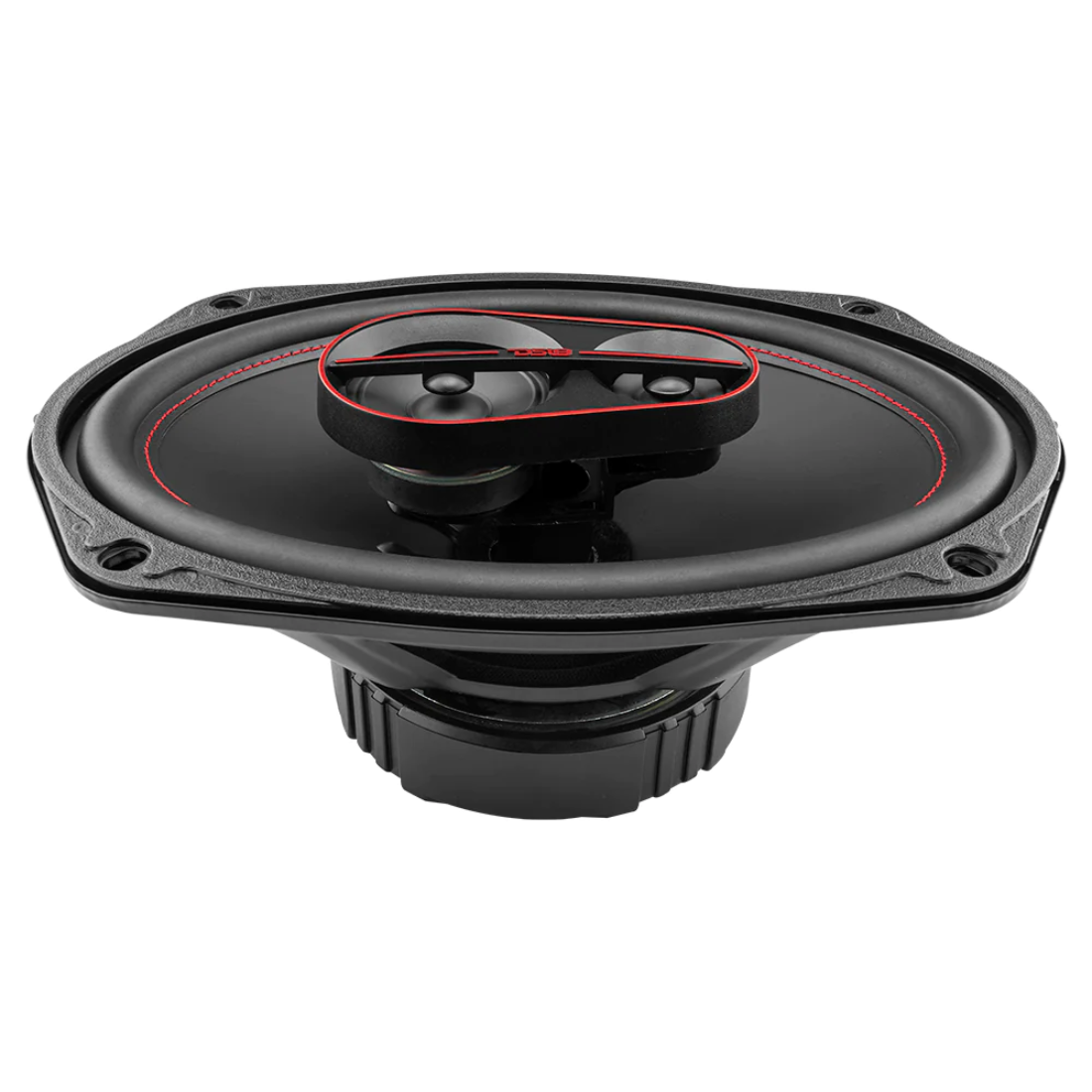

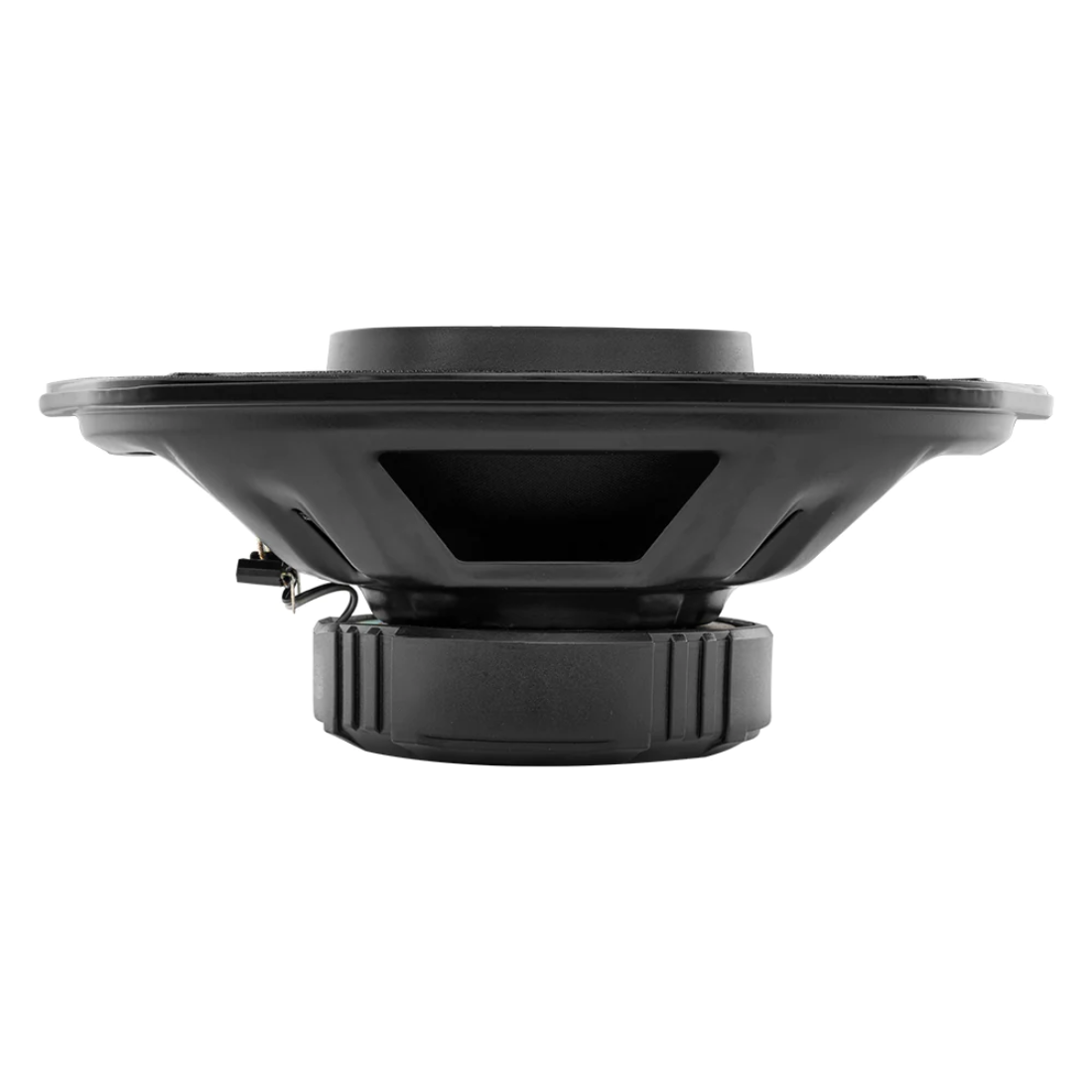

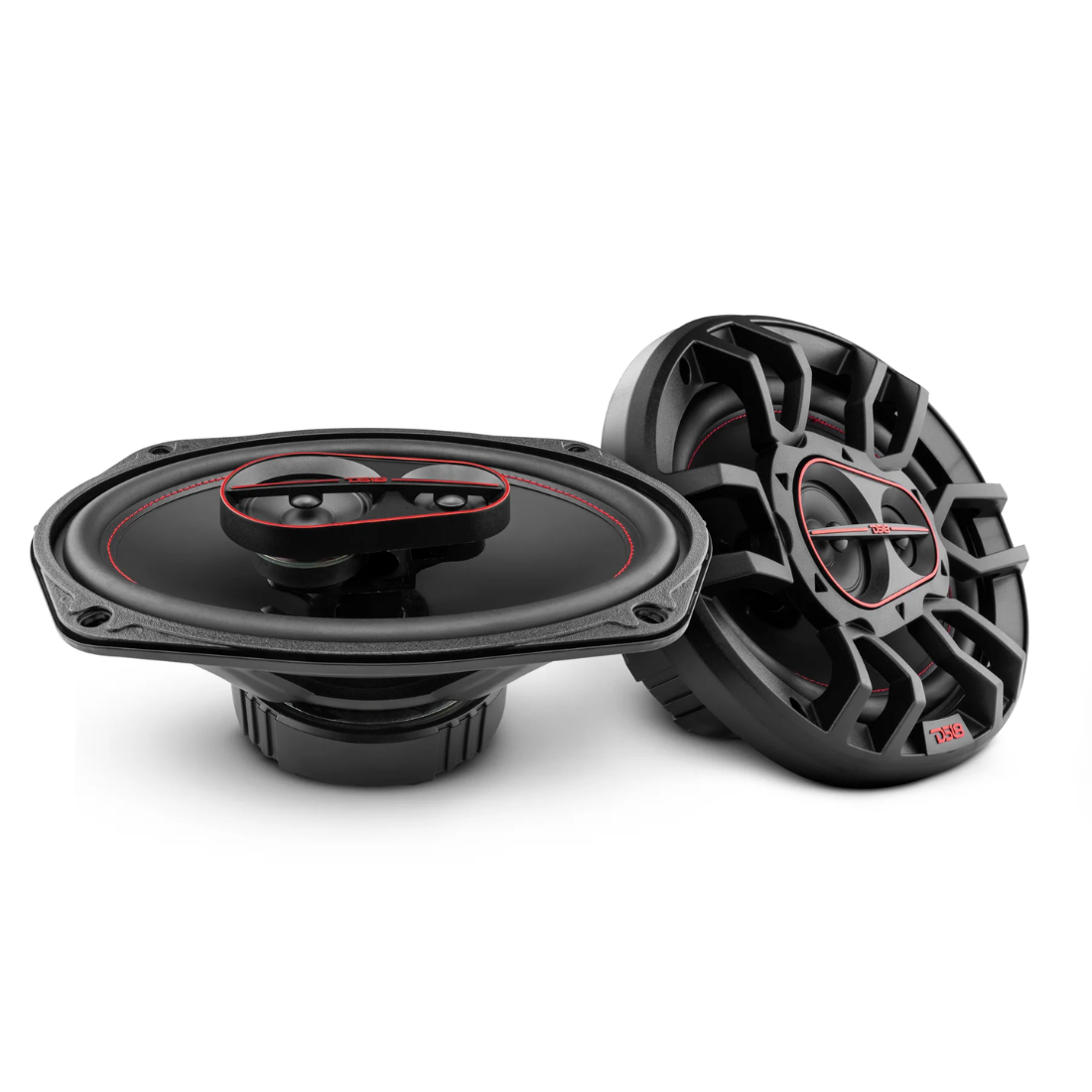

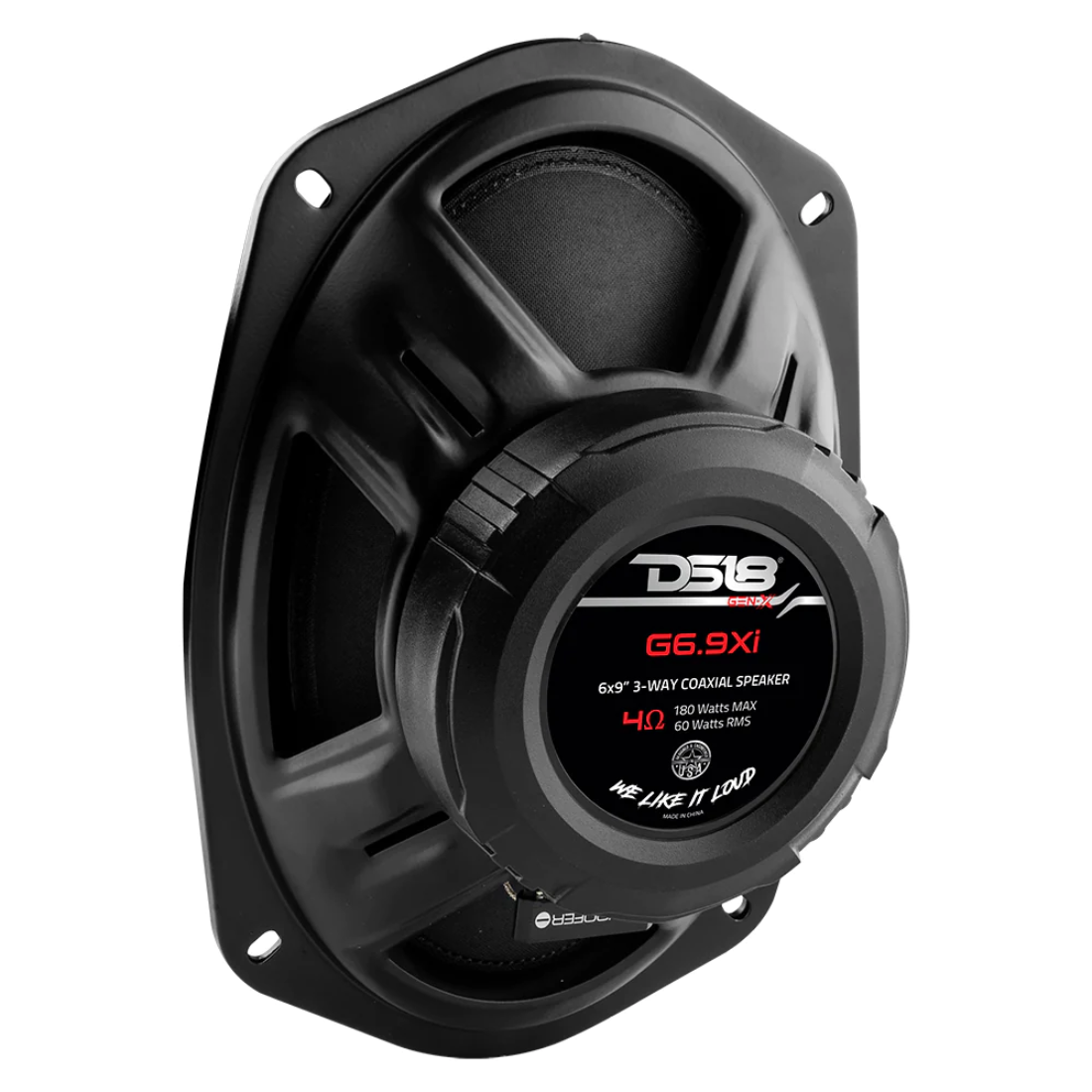

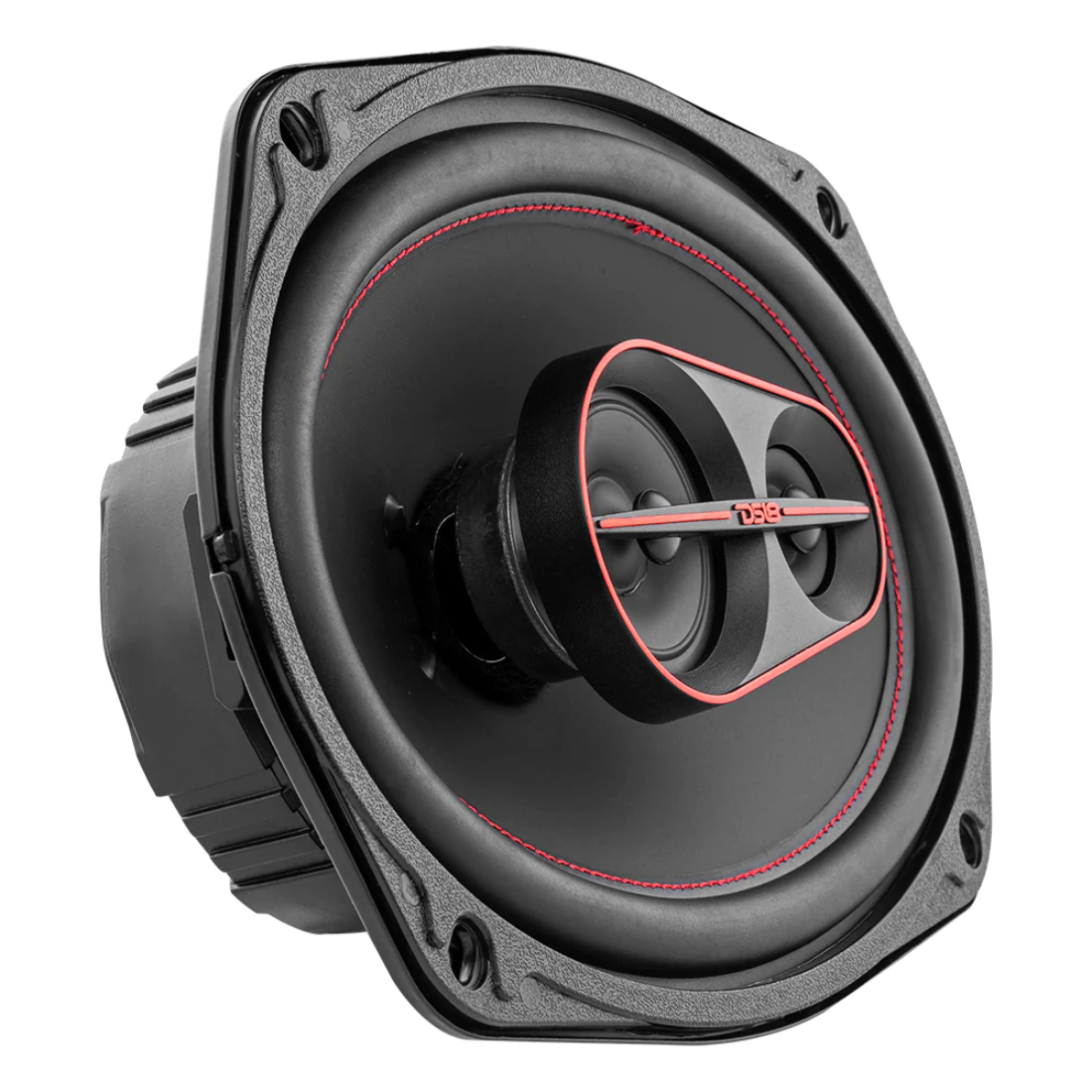

DS18 G6.9Xi GEN-X 6" x 9" 3-Way 180W Max 4-Ohms Car Audio Coaxial Speakers

DS18 G6.9Xi GEN-X 6" x 9" 3-Way 180W Max 4-Ohms Car Audio Coaxial Speakers

Regular price $63.95 USD
Regular price Sale price $63.95 USD
Sale Sold out
Shipping calculated at checkout.

DS18 G6.9Xi

GEN-X Series | 6 x 9 Inch 3-Way 180 Watts Max 4-Ohms Coaxial Speakers

Key Features:

  • 3-Way Design implemented through the use of two tweeters per speaker for full range quality on every listen
  • Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio
  • The G6.9Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
  • The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker reaches frequencies as low as 35Hz.
  • These speakers get loud easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.
General Specifications:

  • Nominal Diameter: 6X9" / 152x228mm
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 60W
  • MAX Power Handling: 180W
  • Sensitivity (1w/1m): 86dB
  • Frequency Response: 35Hz-20KHz
  • Recommended HI Pass Crossover: 50Hz
  • Number of ways: 3
  • Pair or Single: Pair
  • Grill Included: Yes
Woofer Specifications:

  • Voice Coil Diameter: 1" / 25.5mm
  • Voice Coil Former Material: ASV
  • Winding Material: EISV
  • Cone Material: Paper
  • Surround Material: Rubber
  • Basket Material: Steel
  • Basket Color/Finish: Black Matte
  • Magnet Material: Barium Ferrite
  • Magnet Weight: 15.7Oz / 445g
Tweeter Specifications:

  • Nominal Diameter: Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
  • Voice Coil Diameter: Tw1: 0.6" / 17mm Tw2: Peizo
  • Voice Coil Former Material: Tw1: PESV Tw2: N/A
  • Winding Material: Tw1: EISVM Tw2: N/A
  • Diaphragm Material: Tw1: Mylar Tw2: Mylar
  • Magnet Material: Tw1: Barium Ferrite Tw2: N/A
  • Magnet Weight: Tw1: 34g Tw2: N/A
Speakers Measurement:

  • Overall Diameter: 6.4"x9.2" / 163x234mm
  • Overall Depth: 3.85" / 97.8mm
  • Overall Diameter (With Grill): 7.24"x10.4" / 184x264mm
  • Overall Depth (With Grill): 4.15" / 105.5mm
  • Front Mount Baffle Cutout: 5.9x8.66" / 150x220mm
  • Mounting Depth: 2.95" / 75mm
  • Motor Diameter: 4.17" / 106mm
  • Tweeter Protrusion: 0.9" / 22.8mm
