DS18

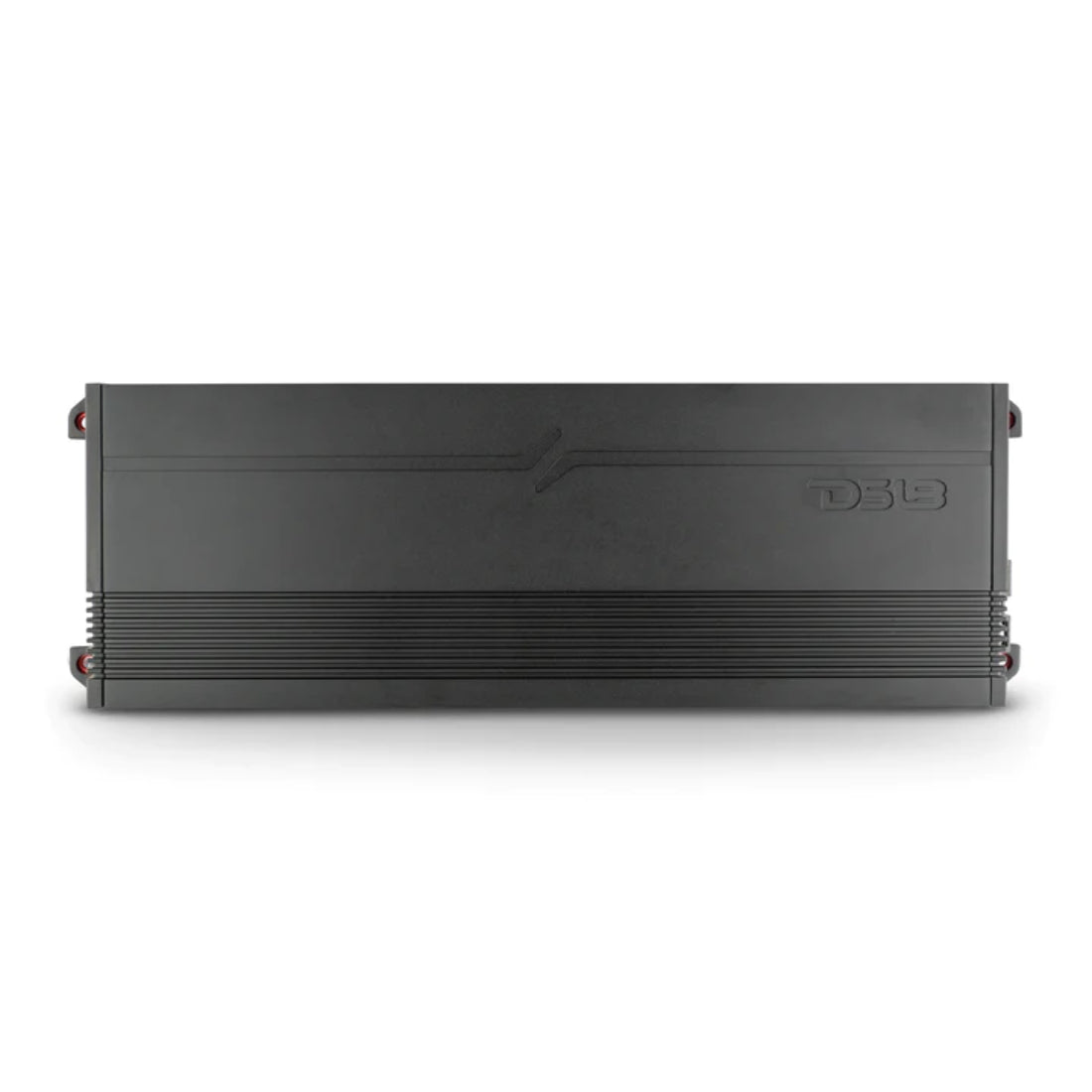

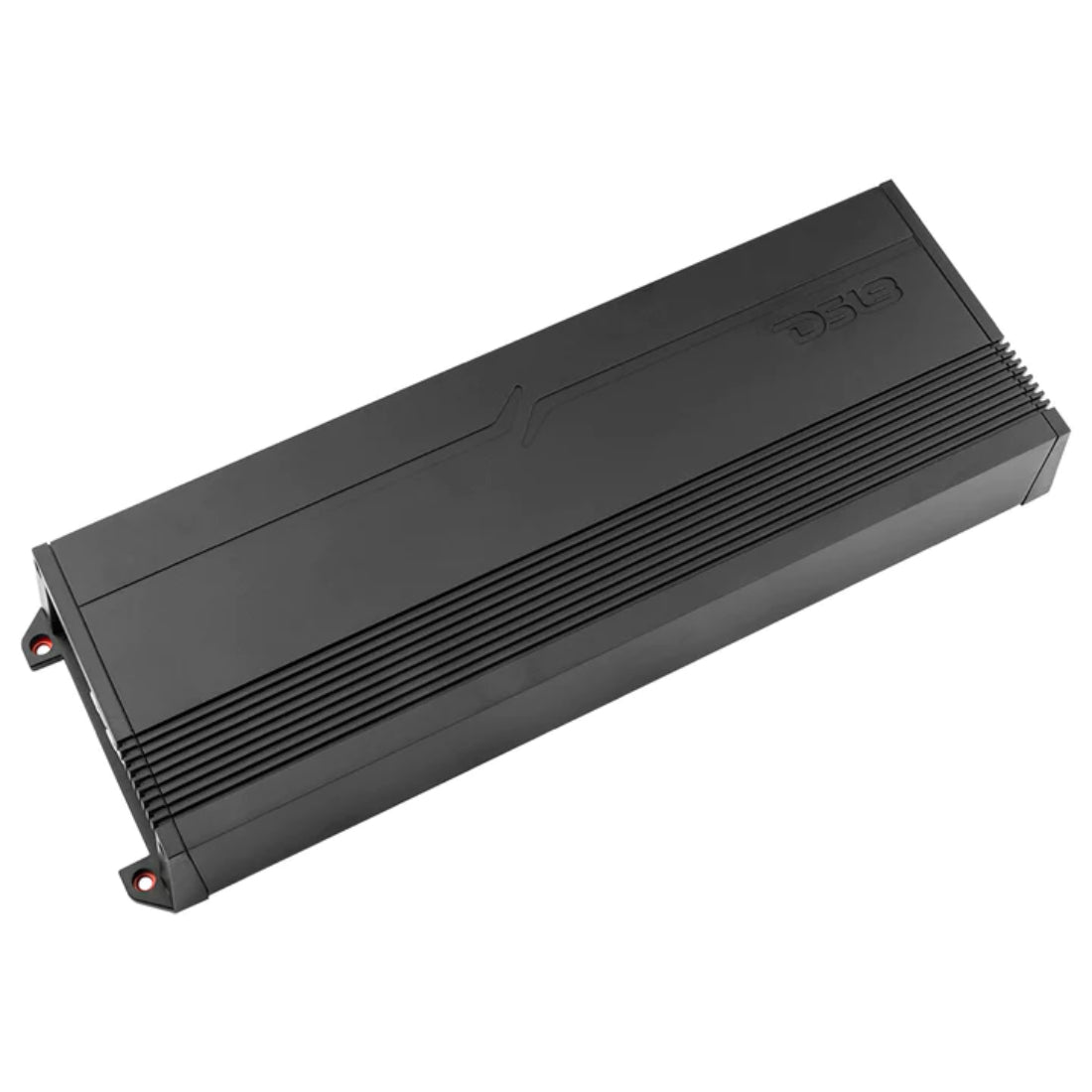

DS18 G8400.4D 8400W Max 4-Channel Class-D Full-Range Car Audio Amplifier

Name: DS18 G8400.4D 8400W Max 4-Channel Class-D Full-Range Car Audio Amplifier
Brand: DS18
SKU: G8400.4D
Price: 549.95 USD
Availability: InStock

$549.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 G8400.4D

GEN-X Series | 8400 Watts Max 4-Channel Class-D Full-Range Car Amplifier

Key Features:

Compact Size For Easy Installation Anywhere
Variable Full Crossover Filter For Crystal Clear Audio On Demand
Fully Adjustable HP, LP, Full Filters

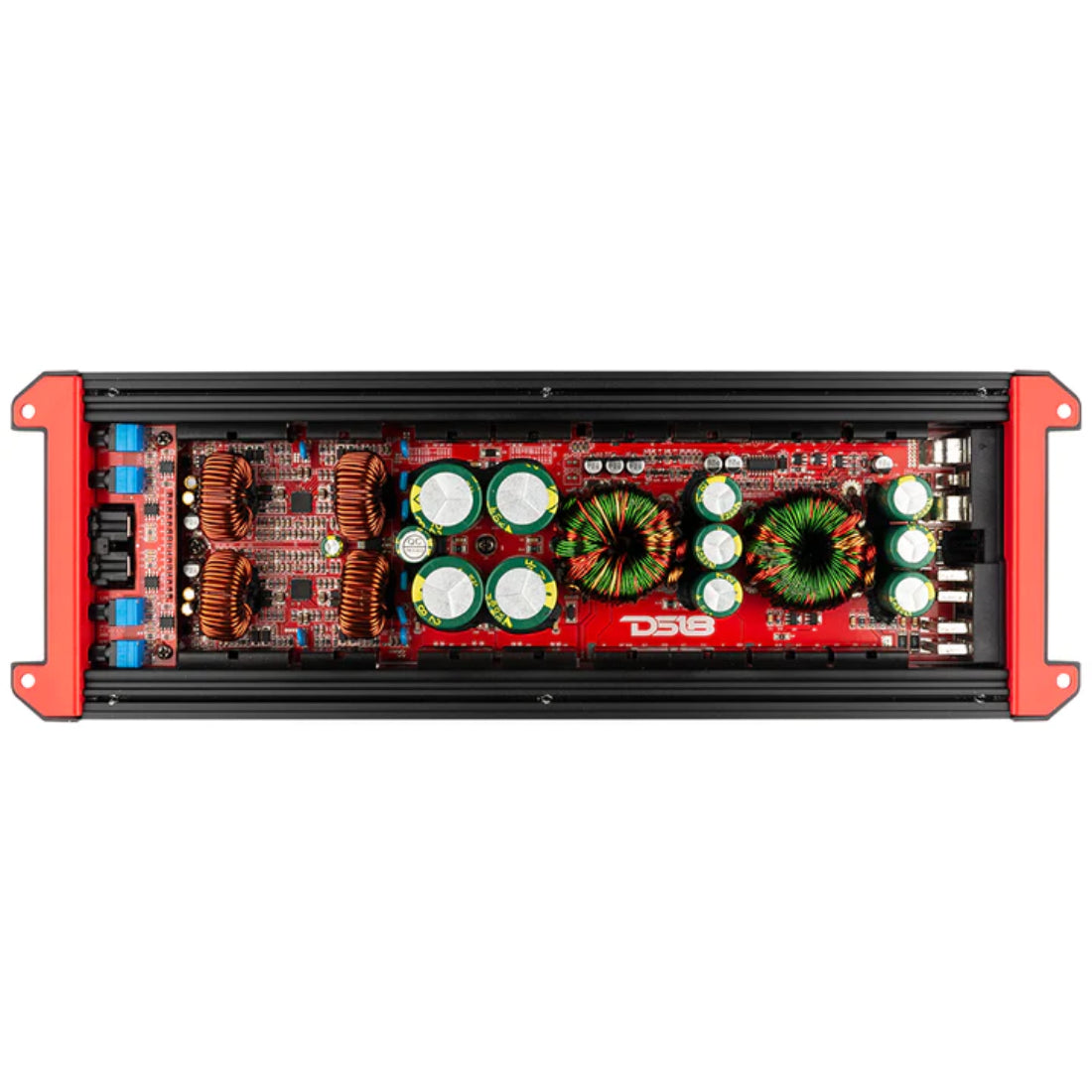

Surface Mount Component Technology
Audio Precision Quality Control Verification
Stable and Reliable Digital Circuit Design
Protection, Clipping, And Power Indicator LEDs
High and Low Voltage Protection

Specifications:

Amplifier Class: Digital (D)
Amplifier Type: 4CH Full Range
Number of Channels: 4CH
Minimum Impedance: 2 ohms St / 4 ohms Bridge
Led Indicator: Power / Protection / Clip

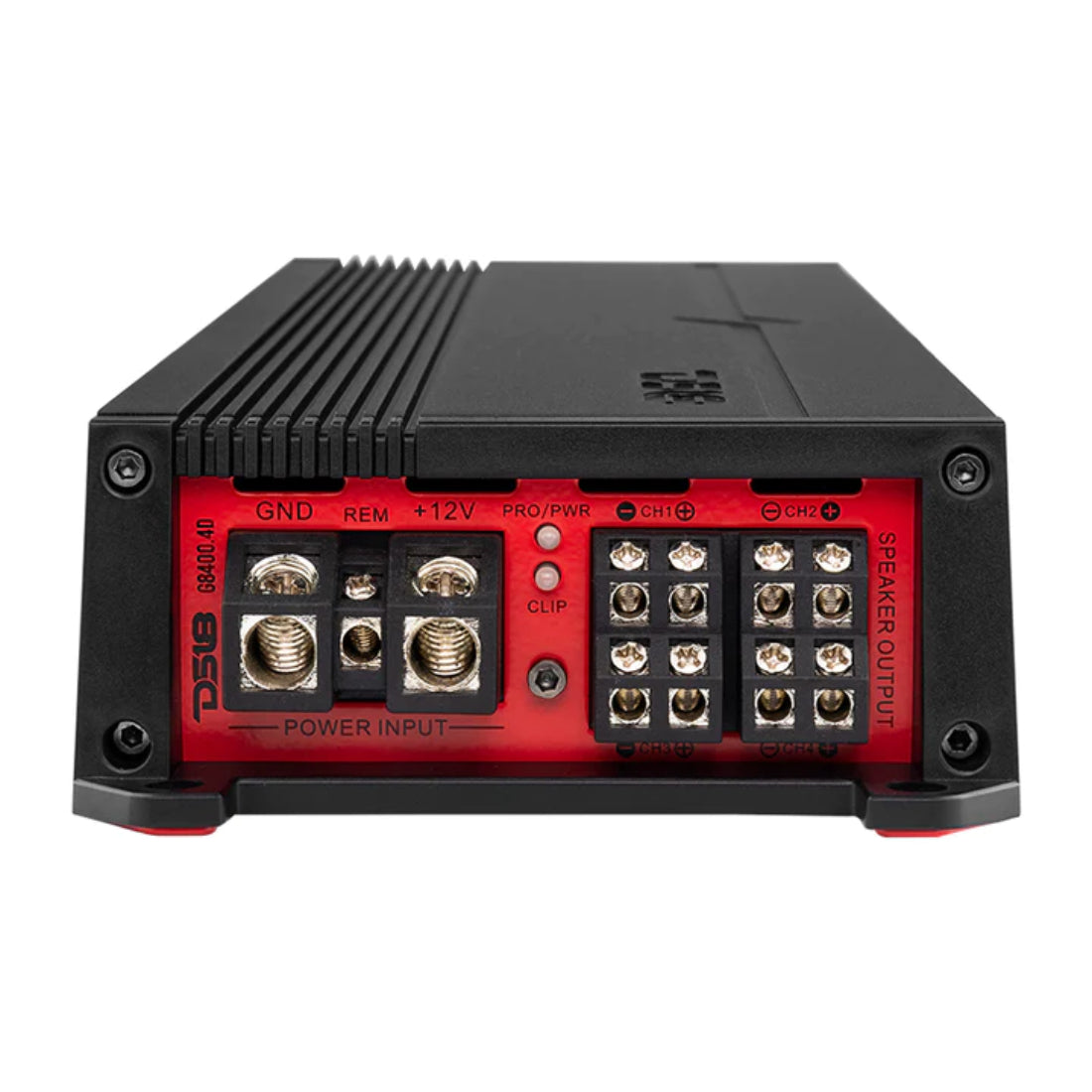

Power Input Terminal Size: 4ga
Fuse Size: 240A
Remote Level Control: NO
Cooling Fan: NO
Voltmeter: NO
Thermal Protection: YES
Over-Load Protection: YES
DC Output Protection: YES
Short Circuit Output Protection: YES
Voltage Input Protection: YES
Clipping Protection: YES
Body Color / Finish: Matte black
Total Watts (Peak): 8400W
RMS Power @ 4 ohm: 4 x 700W
RMS Power @ 2 ohm: 4 x 1000W
RMS Power @ 4 ohm Bridge: 2 x 1700W
Frequency Response: 20Hz-20KHz
Signal to Noise Ratio: >90dB
Efficiency @ 4ohm: 80%
Damping Factor: 78
Input Impedance: 22K
Channel Separation: 70dB
Total Harmonic Distortion (THD): 0.01%
Low-Level Input Range: 0.25-6V
High-Level Input: NO

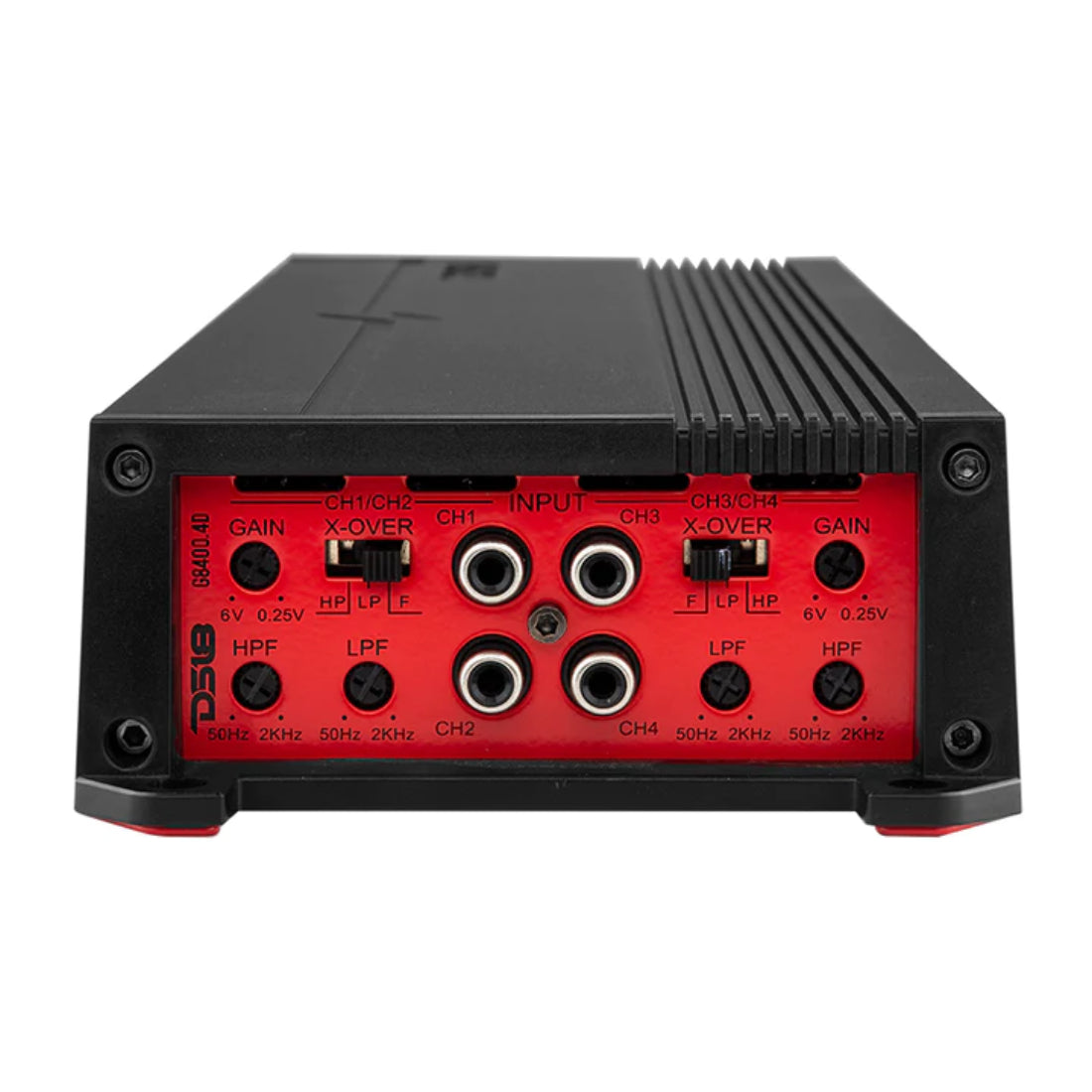

Selectable X-Over: LPF/FLAT/HPF
X-Over Filter Range: 50-250 Hz
Bass Boost Range: N/A
Bass Boost Frequency: N/A
Infrasonic Filter: N/A
Phase Selector: NO
Overall Length: 14.37" / 365mm
Overall Wide: 4.72" / 120mm
Overall Height: 1.96" / 50mm
Heatsink Length: 12.51" / 318mm
Gross Single Unit Weight: 2.6KG
