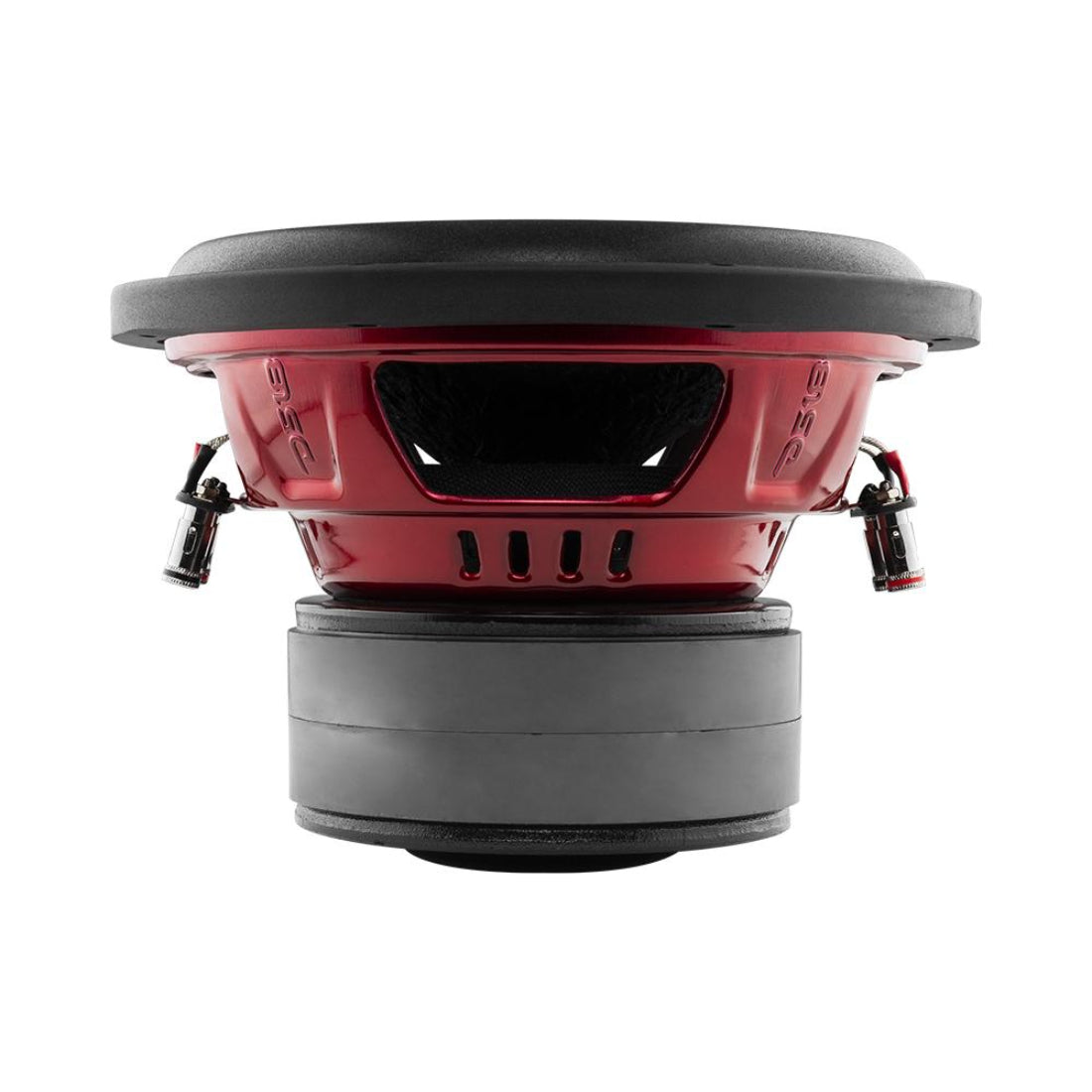

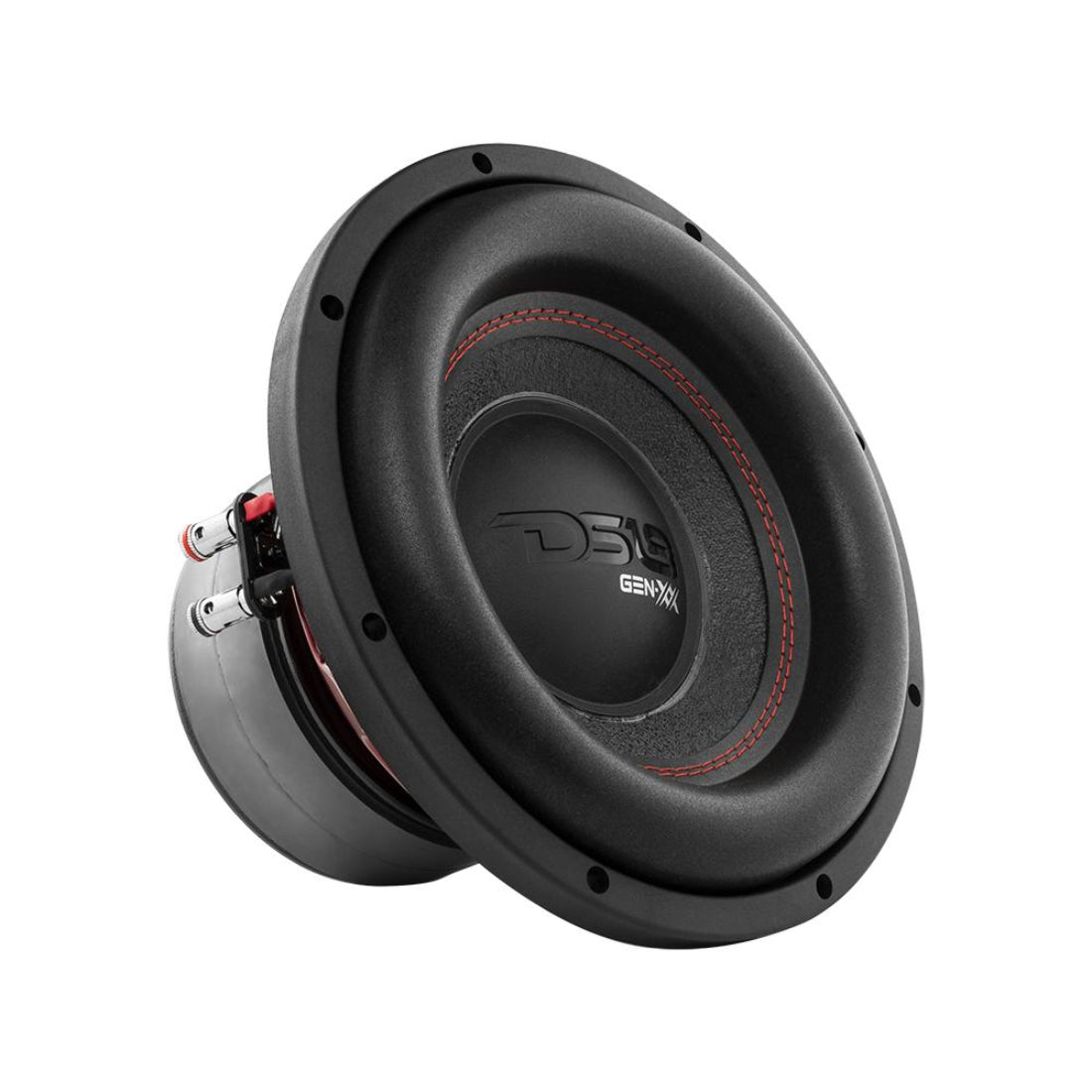

DS18 GEN-XX10.4DHE 15" 1100 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm

DS18 GEN-XX10.4DHE 15" 1100 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm

Regular price $139.95 USD
Regular price Sale price $139.95 USD
Sale Sold out
Shipping calculated at checkout.

BRAND NEW


DS18 GEN-XX10.4DHE


15" 1100 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm


Key Features:


-High Excursion surround for a very high amount of xmax.

-Long three voice coil and extended magnet to accommodate the xmax increase.

-FS of 27 hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.

-Ferrite Magnet

-Steel Basket Design

-Black Aluminum Voice Coil


Specifications:

Nominal Impedance: 4+4 ohms

Power Handling:1100W Max

Power Handling: 550W RMS

Sensitivity (1w/1m): 87.4 dB

Frequency Response: 20Hz-1.KHz

Recommended Lo Pass Crossover: 80 Hz


Motor Specifications:

VC Diameter: 2"

VC Former Material: Black Aluminum

Winding Material: SV

Cone Material: Paper

Dust Cap Material: PPI

Surround Material: Foam

Basket Material: Steel

Basket Color/Finish: Glossy Red

Magnet Material:Ferrite

Magnet Weight: 136 Oz

Displacement Volume: 3.26L


Thiele & Small Parameters Specifications:

Equivilant Vol :Vas 105.083L

Excursion (one way): Xmax 25 mm

Free Air Resonance: Fs 27 Hz

Mechanical Factor: Qms 3.658

Electrical Factor: Qes 0.583

Total Factor: Qts 0.503

Moving Mass: Mms 309.67.g

Compliance: Cms 0.112mm/N

Bl Factor: BL 24.045N/A

VC Inductance: Le 0.6741mH

Diaphragm Area: Sd 814.332cm2

Dc Resistance: Re 3.2+3.2 ohms

Efficiency Bandwidth Product: EBP 46.3


Dimensions:

Nominal Diameter:15"

Overall Diameter :15.5" / 394mm

Overall Depth: 9.06" / 230mm

Front Mount Baffle Cutout: 13.98" / 355mm

Mounting Depth: 7.84" / 199mm

Motor Diameter: 6.15"/ 156 mm

Product Dimensions: 12.00 x 11.50 x 9.00 Inches

Weight: Approx. 18.7 lbs
