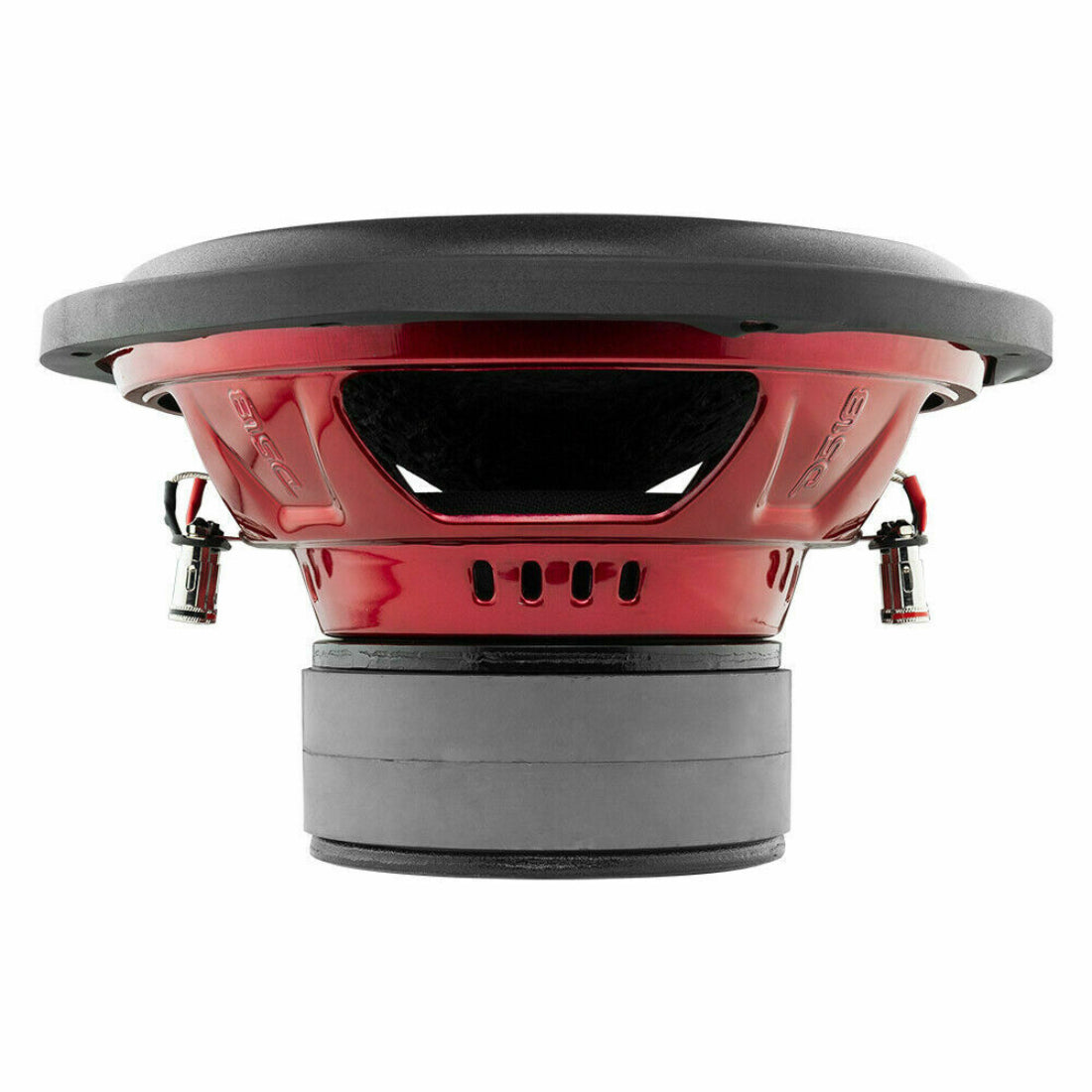

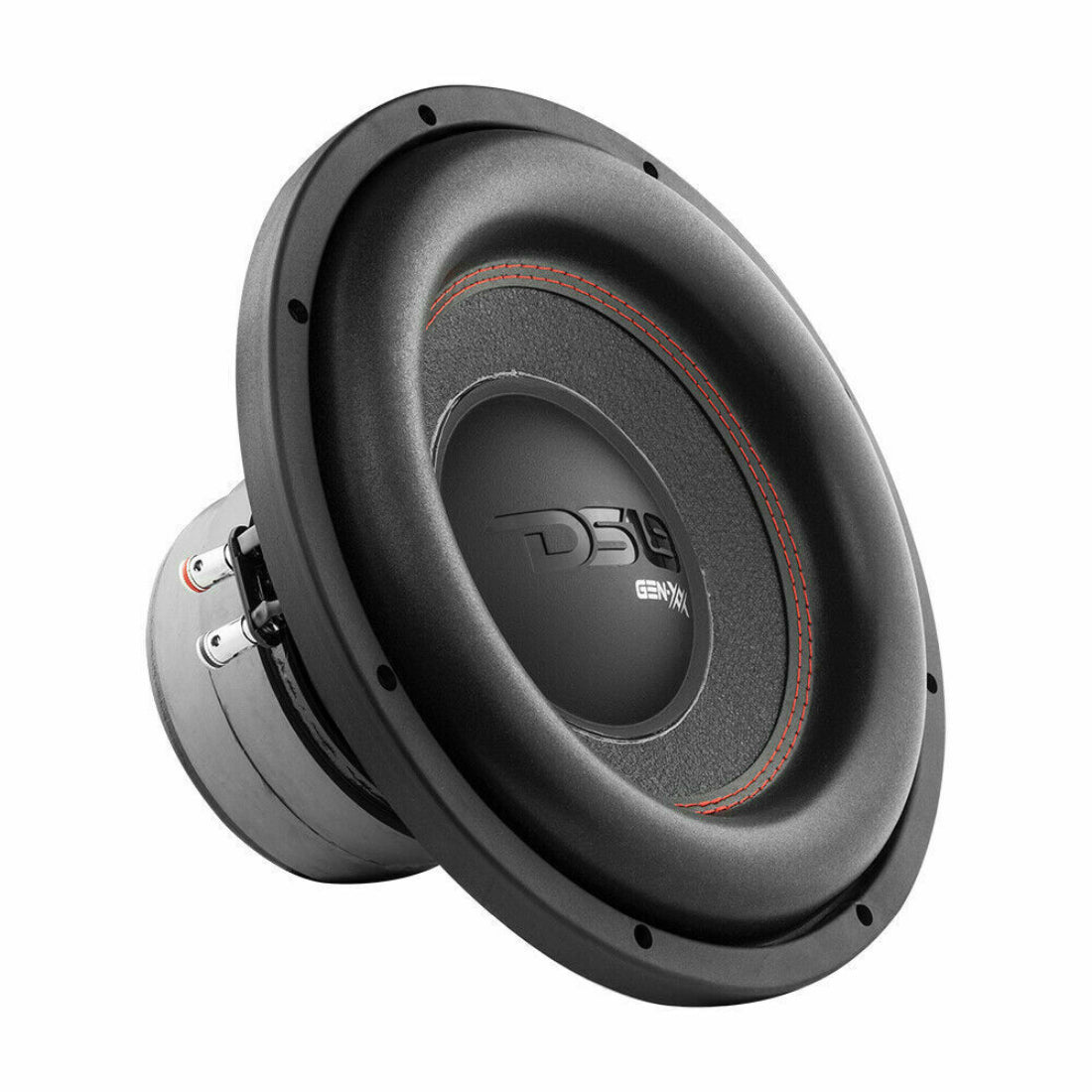

DS18 GEN-XX12.4DHE 12" 1200W Max Dual 4-Ohm DVC High Excursion Car Subwoofer
DS18 GEN-XX12.4DHE 12" 1200W Max Dual 4-Ohm DVC High Excursion Car Subwoofer
Regular price
$179.95 USD
Regular price
Sale price
$179.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 GEN-XX12.4DHE
12" 1200 Watts Max Dual Voice Coil 4 Ohm DVC High Excursion Car Audio Subwoofer
Key Features:
- Nominal Diameter: 12
- Nominal Impedance: 4+4 ohms
- RMS Power Handling: 600W
- MAX Power Handling: 1200W
- Sensitivity (1w/1m): 86.7 dB
- Frequency Response: 20-1.5KHz
- Recommended Lo Pass Crossover: 80 Hz
Motor:
- VC Diameter: 2
- VC Former Material: Black Aluminum
- Winding Material: SV
- Cone Material: Paper
- Dust Cap Material: PPI
- Surround Material: Foam
- Basket Material: teel
- Basket Color/Finish: Glossy Red
- Magnet Material: Ferrite
- Magnet Weight: 136 Oz
- Displacement Volume: 1.69L
Thiele & Small Parameters
- Equivilant Vol: Vas 56.436L
- Excursion (one way): Xmax 25 mm
- Free Air Resonance: Fs 30.5 Hz
- Mechanical Factor: Qms 3.991
- Electrical Factor: Qes 0.532
- Total Factor: Qts 0.469
- Moving Mass: Mms 154.38g
- Compliance: Cms 0.175mm/N
- Bl Factor: BL 19.173N/A
- VC Inductance: Le 0.6741mH
- Diaphragm Area: Sd 475.29cm2
- Dc Resistance: Re 3.2+3.2 ohms
- Efficiency Bandwidth Product: EBP 57.3
Measurements
- Overall Diameter: 12.44 / 316mm
- Overall Depth: 7.6" / 193mm
- Front Mount Baffle Cutout: 10.9 / 277mm
- Mounting Depth: 6.5" / 165mm
- Motor Diameter: 6.14/ 156 mm
