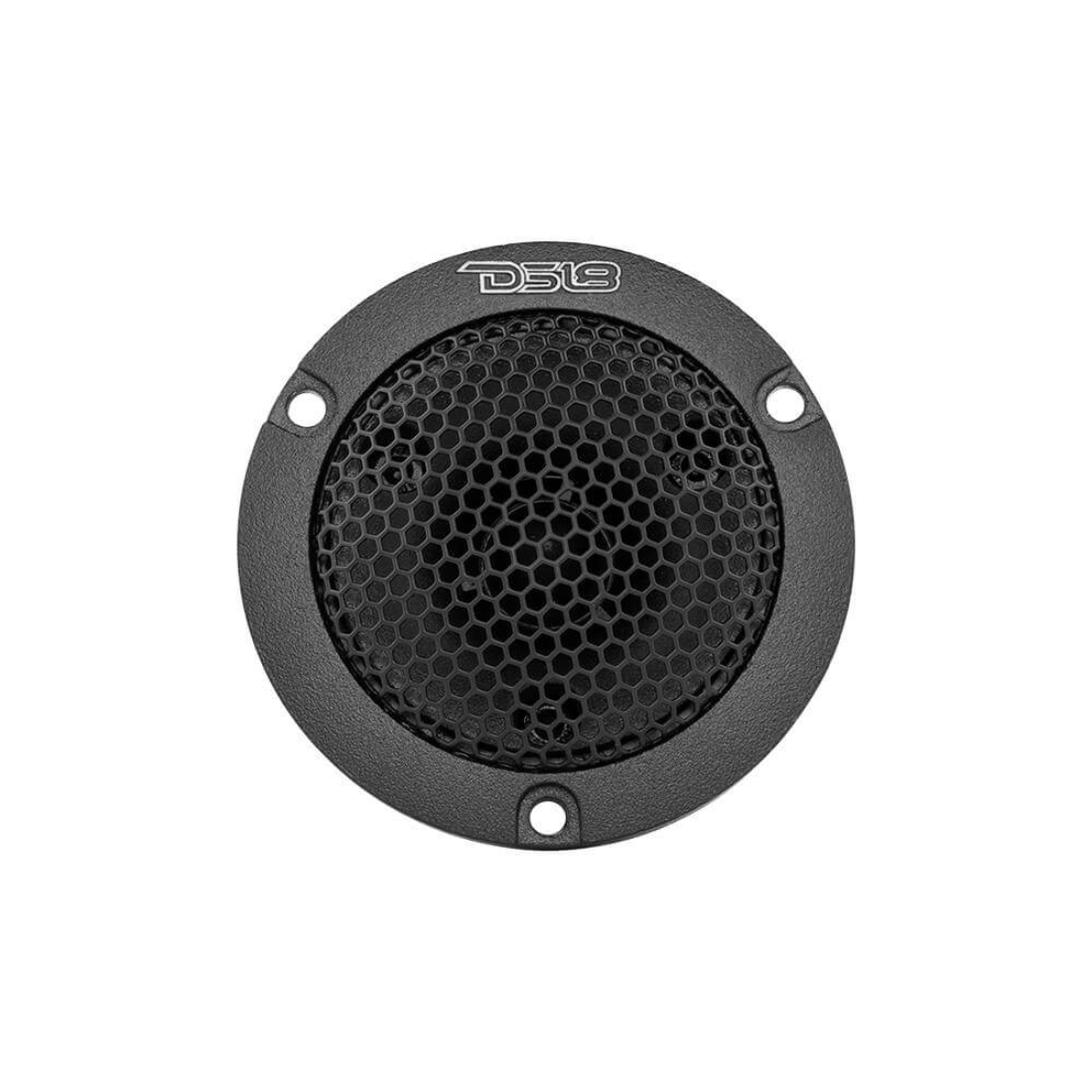

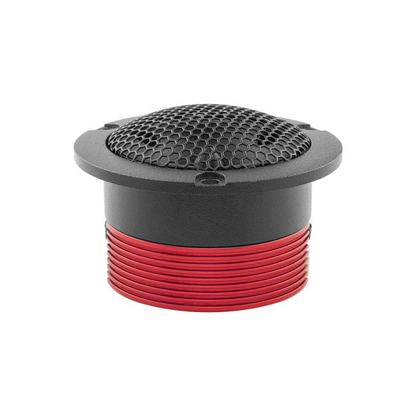

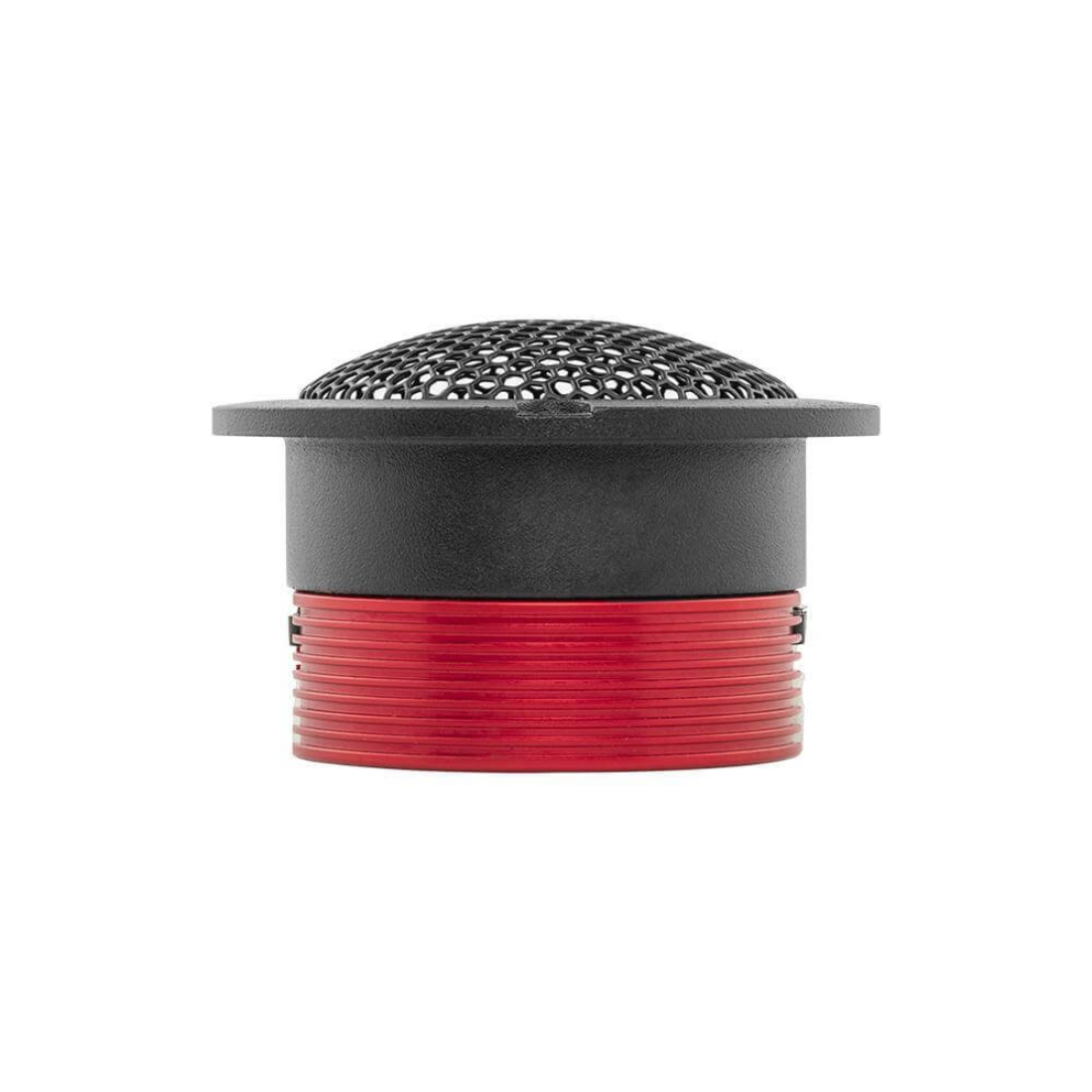

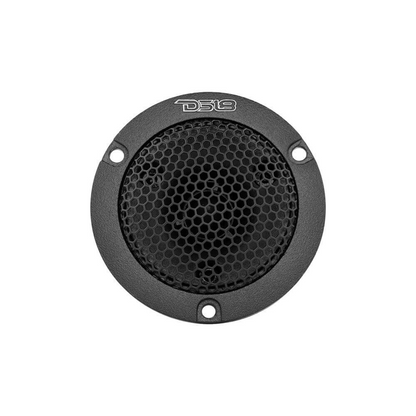

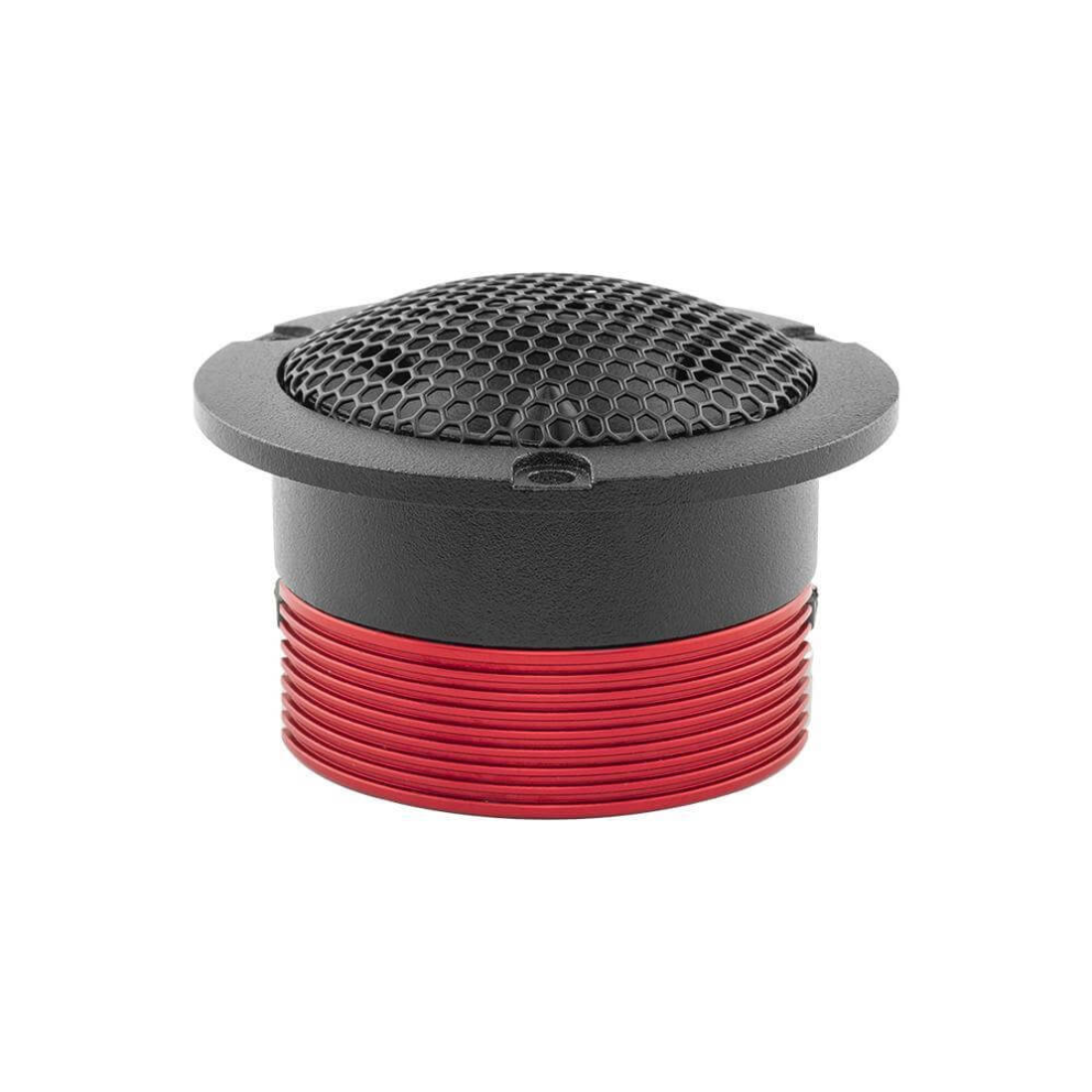

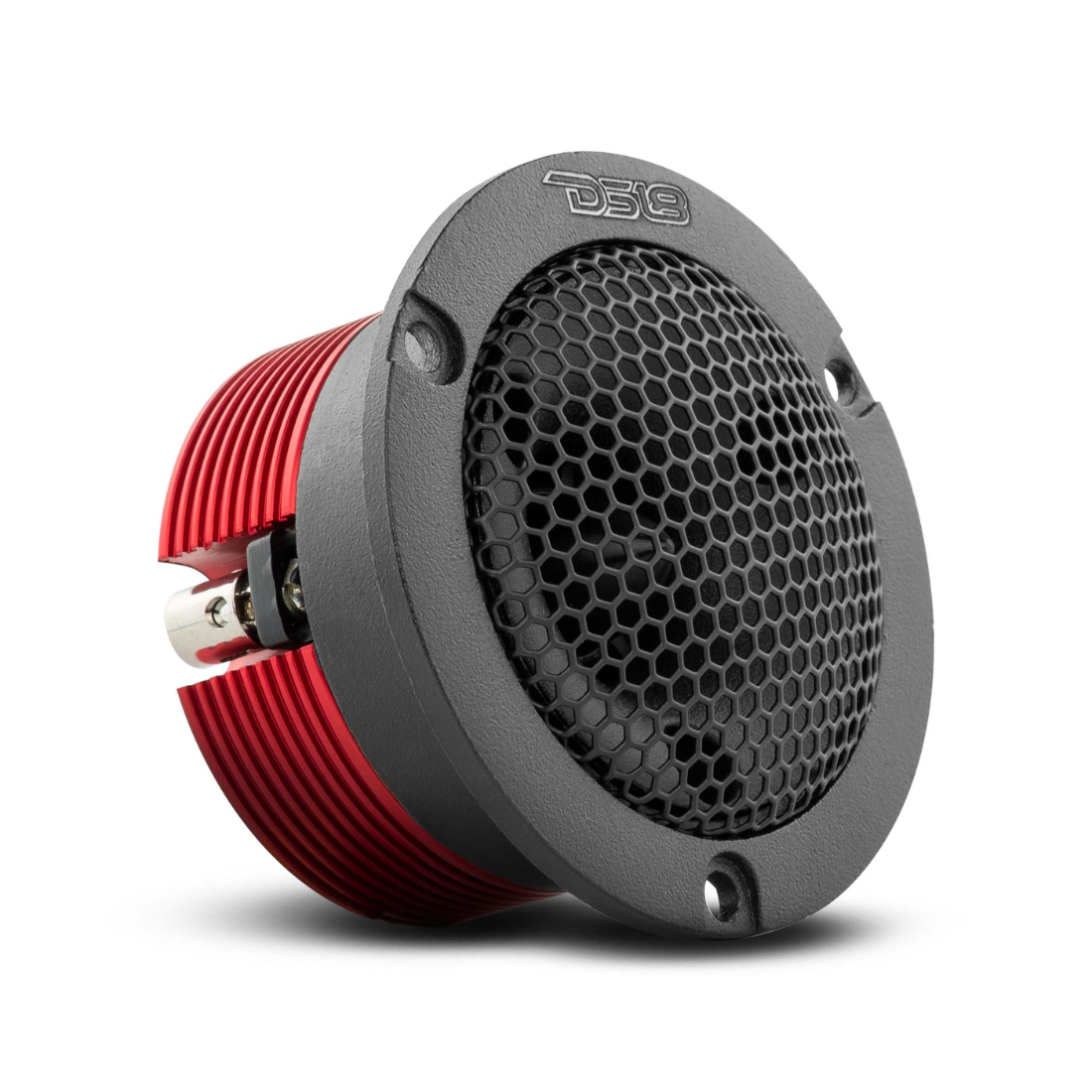

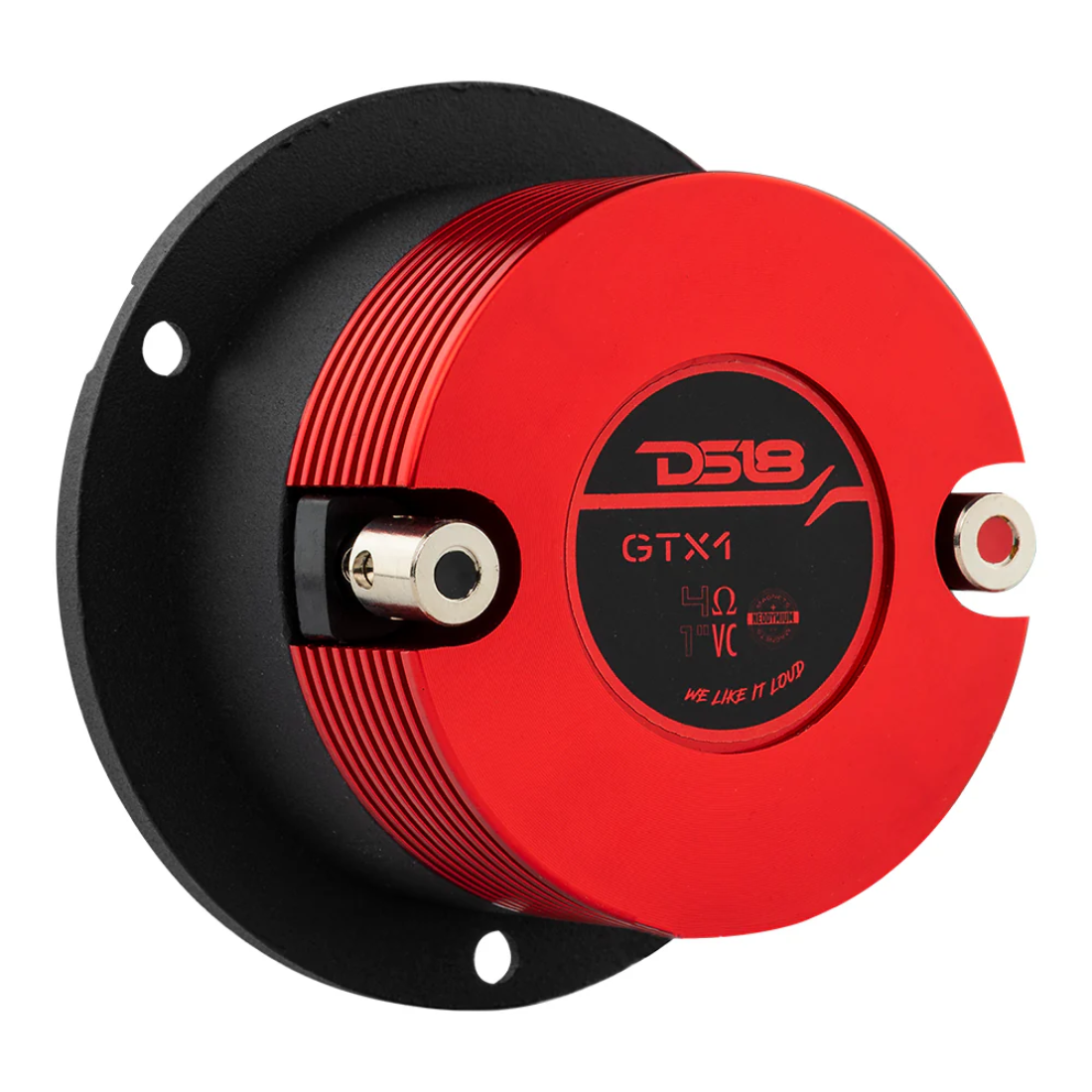

DS18 GTX1 3" 240W Peak 4-Ohm Die Cast Compression Neodymium Super Bullet Tweeter

DS18 GTX1 3" 240W Peak 4-Ohm Die Cast Compression Neodymium Super Bullet Tweeter

Regular price $34.95 USD
Regular price Sale price $34.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 GTX1

3-Inch 240 Watts Peak 4-Ohm Die Cast Compression Neodymium Super Bullet Tweeter

Bursting onto the audio scene for high-frequency audio reproduction, DS18’s GTX1 is set to revolutionize your car audio experience. Crafted with meticulous precision, these tweeters feature high-end 1-inch Titanium voice coils so every note, every melody, and every beat is brought to life with unparalleled clarity and depth.

Key Features:

  • SKU: GTX1
  • Nominal Diameter: 3"
  • Nominal Impedance: 4 Ohms
  • AES Power Handling: 60W
  • Program Power Handling: 120W
  • Peak Power Handling: 240W
  • Sensitivity (1w/1m): 98 dB
  • Frequency Response: 3KHz - 20KHz
  • Recommended Hi Pass Crossover: 3 KHz
Motor:

  • Voice Coil Diameter: 1" / 25.4mm
  • Voice Coil Former Material: Kapton
  • Winding Material: KSV
  • Diaphragm Material: Titanium
  • Magnet Material: Neodymium
  • Body Material: Aluminum
Measurements:

  • Overall Diameter: 2.95" / 75mm
  • Overall Depth: 1.96" / 49.9mm
  • Front Mount Baffle Cutout: 2.26" / 57.3mm
  • Mounting Depth: 1.46" / 37 mm
  • Product Weight: 1 lbs
  • Product Dimensions: 4 x 3.5 x 2.5
  • Sold In: Piece
