DS18 ION1200.1D 1-Channel 3600W Peak Full-Range Class-D Compact Car Amplifier

Name: DS18 ION1200.1D 1-Channel 3600W Peak Full-Range Class-D Compact Car Amplifier
Brand: DS18
SKU: ION1200.1D
Price: 249.95 USD
Availability: InStock

$249.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 ION1200.1D

1-Channel 3600 Watts Peak Full-Range Class-D Compact Car Audio Amplifier

Key Features:

Amplifier Class: Digital
Amplifier Type: Full-Range Monoblock
Number of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power / Protect / Clipping
Power Input Terminal Size: 4 AWG
Fuse Size: 100A (external)

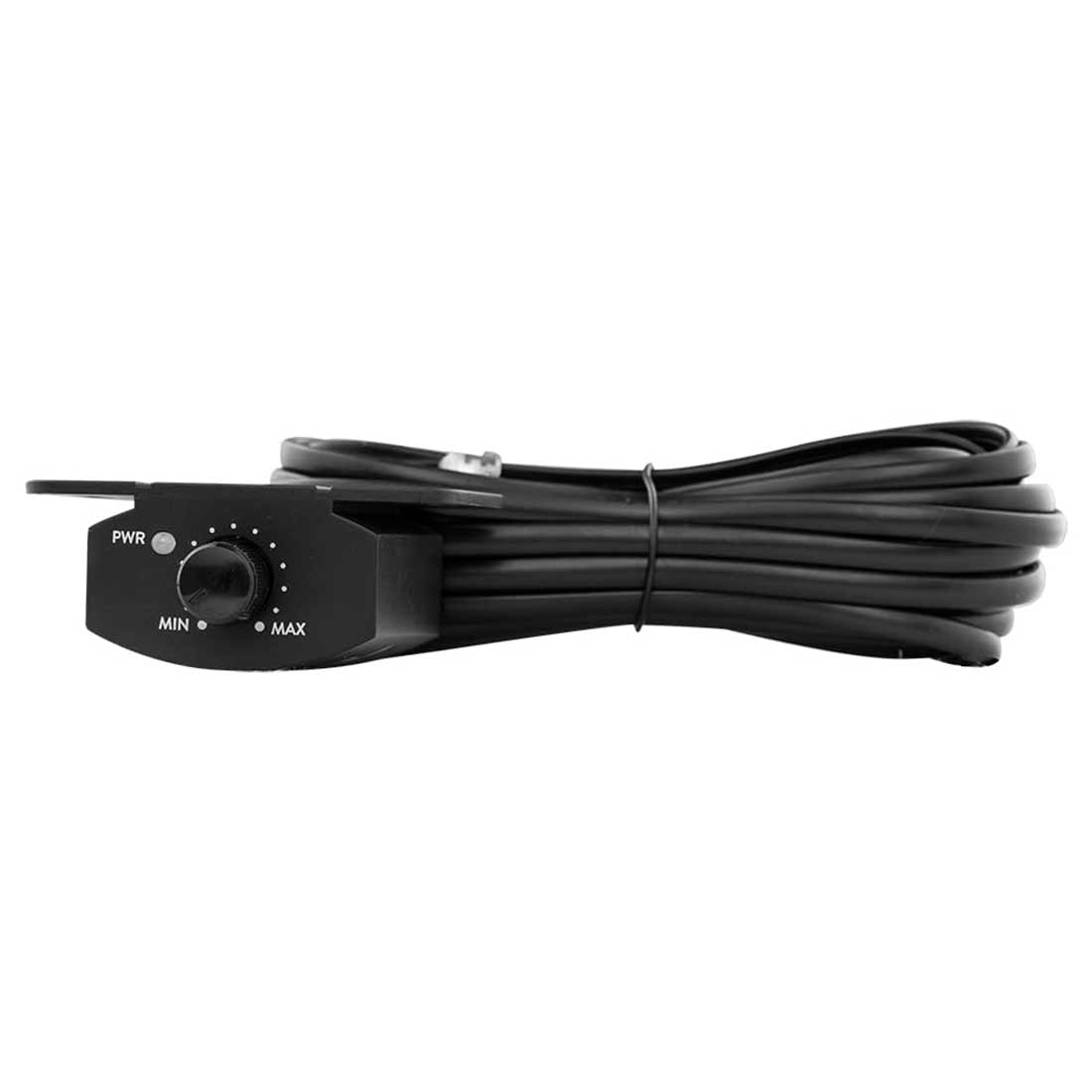

Remote Level Control: Yes
Cooling Fan: No
Thermal Protection: Yes (90?C)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Aluminum Black / Silver

Specifications:

SKU: ION1200.1D
Total Watts (Peak): 3600W
RMS Power @ 4 ohm: 400W
RMS Power @ 2 ohm: 800W
RMS Power @ 1 ohm: 1200W
RMS Power @ 4 ohm Bridge: N/A

Audio Features:

Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: >95dB
Efficiency @ 4 ohm: 88%
Damping Factor: 210
Input Impedance: 27Kohms
Channel Separation: N/A
Total Harmonic Distortion (THD): 0.01%
Low-Level Input Range: 0.2-6V
High-Level Input: Yes
Selectable X-Over: Band-Pass
X-Over Filter Range: HP: 15Hz-1KHz / LP: 40Hz-20KHz
Bass Boost Range: 0~12dB
Bass Boost Frequency: 45Hz

Extra Features:

Hi-Level Speaker connector: Yes
Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
High-Efficiency Micro Digital Design: Yes

Measurement:

Overall Length: 6.92" / 176mm
Overall Wide: 4.72" / 120mm
Overall Height: 2" / 52mm
Heatsink Length: 5.62" / 143mm
Gross Single Unit Weight: 1Kg
