DS18

DS18 NXL-IQ8/WH 8" 2-Way 350W Max Marine Coaxial Speakers w/ LED Lights (White)

DS18 NXL-IQ8/WH 8" 2-Way 350W Max Marine Coaxial Speakers w/ LED Lights (White)

$419.95 USD
$419.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 NXL-IQ8/WH

8-Inch 2-Way 350W Max Marine Coaxial Speakers w/ Digital LED Lights (White)

Key Features:

  • 8" 2-Way Coaxial Marine Speaker
  • RMS Power: 175 Watts
  • Impedance: 4 Ohm ~ 96dB
  • Ferrite & Neodymium Magnets
  • Digital LED Lighting ~ IP65

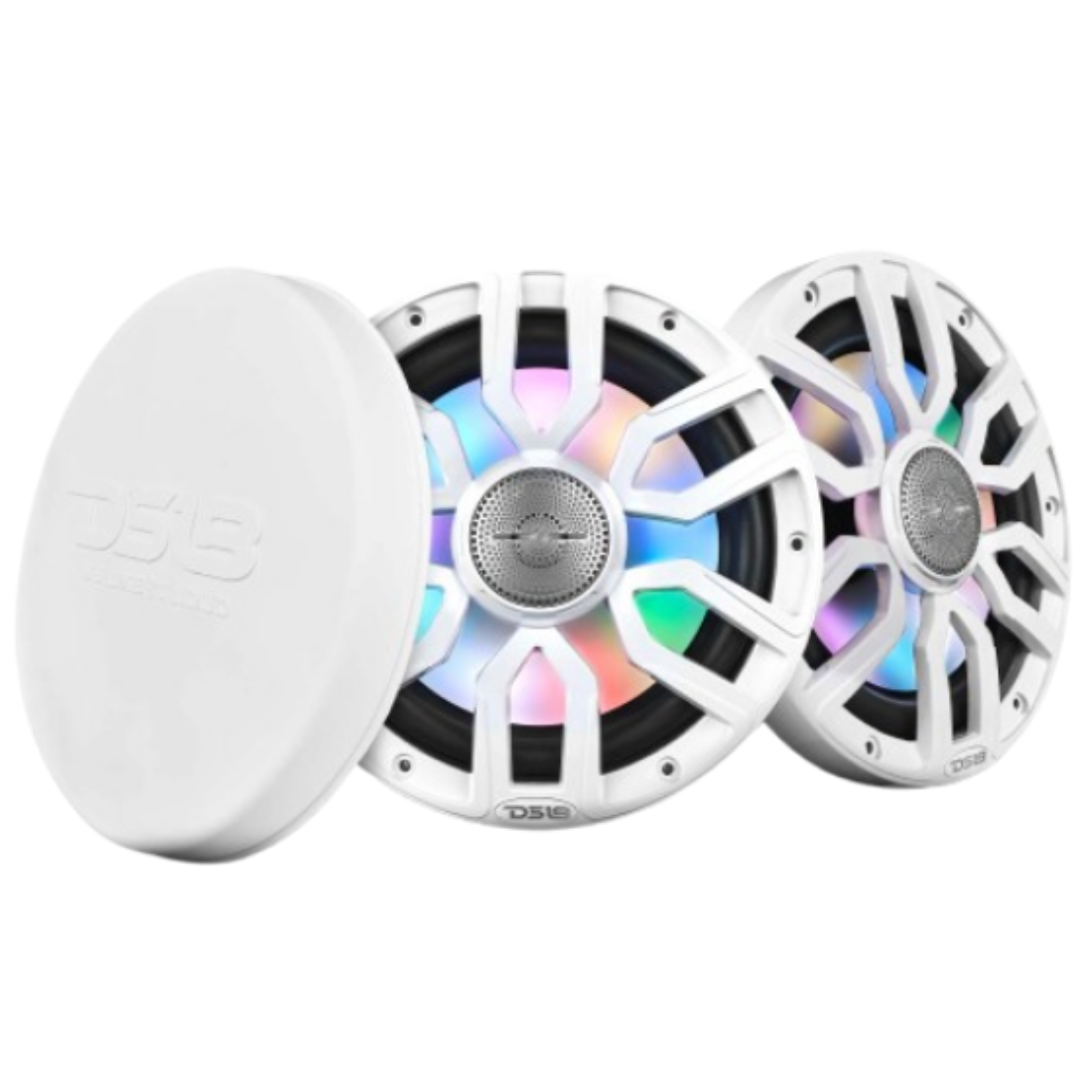

  • White ~ Pair ~ Silicone Speaker Covers
Specifications:

  • SKU: NXL-IQ8/WH
  • Nominal Diameter: 8" / 203mm
  • Nominal Impedance: 4 ohms
  • RMS Power Handling: 175W
  • MAX Power Handling: 350W
  • Sensitivity (1w/1m): 96dB
  • Frequency Response: 35Hz-20KHz
  • Number of Ways: 2-Ways
  • Recommended High-Pass Crossover: 40Hz
  • Sold in Pair or Single: Pair
Body Features:

  • UV Protection: Yes, 100% Stable
  • Marine Grade Type: IP65
  • LED Lights: Yes, Digital LED integrated (behind cone)
  • Digital LED Connection Type: 12V & Digital IN/OUT terminal
  • Digital LED Chip Type: 1815S
  • Grill Type: Injection Molded Composite ASA with UV Protection coating
  • Color / Finish: White
Woofer Specs:

  • Voice Coil Diameter: 1.5" / 38.6mm
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Cone Material: PPI
  • Dust Cap Material: PPI
  • Surround Material: Rubber
  • Basket Material: Injection Molded Composite PC with UV Protection coating
  • Magnet Material: Ferrite+Neodymium
  • Magnet Weight: 24 oz + 1.1 oz
Tweeter Specs:

  • Type: Floating Bullet Tweeter
  • Voice Coil Diameter: 1" / 25.4mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Aluminium
  • Bullet Material: Injection Molded Composite PC with UV Protection coating
  • Magnet Material: Neodymium (N35H)
  • Magnet Weight: 0.4 oz
Thiele Small Parameters:

  • Equivalent Volume Vas: 16.9L / 0.596ft3
  • Excursion (one way) Xmax: 3mm
  • Free Air Resonance Fs: 58Hz
  • Mechanical Factor Qms: 7.599
  • Electrical Factor Qes: 0.834
  • Total Factor Qts: 0.752
  • Moving Mass Mms: 25.604 g
  • Compliance Cms: 0.2875 mm/N
  • Bl Factor BI: 6.016
  • Voice Coil Inductance Le: 1.4 mH
  • Diaphragm Area Sd: 203.58cm2
  • DC Resistance Re: 3.3 Ohms
  • Efficiency Bandwidth Product EBP: 69.5
Measurements:

  • Overall Diameter: 8.6" / 218mm
  • Overall Depth: 4.4" / 112mm
  • Front Mount Baffle Cutout: 7" / 177mm
  • Mounting Depth: 3" / 79mm
  • Motor Diameter: 4.5" / 115mm
