DS18

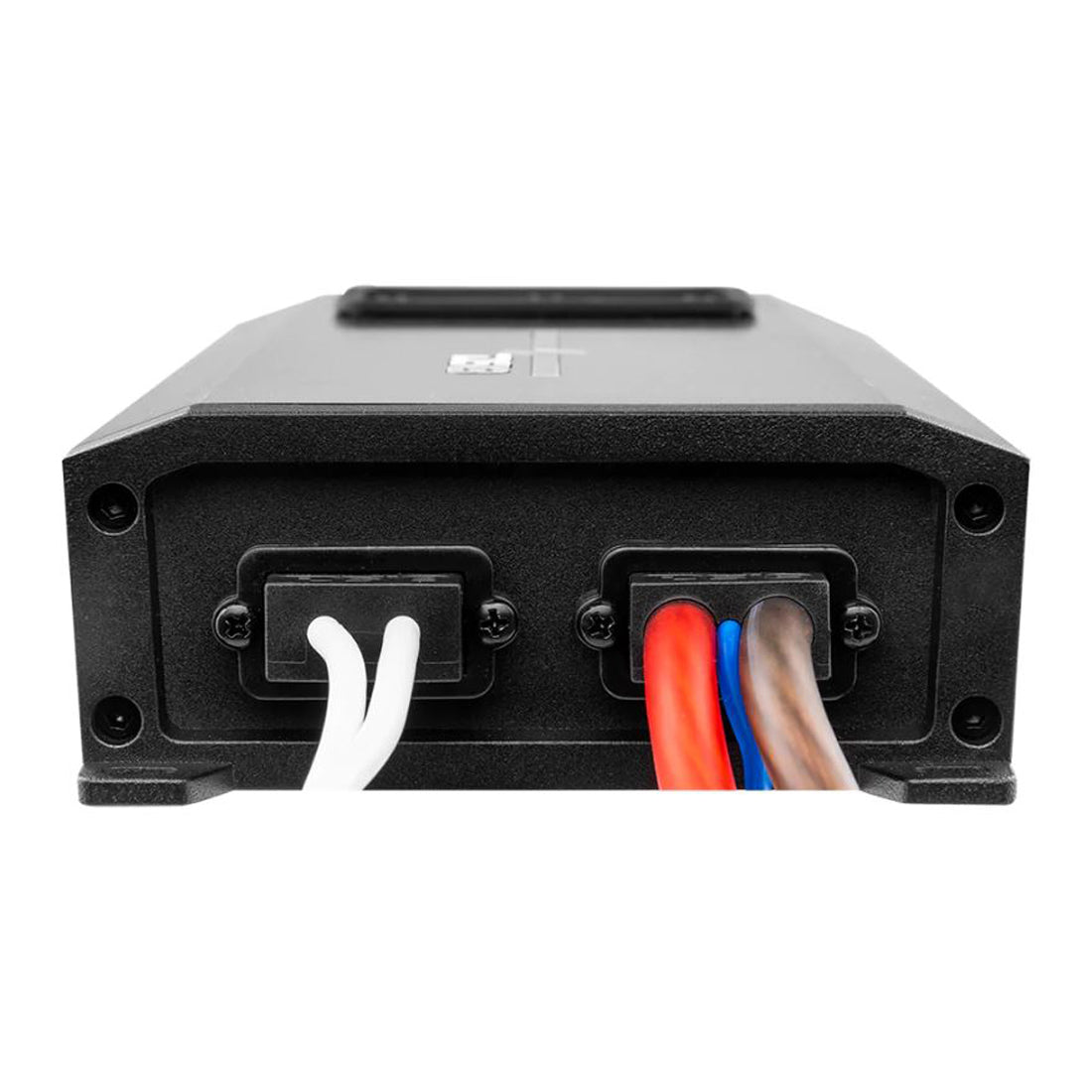

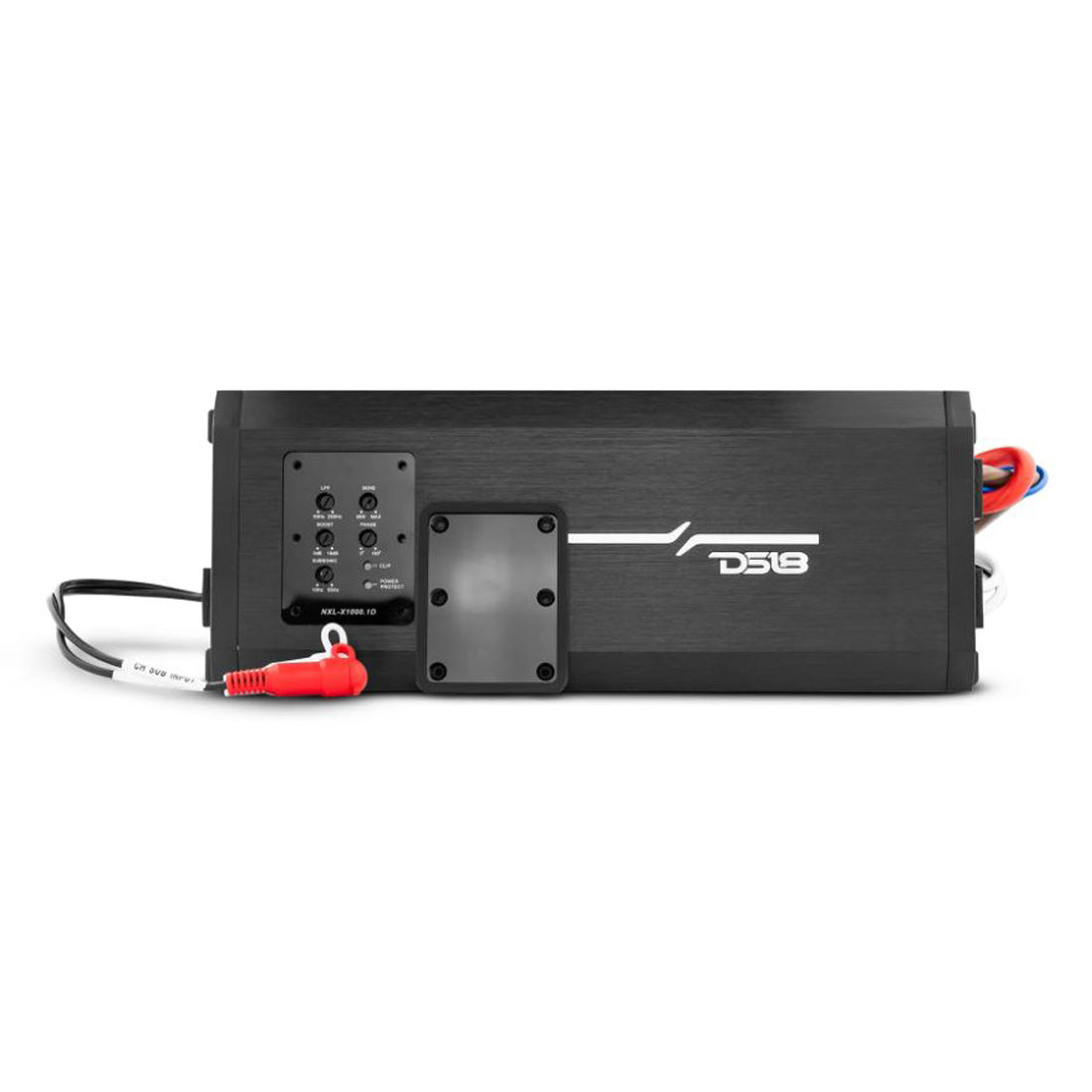

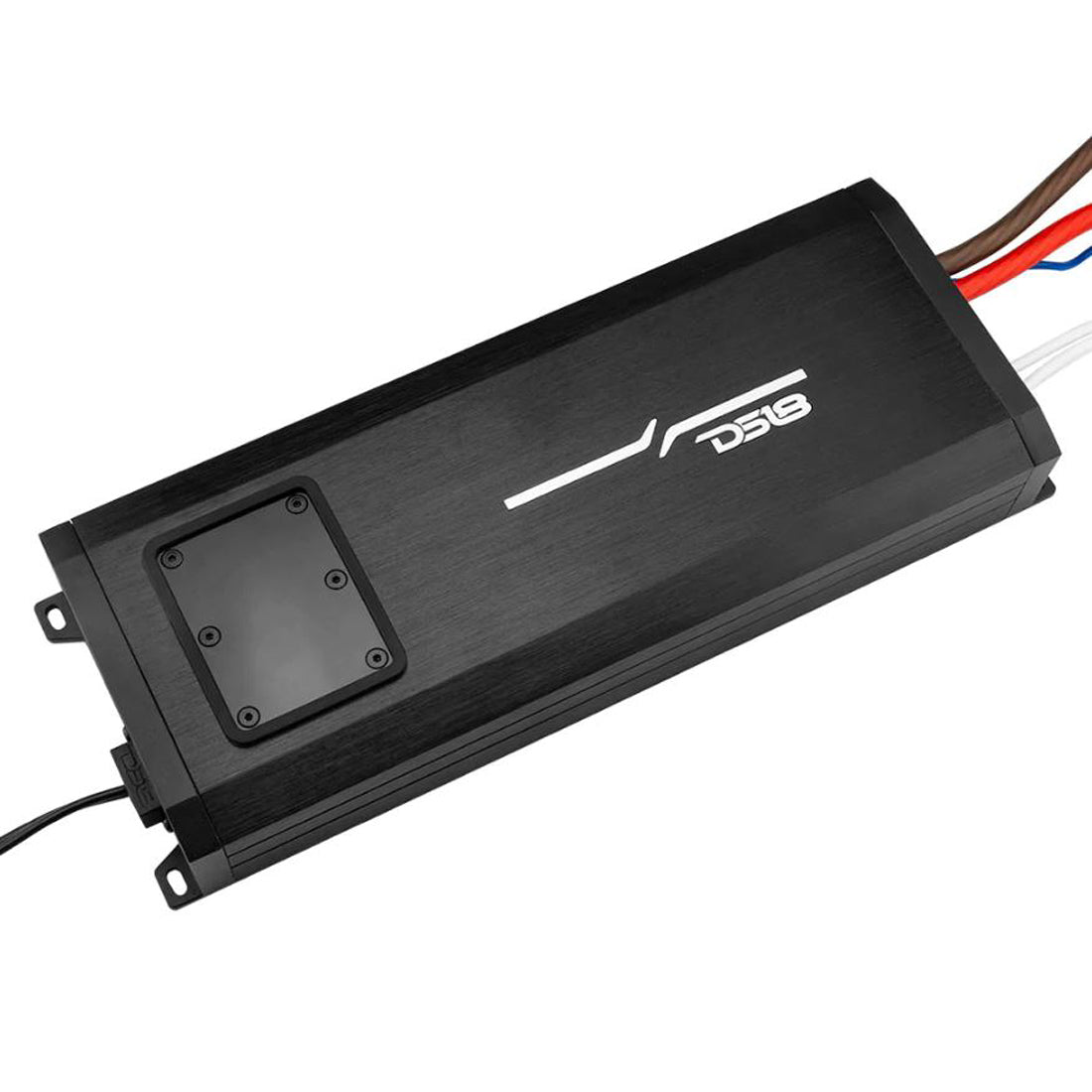

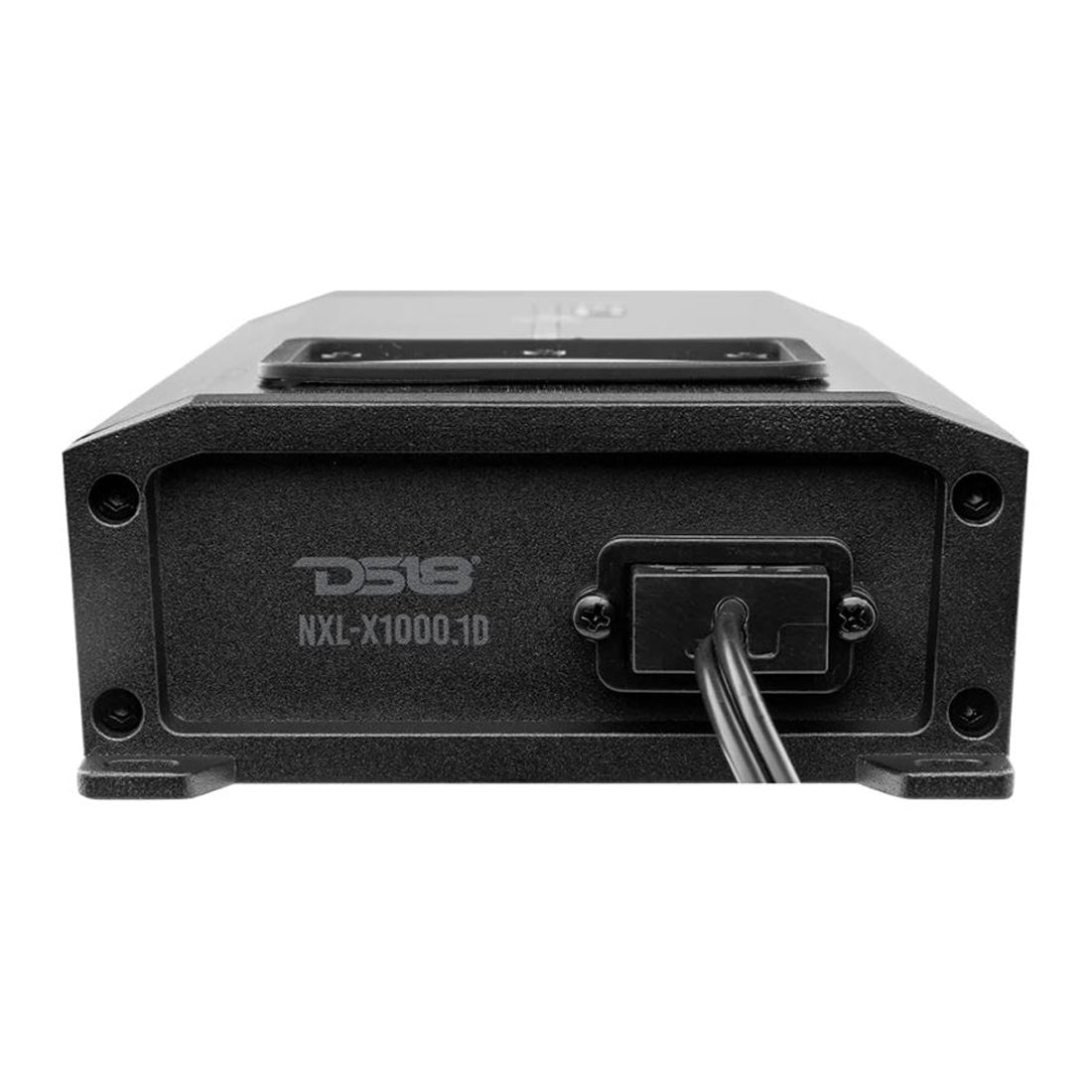

DS18 NXL-X1000.1D 2000W Peak 1-Channel / Monoblock Class-D Marine Amplifier

DS18 NXL-X1000.1D 2000W Peak 1-Channel / Monoblock Class-D Marine Amplifier

Regular price $499.95 USD
Regular price Sale price $499.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 NXL-X1000.1D

1-Channel 2000 Watts Peak Class-D Marine Amplifier

Key Features:

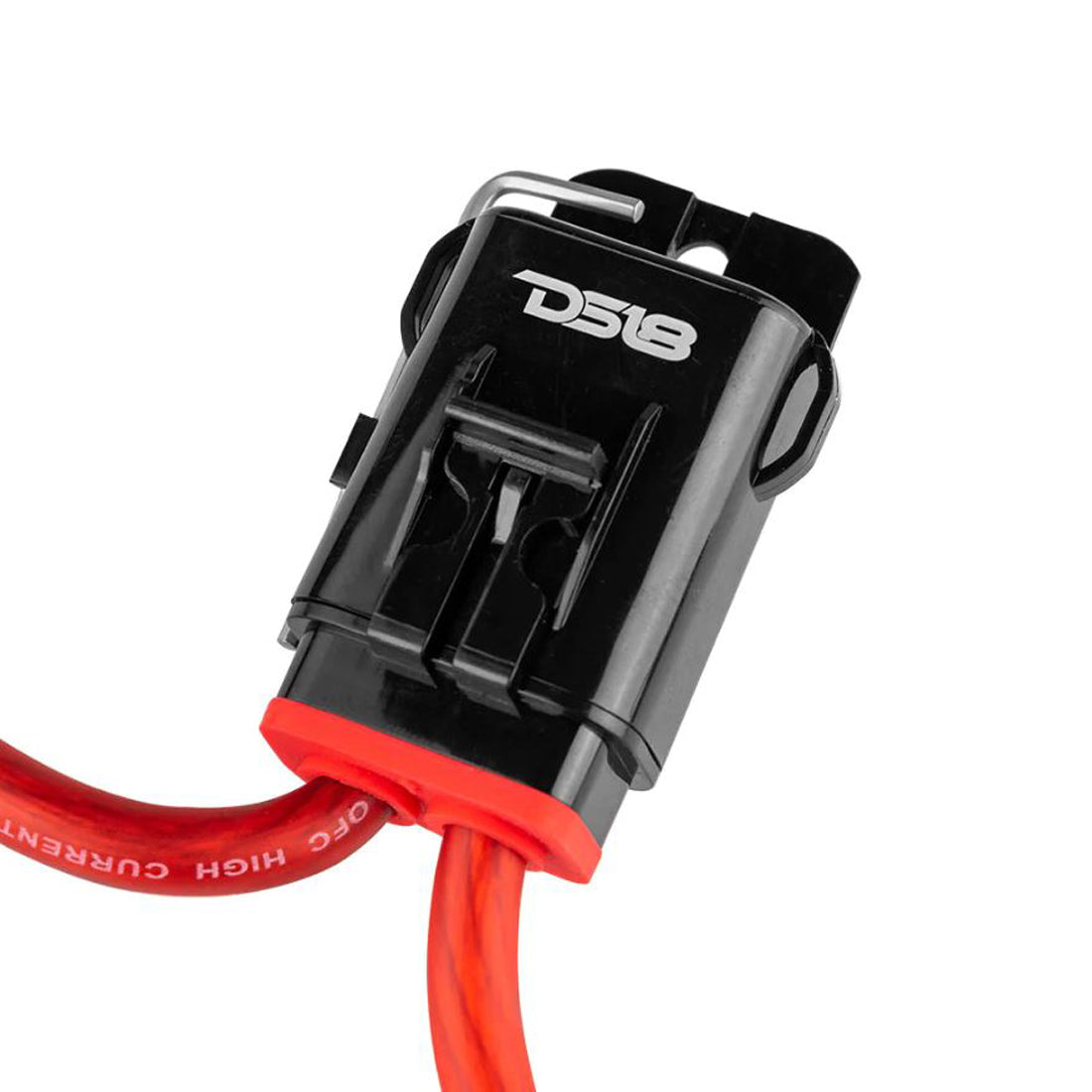

  • The included marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
  • IP67 Waterproof Rating
  • UV, Salt, and Fog Protection
  • Direct Power Harness Design with Marine Grade OFC Tinned Wires
  • Latest Digital Amplifier Design With SMC Technology
  • Great for Marine, Offroad, and DIY Projects
Specifications:

  • Amplifier Class: Digital
  • Amplifier Type: Monoblock Subwoofer
  • Number of Channels: 1
  • Minimum Impedance: 1 Ohm
  • Led Indicators: Power / Protection / Clip
  • Power Input Size: 4GA Tinned OFC
  • Fuse Size: 2 x 50A (100A)
  • Thermal Protection: Yes (75°C)
  • Over-Load Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (7-16V)
  • Body Color / Finish: Black Brushed Aluminum
  • Total Watts (Peak): 2000W
  • RMS Power @ 4 ohm: 350W
  • RMS Power @ 2 ohm: 600W
  • RMS Power @ 1 ohm: 1000W
  • RMS Power @ 4 ohm: Bridge -
  • Frequency Response: 10Hz-250KHz
  • Signal to Noise Ratio 1W@4Ω: > 100dB
  • Efficiency @ 4ohm: 0.83
  • Input Impedance: 20KΩ
  • Channel Separation: N/A
  • Total Harmonic Distortion (THD): < 0.05%
  • Low-Level Input Range: 200mV-5V
  • Selectable X-Over: LPF Fixed
  • X-Over Filter Range: 50Hz-250Hz
  • Bass Boost Range: 0-18dB
  • Bass Boost Frequency: 42Hz
  • Infrasonic Filter: 10Hz-55Hz
  • Phase Selector: 0-180°
  • Overall Length: 11.8" / 302mm
  • Overall Wide: 4.4" / 112mm
  • Overall Height: 1.77" / 45mm
  • Heatsink Length: 11" / 281.6mm
  • Gross Single Unit Weight: 2.21kg
View full details
