DS18 NXL-X1200.8D 8-Channel Full-Range Class-D IP67 Marine Powersports Amplifier

DS18 NXL-X1200.8D 8-Channel Full-Range Class-D IP67 Marine Powersports Amplifier

$959.95 USD
$959.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 NXL-X1200.8D

8-Channel 2800 Watts Peak Full-Range Class-D Marine Powersports Amplifier

Elevate your marine sound experience to new heights with DS18's NXL-X1200.8D. Designed to deliver the best performance for your marine speakers, this digital class 8-channel amplifier is the ultimate choice for those who refuse to settle for anything less than exceptional.

Key Features:

  • Amplifier Class: Digital
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 8
  • Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)
  • Led Indicator: Power | Protection | Clip
  • Power Input Size: 4GA Tinned OFC
  • Fuse Size: 150A
  • Thermal Protection: Yes (75C)
  • Over-Load Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (7-16V)
  • Body Color | Finish: Black Brushed Aluminum
Specifications:

  • SKU: NXL-X1200.8D
  • Total Watts (Peak): 2800W
  • RMS Power @ 4 ohm: 8 x 150W
  • RMS Power @ 2 ohm: 8 x 220W
  • RMS Power @ 1 ohm: 4 x 450W
Audio Specs:

  • Frequency Response: 10Hz-20Khz
  • Signal to Noise Ratio 1W @ 4?: >80dB
  • Efficiency @ 4 ohm: 81%
  • Input Impedance: 20K OHM
  • Channel Separation: 60dB
  • Total Harmonic Distortion (THD): <0.04%
  • Low-Level Input Range: 200mV-5V

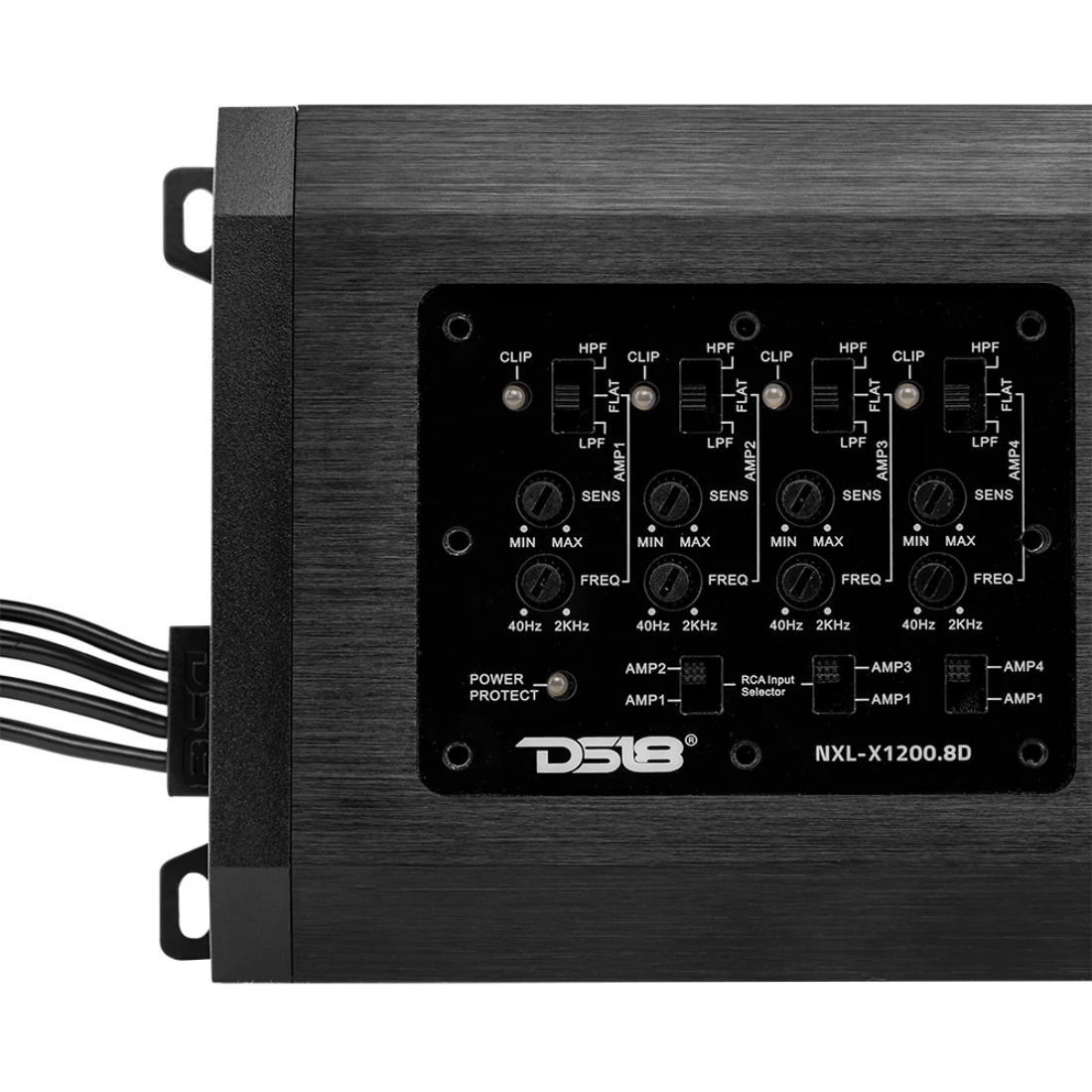

  • Selectable X-Over: Yes (HPF/Full/LPF)
  • X-Over Filter Range: 40Hz-2KHz
Extra Features:

  • Channels Input Selector: Yes (2/4/6/8 CH)
  • RCA Audio Output: No
  • Waterproof Rating: IP67
  • UV / Salt Fog Protection: Yes

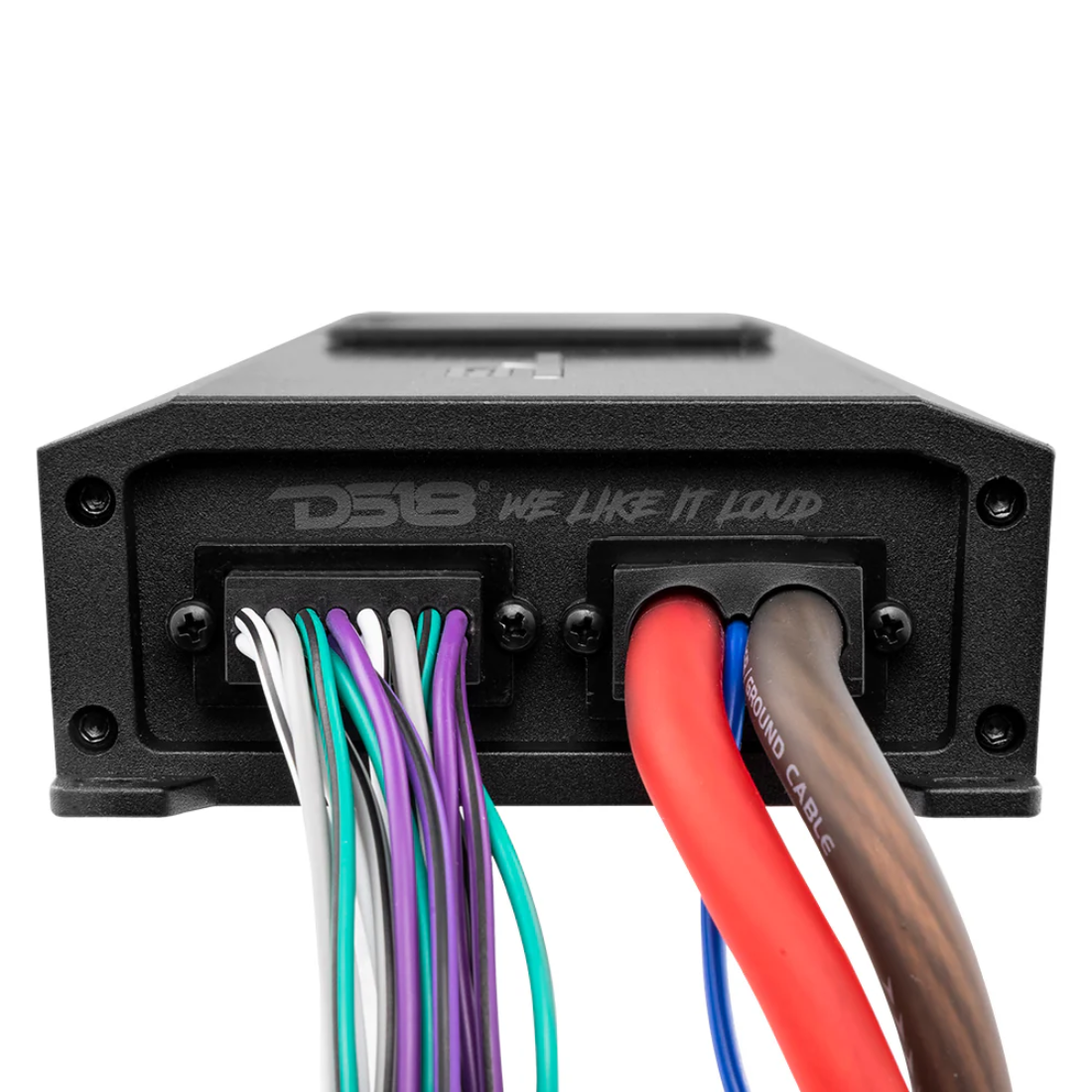

  • Direct Power Harness Design: Yes
  • Quick Connect Plug: Yes
  • Surface Mount Component Technology: Yes

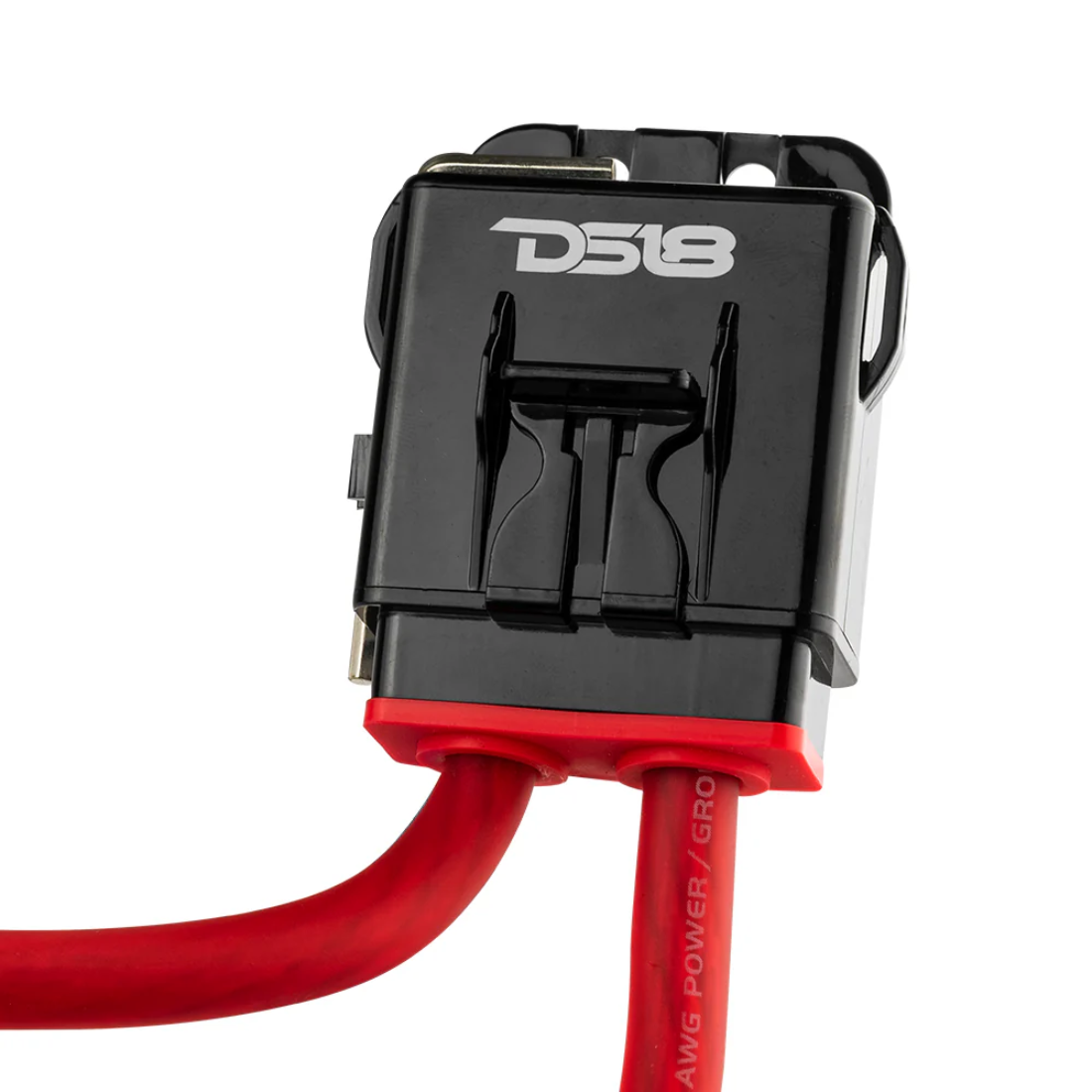

  • Marine Grade Fuse Holder: Yes
Measurements:

  • Overall Length: 14" / 360mm
  • Overall Wide: 4.4" / 112mm
  • Overall Height: 1.77" / 45mm
  • Heatsink Length: 12.5" / 320mm
  • Gross Single Unit Weight: 2.5kg
