DS18

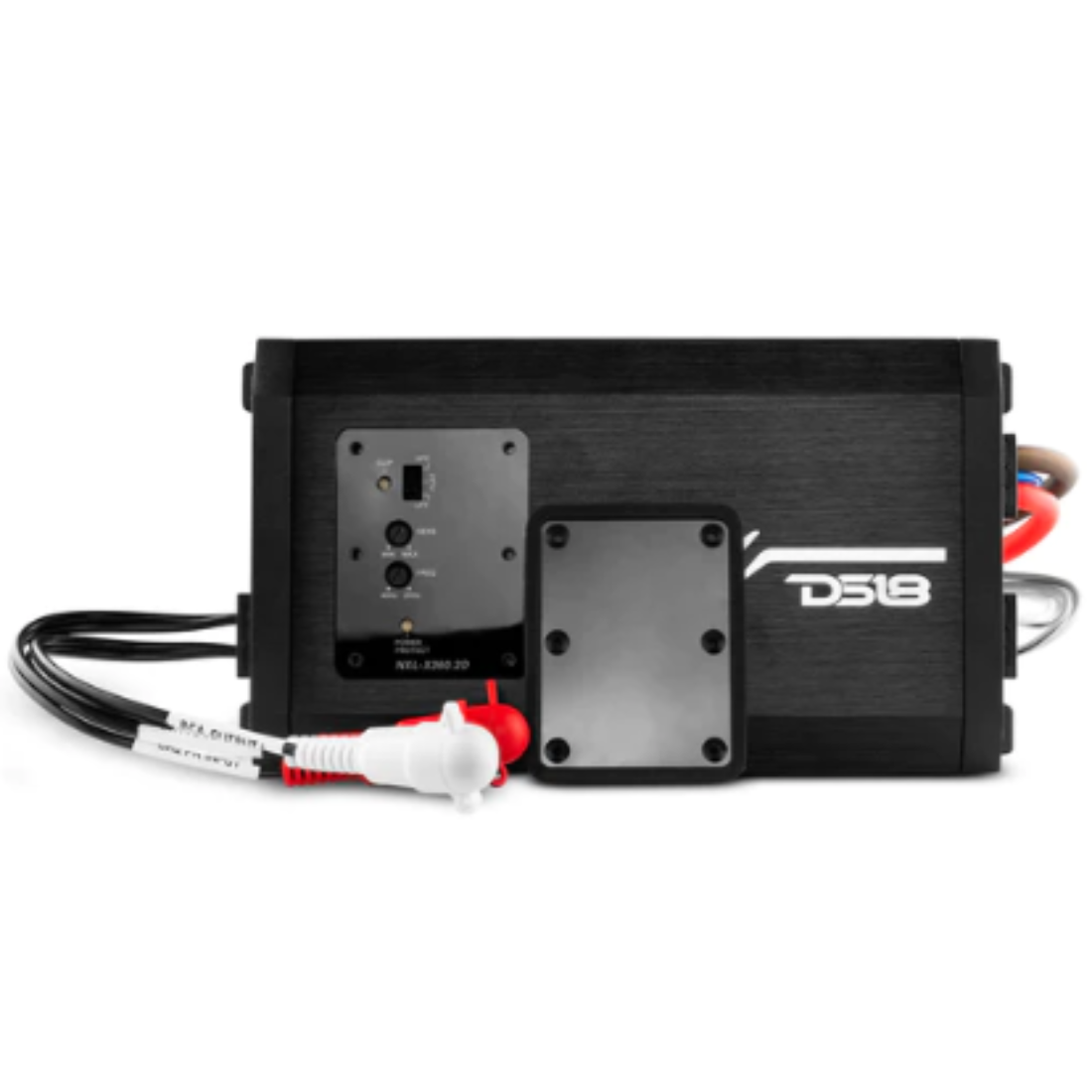

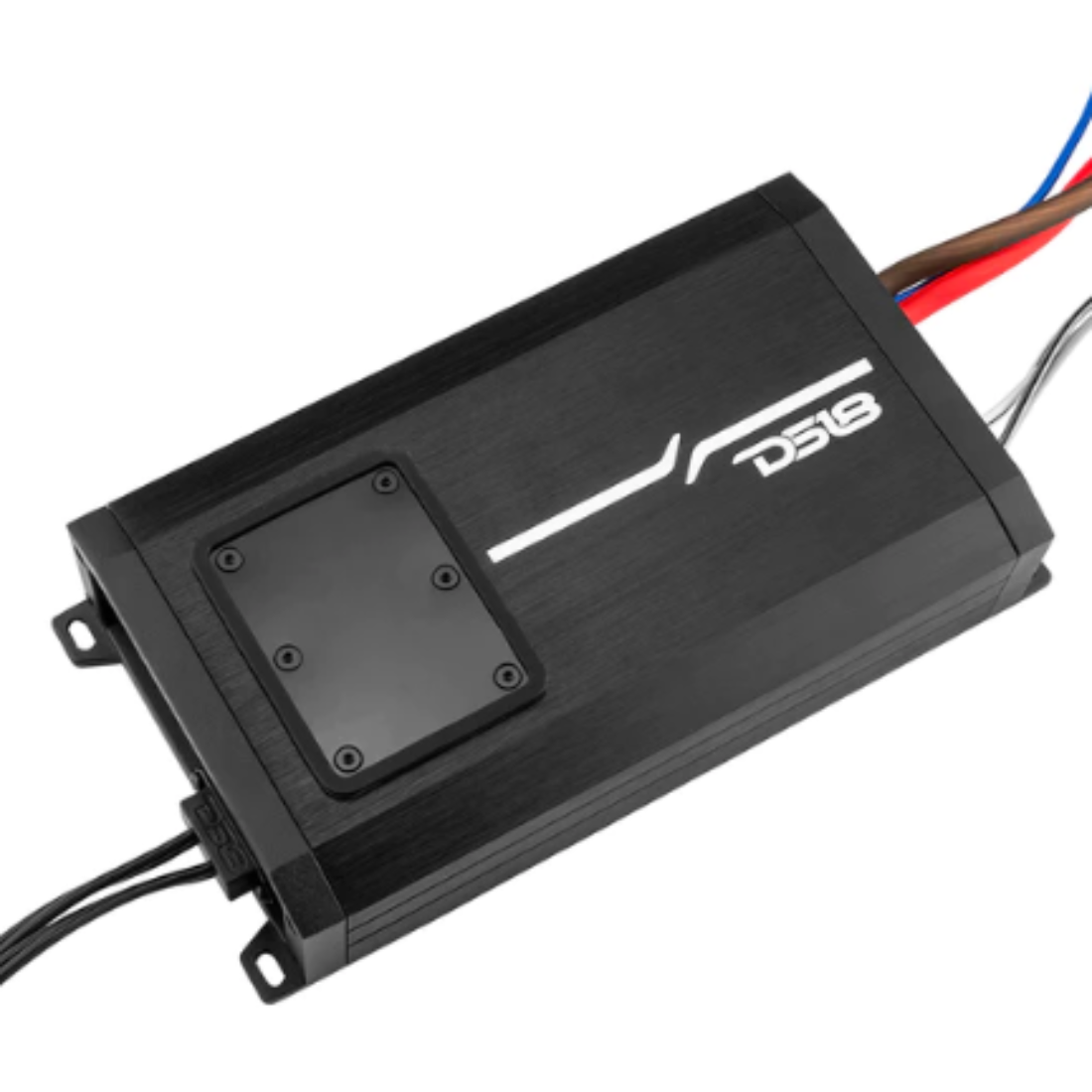

DS18 NXL-X360.2D 2-Channel 1000W Peak IP67 Class-D Full Range Marine Amplifier
DS18 NXL-X360.2D 2-Channel 1000W Peak IP67 Class-D Full Range Marine Amplifier
Regular price
$479.95 USD
Regular price
Sale price
$479.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 NXL-X360.2D
HYDRO 2-Channel 1000 Watts Peak IP67 Class-D Full Range Marine Amplifier
Key Features:

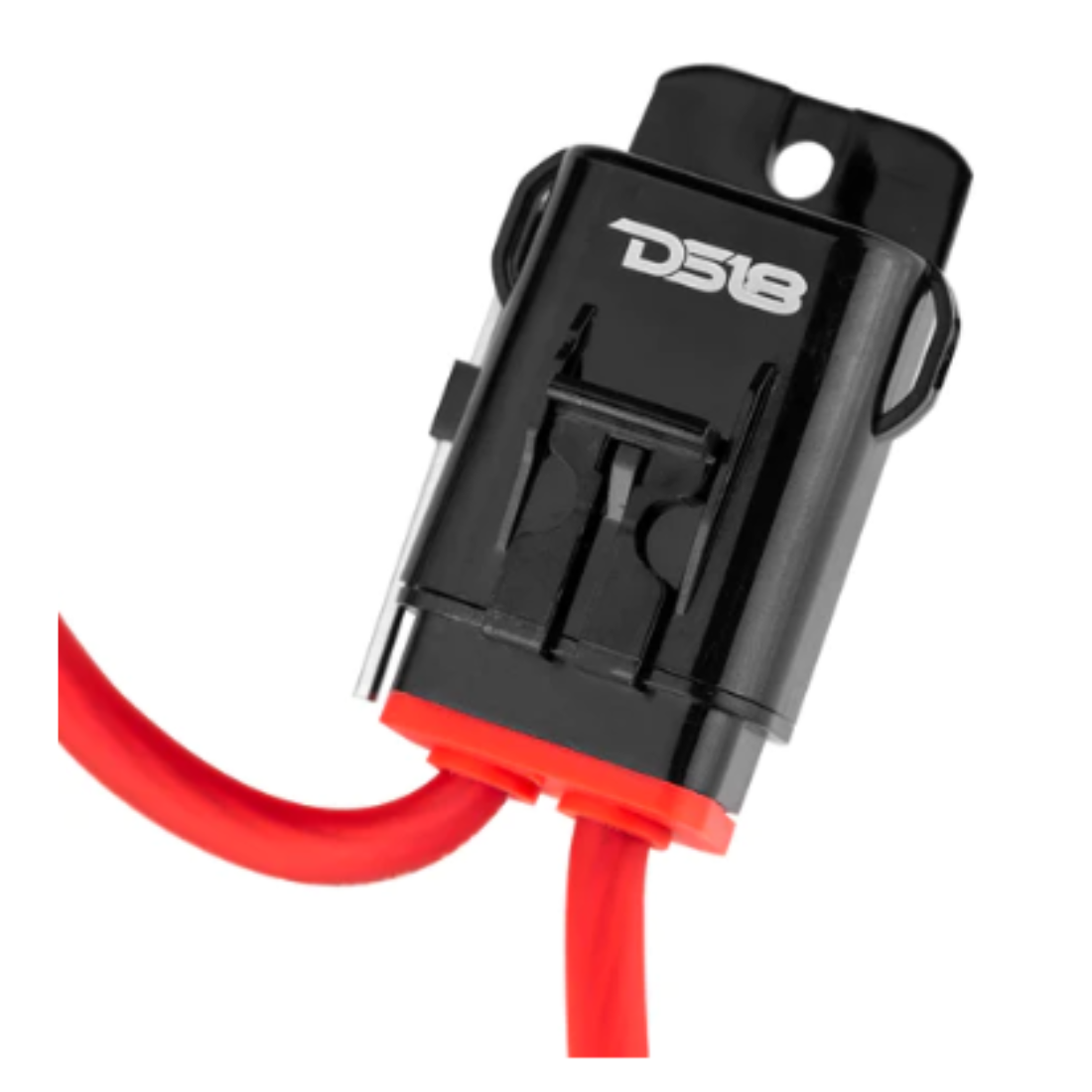

- The included marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
- IP67 Waterproof Rating
- UV, Salt, and Fog Protection

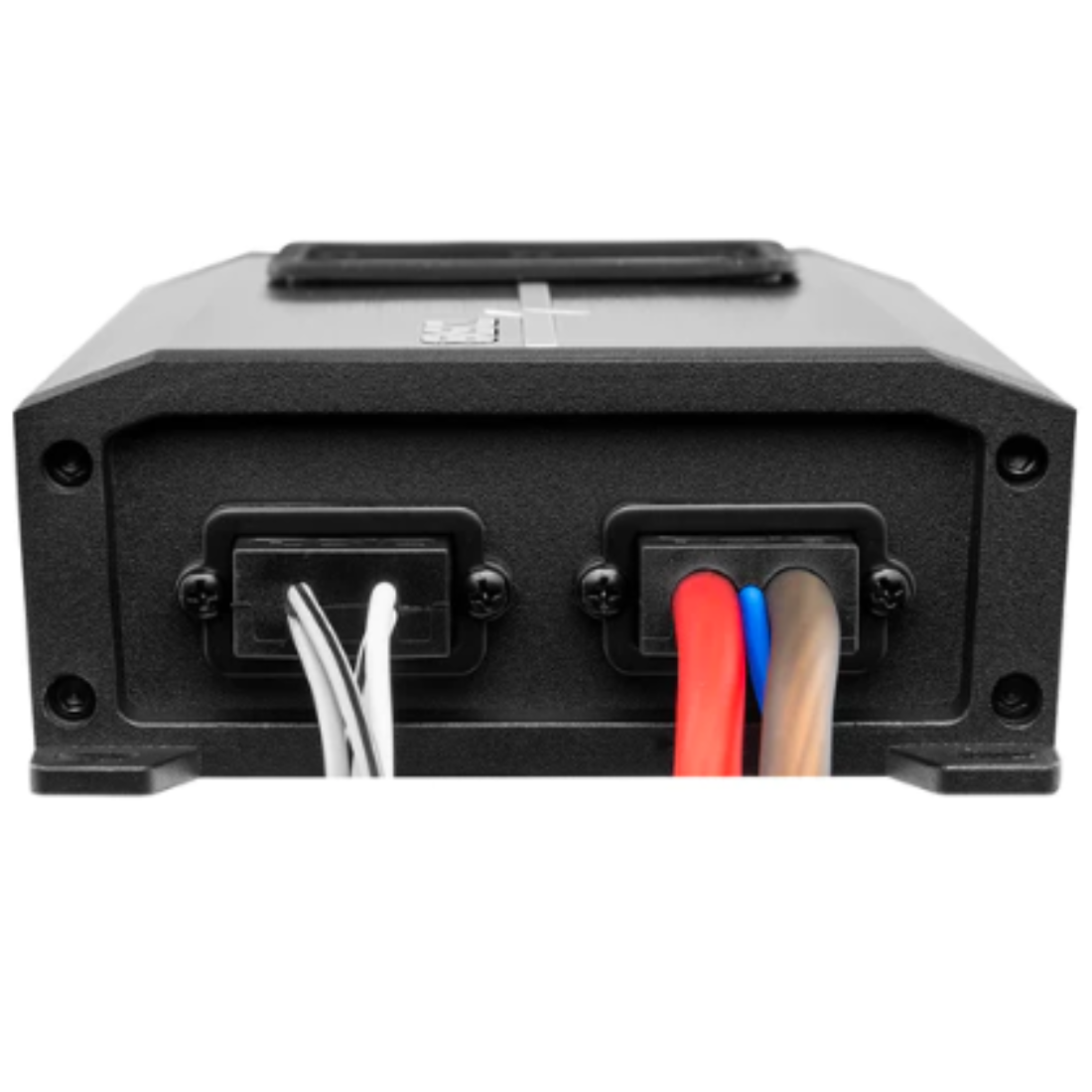

- Direct Power Harness Design with Marine Grade OFC Tinned Wires
- Latest Digital Amplifier Design With SMC Technology
- Maximum output of 500W bridged at 4-Ohms, 180W x 2CH at 4-Ohms, and 250W x 2CH at 2-Ohms
Technical Details:
- Amplifier Class: Digital
- Amplifier Type: Stereo Full Range
- Number of Channels: 2
- Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)
- LED Indicators: Power / Protection / Clip
- Power Input Size: 8GA Tinned OFC
- Fuse Size: 2 x 25A (50A)
- Thermal Protection: Yes (75°C)
- Over-Load Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes (7-16V)
- Body Color / Finish: Black Brushed Aluminum
- Total Watts (Peak): 1000W
- RMS Power @ 4 ohm: 2 x 180W
- RMS Power @ 2 ohm: 2 x 250W
- RMS Power @ 1 ohm : -
- RMS Power @ 4 ohm Bridge: 500W
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio 1W@4Ω: > 82dB
- Efficiency @ 4ohm: 0.84
- Input Impedance: 20KΩ
- Channel Separation: 60dB
- Total Harmonic Distortion (THD): < 0.03%
- Low-Level Input Range: 200mV-5V

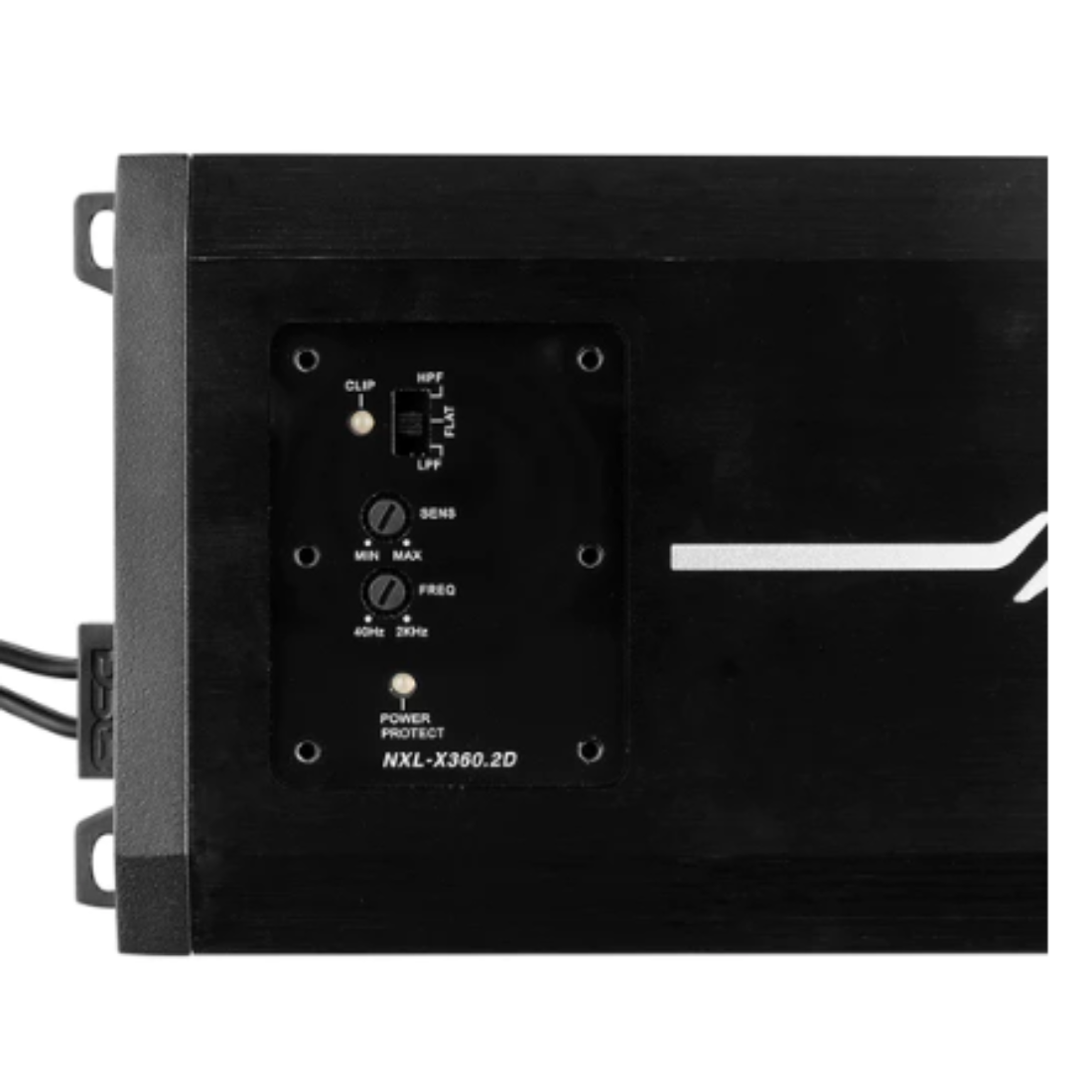

- Selectable X-Over: Yes (HPF/Full/LPF)
- X-Over Filter Range: 40Hz-2KHz
- Bass Boost Range: N/A
- Bass Boost Frequency: N/A
- Infrasonic Filter: No
- Phase Selector: No
- Overall Length: 8.3" / 211mm
- Overall Wide: 4.4" / 112mm
- Overall Height: 1.77" / 45mm
- Heatsink Length: 6.7" / 171mm
- Gross Single Unit Weight: 1.6Kg
