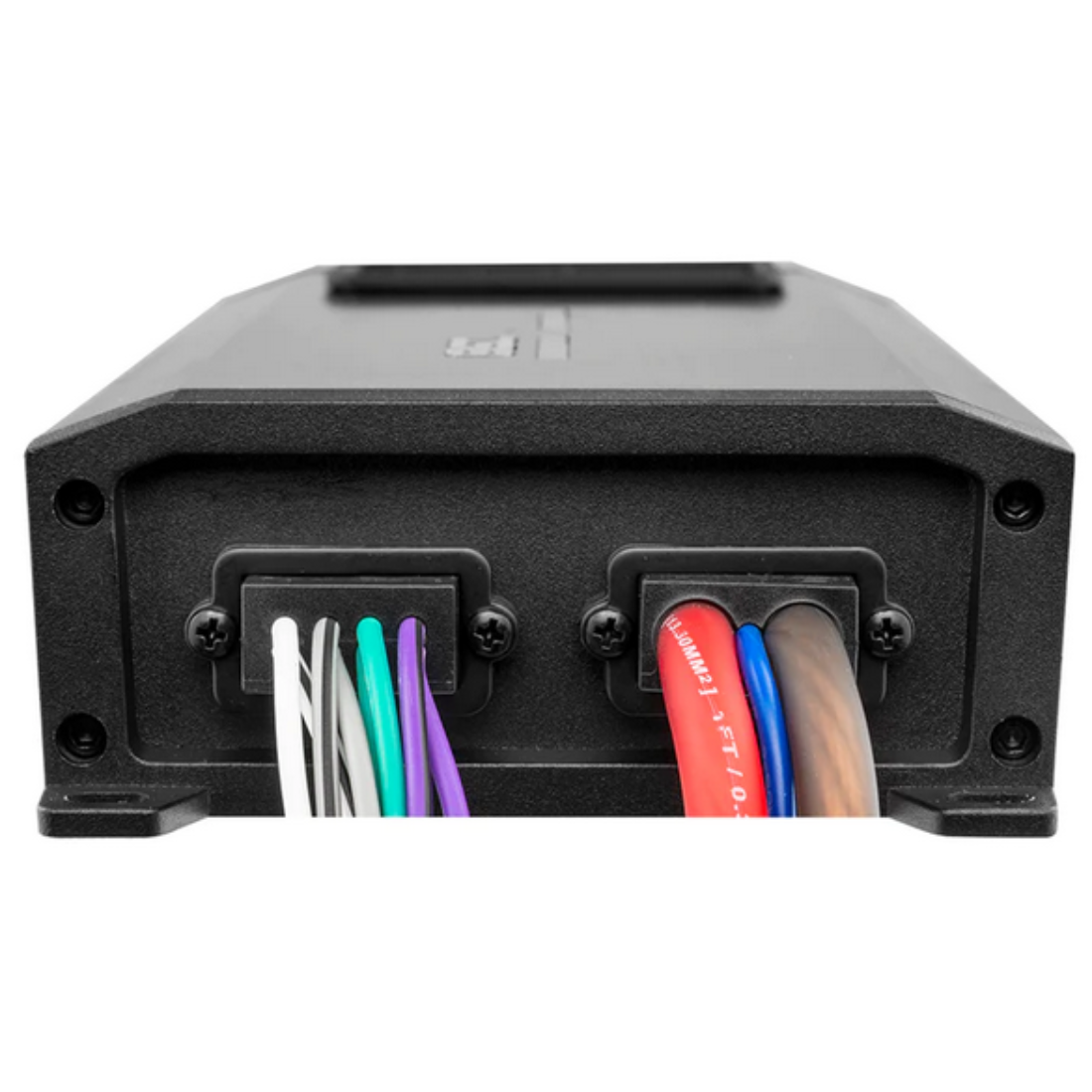

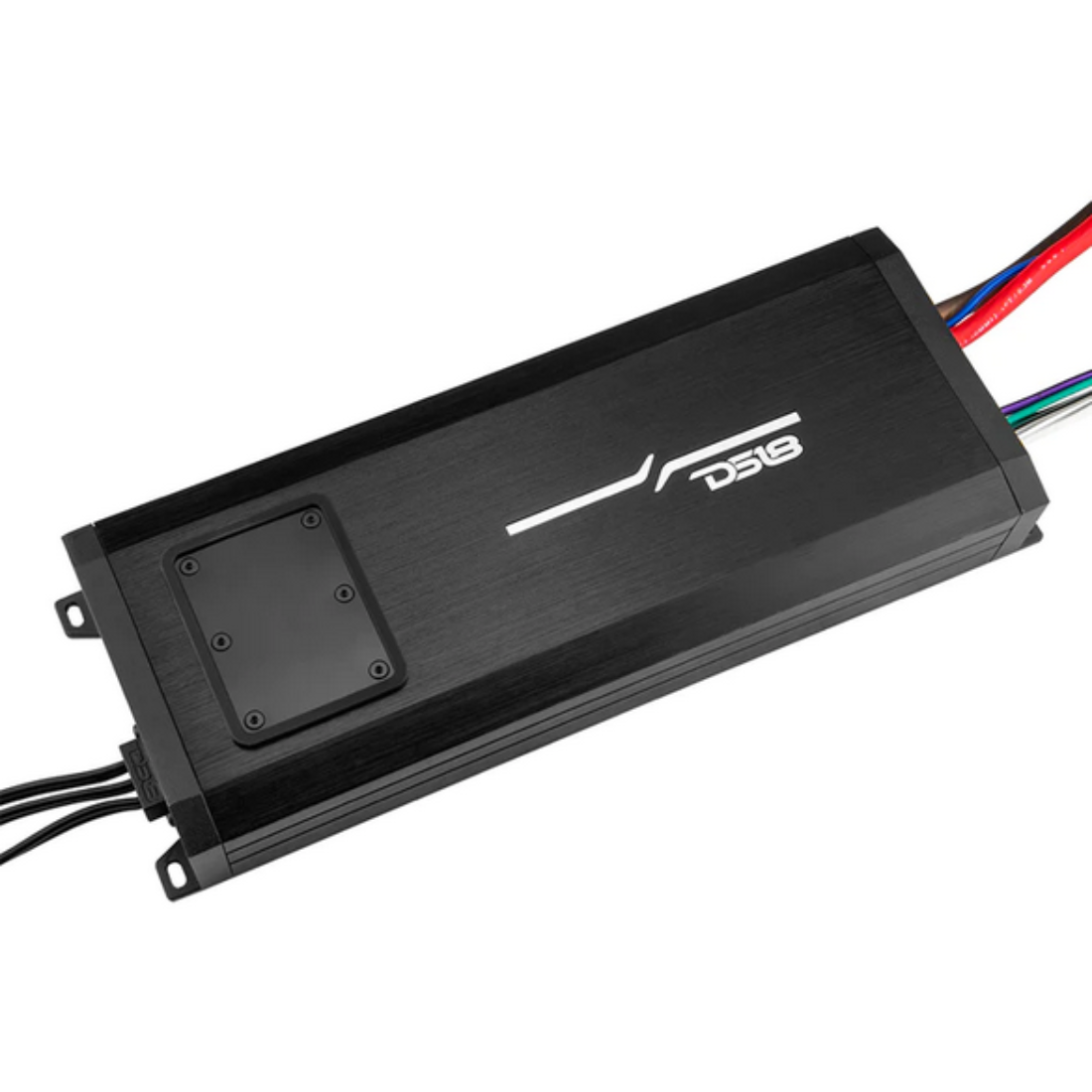

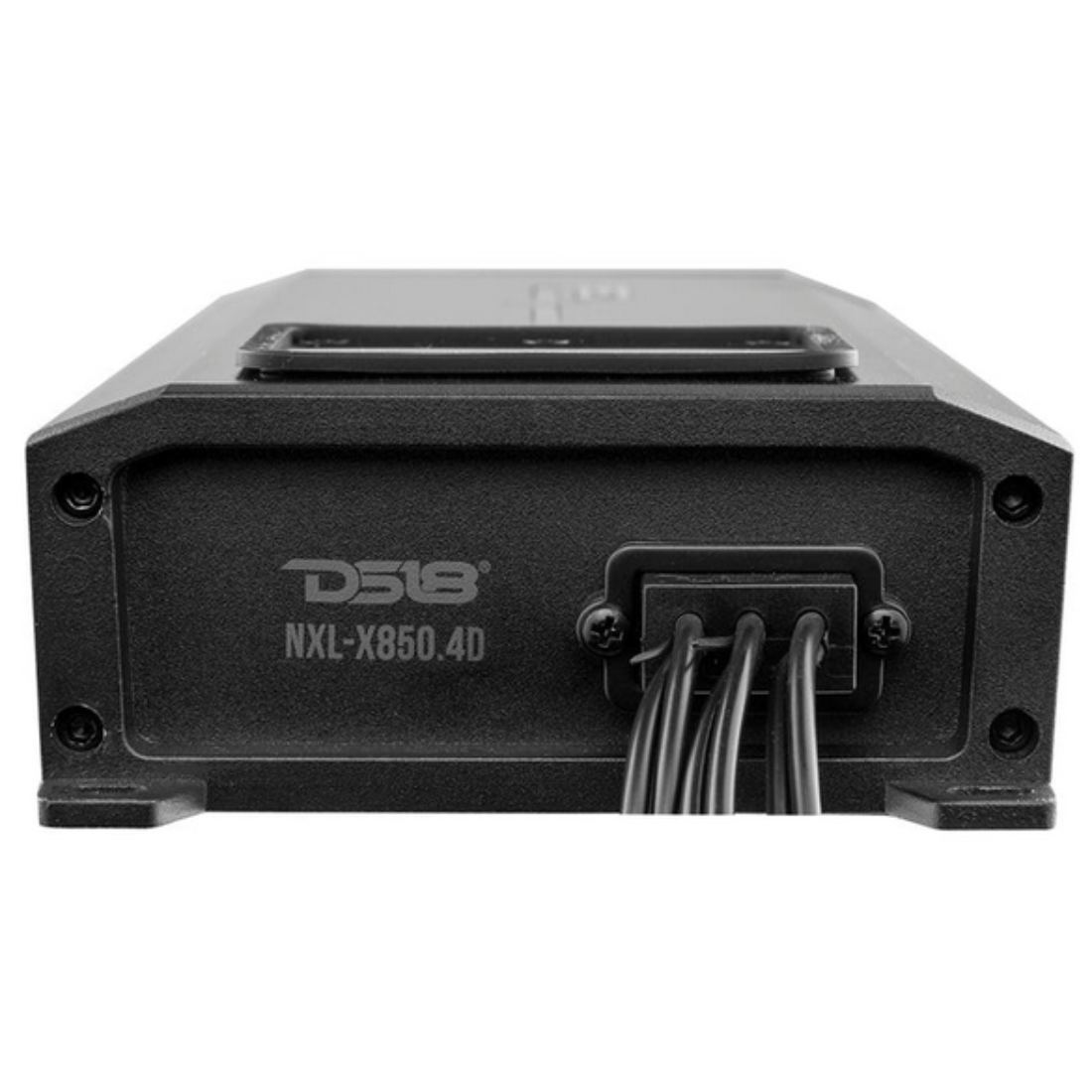

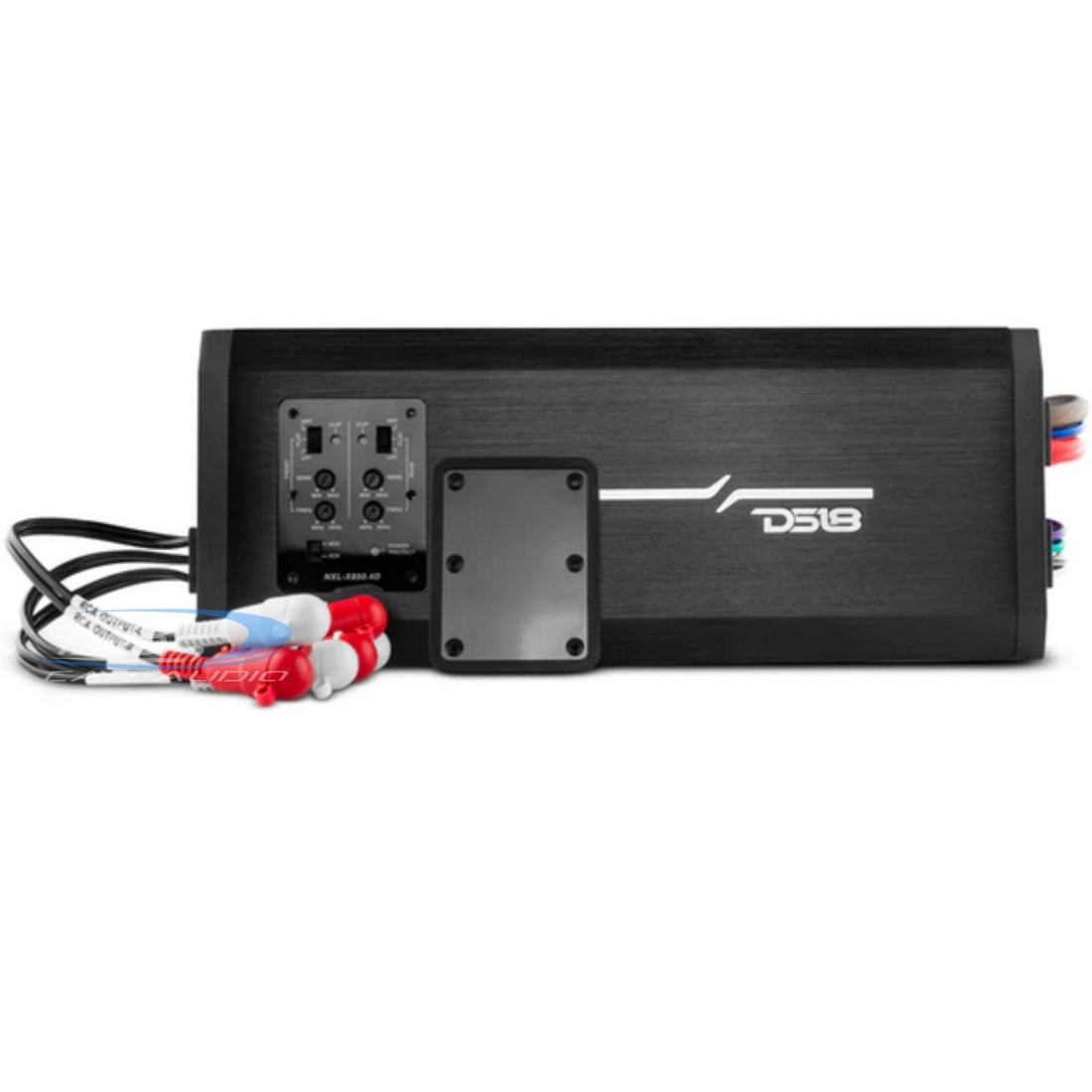

DS18 NXL-X850.4D 4-Channel 2400W Peak Class-D Full-Range IP67 Marine Amplifier
DS18 NXL-X850.4D 4-Channel 2400W Peak Class-D Full-Range IP67 Marine Amplifier
Regular price
$549.95 USD
Regular price
Sale price
$549.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 NXL-X850.4D
4-Channel 2400 Watts Peak Class-D Full-Range Marine PowerSports Amplifier
Key Features:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built-in Crossover
- Class D
- Water Resistant
Specifications:
POWER
- Total Watts (Peak): 2400W
- RMS Power @ 4 ohm: 4 x 200W
- RMS Power @ 2 ohm: 4 x 300W
- RMS Power @ 1 ohm: -
- RMS Power @ 4 ohm: Bridge 2 x 600W
AUDIO
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio: 1W@4Ω > 83dB
- Efficiency @ 4ohm: 0.83
- Input Impedance: 20KΩ
- Channel Separation: 60dB
- Total Harmonic Distortion (THD): < 0.04%
- Low-Level Input Range: 200mV-5V
- Selectable X-Over: Yes (HPF/Full/LPF)
- X-Over Filter Range: 40Hz-2KHz
- Bass Boost Range: N/A
- Bass Boost Frequency: N/A
- Infrasonic Filter: No
- Phase Selector: No
FEATURES
- Amplifier Class: Digital
- Amplifier Type Stereo: Full Range
- Number of Channels: 4
- Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)
- Led Indicators: Power / Protection / Clip
- Power Input Size: 8GA Tinned OFC
- Fuse Size: 2 x 50A (100A)
- Thermal Protection: Yes (78°C)
- Over-Load Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes (7-16V)
- Body Color / Finish: Black Brushed Aluminum
MEASUREMENTS
- Overall Length: 11.8" / 301mm
- Overall Wide: 4.4" / 112mm
- Overall Height: 1.77" / 45mm
- Heatsink Length: 10.2" / 261mm
- Gross Single Unit Weight: 2.4kg
