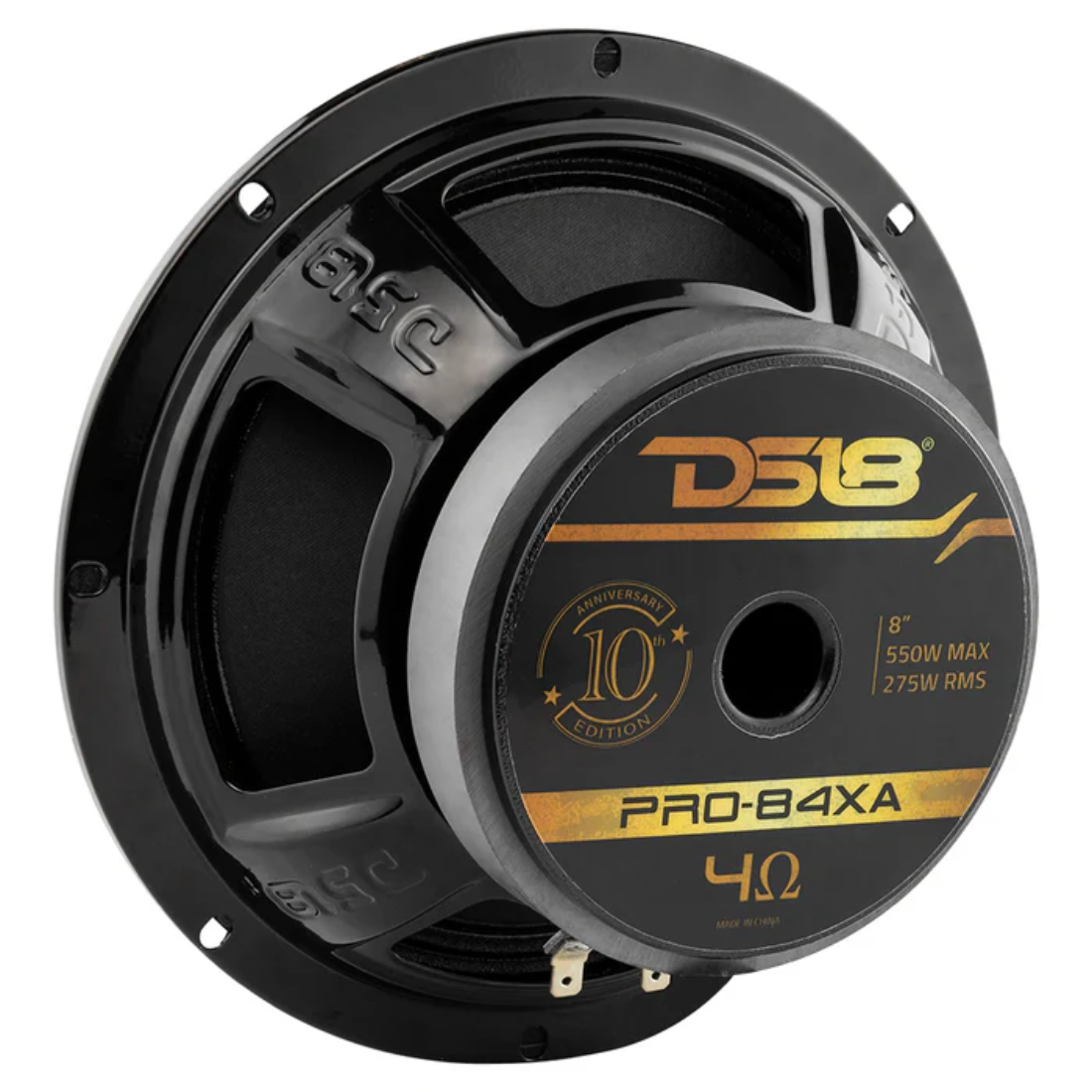

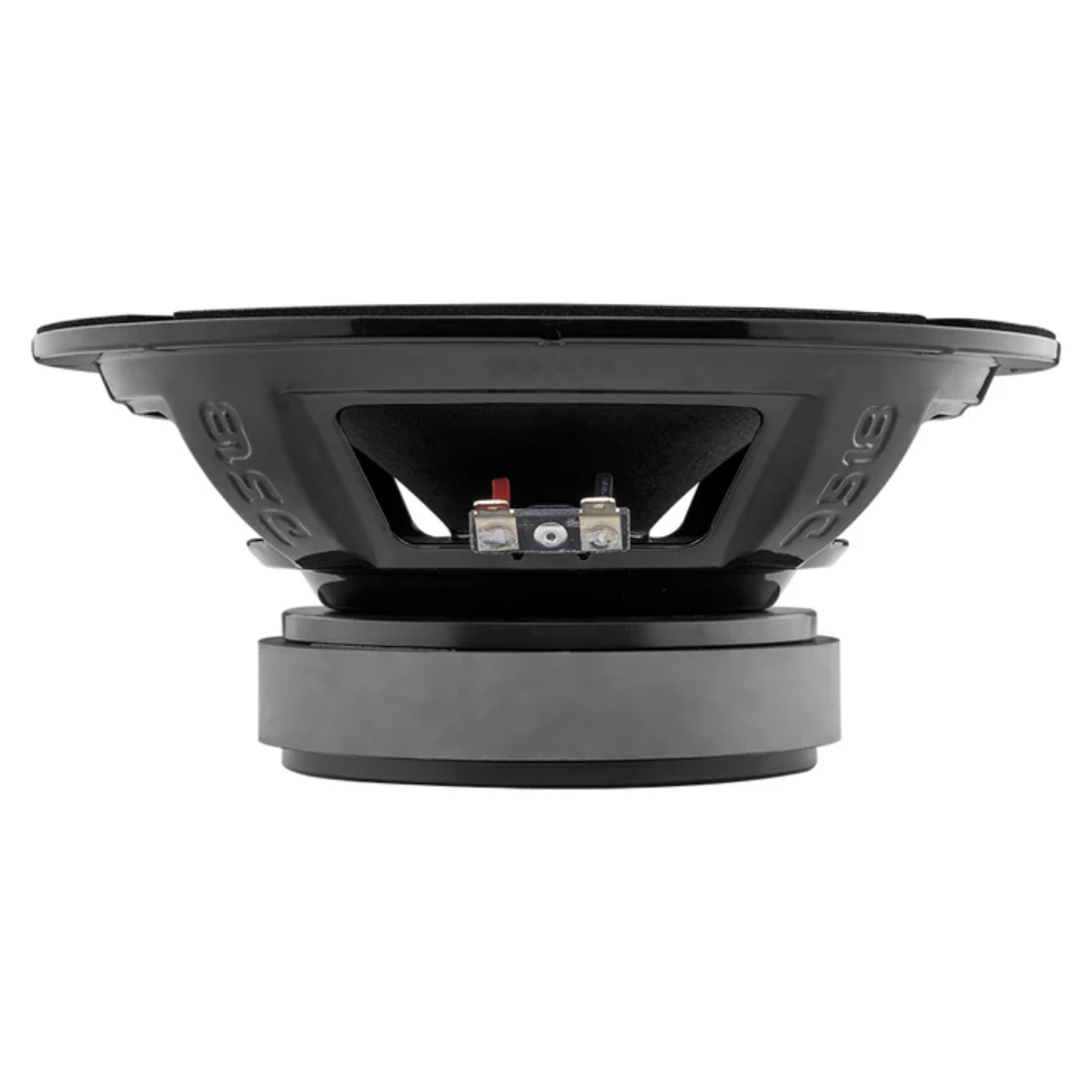

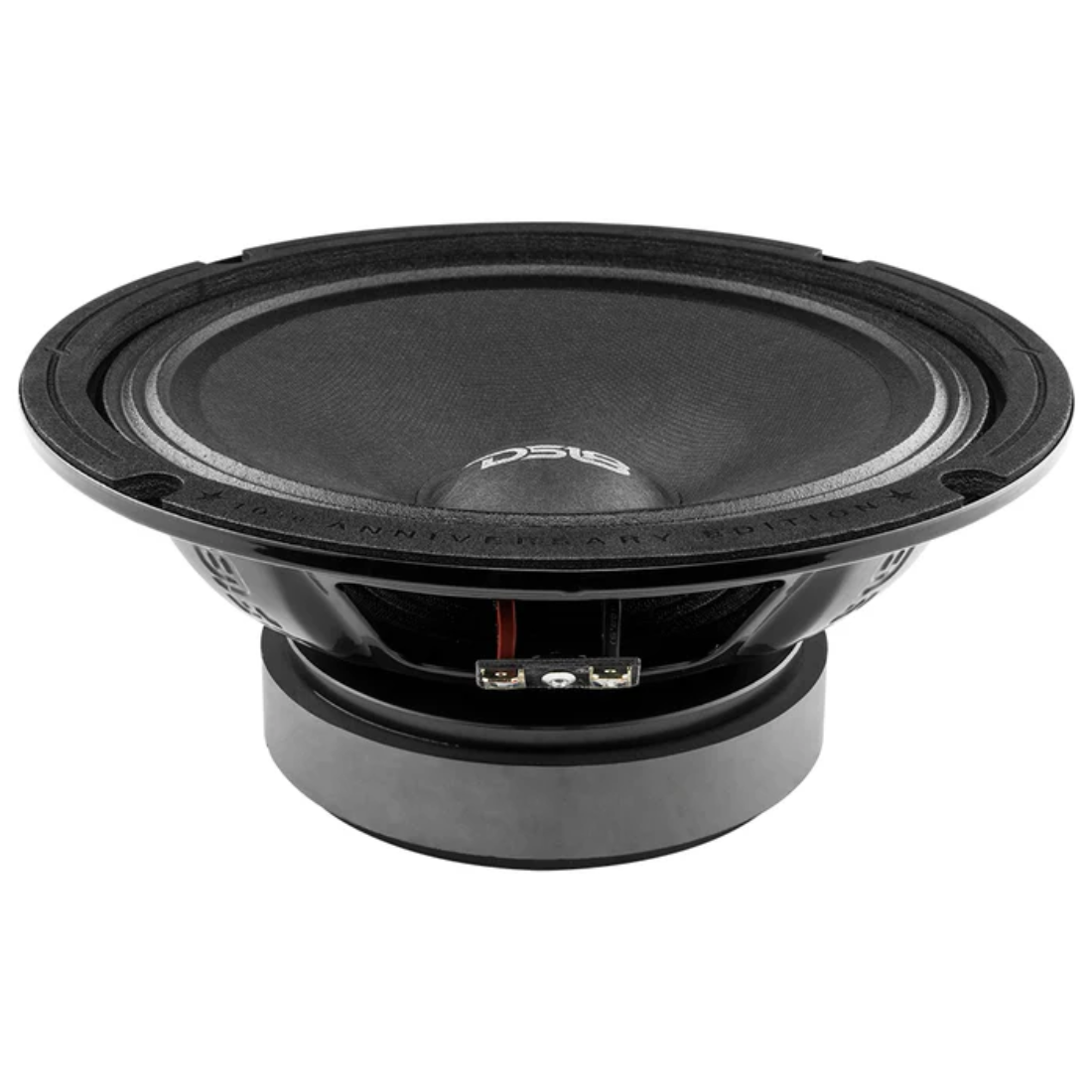

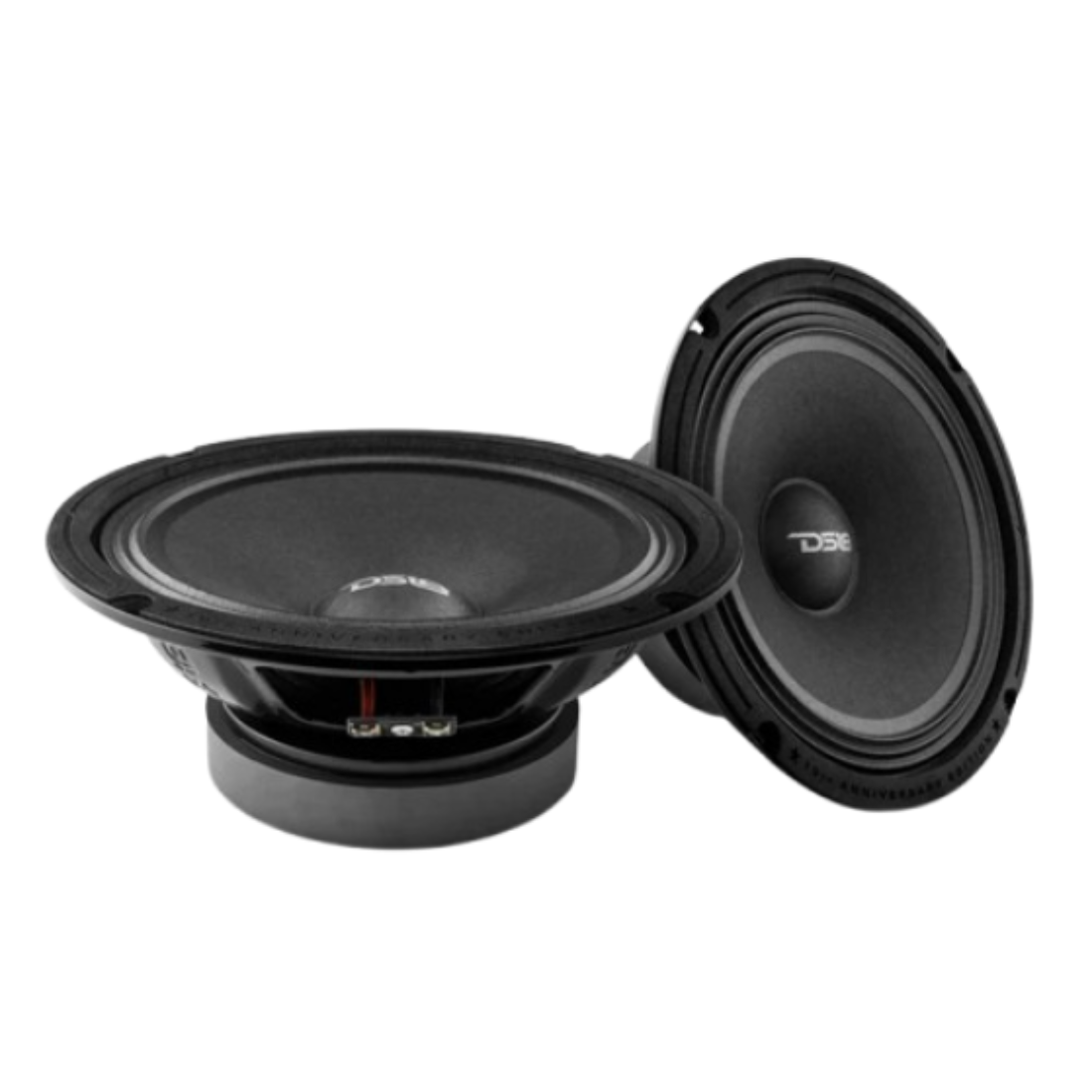

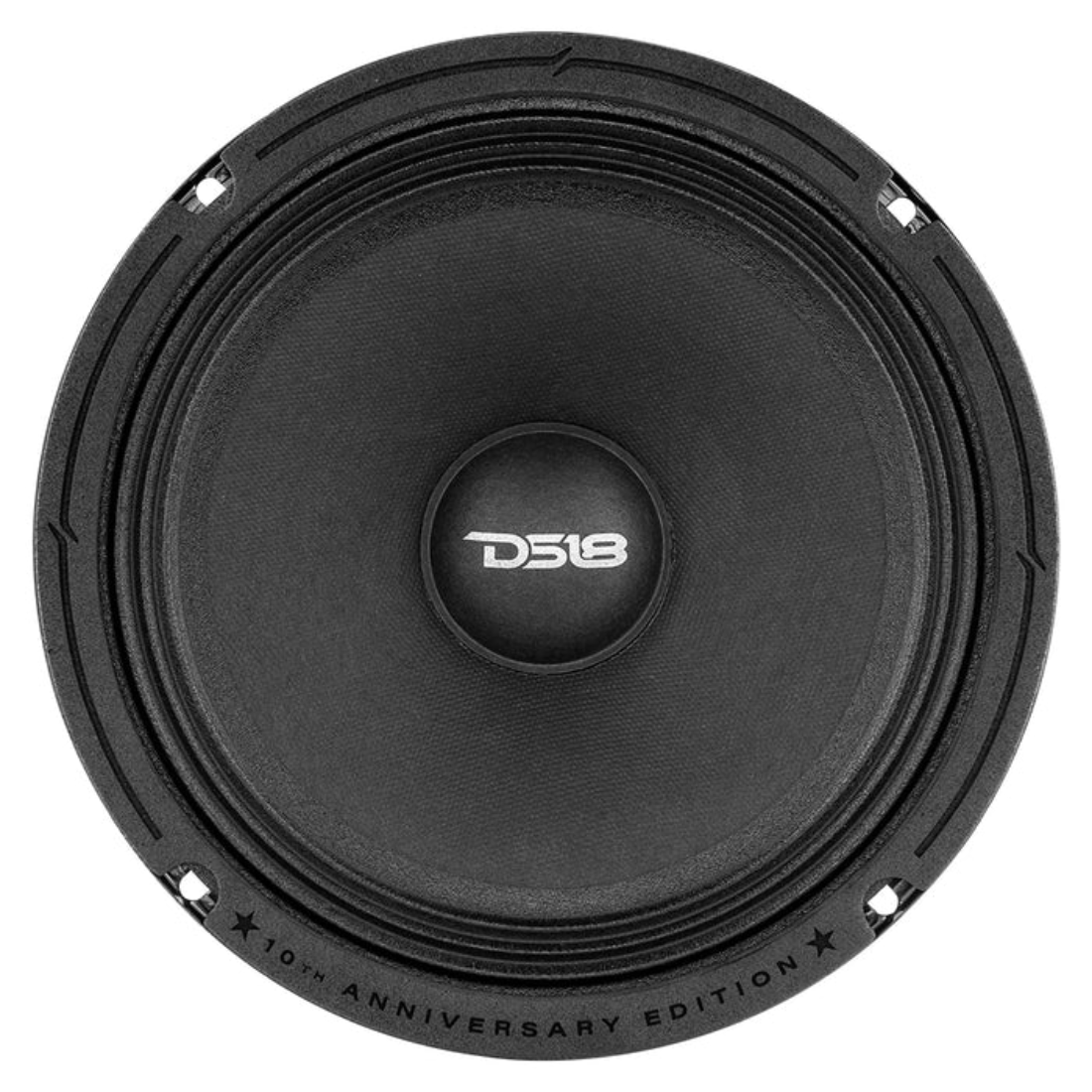

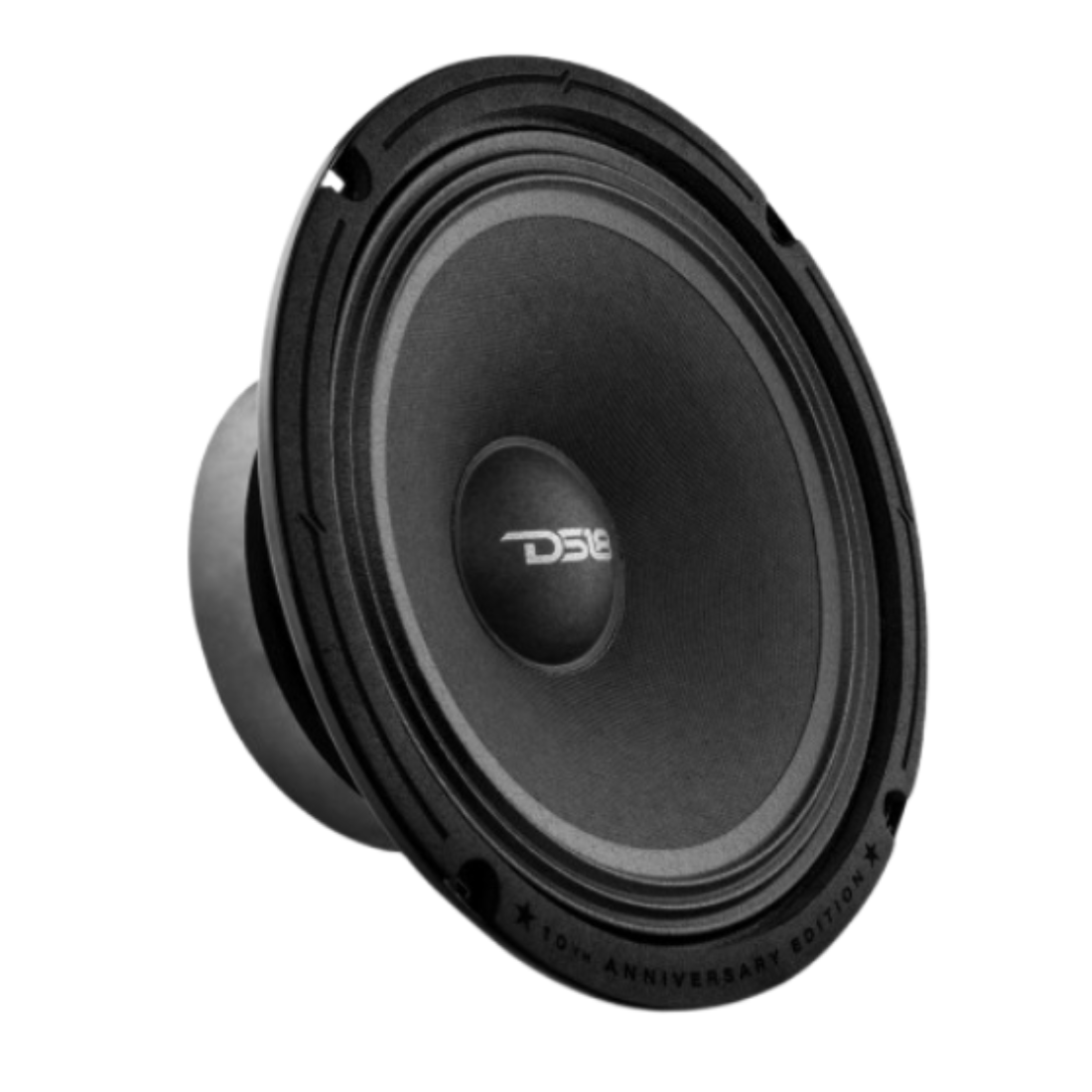

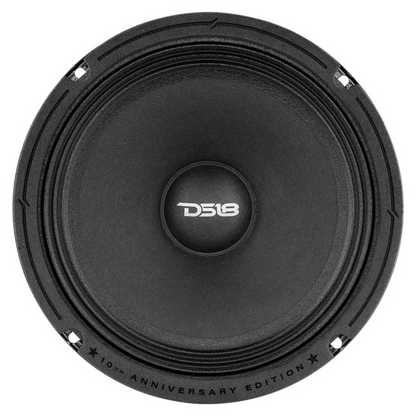

DS18 PRO-84XA 8" 550W Max 4-Ohm Mid-Bass Loudspeaker (Single) | 10th Anniversary

DS18 PRO-84XA 8" 550W Max 4-Ohm Mid-Bass Loudspeaker (Single) | 10th Anniversary

$83.95 USD
$83.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 PRO-84XA

10th Anniversary Edition | 8" 550W Max 4-Ohm Mid-Bass Loudspeaker (Single)

Key Features:

  • 8" Mid-Bass
  • MAX Power: 550 Watts
  • RMS Power: 275 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • Anniversary Edition
  • Sold In: Piece
Specifications:

  • SKU: PRO-84XA
  • Nominal Diameter: 8" / 203mm
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 275W
  • Maximum Power Handling: 550W
  • Sensitivity (1w/1m): 97.8dB
  • Frequency Response: 60Hz-8KHz
  • Recommended Hi Pass Crossover: 80Hz
  • Voice Coil Diameter: 1.5" / 38mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Basket Material: Steel
  • Magnet Weight: 33oz
Thiele & Small Parameters:

  • Vas: 18.37L / 0.64ft3
  • Xmax: 2.5mm
  • Fs: 82Hz
  • Qms: 10.34
  • Qes: 0.63
  • Qts: 0.6
  • Re: 3.82ohms
Measurements:

  • Overall Diameter: 8.25" / 209.8mm
  • Front Mount Baffle Cutout: 7.25" / 184mm
  • Mounting Depth: 3.2" / 82mm
  • Overall Depth: 3.45" / 88mm
  • Product Weight: 5 lbs
  • Product Dimensions: 9 x 9 x 4.25
View full details
