BRAND NEW

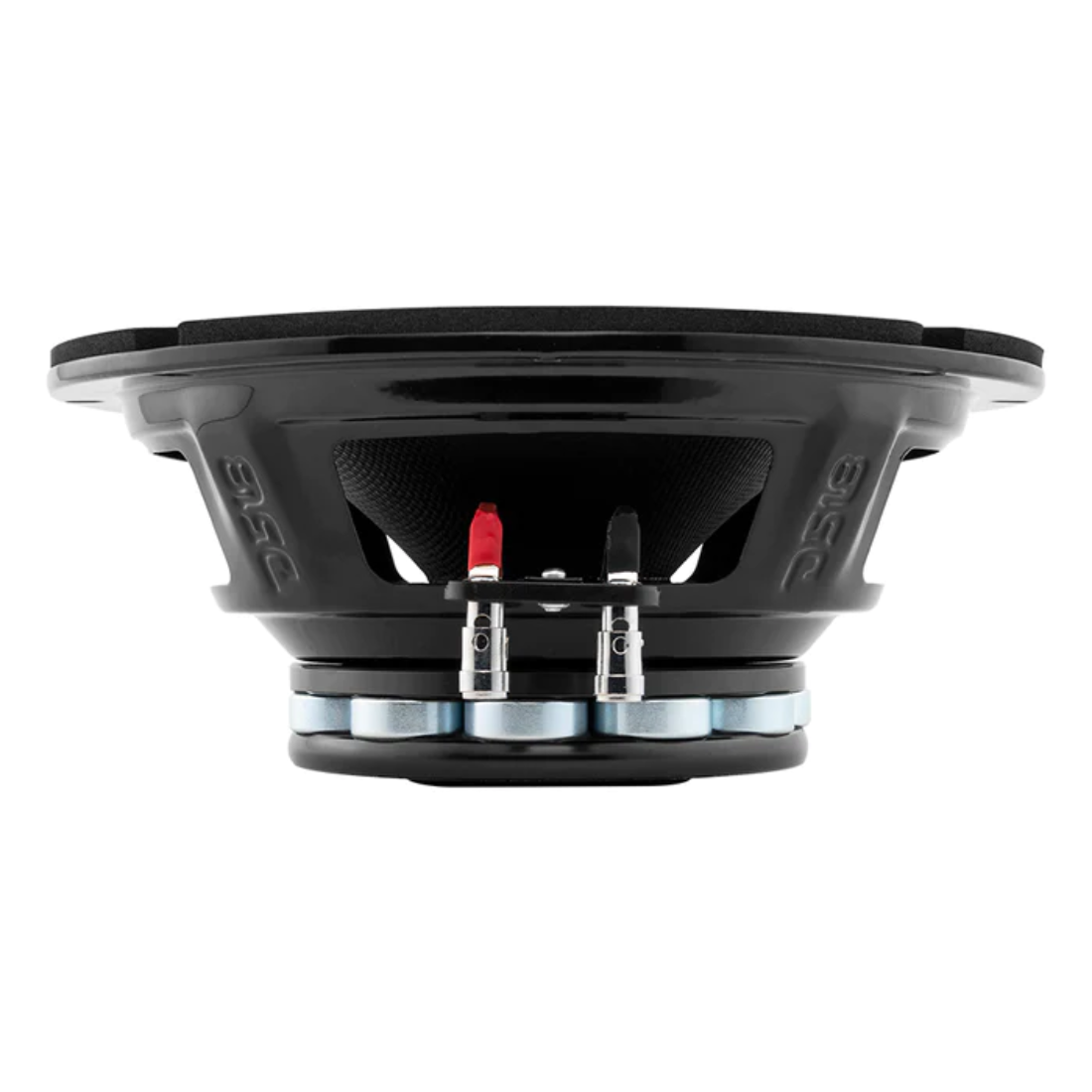

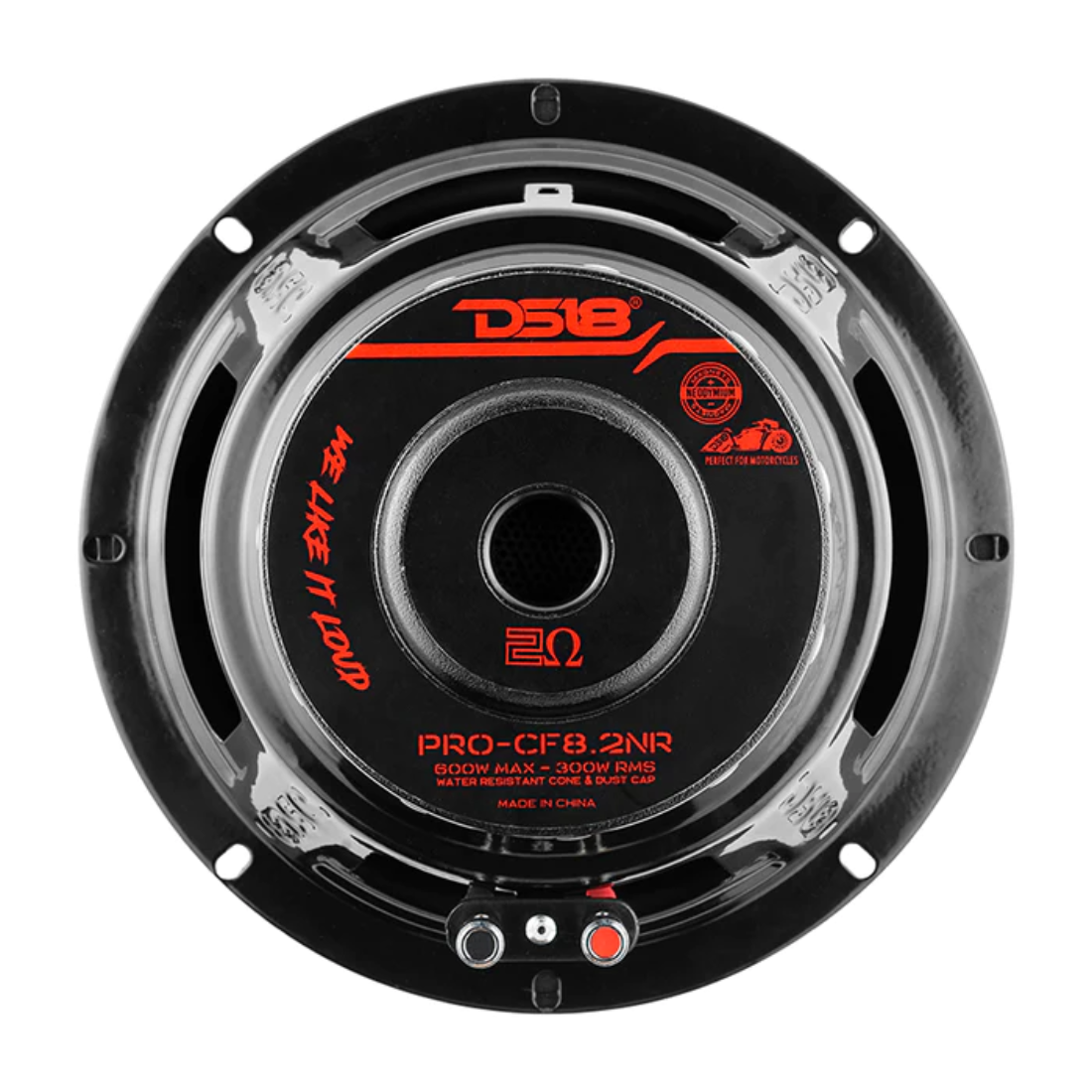

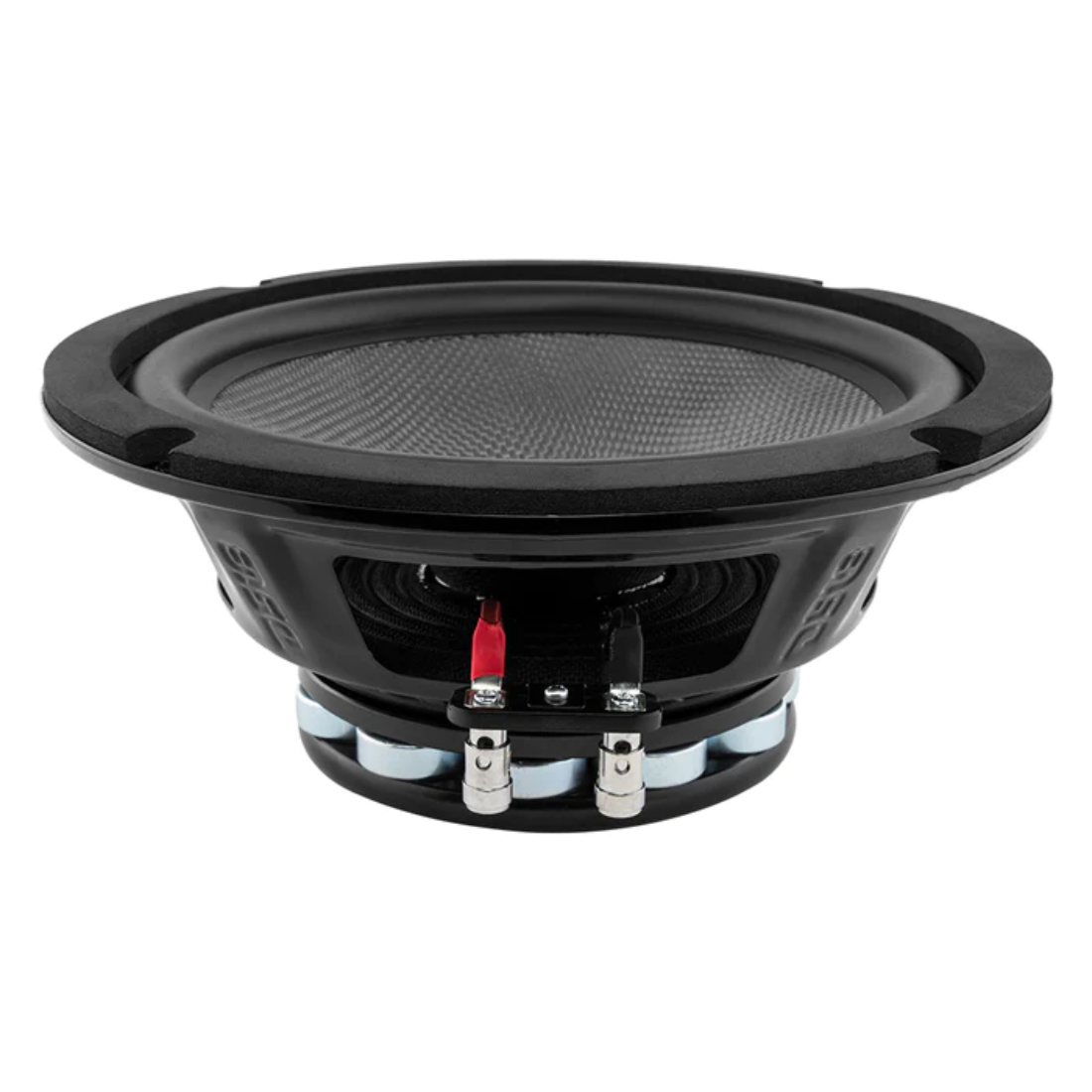

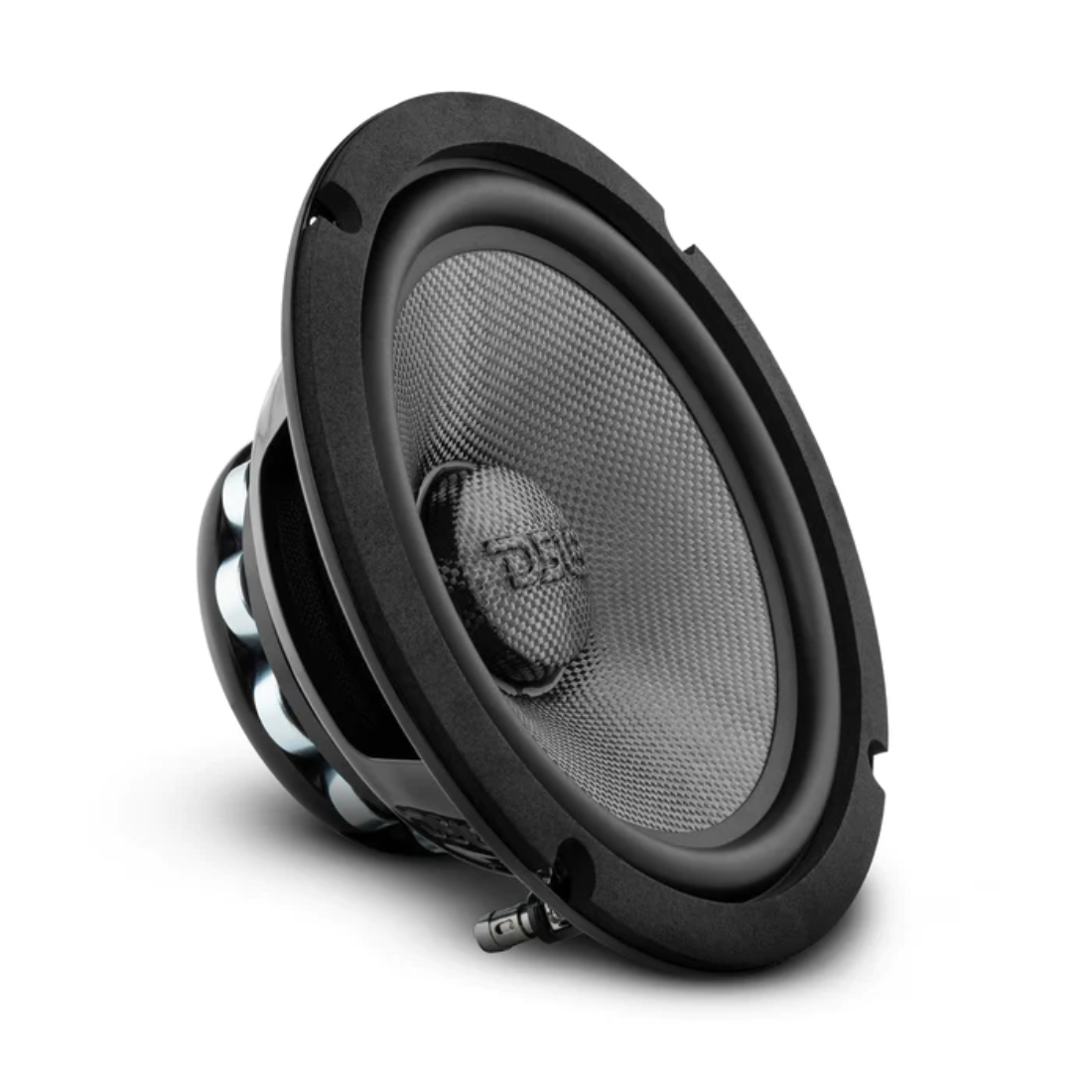

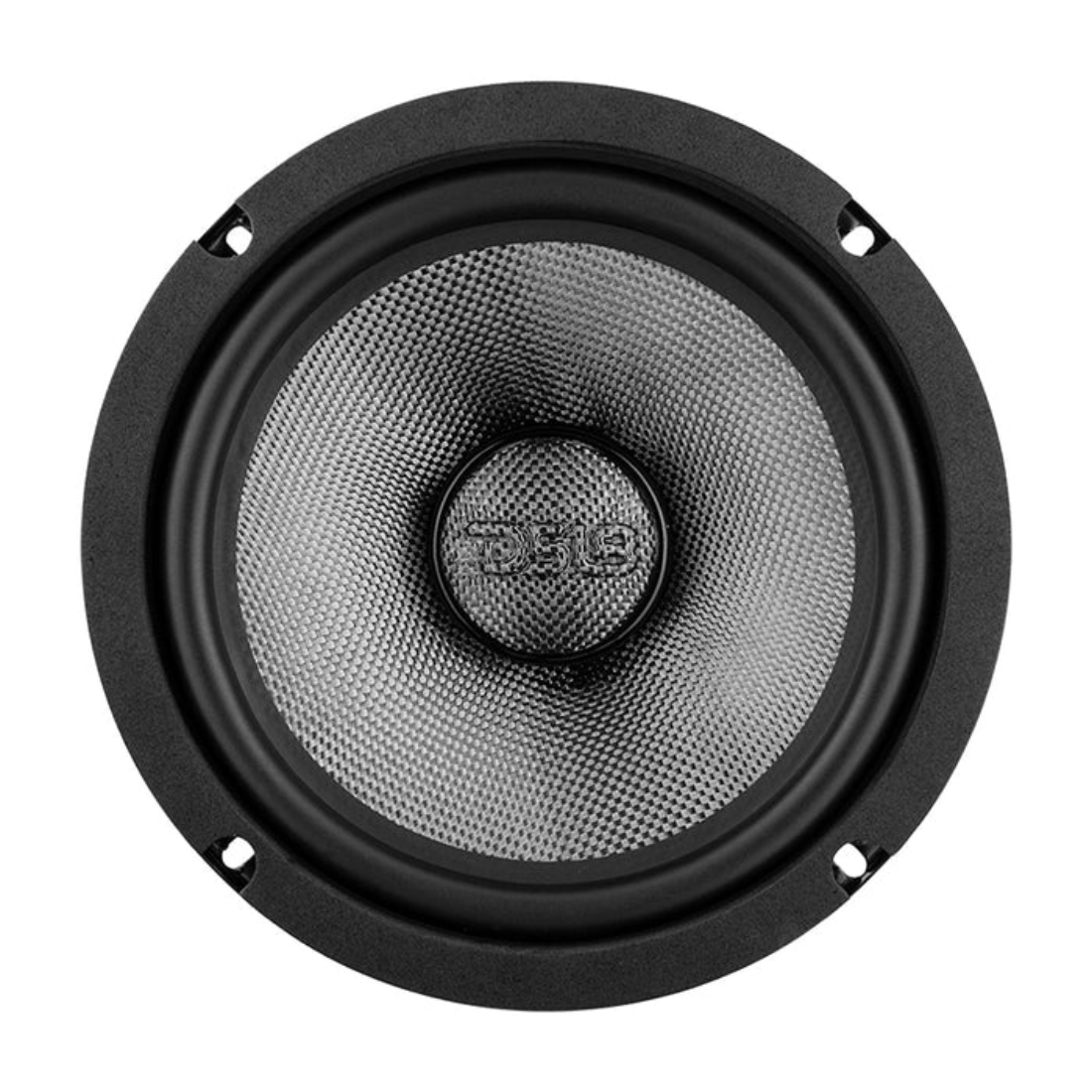

DS18 PRO-CF8.2NR

8" 600W Max Water-Resistant Carbon Fiber Cone Mid-Bass Loudspeaker

Key Features:

  • 8" Mid-Bass w/Water Resistant Carbon Fiber Cone
  • MAX Power: 600 Watts
  • RMS Power: 300 Watts
  • Impedance: 2-Ohm
  • Neodymium Magnet
  • 96dB
Technical Specs:

  • SKU: PRO-CF8.2NR
  • Nominal Diameter: 8" / 203mm
  • Nominal Impedance: 2 OHMS
  • RMS Power Handing: 300 WATTS
  • Maximum Power Handing: 600 WATTS
  • Sensitivity (1w/1m): 96 dB
  • Frequency Response: 63Hz - 12KHz
  • Recommended Hi Pass Crossover: 80 Hz
  • Voice Coil Diameter: 2" / 50 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Basket Materia: Steel
  • Magnet Weight: 0.3 Kg
Thiele & Small Parameters:

  • Vas: 44.8L / 1.584 ft3
  • Xmax: 2.5 mm
  • Fs: 57 Hz
  • Qms: 10.343
  • Qes: 0.434
  • Qts: 0.416
  • Re: 1.96 OHM
Measurements:

  • Overall Diameter: 8.29" / 210.7 mm
  • Front Mount Baffle Cutout: 7.16" / 182 mm
  • Mounting Depth: 3.2" / 81.5 mm
  • Overall Depth: 3.38" / 86 mm
  • Product Weight: 4.5 lbs
  • Product Dimensions: 9.75 x 9.75 x 4.75
  • M/C Weight: 39 lbs
  • M/C Dimensions: 20.5 x 20.5 x 10
  • M/C QTY: 8
  • Sold In: Piece
