DS18 PRO-CF8.4SL 8" 550W Max 4-Ohm Shallow Carbon Fiber Mid-Bass Car Loudspeaker

DS18 PRO-CF8.4SL 8" 550W Max 4-Ohm Shallow Carbon Fiber Mid-Bass Car Loudspeaker

$95.95 USD
$95.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 PRO-CF8.4SL

8-inch 550 Watts Max 4-Ohm Shallow Carbon Fiber Mid-Bass Loudspeaker

Key Features:

  • 8" Shallow Mid-Bass
  • Water Resistant Carbon Fiber Cone
  • RMS Power 275 Watts(550 Watts Peak)
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • 96dB
Specifications:

  • SKU: PRO-CF8.4SL
  • Nominal Diameter: 8" / 203 mm
  • Nominal Impedance: 4 OHMS
  • RMS Power Handling: 275 Watts
  • Maximum Power Handling: 550 Watts
  • Sensitivity (1w/1m): 96 dB
  • Frequency Response: 60Hz-12.5KHz
  • Recommended Hi Pass Crossover: 80 Hz
  • Voice Coil Diameter: 1.5" / 38.5 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Basket Material: Steel
  • Magnet Weight: 33.5Oz
Thiele & Small Parameters:

  • Vas: 18.78 L / 0.663 ft3
  • Xmax: 2.5 mm
  • Fs: 108 Hz
  • Qms: 19.02
  • Qes: 0.928
  • Qts: 0.88
  • Re: 3.8 OHMS
Measurements:

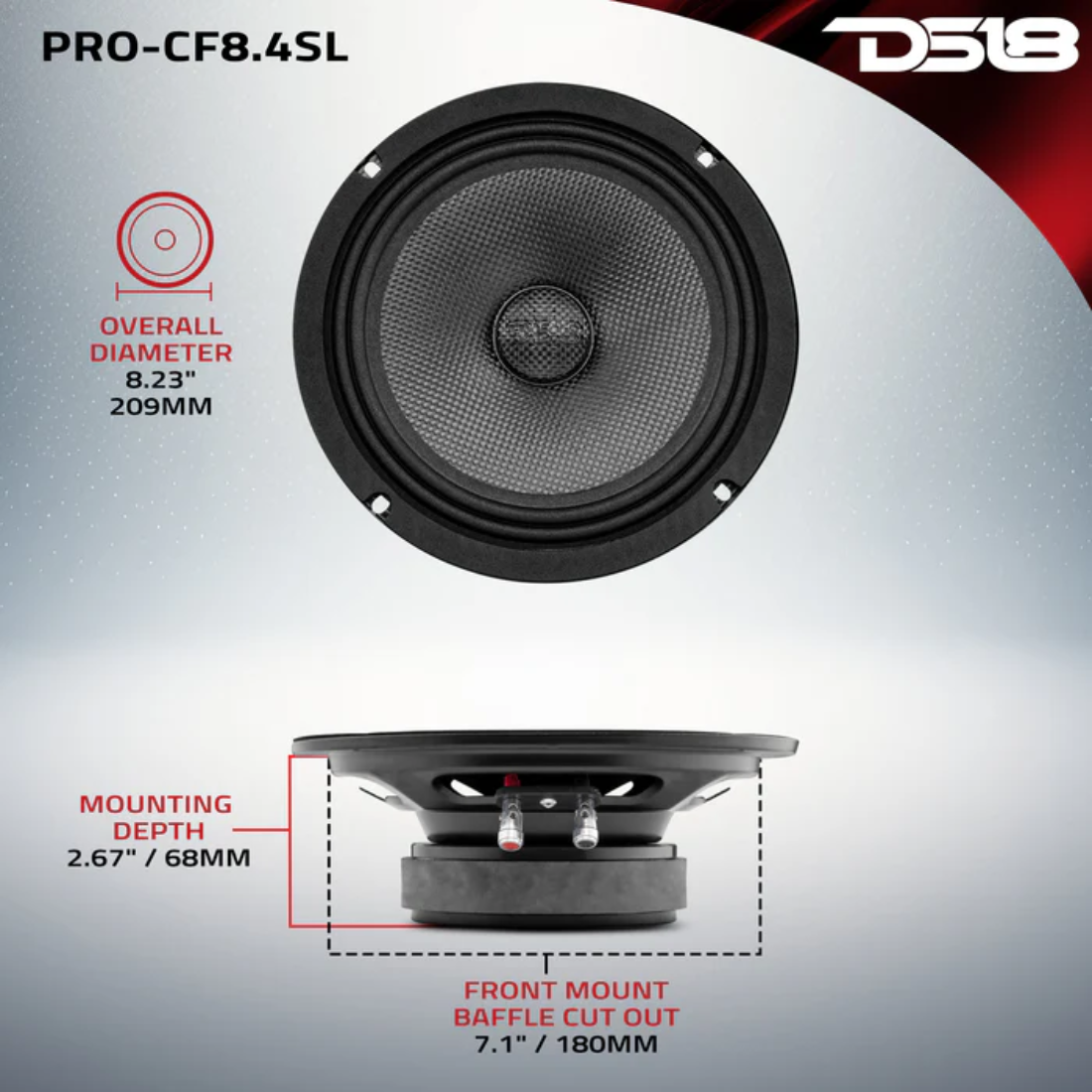

  • Overall Diameter: 8.23" / 209 mm
  • Front Mount Baffle Cutout: 7.1" / 180 mm
  • Mounting Depth: 2.67" / 68 mm
  • Overall Depth: 2.95" / 75 mm
  • Product Weight: 5 lbs
  • Product Dimensions: 9 x 9 x 3.5
  • Sold In: Piece
