BRAND NEW

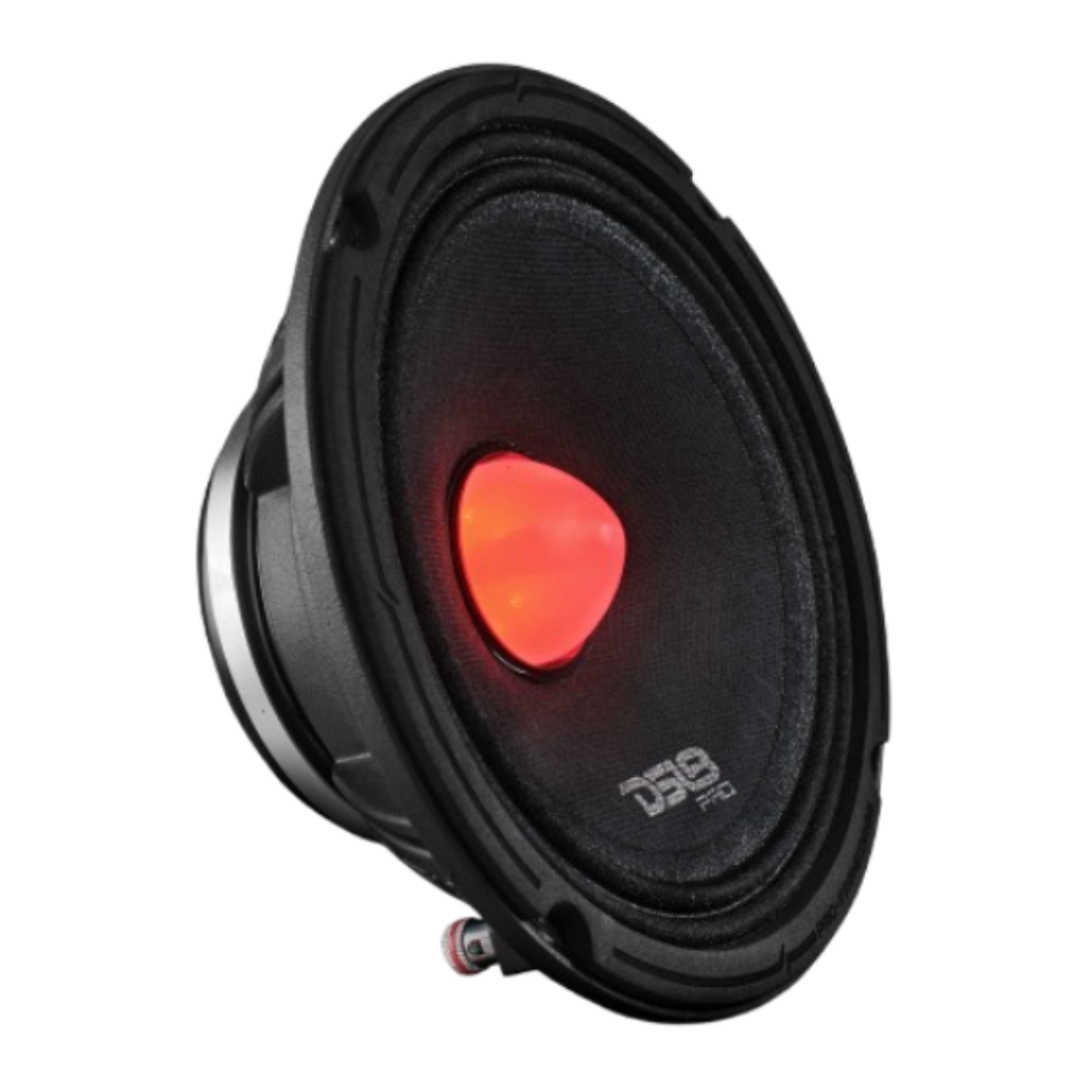

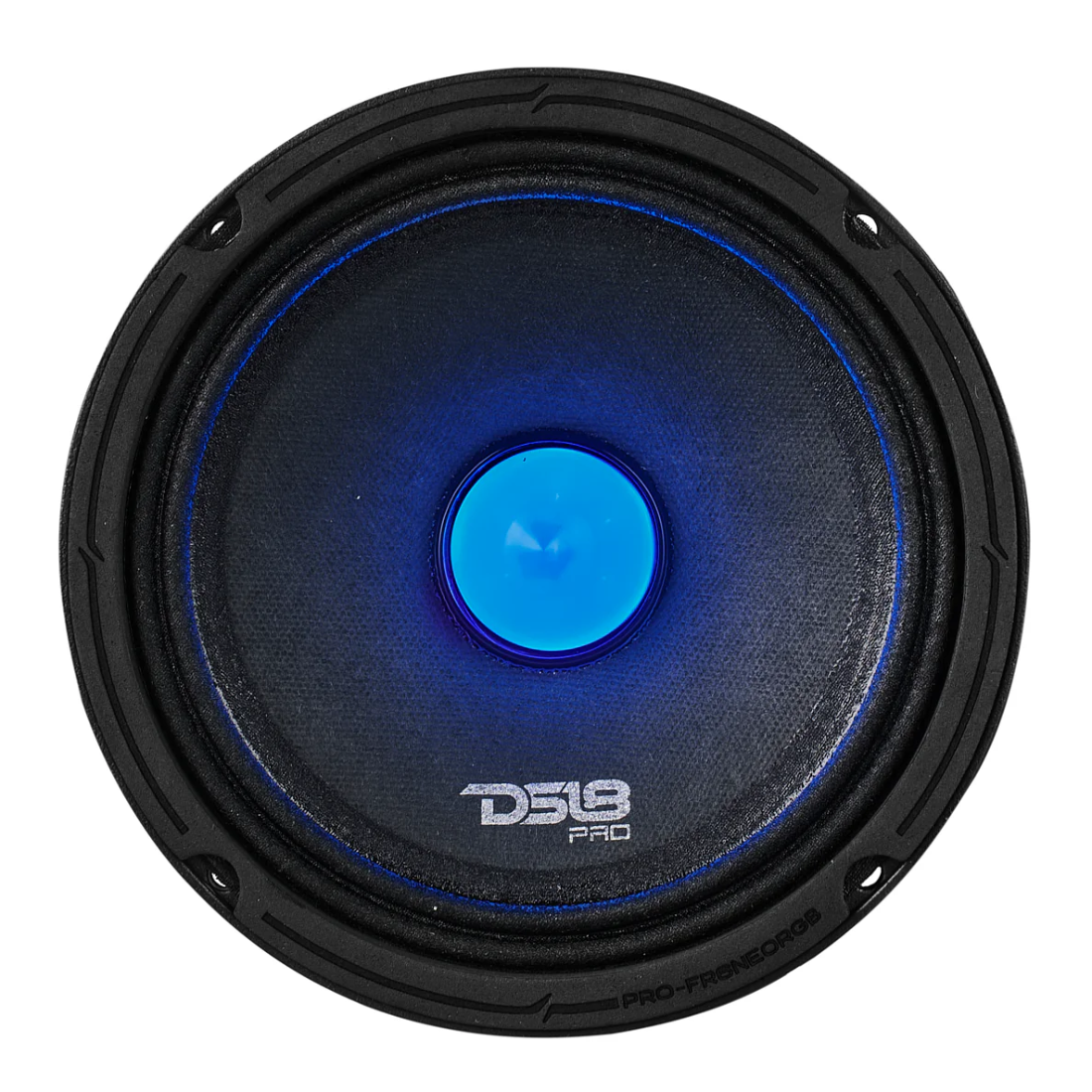

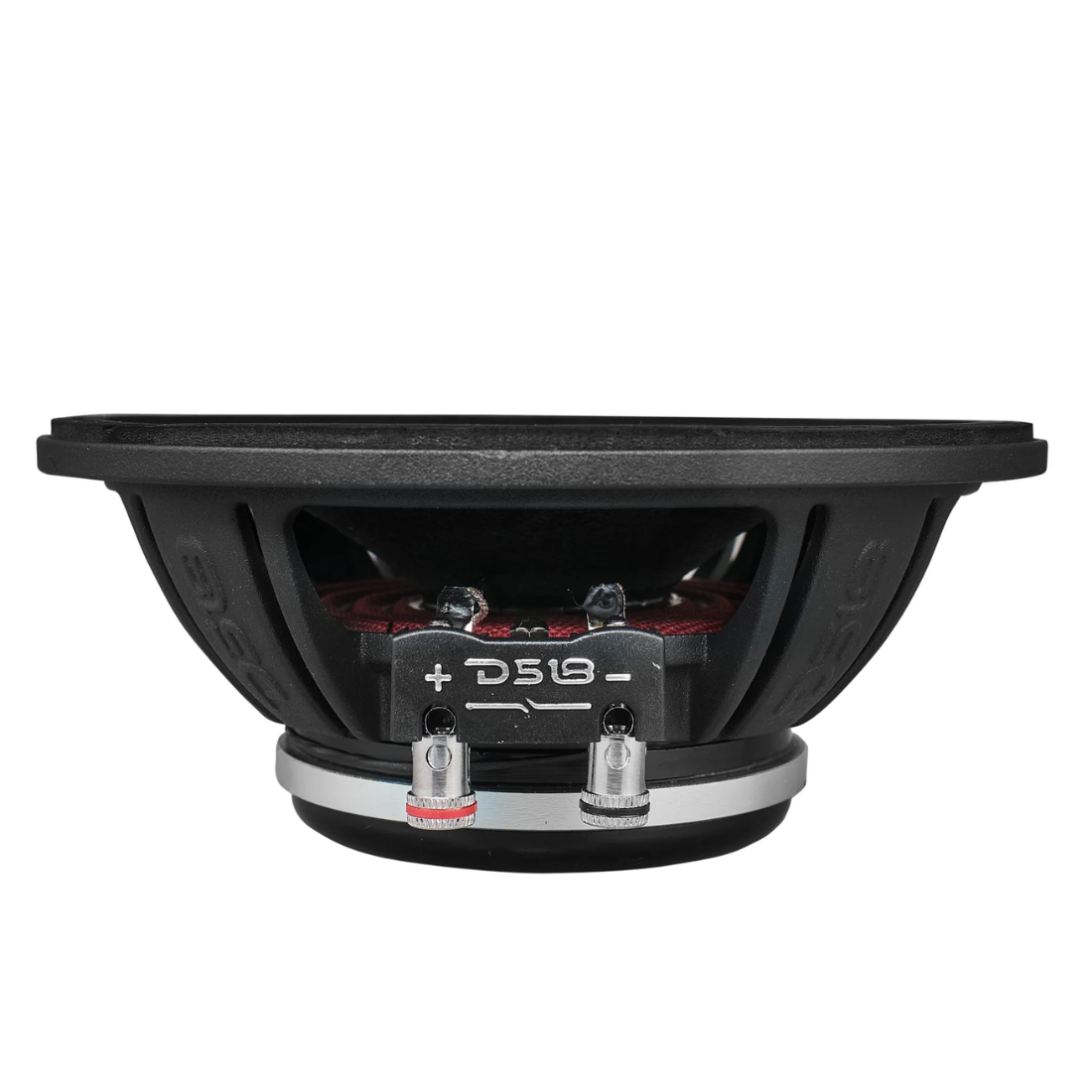

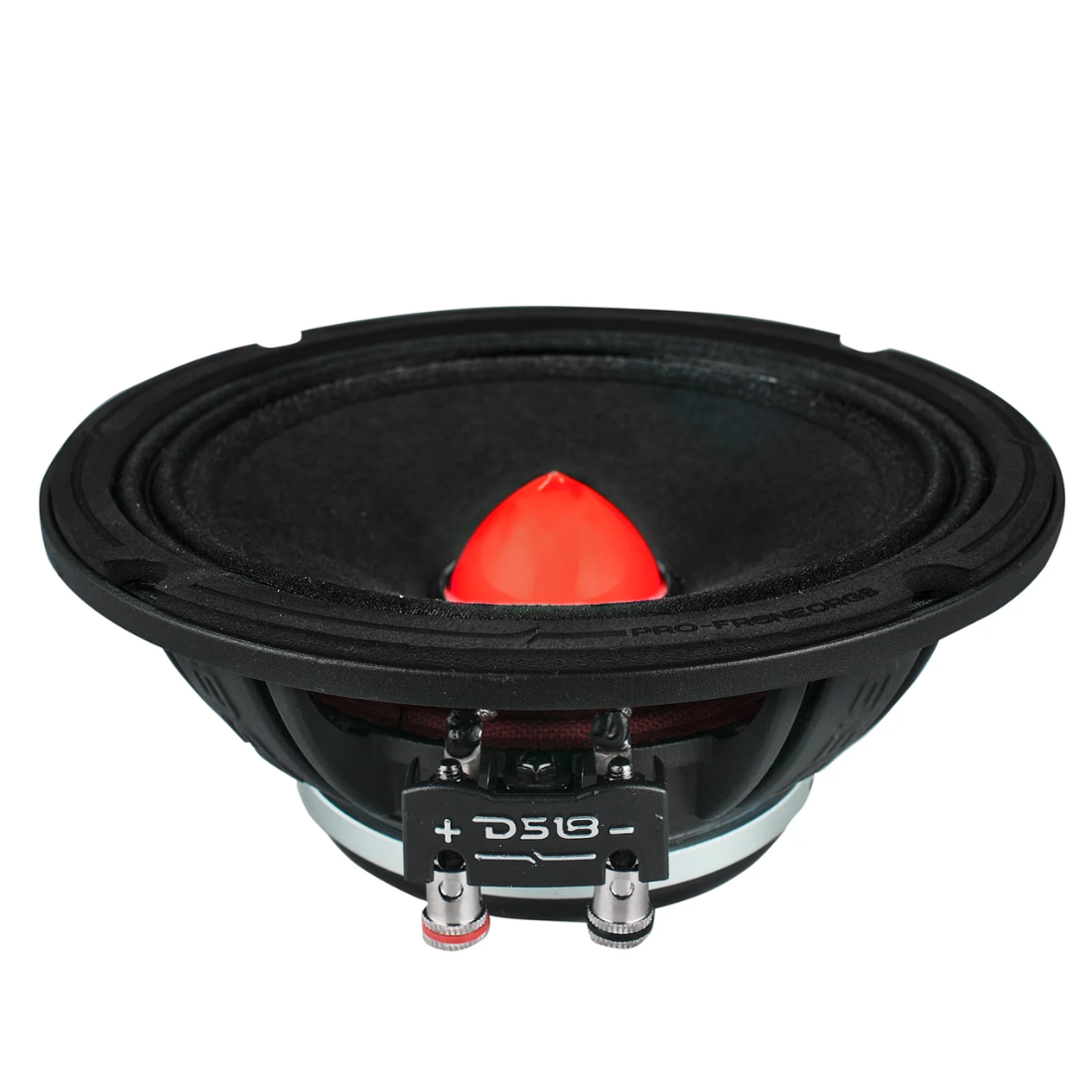

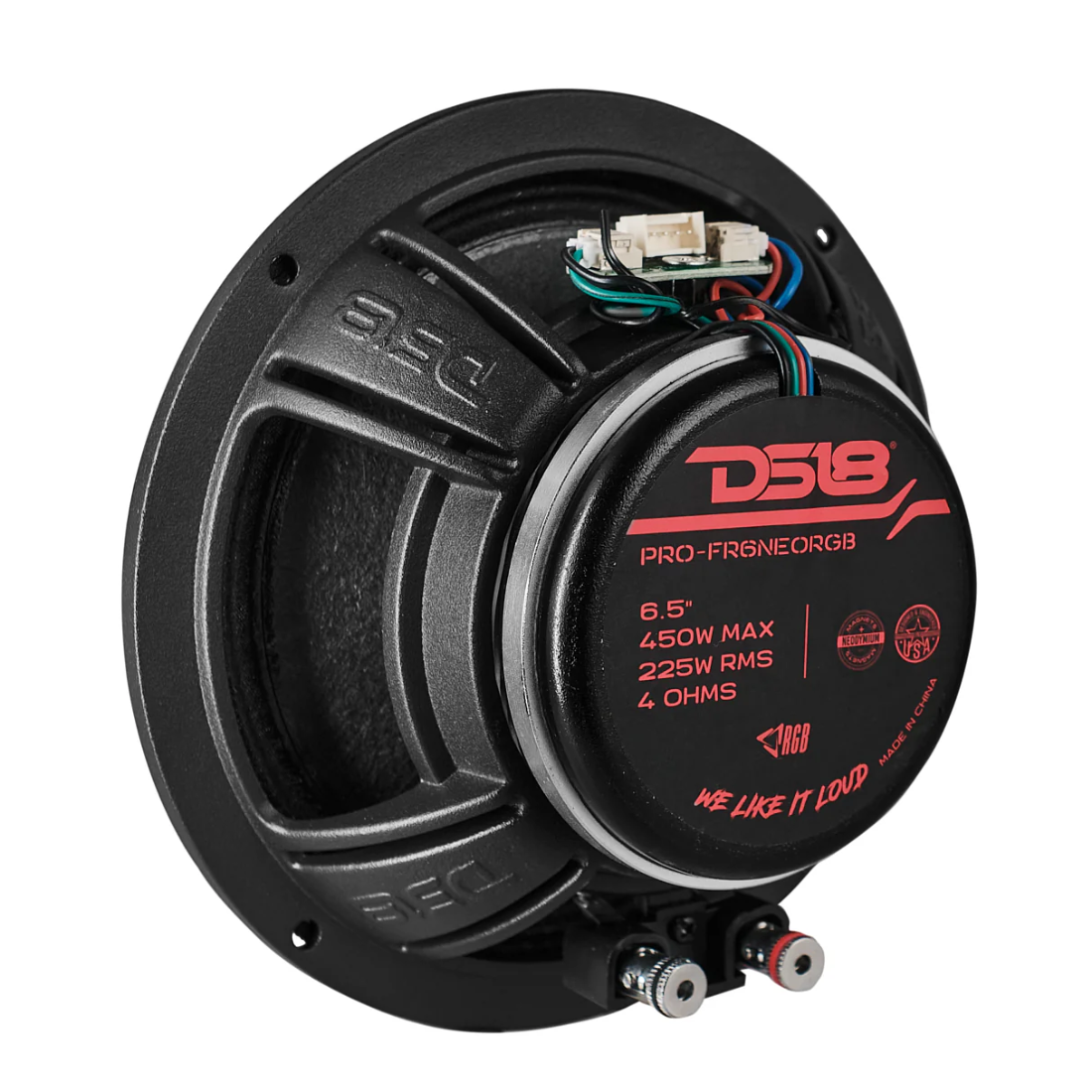

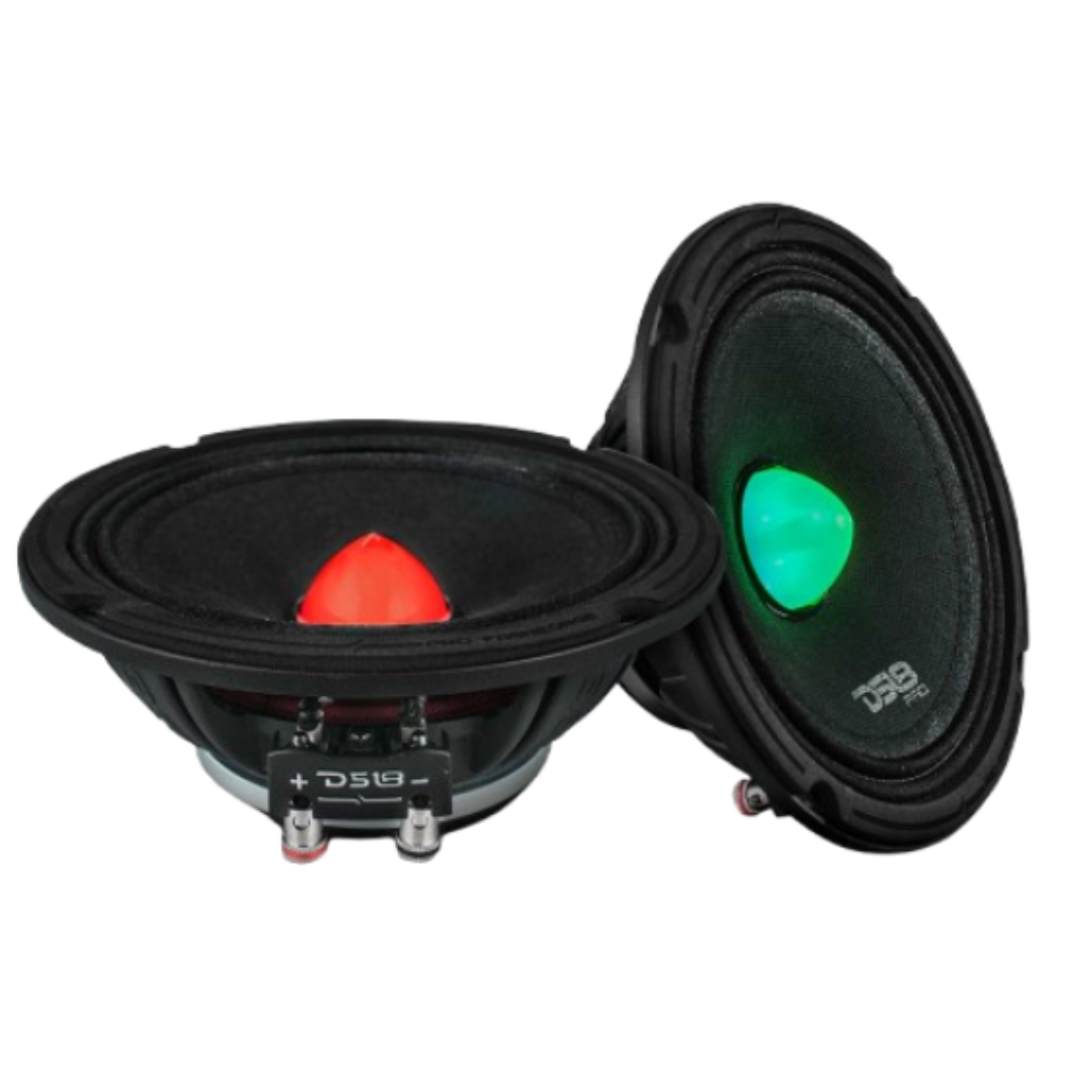

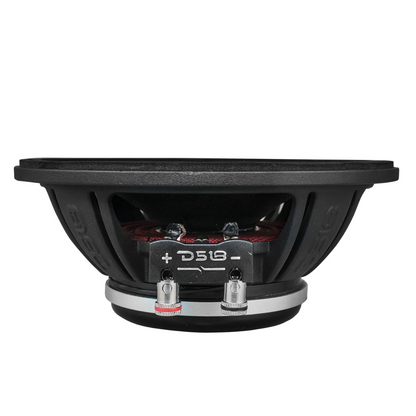

DS18 PRO-FR6NEORGB
6.5-inch 450 Watts Max 4-Ohm Full Range Loudspeaker w/ RGB (Single)
Key Features:
- 6.5" Full-Range w/ RGB Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- With RGB LED Lights
Specifications:
- SKU: PRO-FR6NEO
- Nominal Diameter: 6.5" / 165mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 225W
- MAX Power Handling: 450W
- Sensitivity (1w/1m): 96dB
- Frequency Response: 200Hz-16KHz
- Recommended HI Pass Crossover: 200HZ
- Sold in Pair or Single: Single
- Grill Included: Yes
Motor Features:
- Voice Coil Diameter: 1.5" / 38.6mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Bullet Material: CNC Aluminum
- Surround Material: Cloth
- Basket Material: Aluminum
- Magnet Material: Neodymium
- Magnet Weight: 7.67Oz
- Displacement Volume: 0.042L / 0.0015ft3
Thiele & Small Parameters:
- Equivalent Volume Vas: 2.11L / 0.074ft3
- Excursion (one way) Xmax: 0.8mm
- Free Air Resonance Fs: 166Hz
- Mechanical Factor Qms: 3.173
- Electrical Factor Qes: 0.409
- Total Factor Qts: 0.362
- Mechanical Mass Mms: 11.31g
- Mechanical Compliance Cms: 0.08mm/H
- BL Factor BL: 9.79
- Voice Coil Inductance Le: 0.472mH
- Cone Area Sd: 136.85cm2
- DC Resistance Re: 3.3 ohm
Measurement:
- Overall Diameter: 6.5" / 165 mm
- Overall Diameter (With Grill): 7.1" / 181mm
- Overall Depth: 2.63" / 67 mm
- Overall Depth (With Grill): 3.45" / 88mm
- Front Mount Baffle Cutout: 5.7" / 145 mm
- Mounting Depth: 2.36" / 60 mm
- Motor Diameter: 3.54" / 90mm
