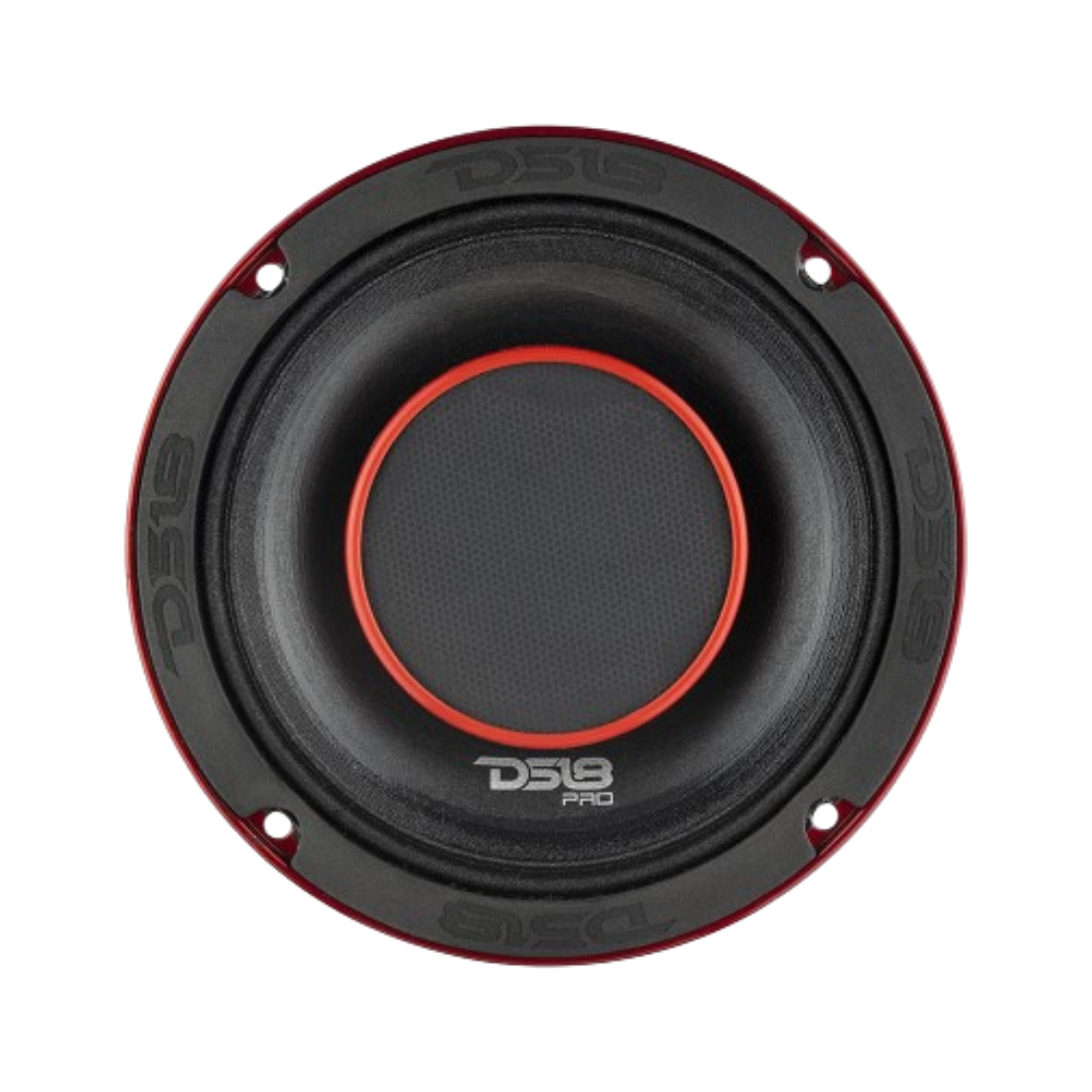

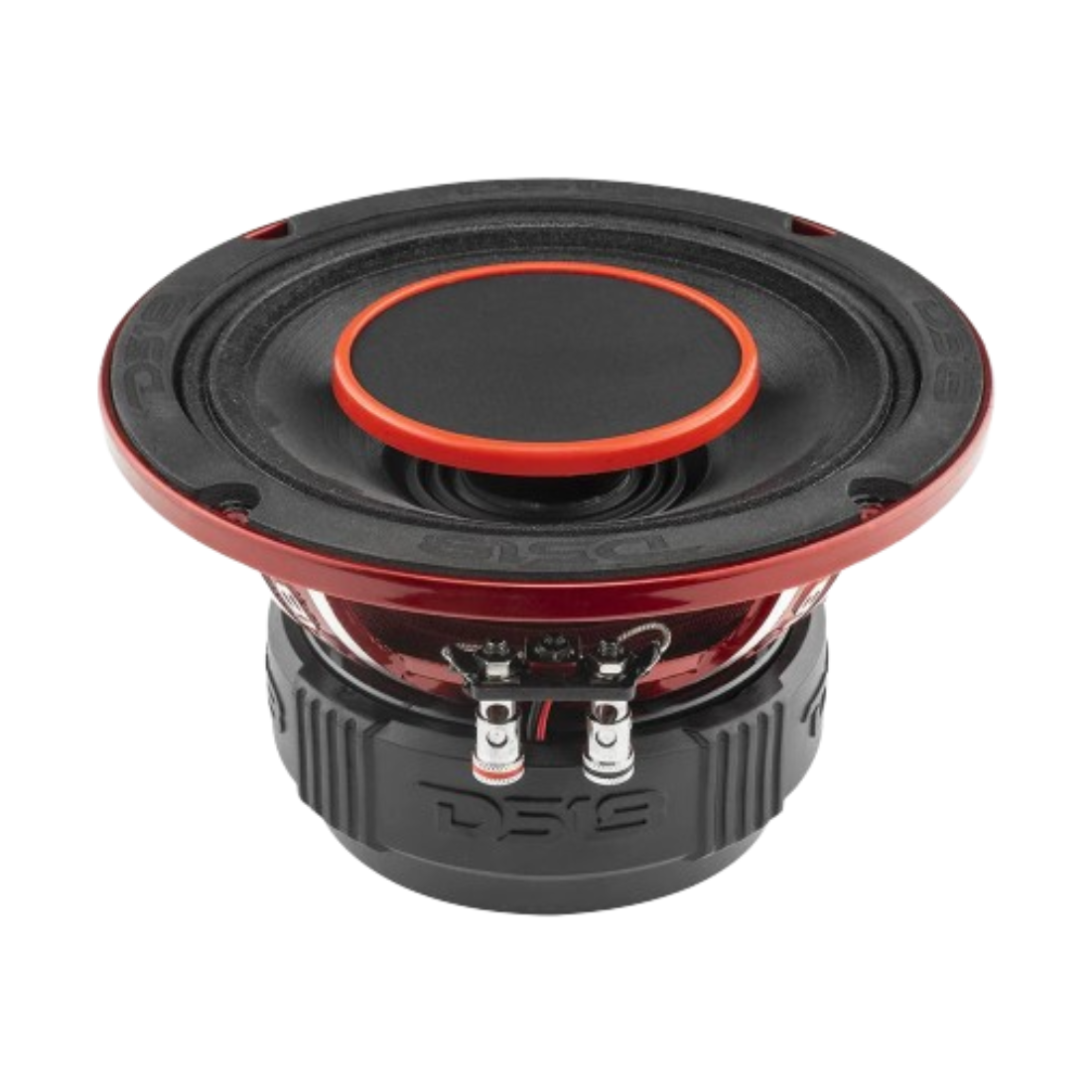

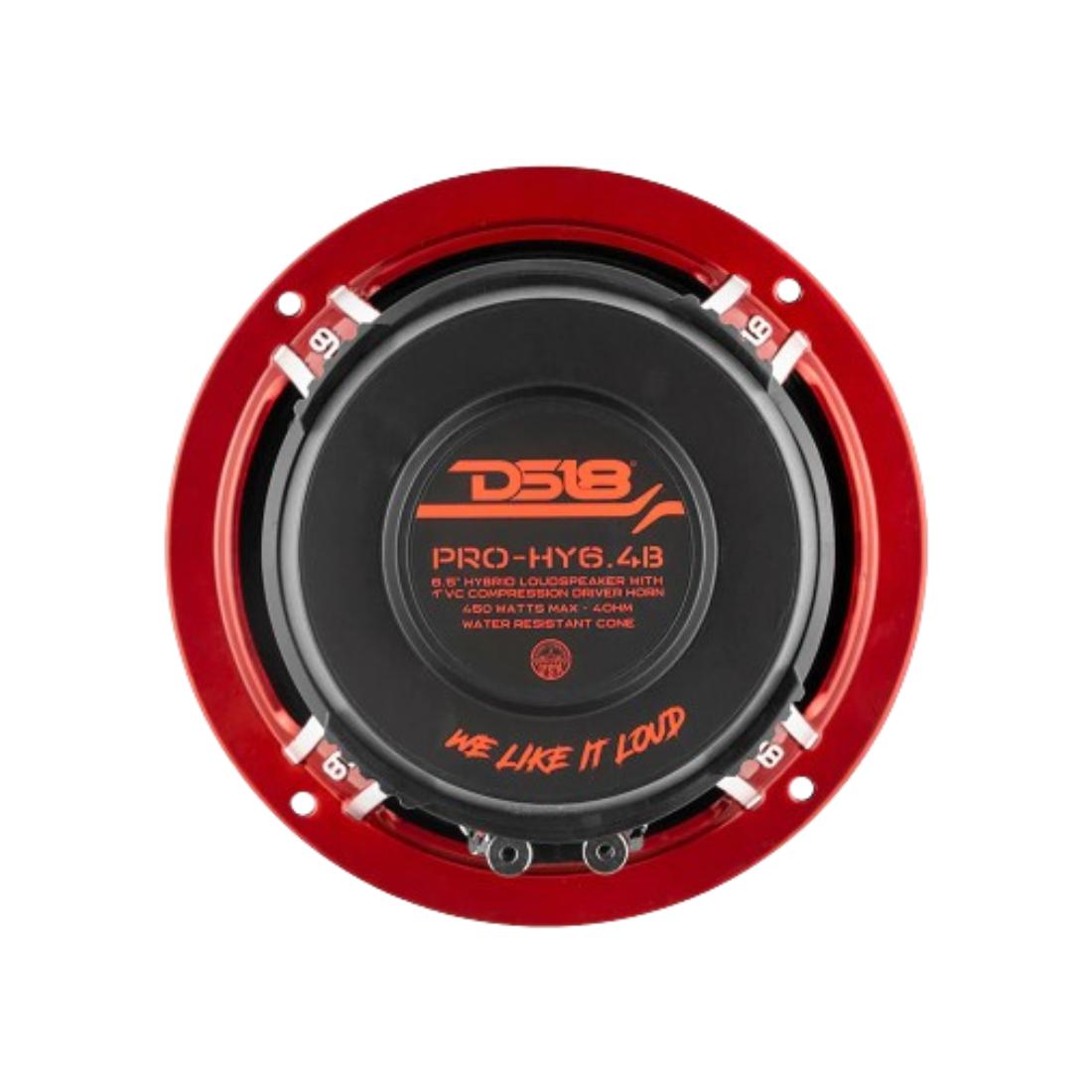

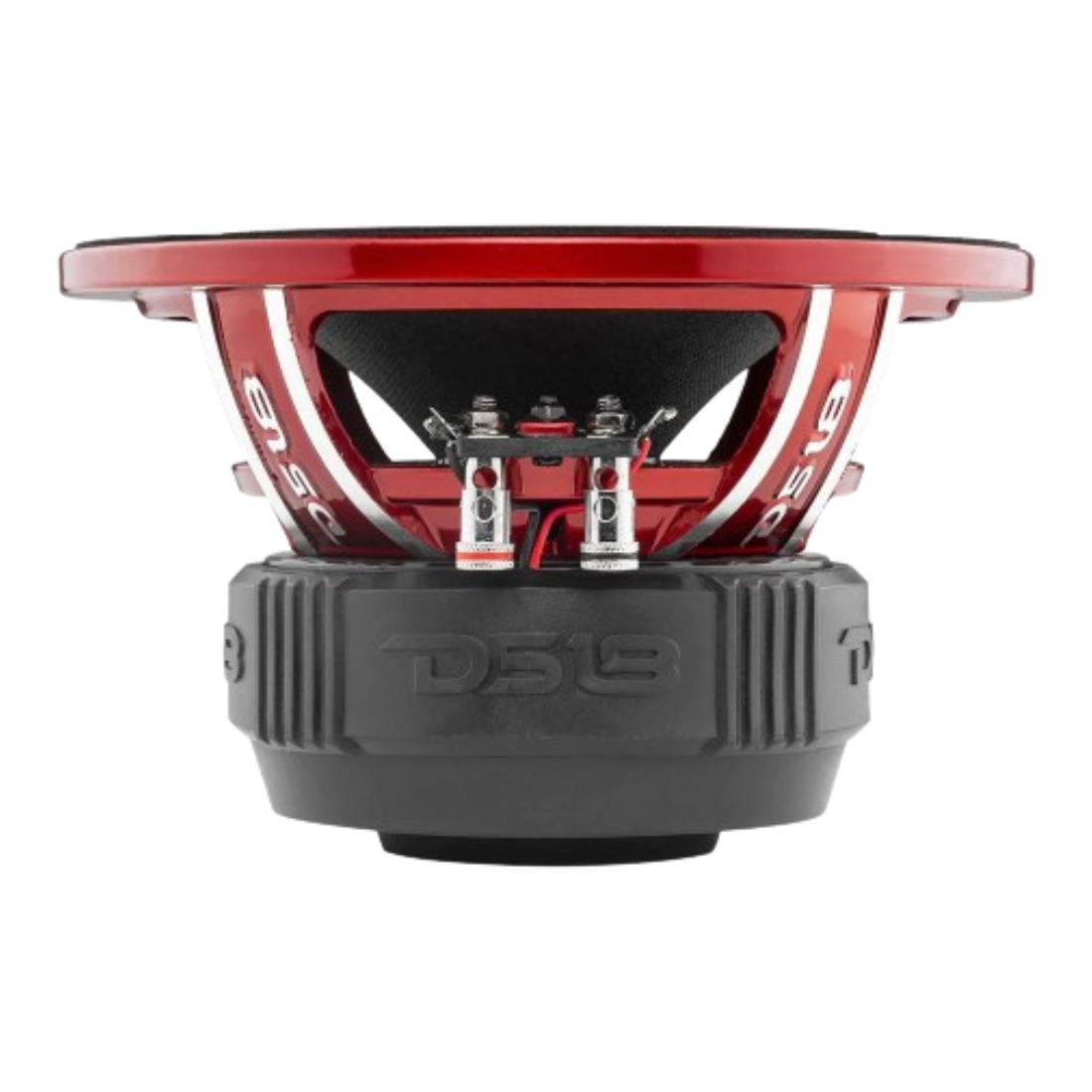

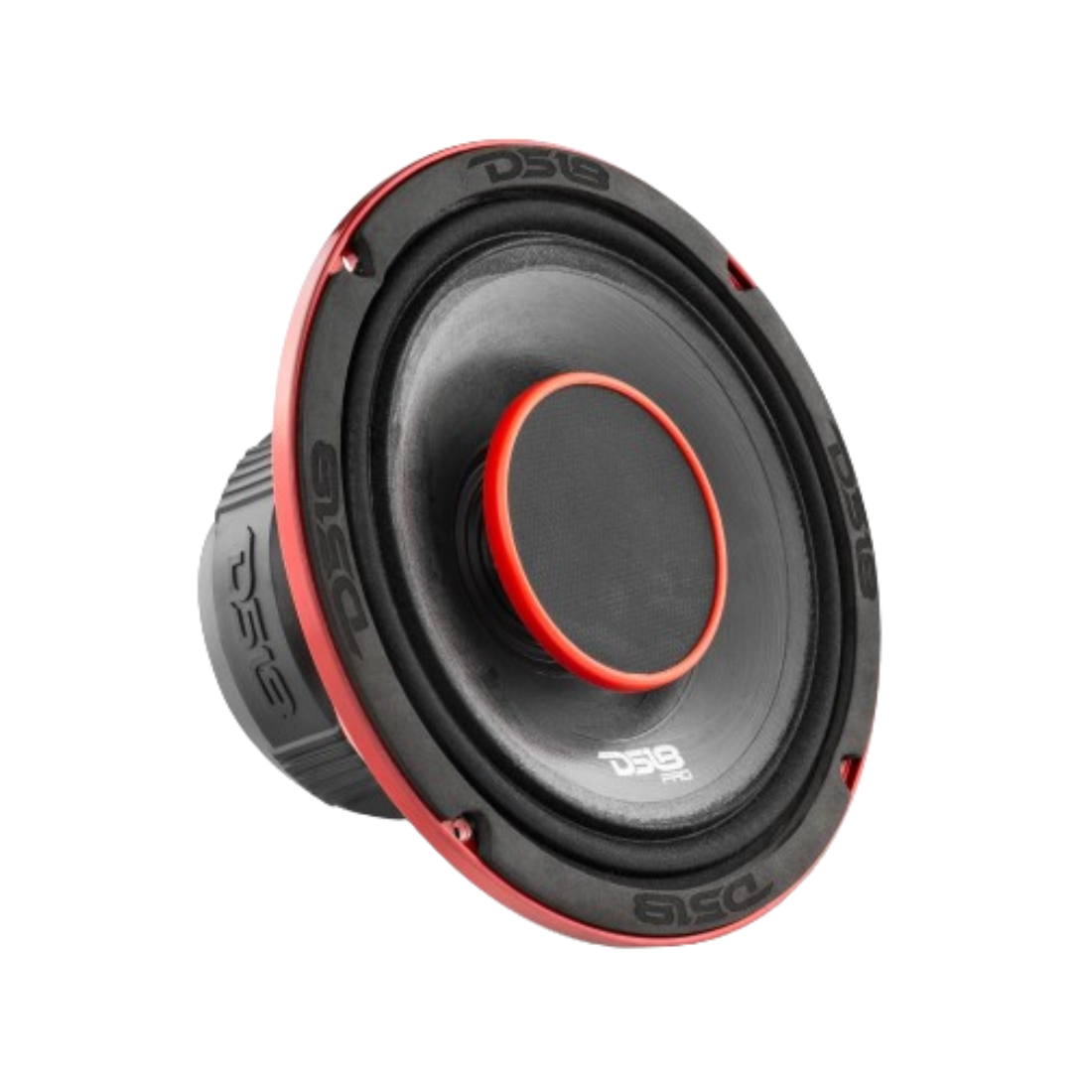

DS18 PRO-HY6.4B 6.5" 450W Max 4-Ohms Hybrid Mid-Range Coaxial Car Loudspeaker

DS18 PRO-HY6.4B 6.5" 450W Max 4-Ohms Hybrid Mid-Range Coaxial Car Loudspeaker

$94.95 USD
$94.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 PRO-HY6.4B

6.5-Inch 450 Watts Max 4-Ohms Hybrid Mid-Range Coaxial Car Loudspeaker

Key Features:

  • SKU: PRO-HY6.4B
  • Nominal Diameter: 6.5" / 165.1mm
  • Nominal Impedance: 4 Ohm
  • RMS Power Handling: 225W
  • MAX Power Handling: 450W
  • Sensitivity (1w/1m): 96dB
  • Frequency Response: 100Hz - 20Khz
  • Recommended HI Pass Crossover: 120Hz
  • Number of ways: 2 ways
  • Pair or Single: Single
  • Grill Included: Yes
Woofer Specs:

  • Voice Coil Diameter: 1.5" / 38.6mm
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Cone Material: Water Resistant Paper (IPx5)
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color/Finish: Glossy Red
  • Magnet Material: Ferrite
  • Magnet Weight: 27 Oz
  • Displacement Volume: 0.047L / 0.0016ft3
Thiele & Small Parameters:

  • Equivalent Volume Vas: 2.21L / 0.078ft3
  • Excursion (one way) Xmax: 9.2mm
  • Free Air Resonance Fs: 199Hz
  • Mechanical Factor Qms: 5.96
  • Electrical Factor Qes: 1.524
  • Total Factor Qts: 1.214
  • Mechanical Mass Mms: 8.654g
  • Mechanical Compliance Cms: 73.792 mm/N
  • BL Factor BL: 4.769
  • Voice Coil Inductance Le: 4.22mH
  • Cone Area Sd: 145.26 Cm2
  • DC Resistance Re: 3.2 ohms
  • Mechanical Mass w/o air Mmd: 6.70g
Driver Specs:

  • Voice Coil Diameter: 1" / 25.4mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Titanium
  • Magnet Material: Neodymium
  • Horn Diameter: 3" / 76.2mm
Measurement:

  • Overall Diameter: 6.85" / 174mm
  • Overall Depth: 4.28" / 108.8mm
  • Front Mount Baffle Cut-out: 5.91" / 150mm
  • Mounting Depth: 3.92" / 99.5mm
  • Motor Diameter: 4.65" / 118mm
