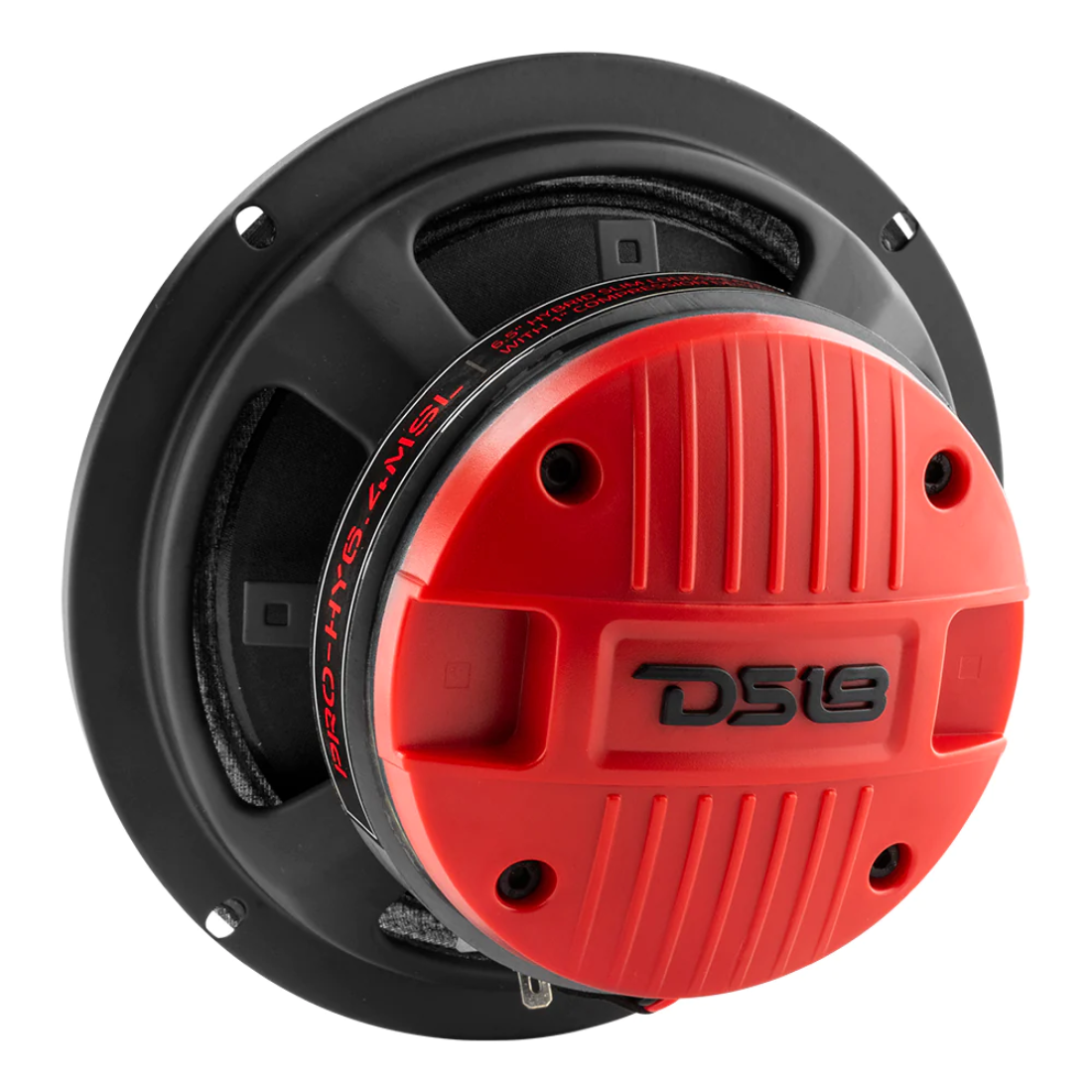

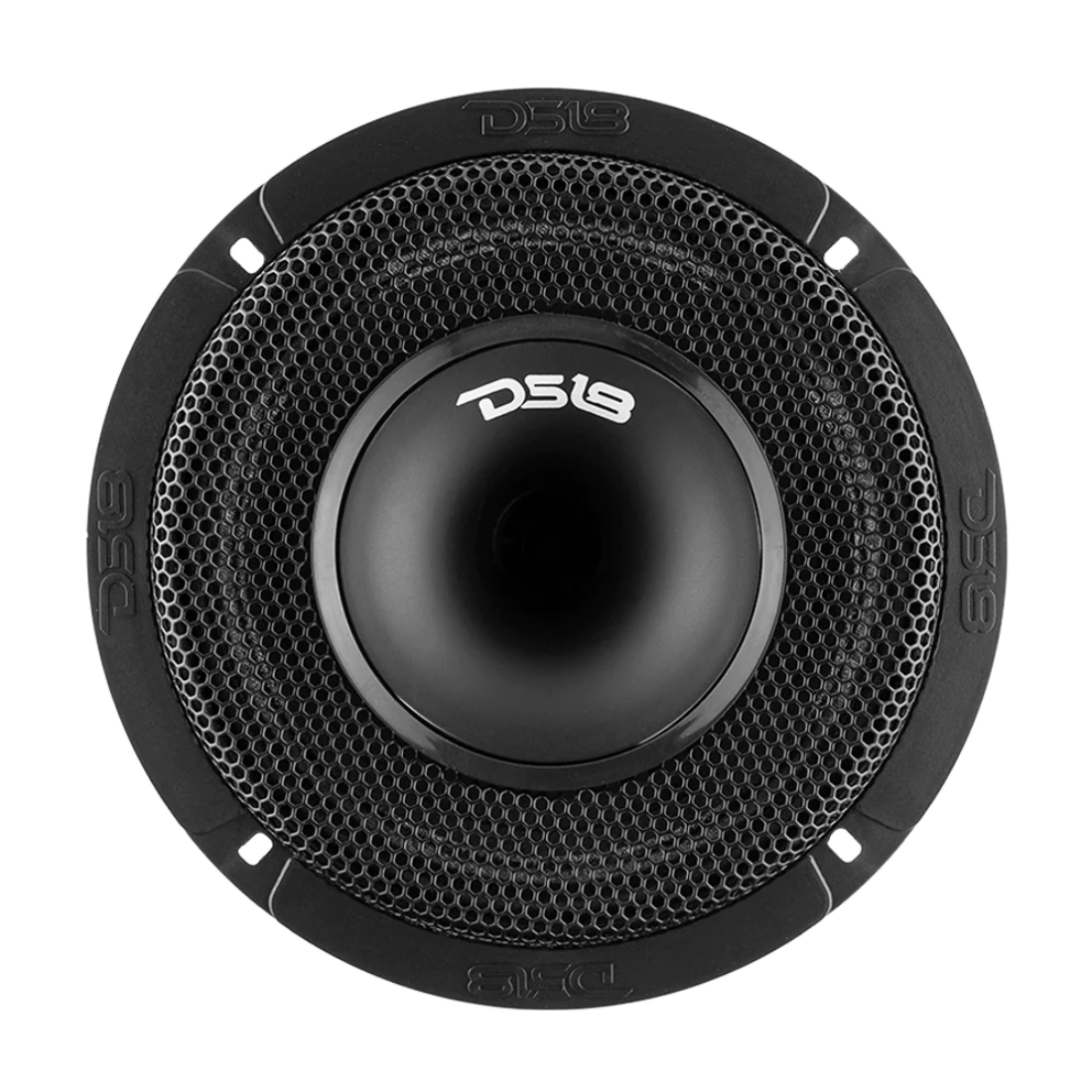

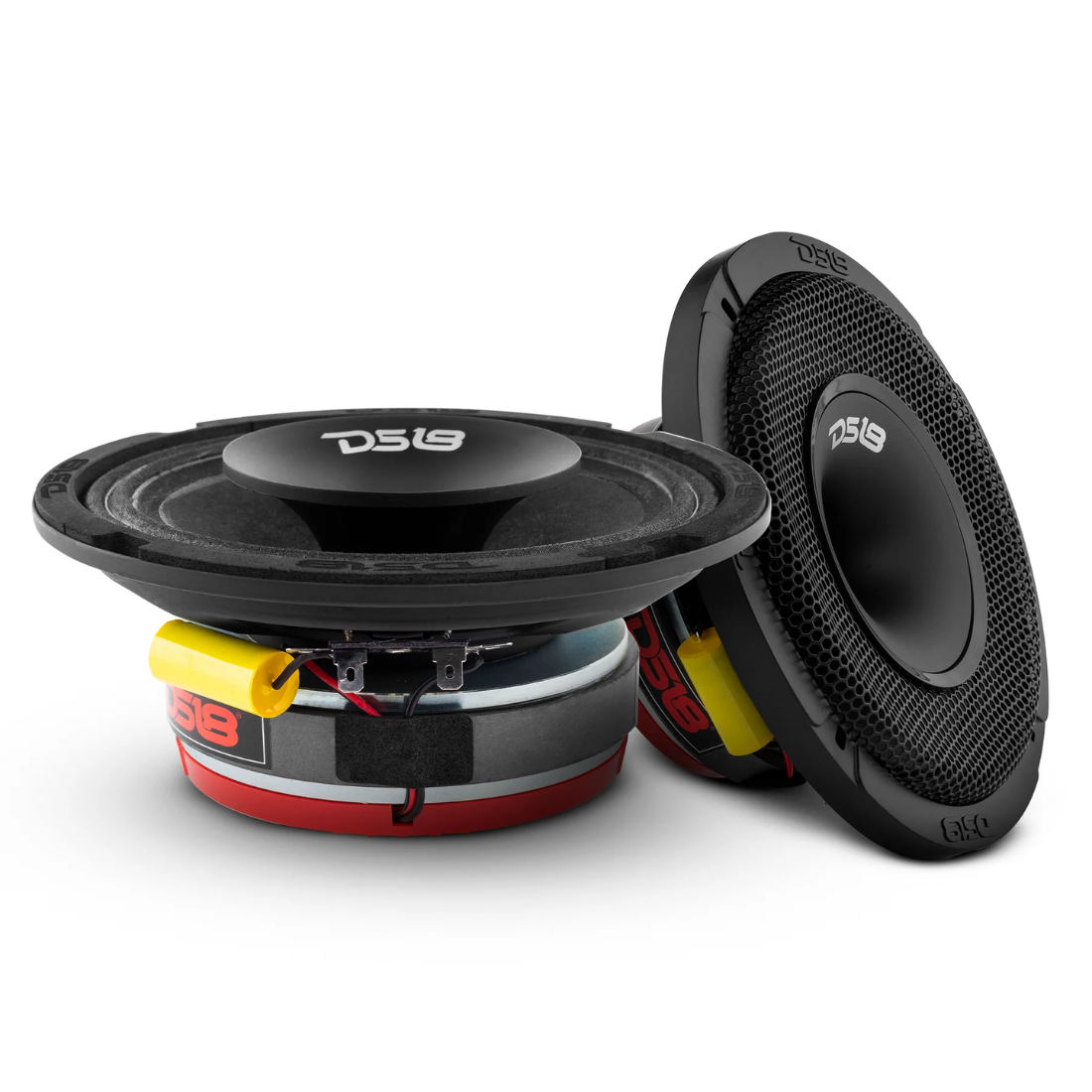

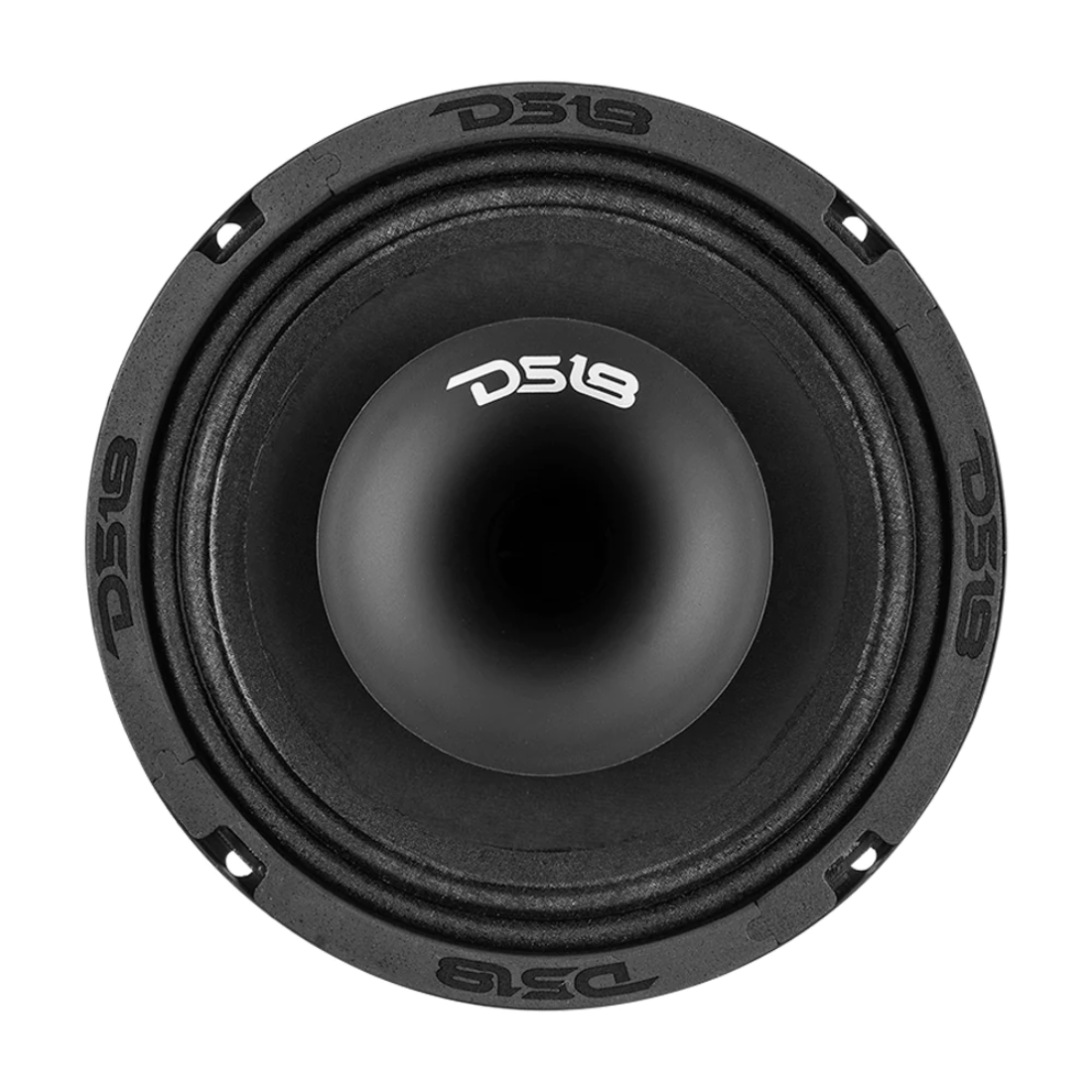

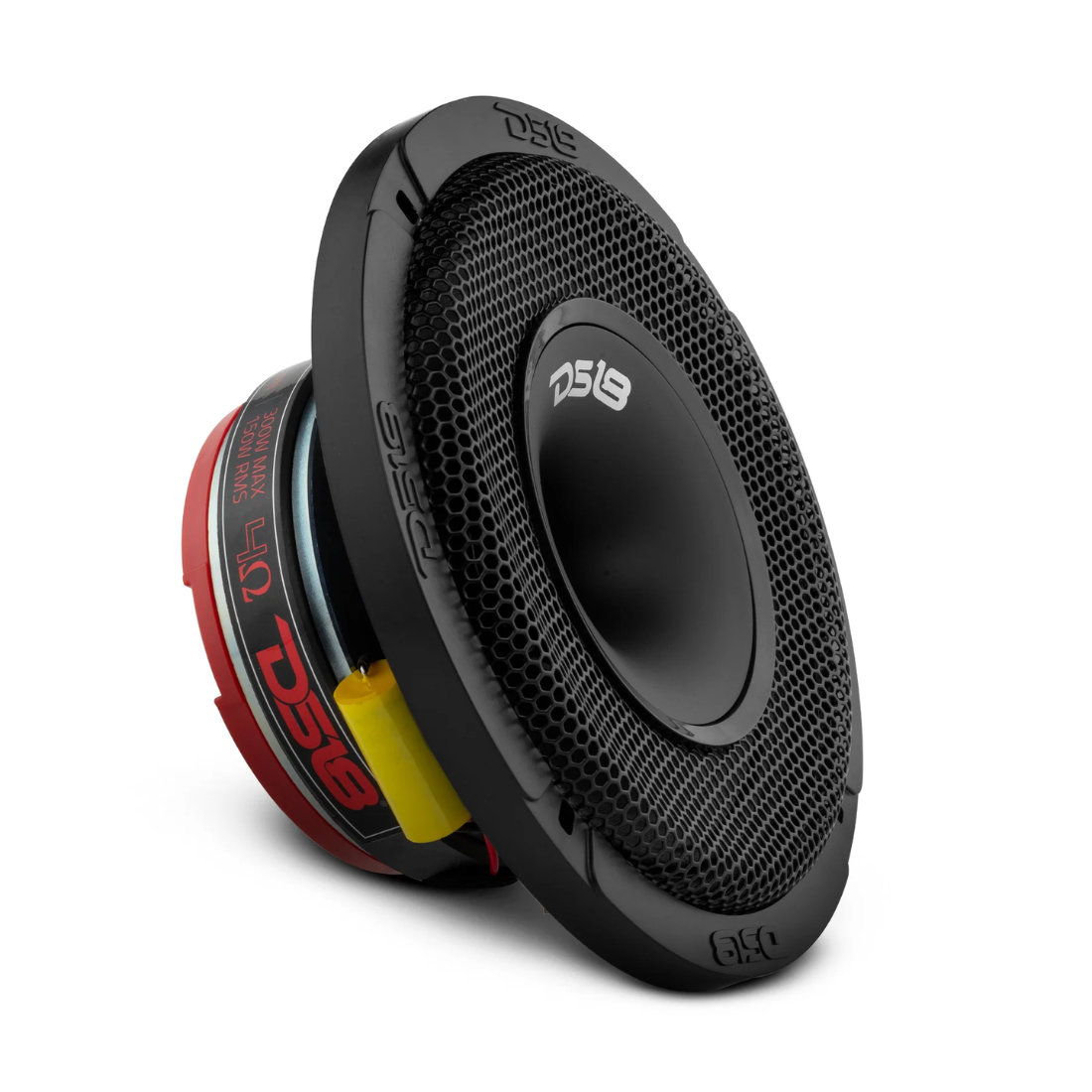

DS18 PRO-HY6.4MSL 6.5" 300W 4-Ohms Hybrid Midrange Speaker w/ Built-in Driver
DS18 PRO-HY6.4MSL 6.5" 300W 4-Ohms Hybrid Midrange Speaker w/ Built-in Driver
Regular price
$66.95 USD
Regular price
Sale price
$66.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 PRO-HY6.4MSL
6.5-Inch 300 Watts Max 4-Ohms Shallow Hybrid Midrange Speaker w/ Built-in Driver
Key Features:
- 6.5" Inch Hybrid Pro-Audio Driver / Speaker Hybrid
- RMS Power Handling: 150W
- MAX Power Handling: 300W
- Frequency Response: 120Hz-20KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: KSV
- Impedance: 4-Ohm
- Sensitivity: 93dB
- Magnet Weight: 17.5 Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.77"
- Recommended High Pass: 140Hz
Specifications:
- Nominal Diameter: 6.5" / 165.1mm
- Nominal Impedance: 4 ohms
- RMS Power Handling: 150W
- MAX Power Handling: 300W
- Sensitivity (1w/1m): 93dB
- Frequency Response: 120Hz-20Khz
- Recommended HI Pass Crossover: 140Hz
- Number of ways: 2 ways
- Pair or Single: Single
- Grill Included: Yes
Woofer Specifications:
- Voice Coil Diameter: 1.5" / 38.6mm
- Voice Coil Former Material: KSV
- Winding Material: CCAW
- Cone Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color/Finish: Glossy Red
- Magnet Material: Ferrite
- Magnet Weight: 17.5 Oz
Driver Specifications:
- Voice Coil Diameter: 1" / 25.4mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Titanium
- Magnet Material: Neodymium
- Horn Diameter: 3" / 76.2mm
Measurement:
- Overall Diameter: 6.92" / 176mm
- Overall Depth: 3.52" / 89.5mm
- Front Mount Baffle Cutout: 5.6" / 142mm
- Mounting Depth: 2.77" / 70.5mm
- Motor Diameter: 4.33" / 110mm
