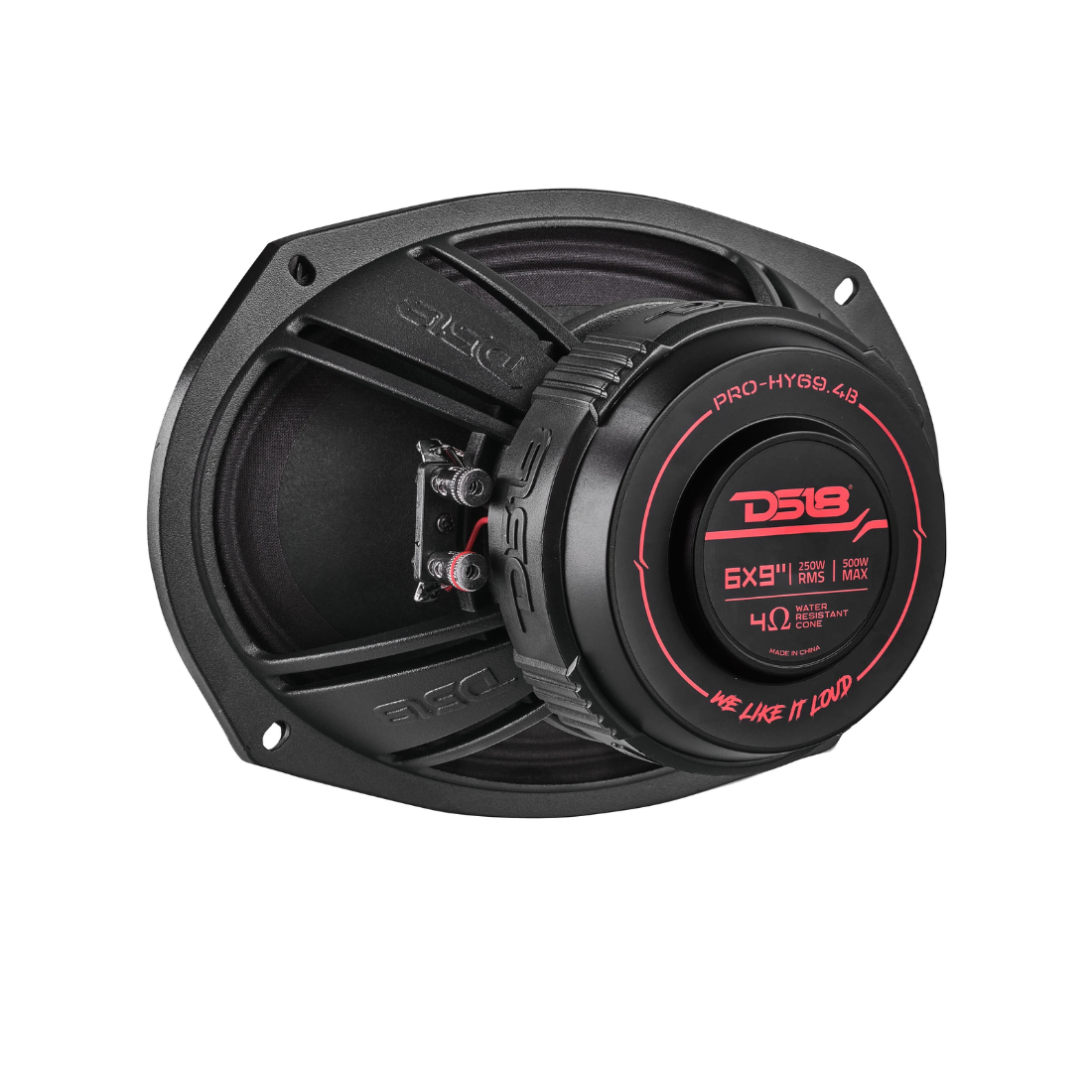

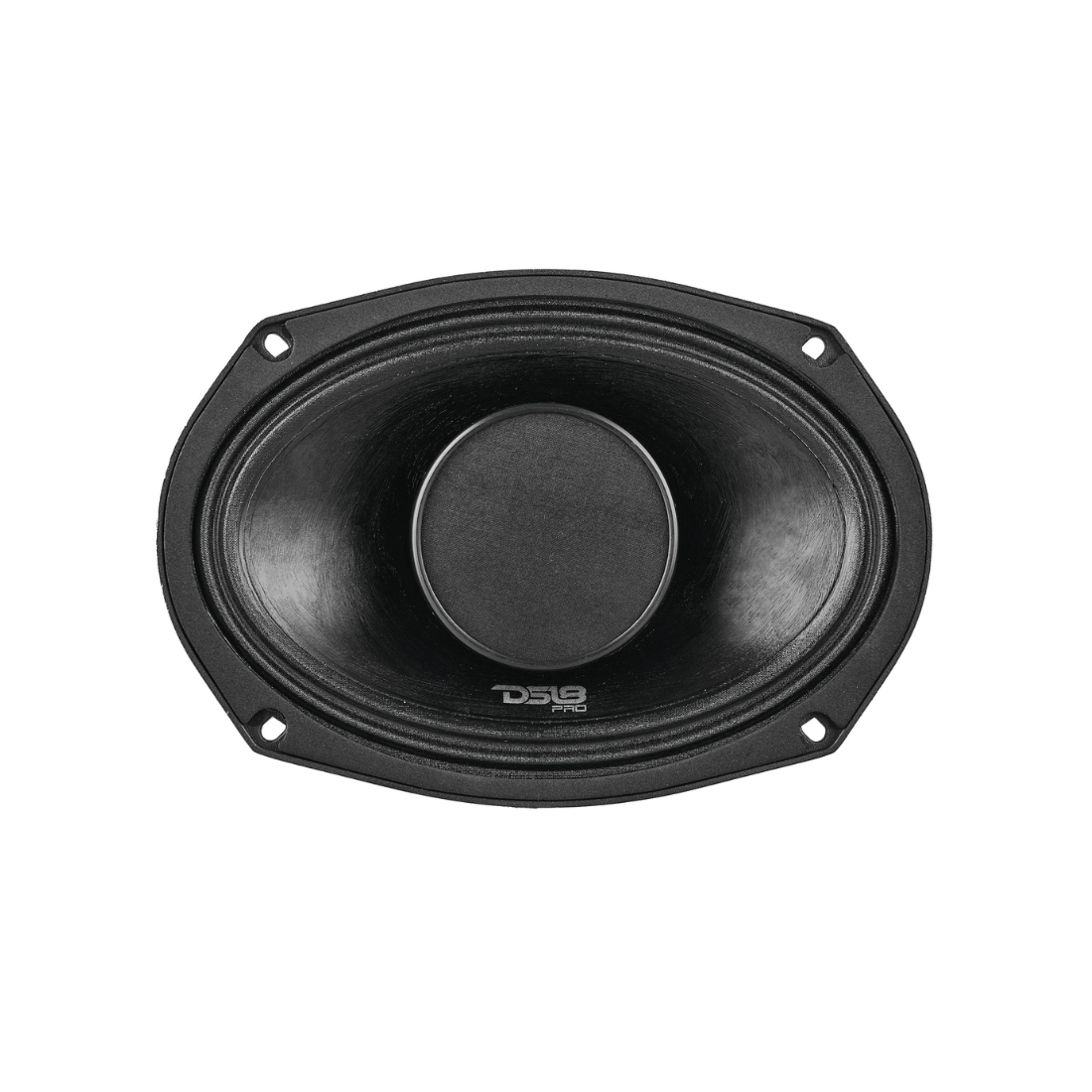

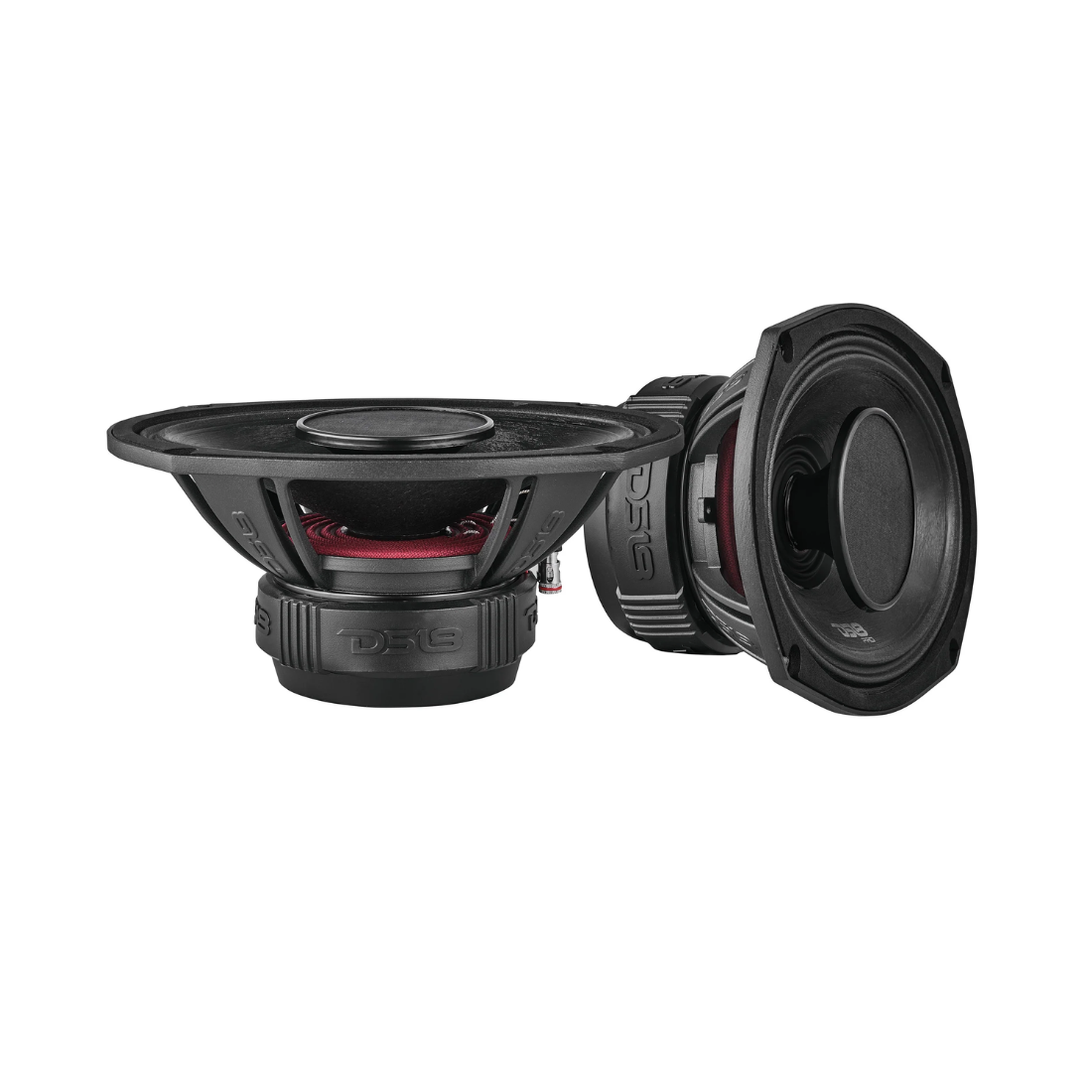

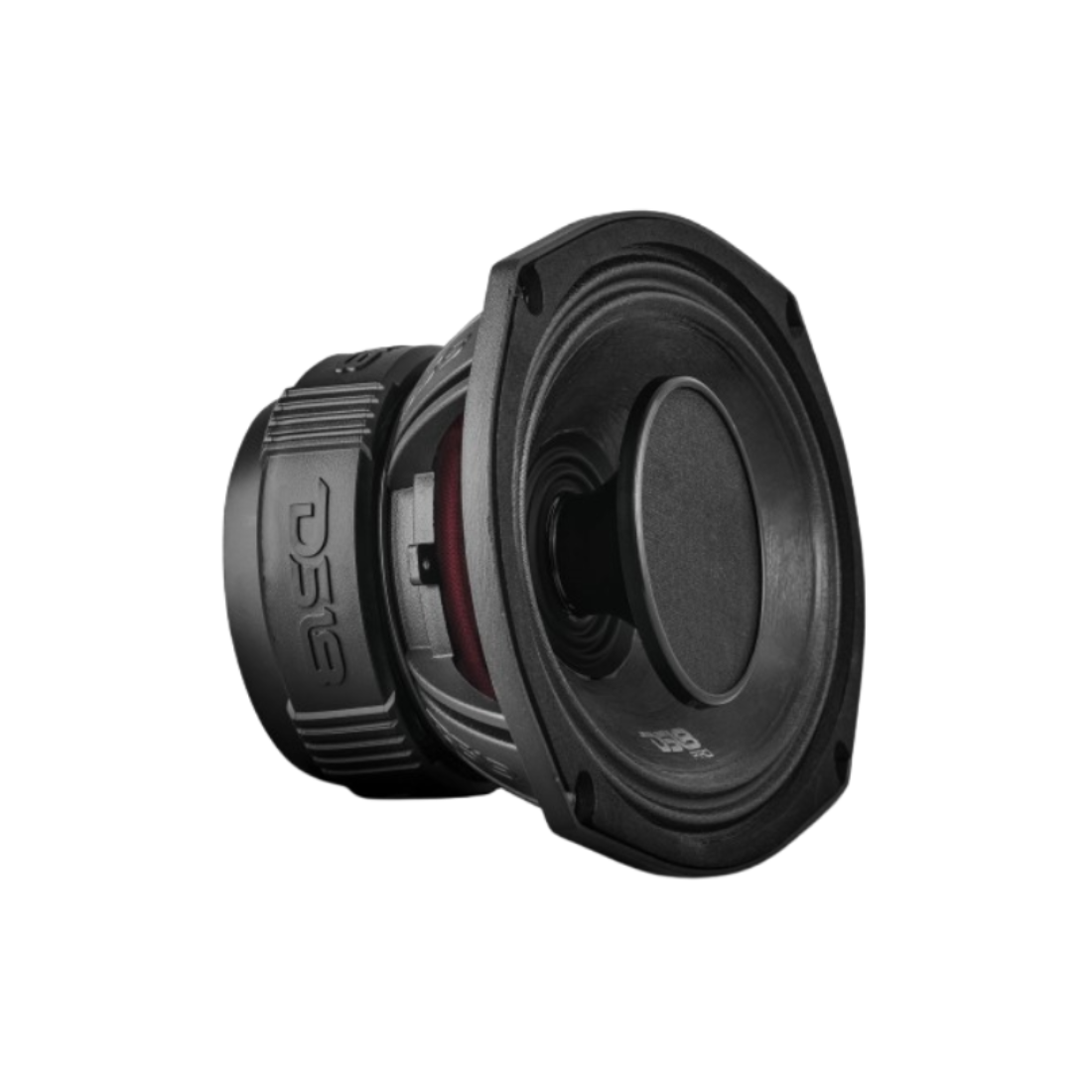

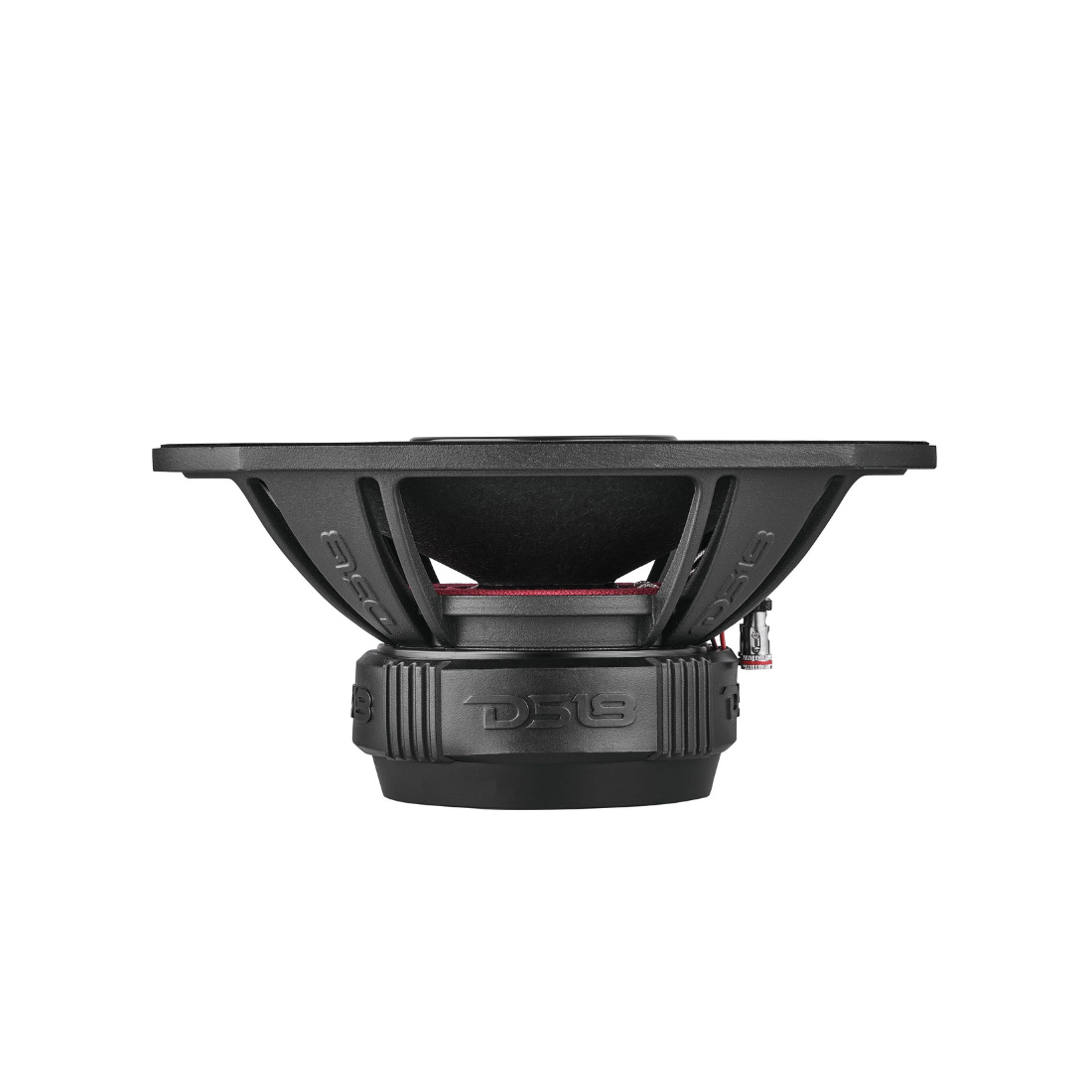

DS18 PRO-HY69.4B 6" x 9" 500W 4-Ohm Hybrid Mid-Range Speaker w/ Built-in Driver
DS18 PRO-HY69.4B 6" x 9" 500W 4-Ohm Hybrid Mid-Range Speaker w/ Built-in Driver
Regular price
$173.95 USD
Regular price
Sale price
$173.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 PRO-HY69.4B
6" x 9" 500W Max 4-Ohm Hybrid Coaxial Mid-Range Speaker w/ Built-in Driver
Key Features:
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Specifications:
- SKU: PRO-HY69.4B
- Nominal Diameter: 6x9" / 152 x 228mm
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 250W
- MAX Power Handling: 500W
- Sensitivity (1w/1m): 97dB
- Frequency Response: 50Hz - 20Khz
- Recommended HI Pass Crossover: 80Hz
- Number of ways: 2 ways
- Pair or Single: Single
- Grill Included: No
Woofer Specs:
- Voice Coil Diameter: 1.5"/ 38.6mm
- Voice Coil Former Material: Glass Fiber
- Winding Material: CCAW
- Cone Material: Water Resistant Paper (IPx5)
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Matte Black
- Magnet Material: Ferrite
- Magnet Weight: 27 Oz
- Displacement Volume: 0.051L / 0.0018ft3
Thiele & Small Parameters:
- Equivalent Volume Vas: 14.84L / 0.52ft3
- Excursion (one way) Xmax: 9.2mm
- Free Air Resonance Fs: 87Hz
- Mechanical Factor Qms: 3.629
- Electrical Factor Qes: 0.661
- Total Factor Qts: 0.559
- Mechanical Mass Mms: 14.264g
- Mechanical Compliance Cms: 0.236 mm/N
- BL Factor BL: 6.135
- Voice Coil Inductance Le: 4.22mH
- Cone Area Sd: 210.48 cm²
- DC Resistance Re: 3.2 ohms
- Mechanical Mass w/o air Mmd: 12.509g
Driver Specs:
- Voice Coil Diameter: 1" / 25.4mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Titanium
- Magnet Material: Neodymium
- Horn Diameter: 3.26" / 83mm
