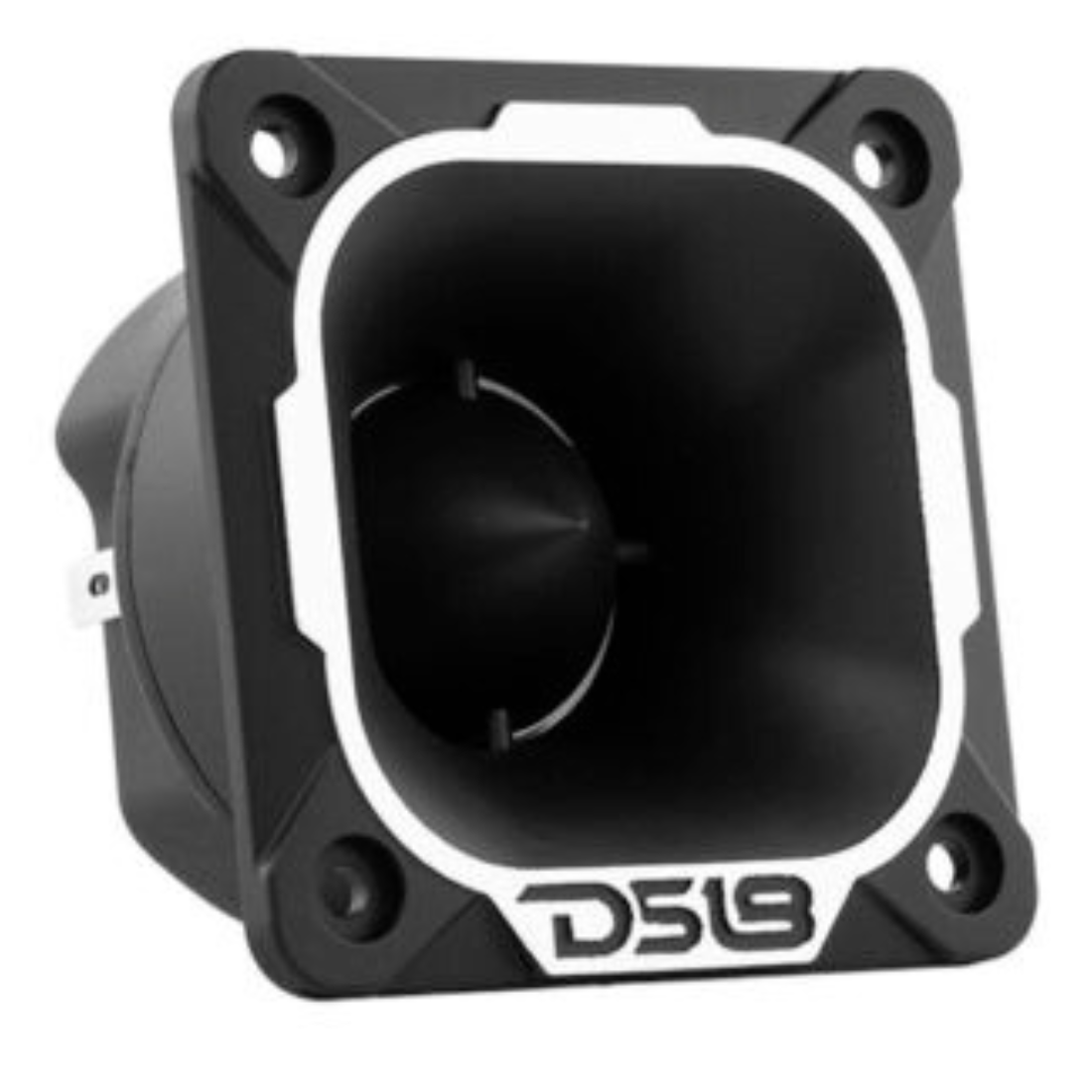

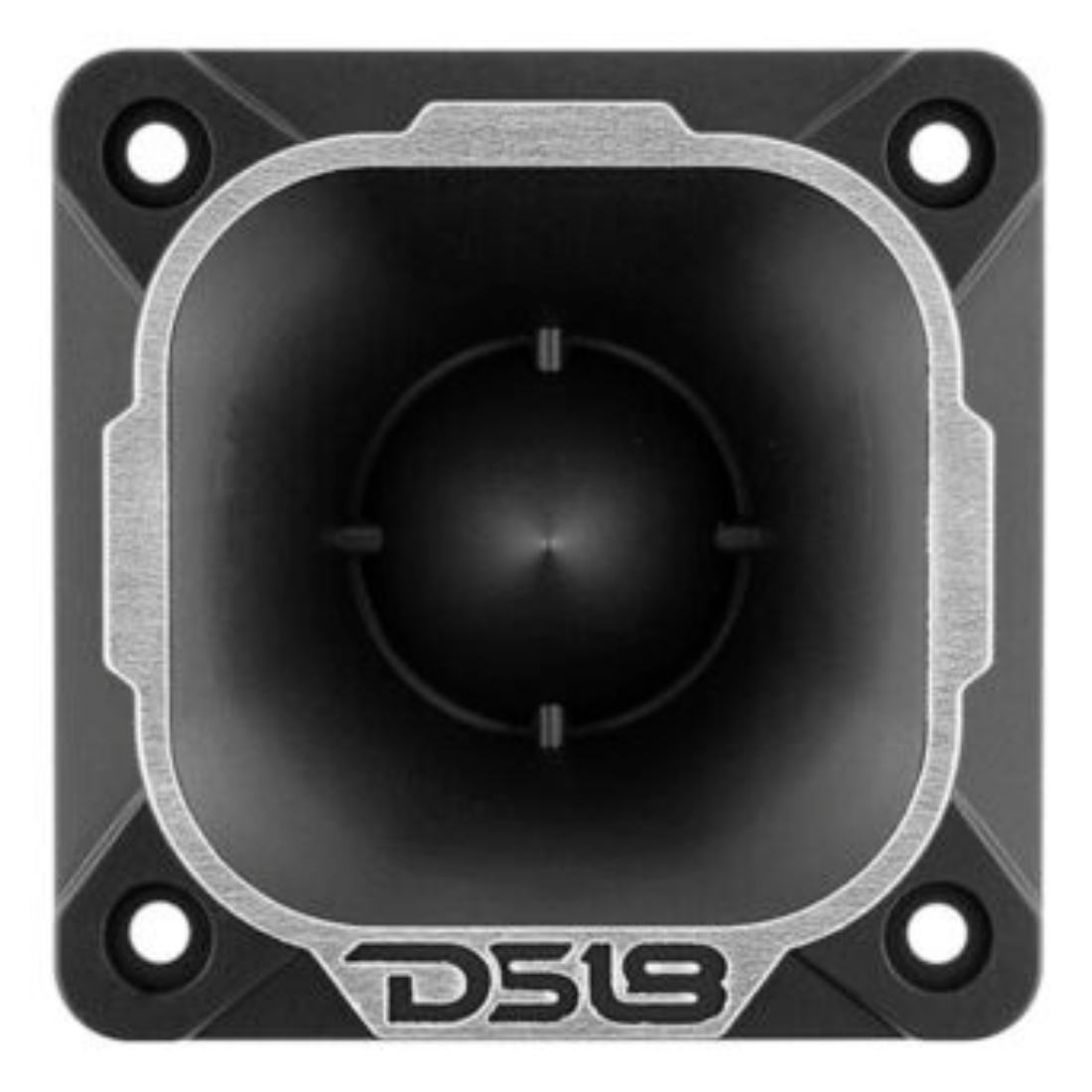

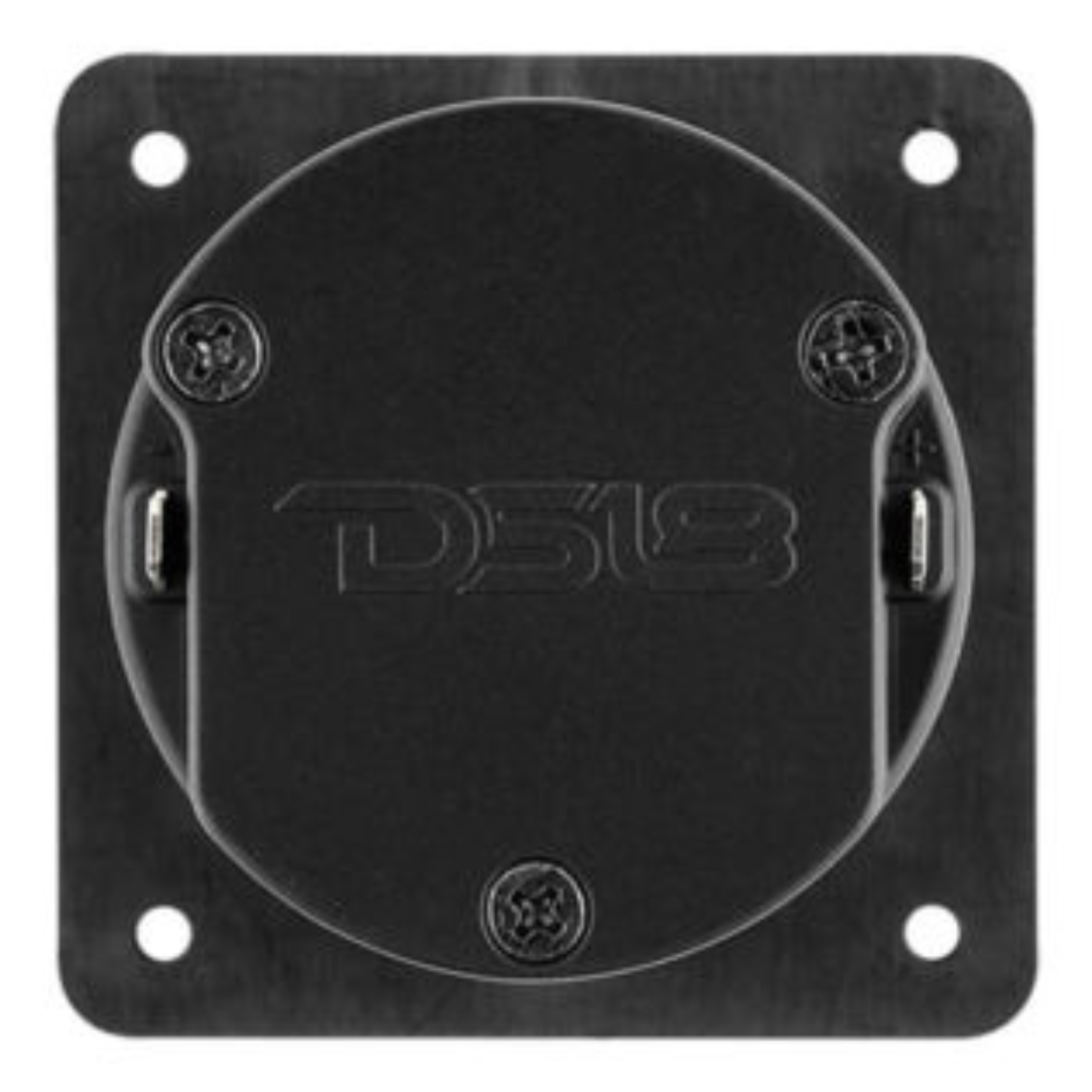

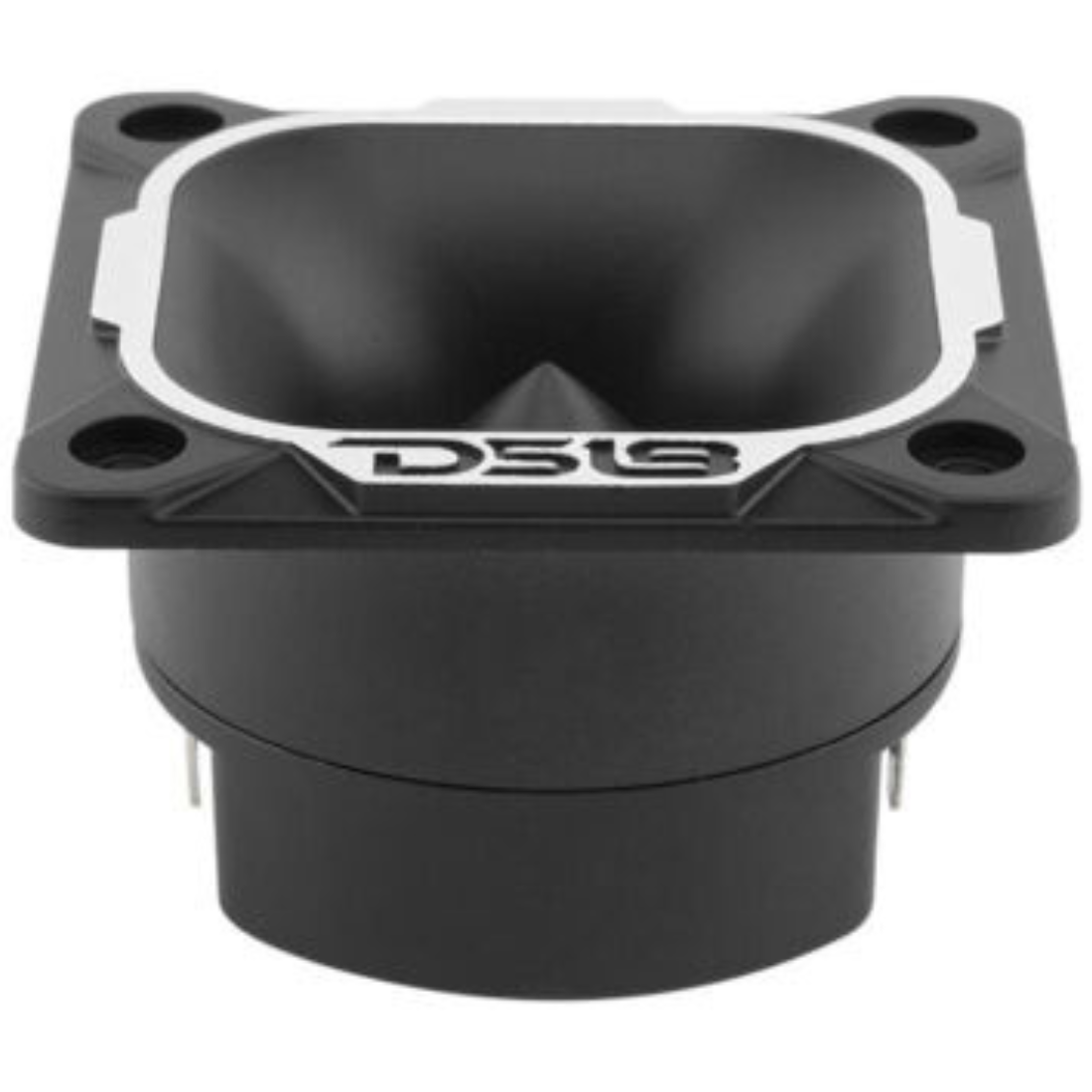

DS18 PRO-TWN3 2.5" 200W Peak 4-Ohms Car Audio High Compression Neodymium Tweeter
DS18 PRO-TWN3 2.5" 200W Peak 4-Ohms Car Audio High Compression Neodymium Tweeter
Regular price
$34.95 USD
Regular price
Sale price
$34.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 PRO-TWN3
2.5-Inch 200 Watts Peak 4-Ohms High Compression Neodymium Tweeter
Key Features:
- 2.5 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.
- Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
- Power rating of 50w AES and 200 peak which will allow the high frequencies to play with authority.
Specifications:
- Nominal Diameter: 2.5” / 63 mm
- Nominal Impedance: 4 Ohms
- AES Power Handling: 50W
- Program Power Handling: 100W
- Peak Program Handling: 200W
- Sensitivity (1w/1m): 107dB
- Frequency Response: 1.6KHz-20KHz
- Recommended Hi Pass Crossover: 2 KHz
- Pair or Single: Single
- Filter Included: Yes, 2.2 uf
Motor:
- Voice Coil Diameter: 1” / 25.4 mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: PEN
- Magnet Material: Neodymium
- Magnet Weight: 0.57
- Body Material: PC
Measurements:
- Overall Diameter: 2.48x2.48" / 63x63 mm
- Overall Depth: 1.49" / 37.8 mm
- Front Mount Baffle Cutout: 2.12" / 54 mm
- Mounting Depth: 1.32" / 33.5 mm
