DS18

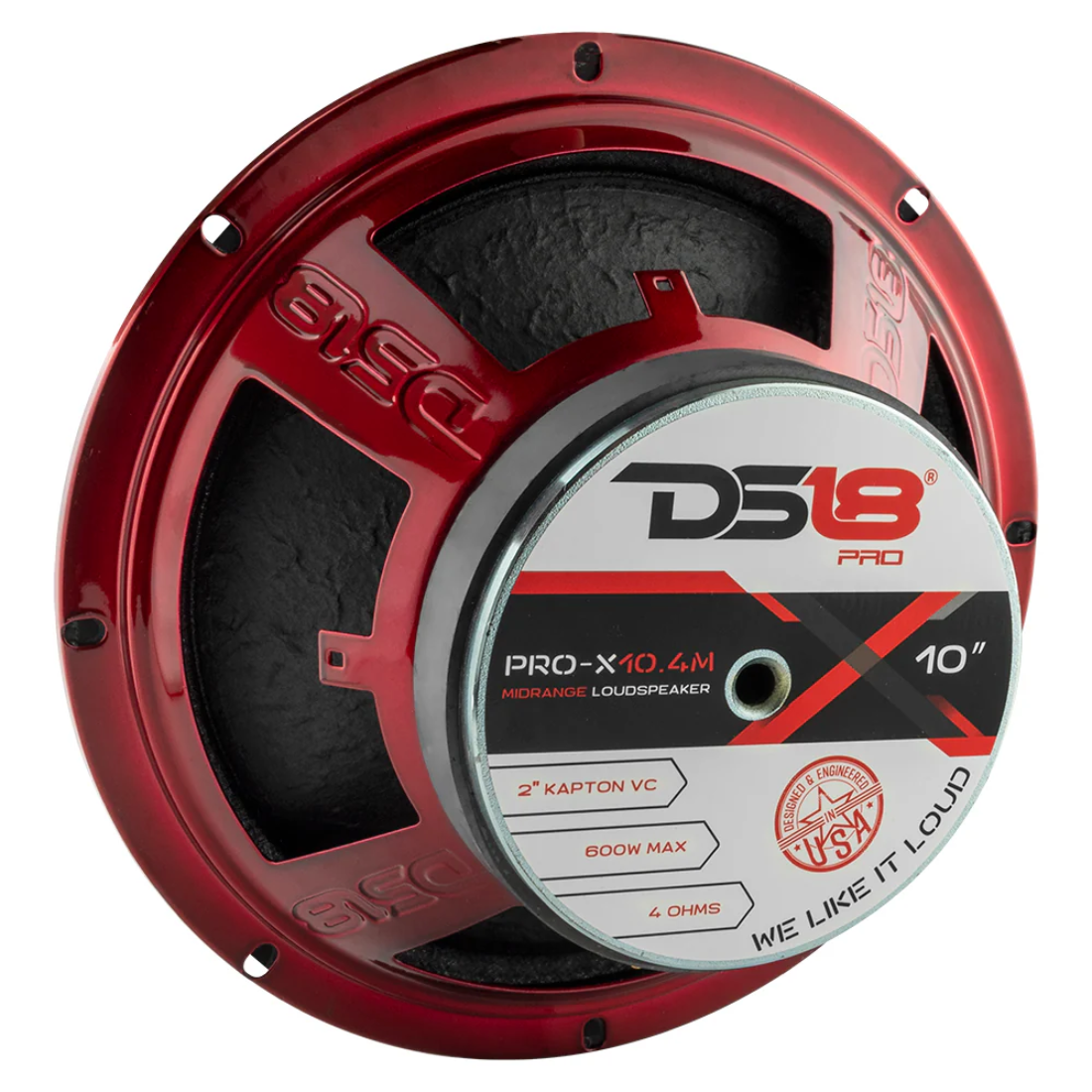

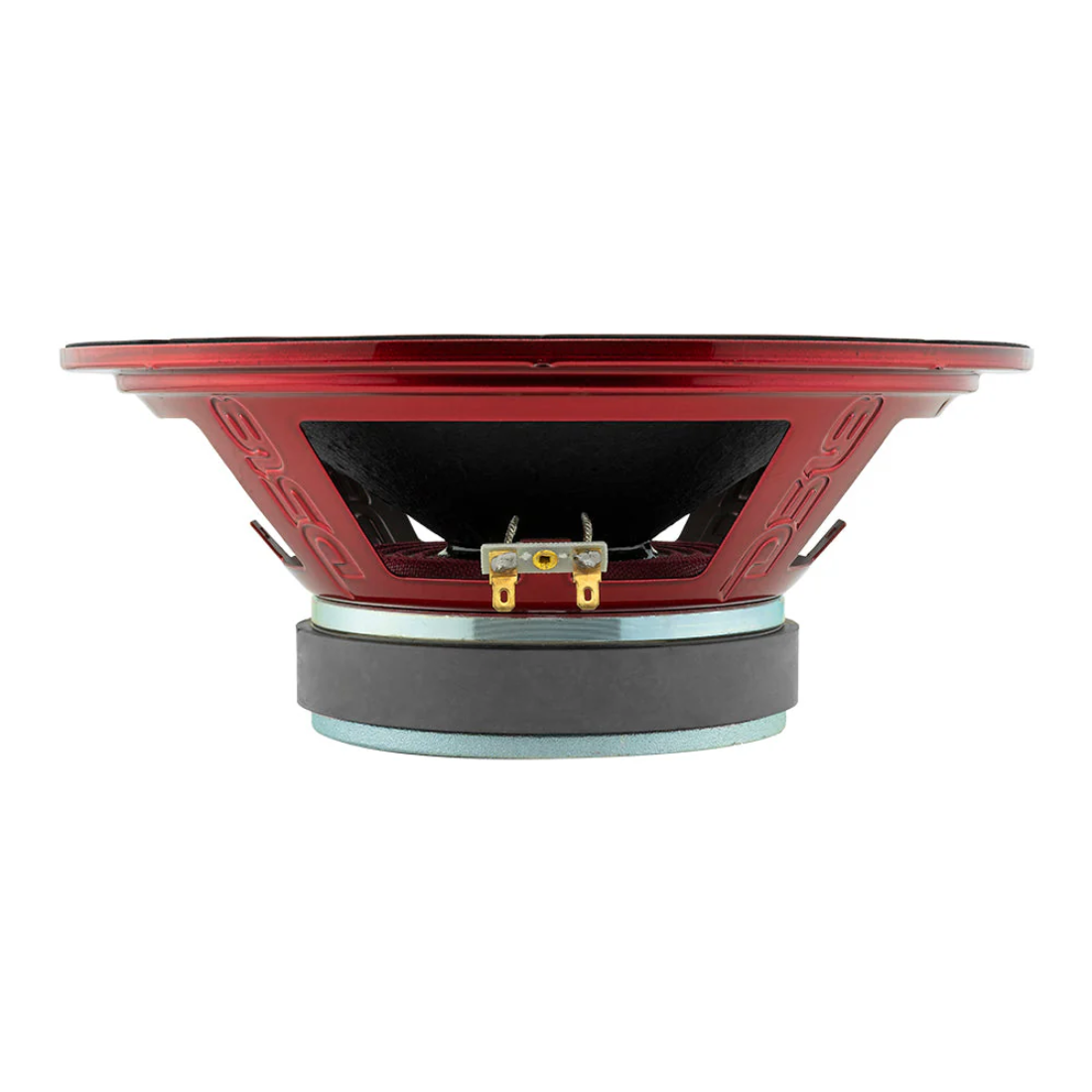

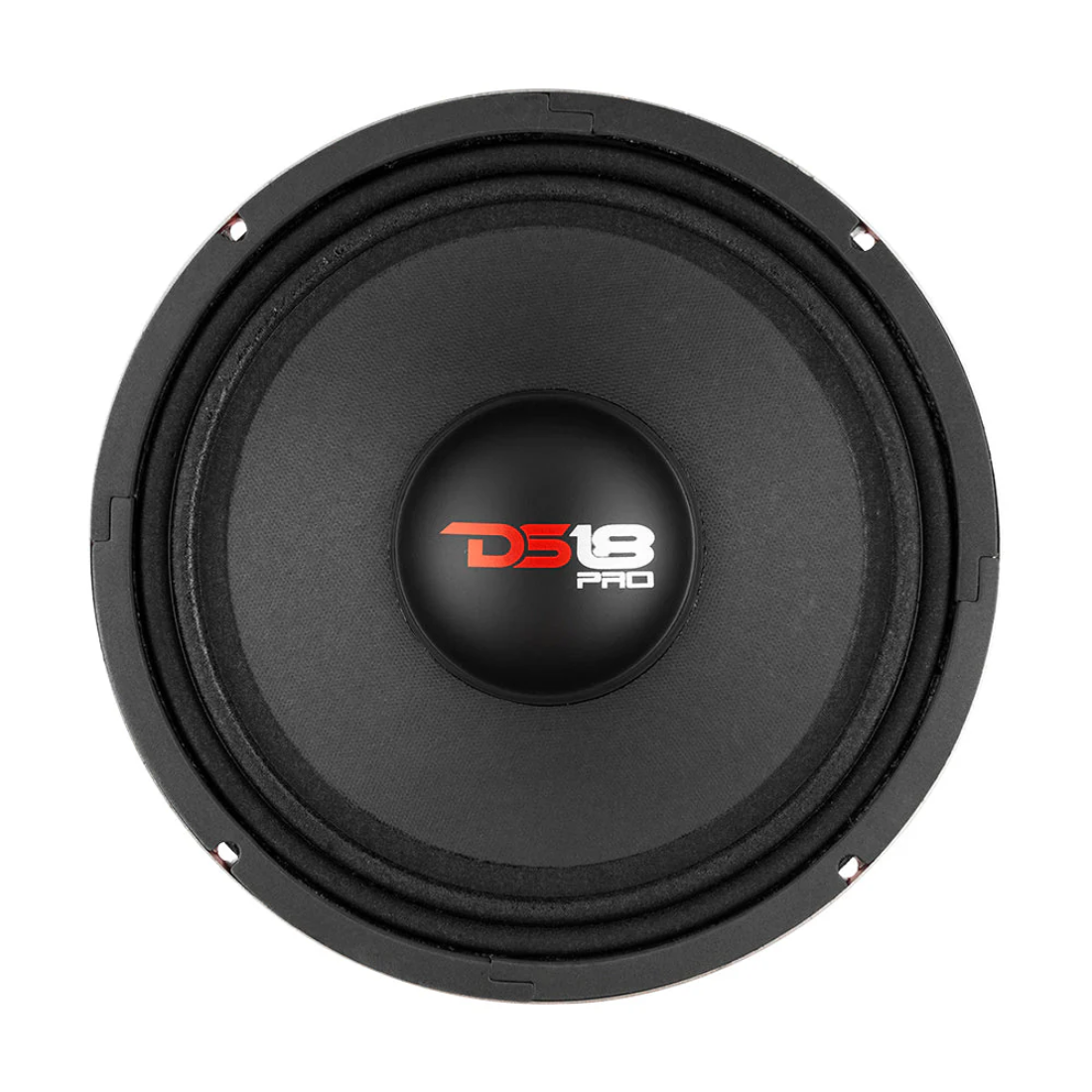

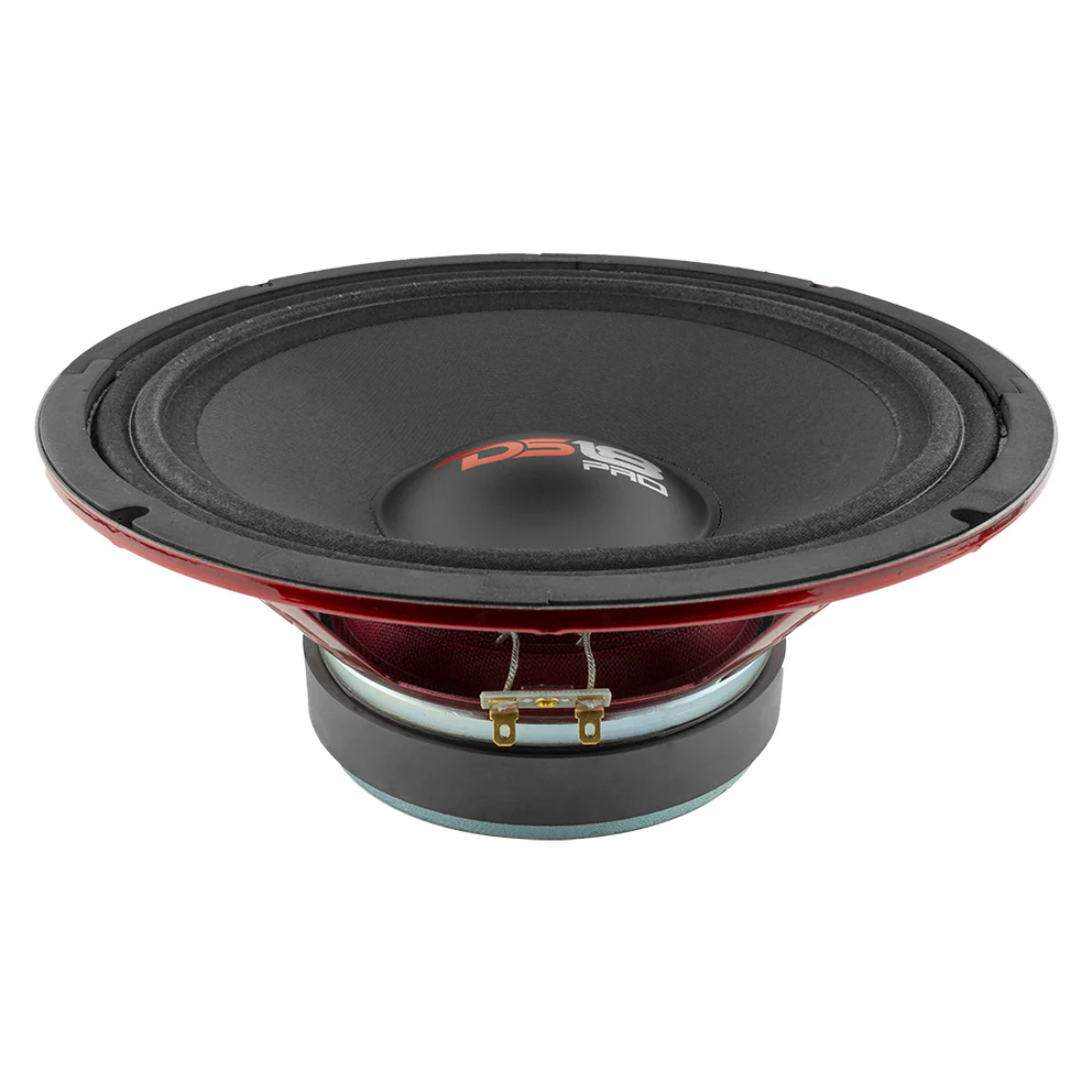

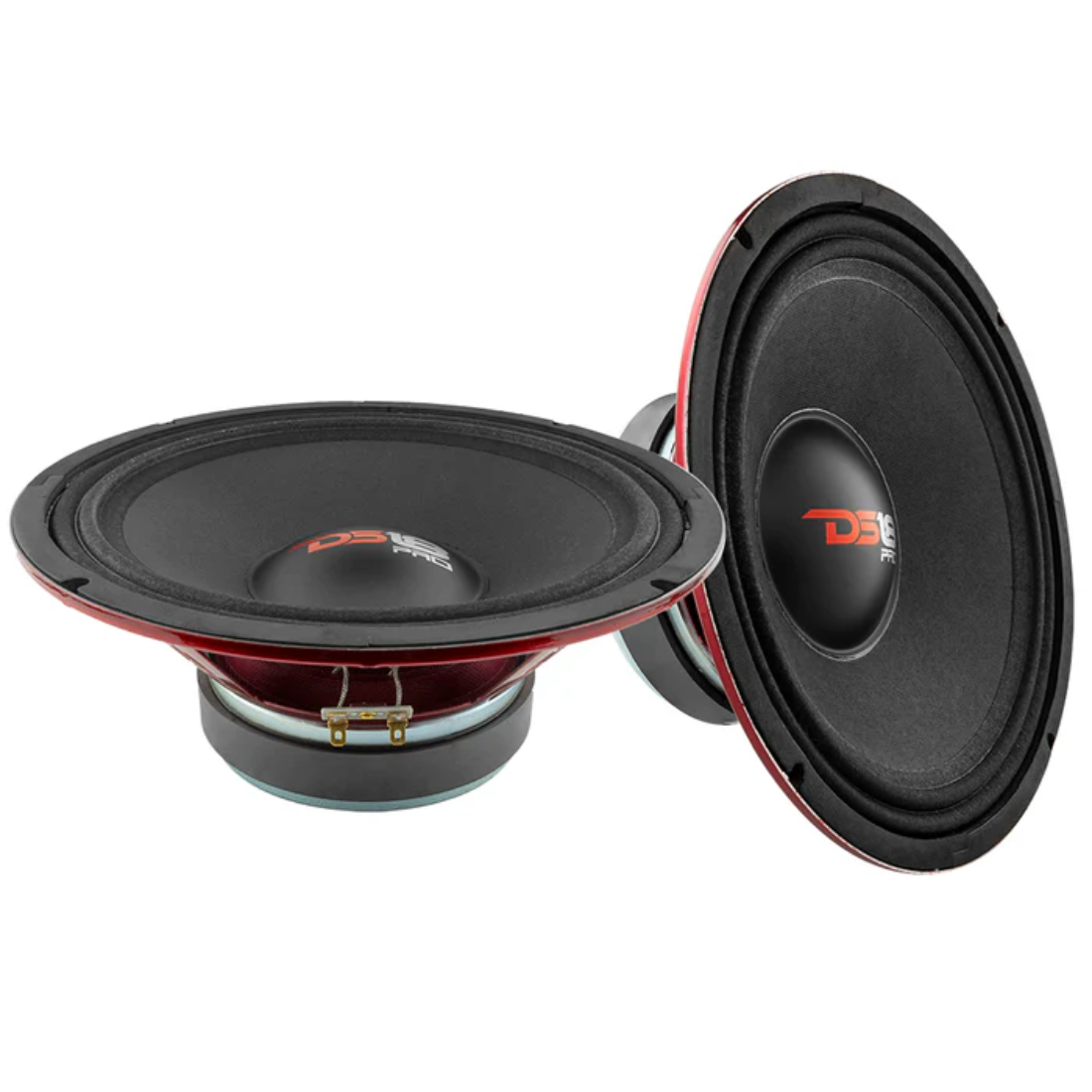

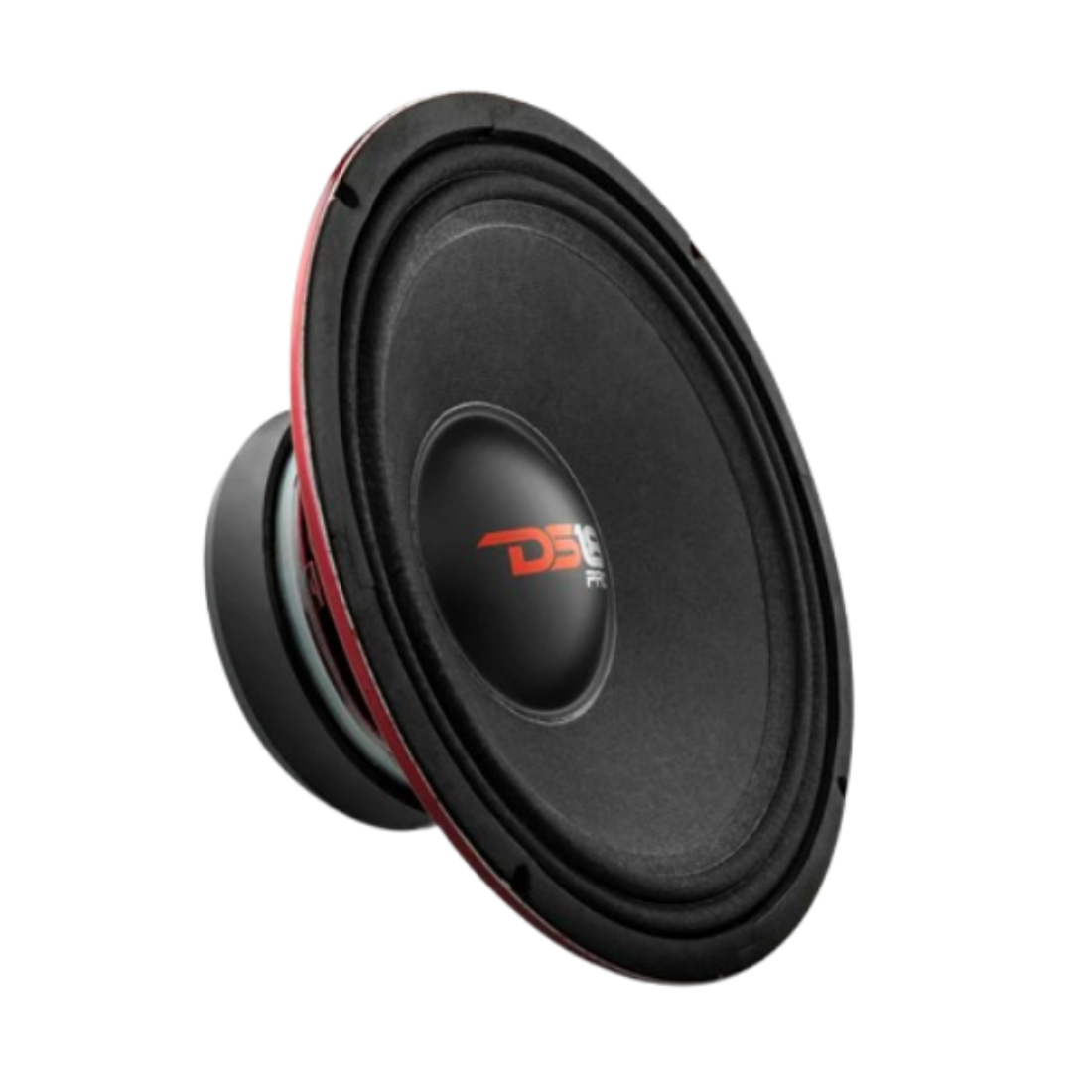

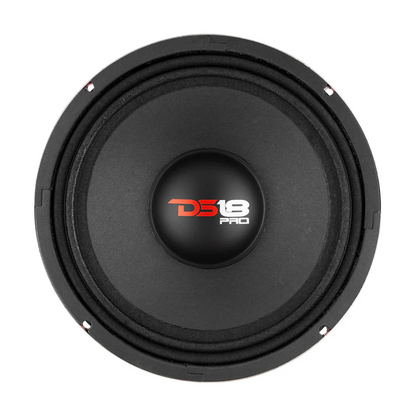

DS18 PRO-X10.4M 10" 600W Max 4-Ohm Car Audio Mid-Range Loudspeaker (Single)

Name: DS18 PRO-X10.4M 10" 600W Max 4-Ohm Car Audio Mid-Range Loudspeaker (Single)
Brand: DS18
SKU: PRO-X10.4M
Price: 89.95 USD
Availability: InStock

$89.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 PRO-X10.4M

10-inch 600 Watts Max 4-Ohm Car Audio Mid-Range Loudspeaker (Single)

Key Features:

10" Mid-Range
MAX Power: 600 Watts
RMS Power: 300 Watts
Impedance: 4-Ohm
Ferrite Magnet
96dB

Specifications:

SKU: PRO-X10.4M
Nominal Diameter: 10” / 254mm
Nominal Impedance: 4 ohms
RMS Power Handling: 300 W
Maximum Power Handling: 600 W
Sensitivity (1w/1m): 96dB
Frequency Response: 70Hz - 5KHz
Recommended Hi Pass Crossover: 100Hz
Voice Coil Diameter: 2” / 50.8mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: Ferrite 40 oz

Thiele & Small Parameters:

Vas: 23.34L / 0.824ft3
Xmax: 9.8mm
Fs: 81Hz
Qms: 5.776
Qes: 0.887
Qts: 0.769
Re: 3.3 ohms

Measurements:

Overall Diameter: 10" / 256mm
Front Mount Baffle Cutout: 9" / 230mm
Mounting Depth: 3.77" / 96mm
Overall Depth: 4" / 103mm
Product Weight: 8.5
Product Dimensions: 10.75 x 10.75 x 4.5
Sold In: Piece
