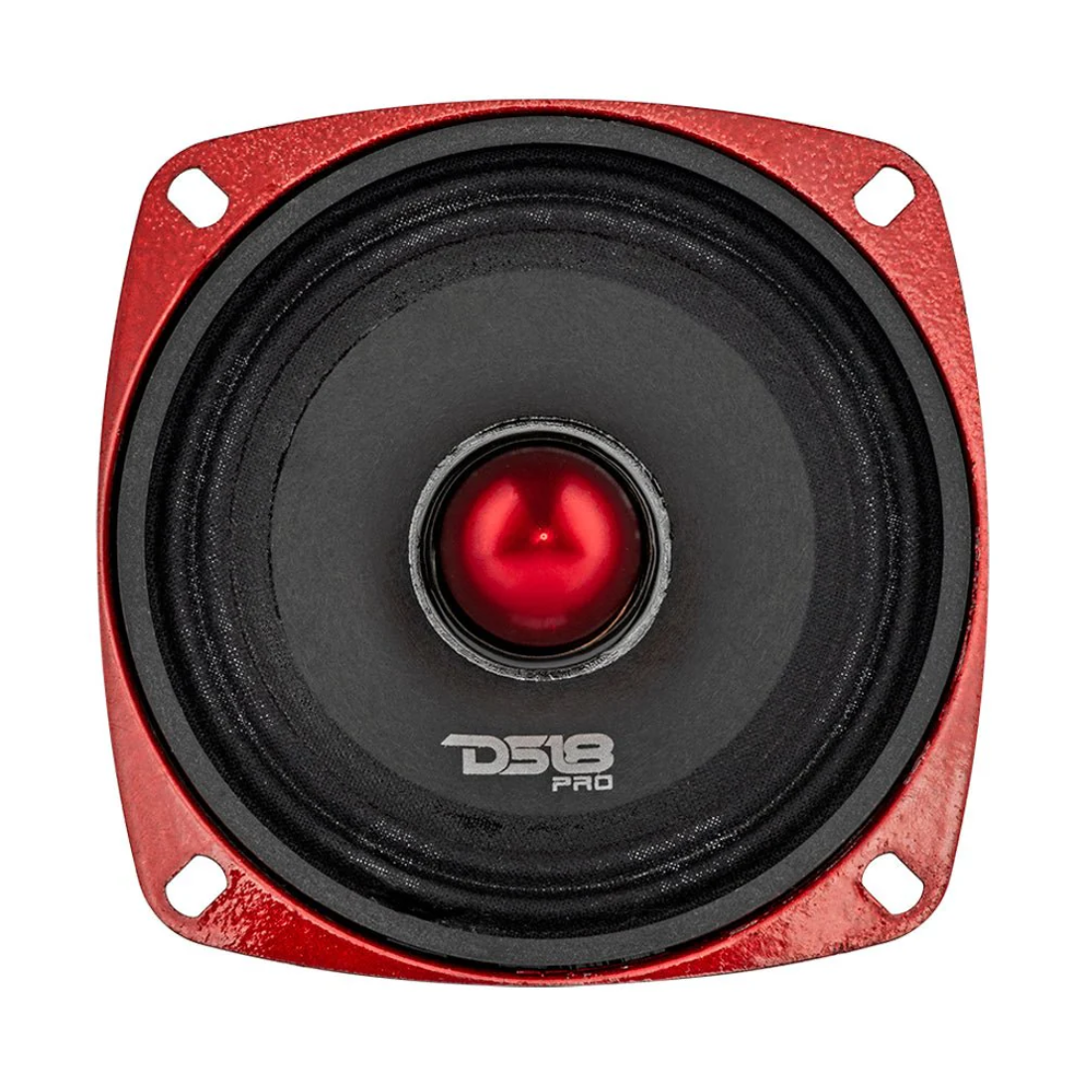

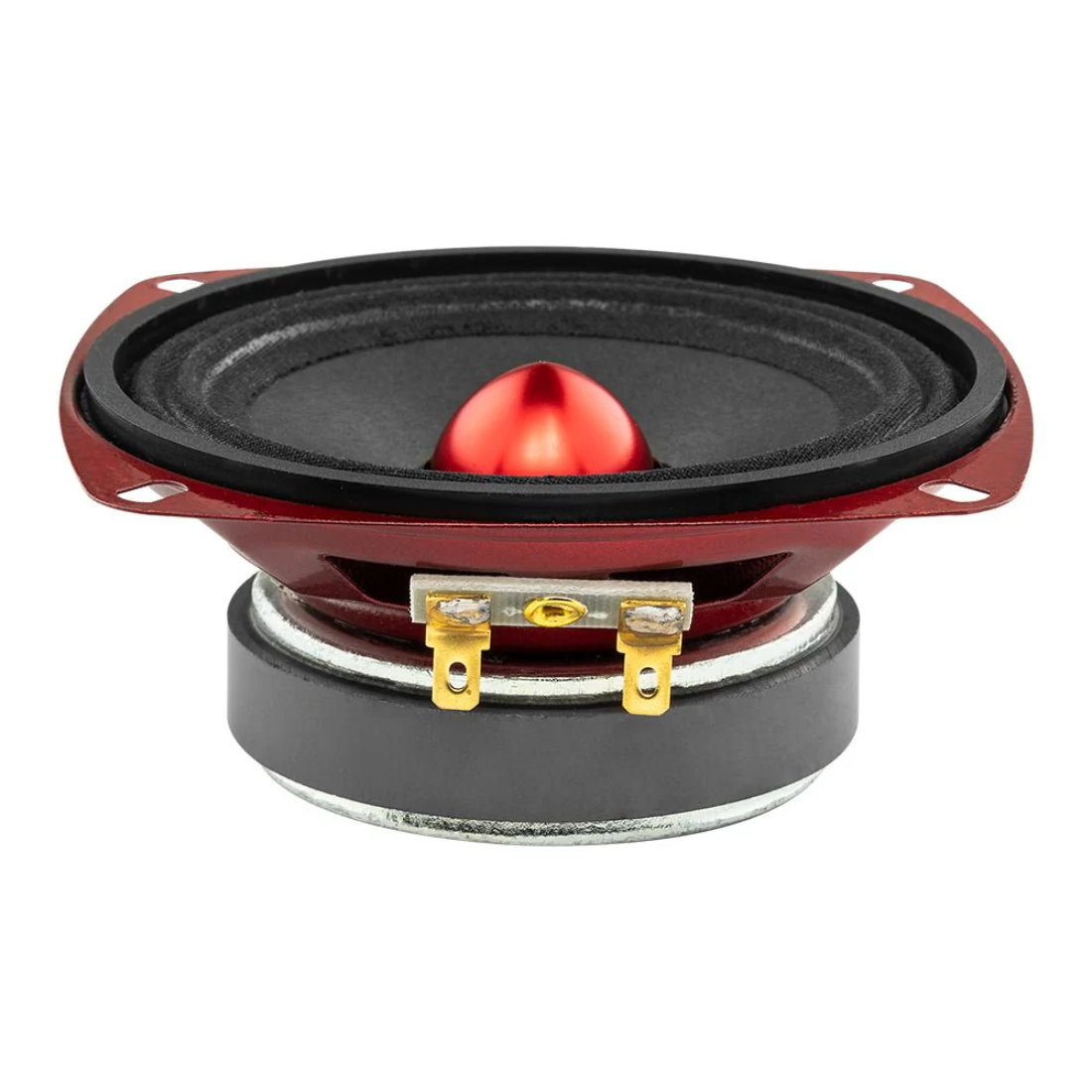

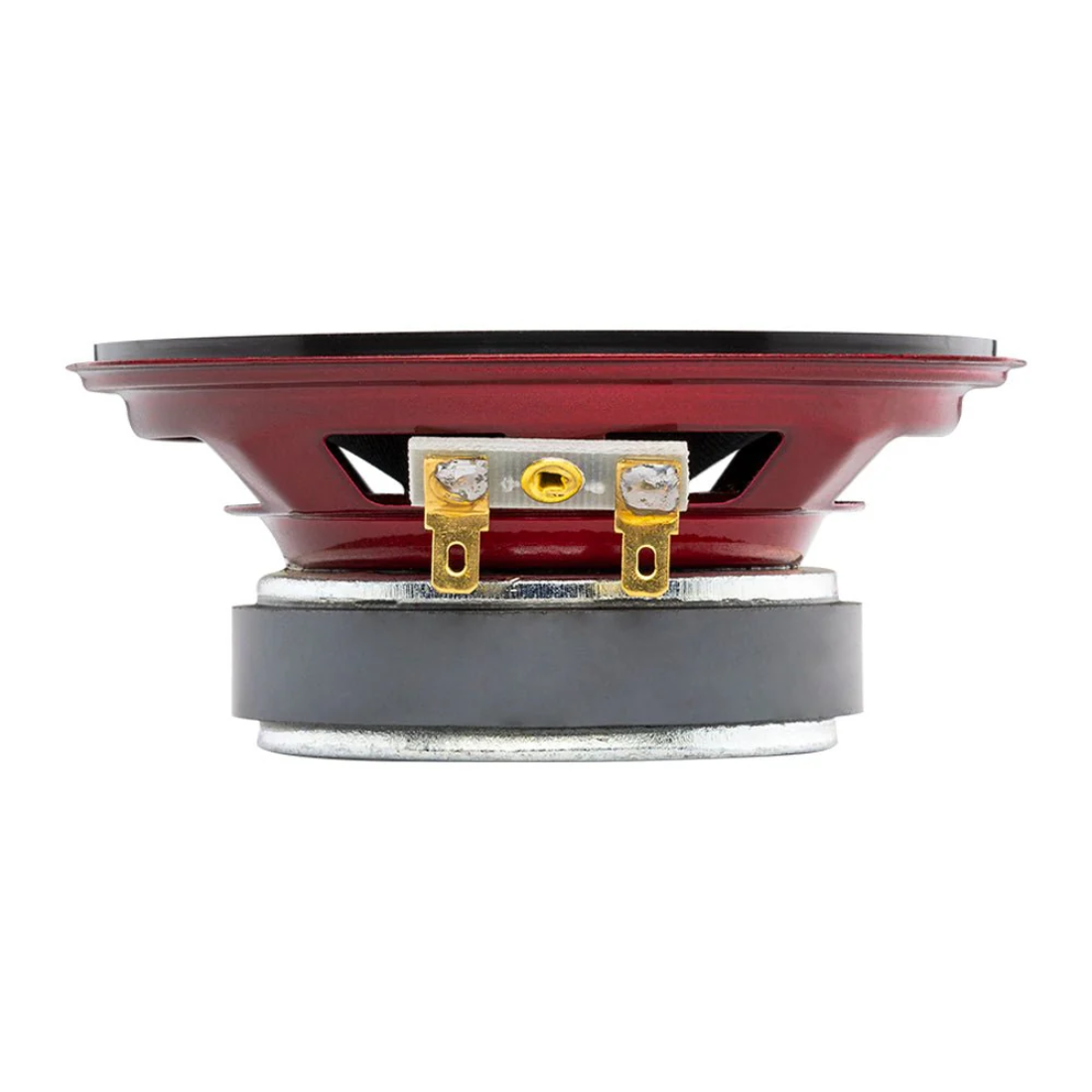

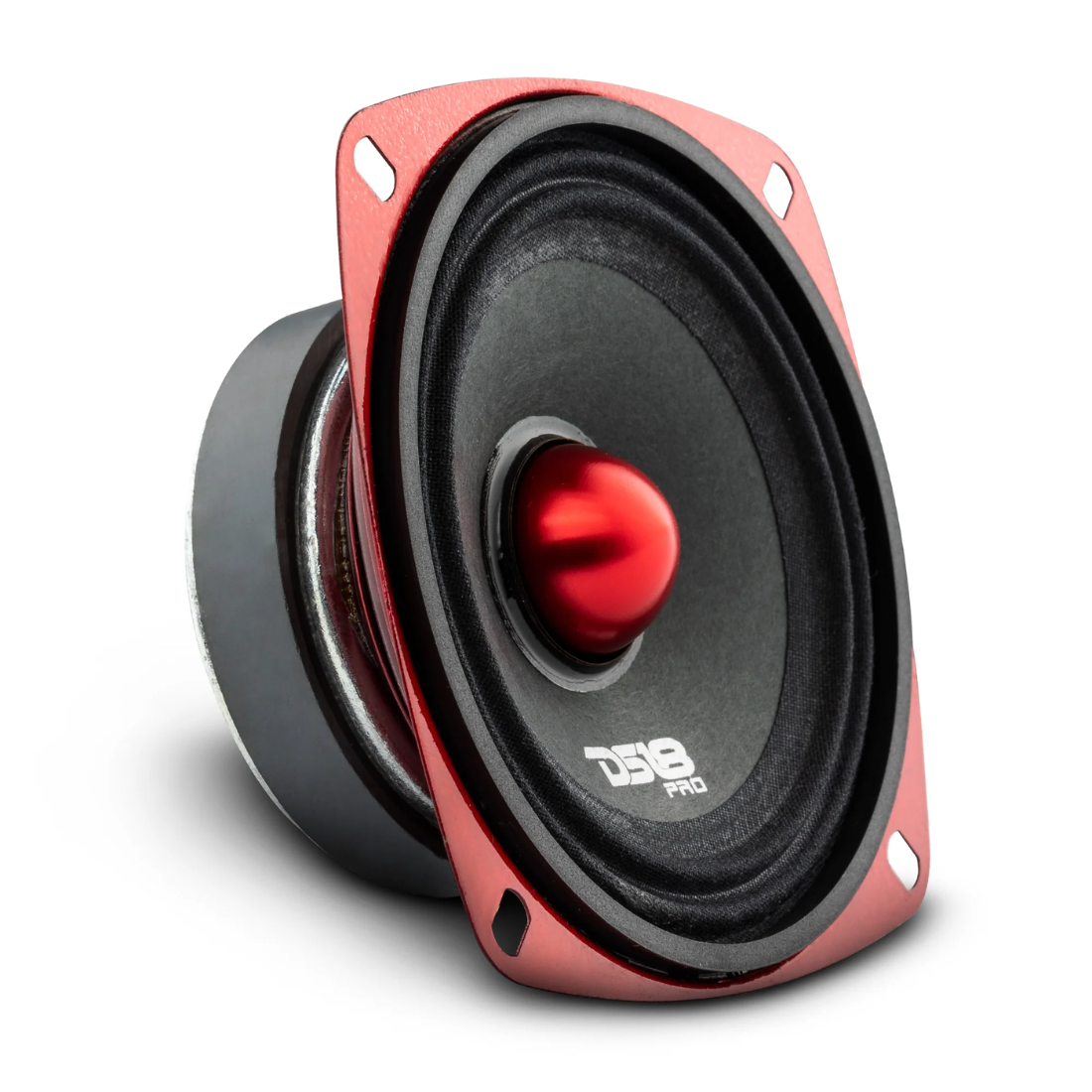

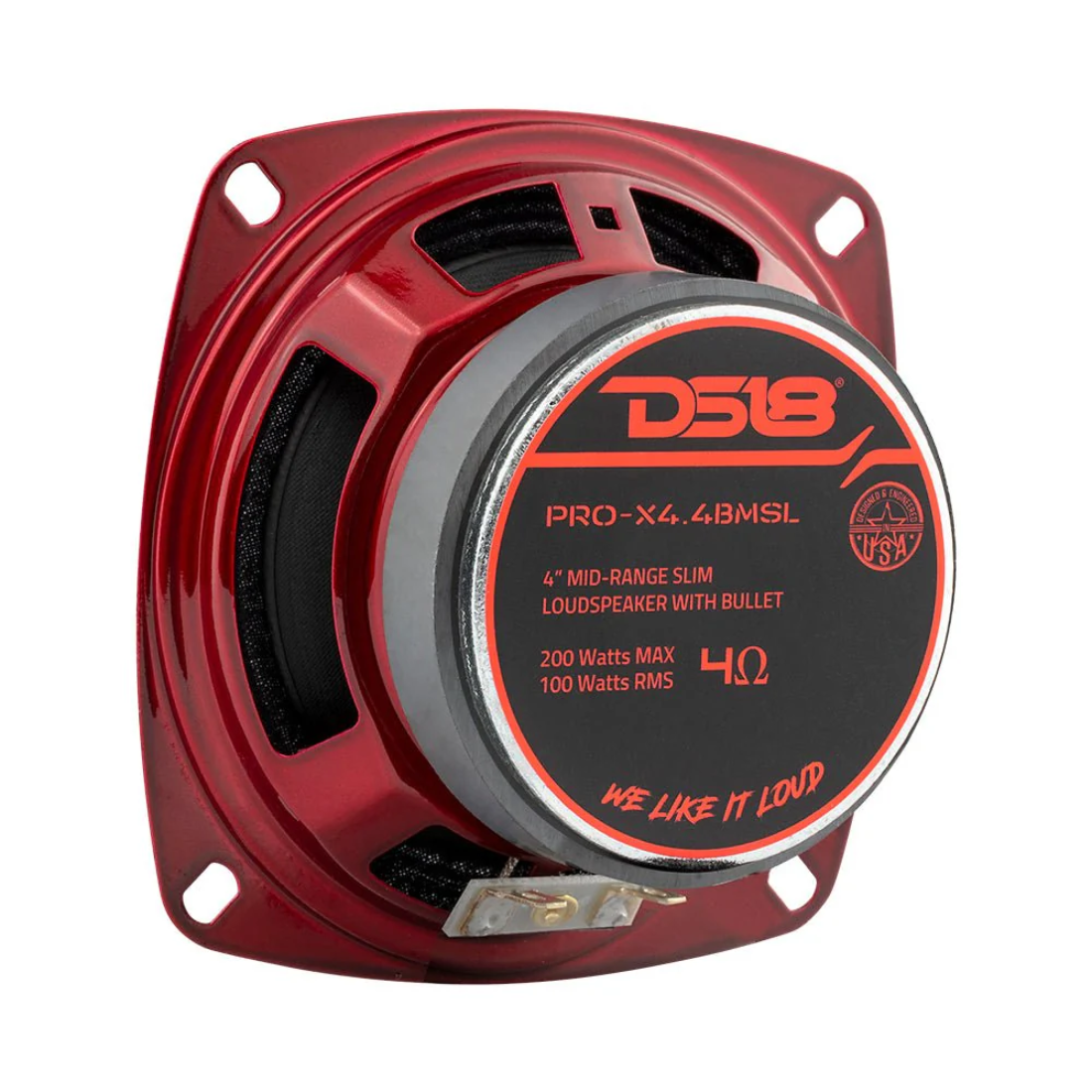

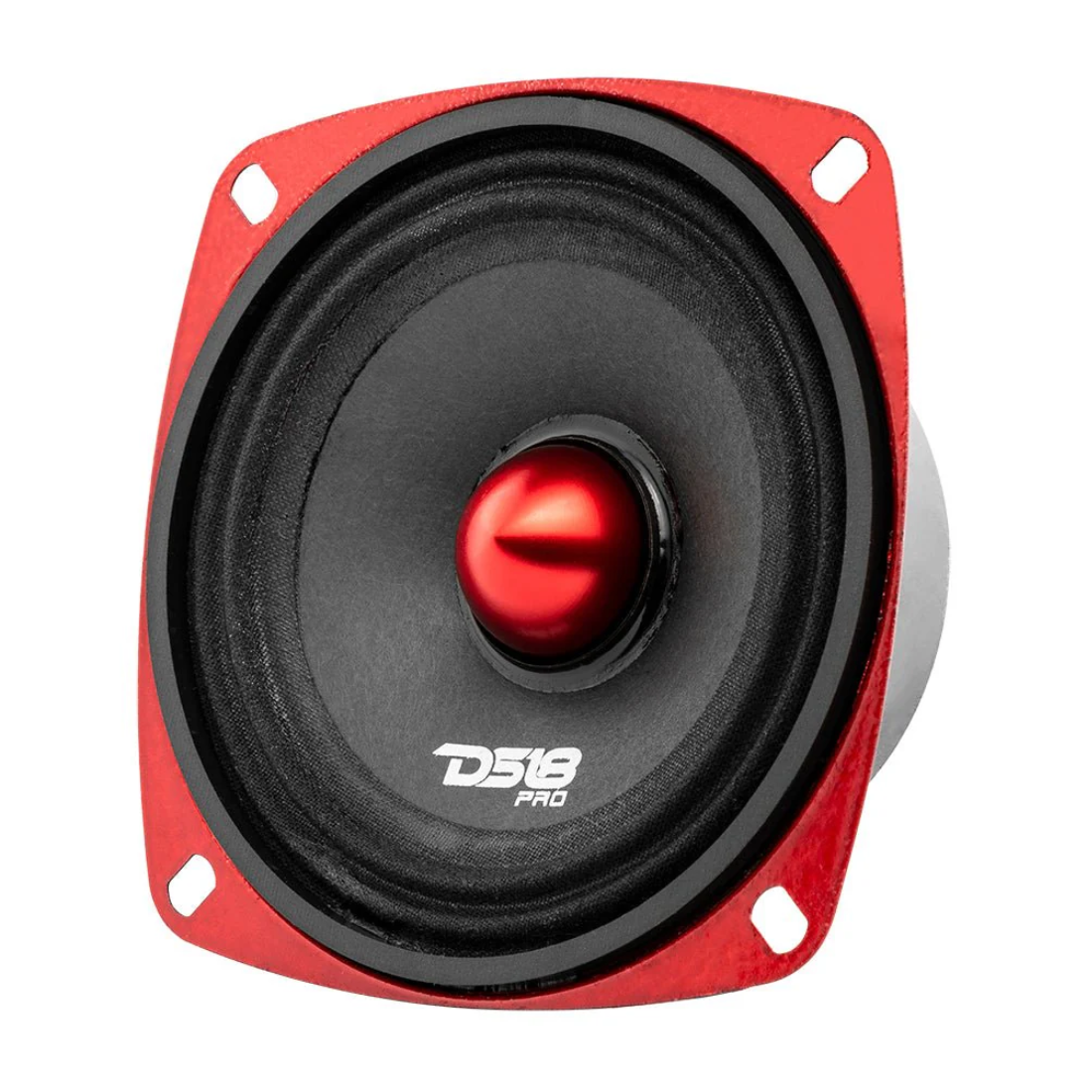

DS18 PRO-X4.4BMSL 4" 200W Max 4-Ohm Shallow Midrange Bullet Loudspeaker (Single)

Name: DS18 PRO-X4.4BMSL 4" 200W Max 4-Ohm Shallow Midrange Bullet Loudspeaker (Single)
Brand: DS18
SKU: PRO-X4.4BMSL
Price: 39.95 USD
Availability: InStock

$39.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 PRO-X4.4BMSL

4-inch 200 Watts Max 4-Ohm Shallow Midrange Bullet Loudspeaker (Single)

Key Features:

4" Shallow Mid-Range w/Bullet
MAX Power: 200 Watts
RMS Power: 100 Watts
Impedance: 4-Ohm
Ferrite Magnet
89dB
Sold In: Single

General Specs:

SKU: PRO-X4.4BMSL
Nominal Diameter: 4" / 101.6mm
Nominal Impedance: 4 OHMS
RMS Power Handing: 100 Watts
Maximum Power Handing: 200 Watts
Sensitivity (1w/1m): 89dB
Frequency Response: 260Hz -11.5KHz
Recommended Hi Pass Crossover: 280Hz
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 6 Oz

Thiele & Small Parameters:

Vas: 0.567L / 0.02ft3
Xmax: 5.8mm
Fs: 251Hz
Qms: 3.307
Qes: 3.044
Qts: 1.585
Re: 3.2ohms

Measurements:

Overall Diameter: 4.11" / 104.5mm
Front Mount Baffle Cutout: 4" / 102.3mm
Mounting Depth: 1.63" / 41.4mm
Overall Depth: 1.74" / 44.3mm
Product Weight: 1 lb
Product Dimensions: 4.5 x 4.5 x 2.25
