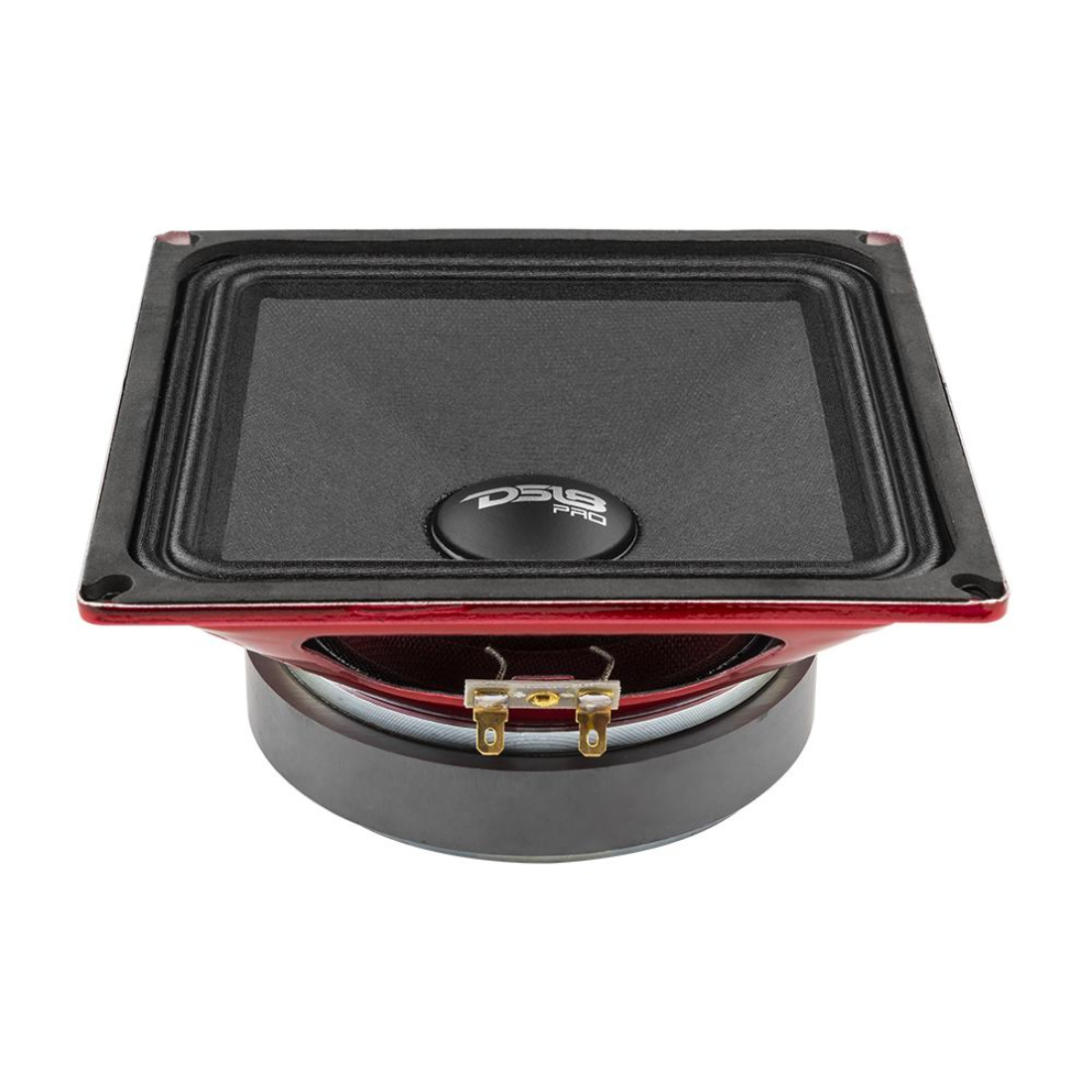

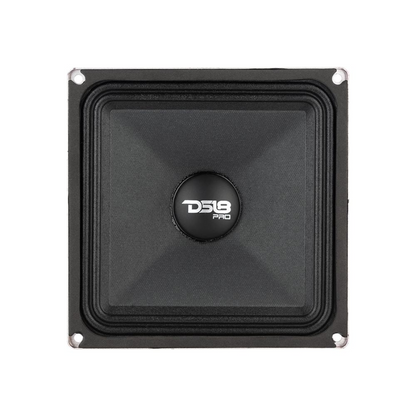

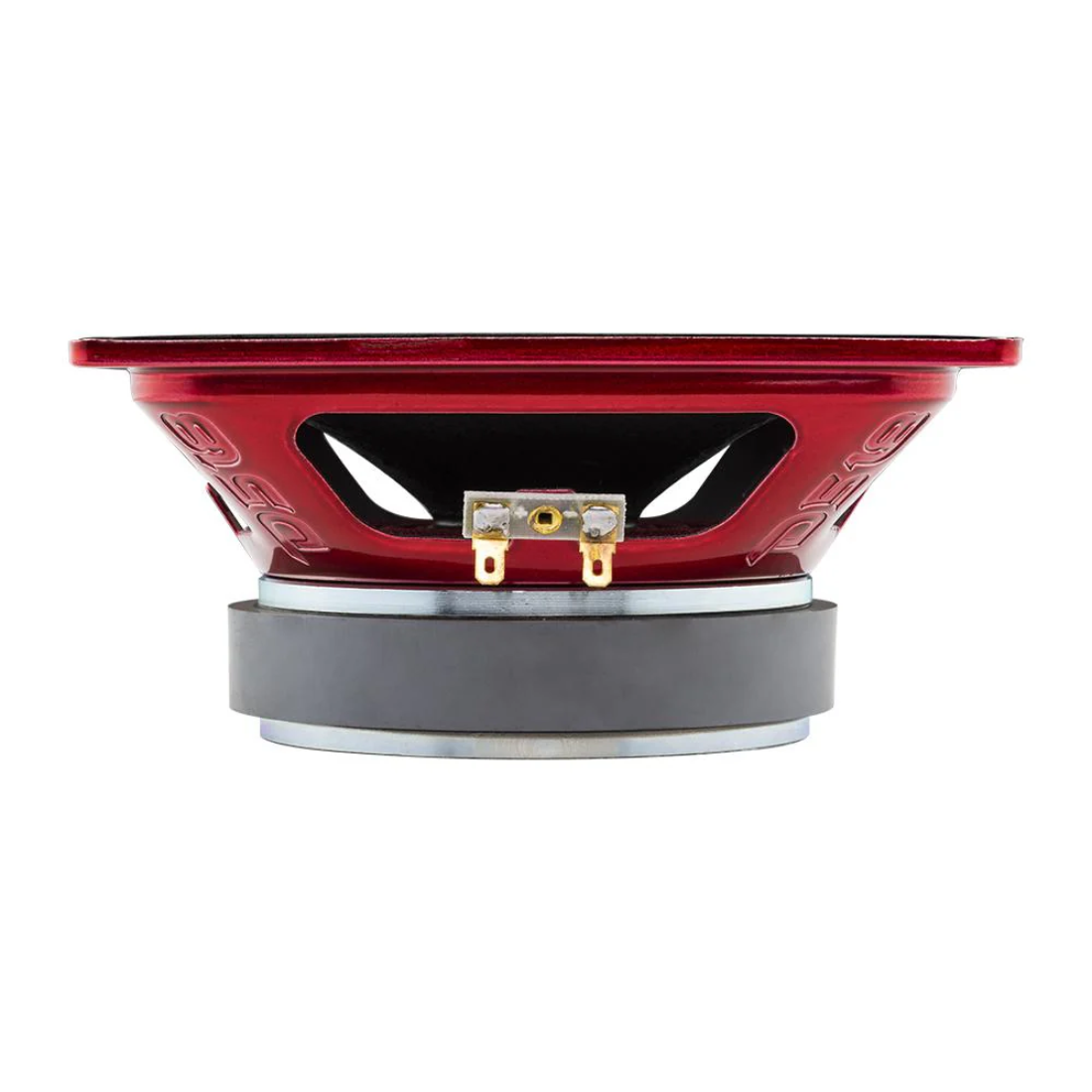

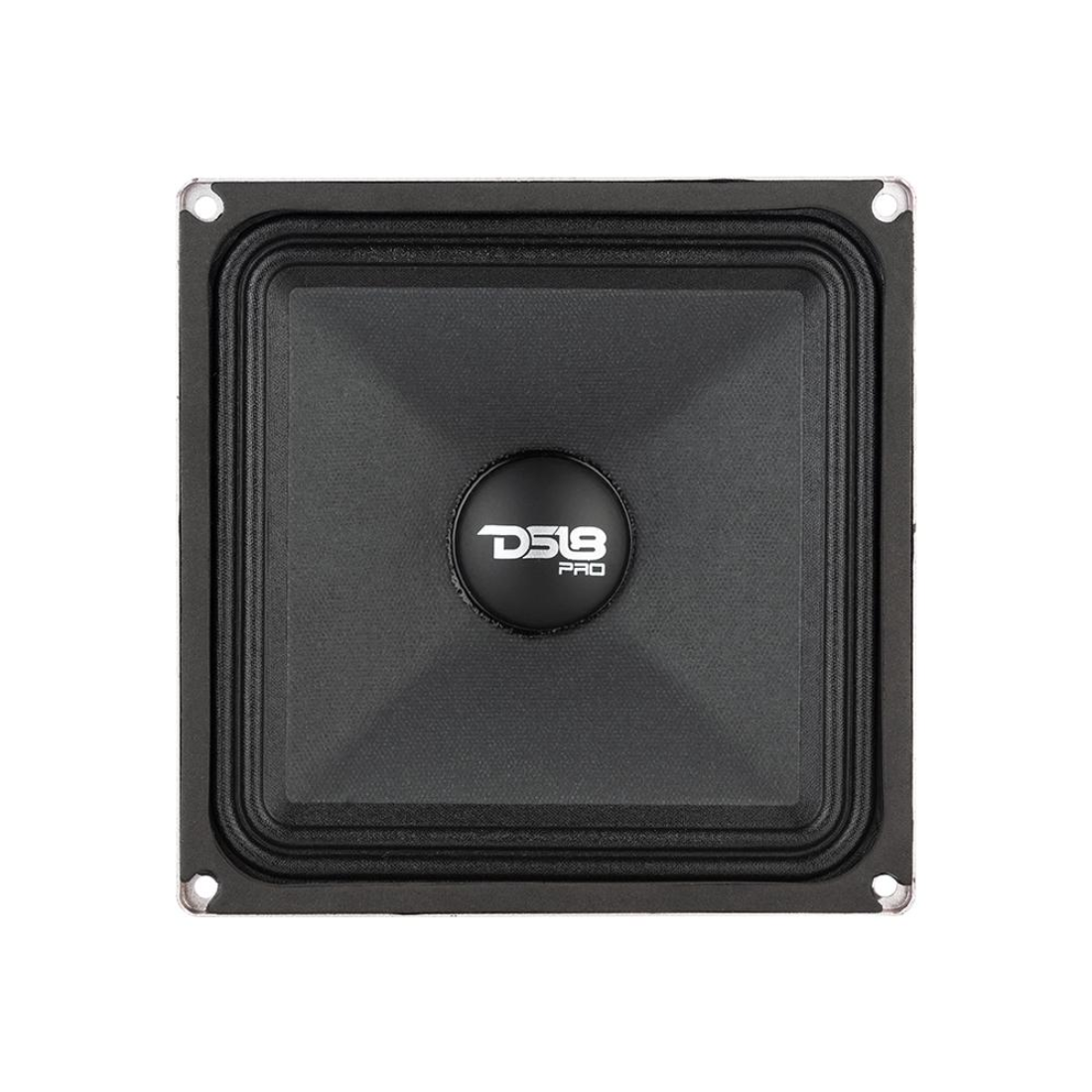

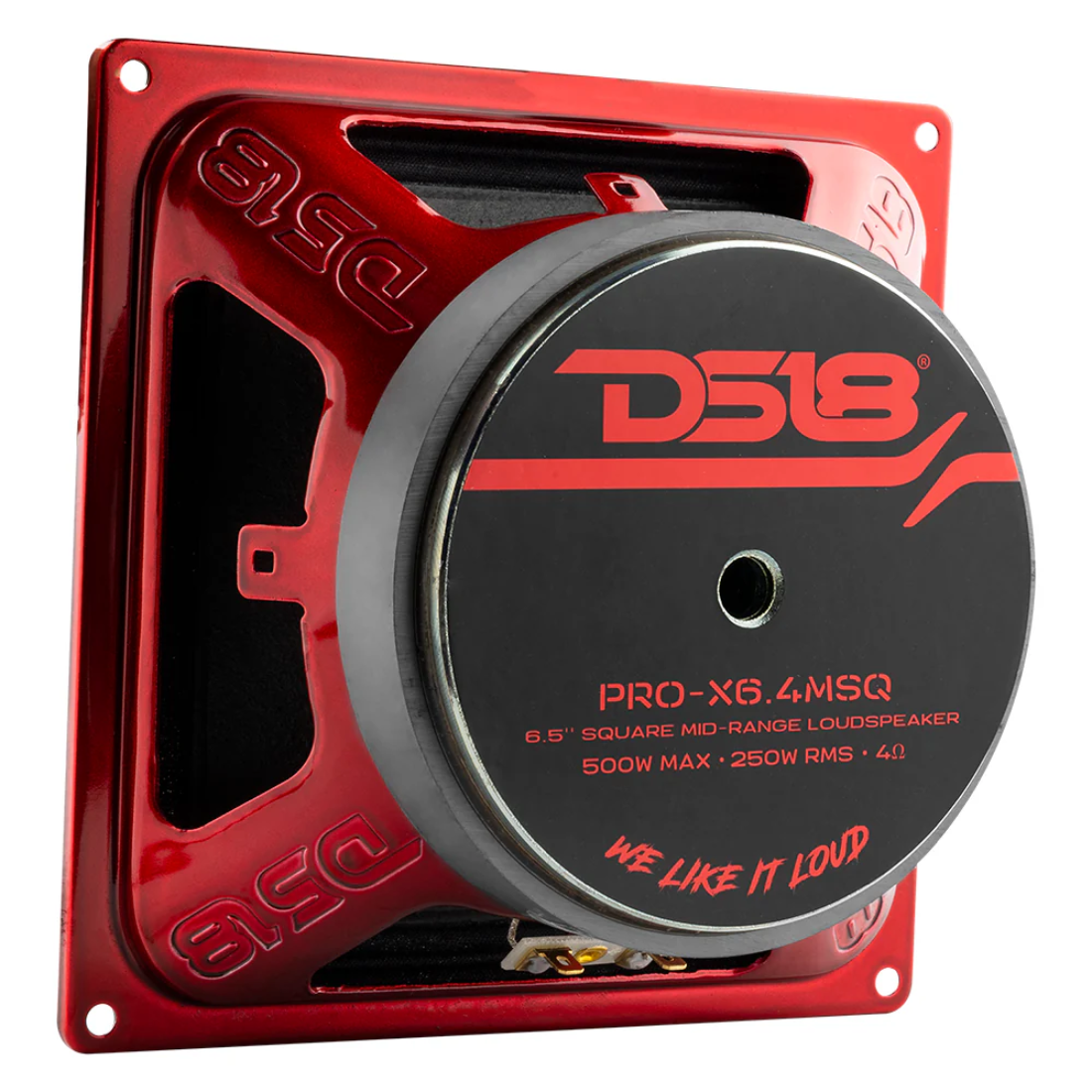

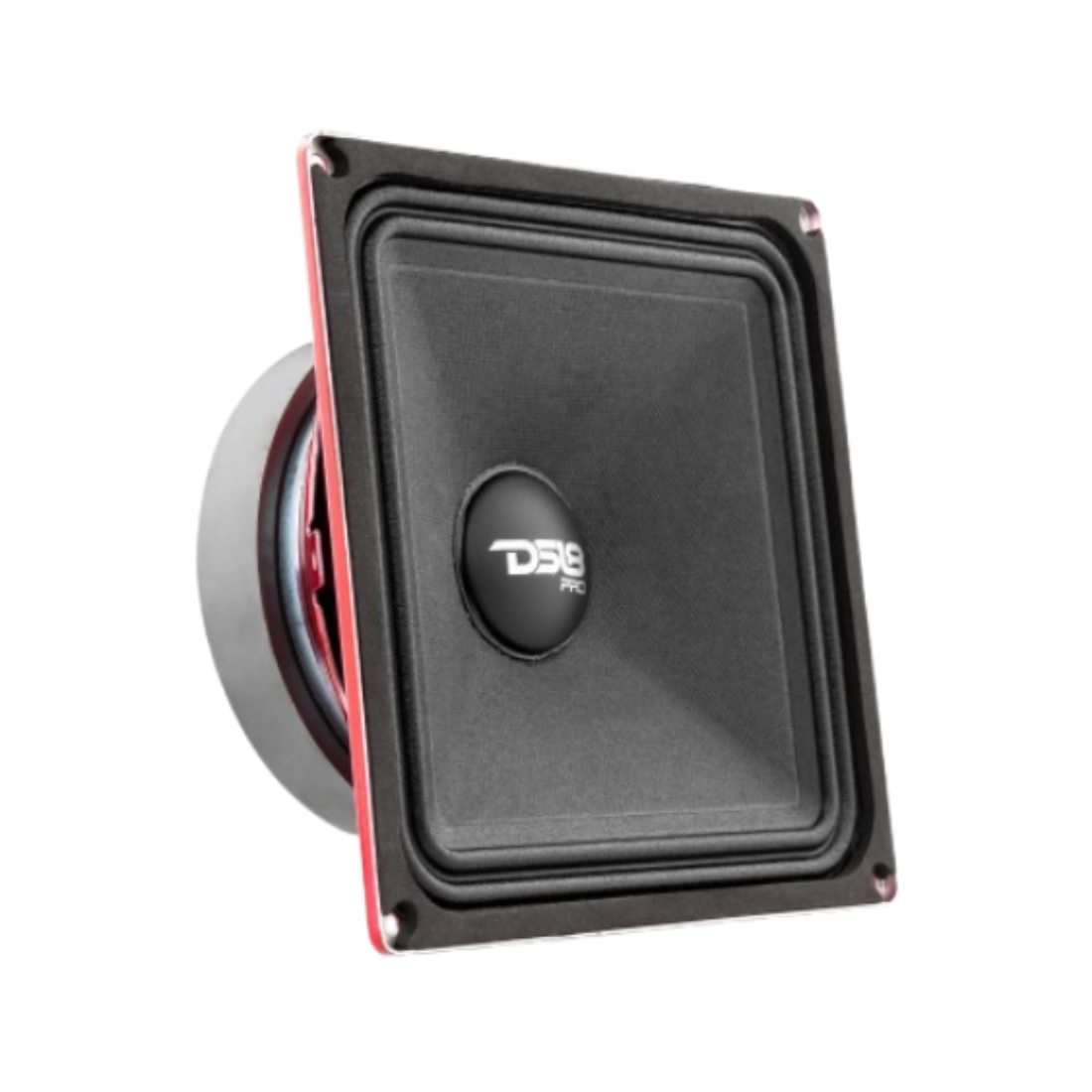

DS18 PRO-X6.4MSQ 6.5" 500W Max 4-Ohm Square Midrange Car Loudspeaker (Single)

Name: DS18 PRO-X6.4MSQ 6.5" 500W Max 4-Ohm Square Midrange Car Loudspeaker (Single)
Brand: DS18
SKU: PRO-X6.4MSQ
Price: 59.95 USD
Availability: InStock

$59.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 PRO-X6.4MSQ

6.5-inch 500 Watts Max 4-Ohm Square Midrange Car Loudspeaker (Single)

Key Features:

6.5" x 6.5" Square Mid-Range
MAX Power: 500 Watts
RMS Power: 250 Watts
Impedance: 4-Ohm
Ferrite Magnet
95dB

Specifications:

SKU: PRO-X6.4MSQ
Nominal Diameter: 6.5" Square
Nominal Impedance: 4 ohms
RMS Power Handling: 250w
MAX Power Handling: 500w
Sensitivity (1w/1m): 95dB
Frequency Response: 80Hz-16.5KHz
Recommended HI Pass Crossover: 120 Hz
Pair or Single: Single
Grill Included: No

Motor Specs:

Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Bullet Material: N/A
Surround Material: Cloth
Basket Material: Steel
Basket Color/Finish: Glossy Red
Magnet Material: Ferrite
Magnet Weight: 30 Oz
Displacement Volume: 0.32L / 0.0113ft3

Thiele & Small Parameters:

Equivalent Volume (Vas): 7.613L / 0.268ft3
Excursion (one way) (Xmax): 8.2mm
Free Air Resonance (Fs): 120Hz
Mechanical Factor (Qms): 8.184
Electrical Factor (Qes): 1.053
Total Factor (Qts): 0.933
Mechanical Mass (Mms): 12.575g
Mechanical Compliance (Cms): 0.14 mm/N
BL Factor (BL): 5.536
Voice Coil Inductance (Le): 4.22mH
Cone Area (Sd): 132.73 cm2
CD Resistance (Re): 5.2 ohms
Mechanical Mass w/o air (Mmd): 196.2g

Measurement:

Overall Diameter: 6.61" X 6.61" / 168 X 168mm
Overall Depth: 3.11" / 79mm
Front Mount Baffle Cutout: 6.02" X 6.02" / 153 x 153mm
Mounting Depth: 2.87" / 73mm
Motor Diameter: 4.72" / 120mm
Gross Single Unit Weight (lb): 5
